Valentini 'VE' Series Stone, Vegetation & Residue Buriers, Inverters, Seed Bed Preparators
Multi-Purpose Functionality: Shop Convertible From Burier To Rotary Tiller
'ALL GEAR SIDE DRIVE' In Oil Bath Gear Box! NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!
VE4000DT 13'-6" Burier with Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Adjustment!
FOR 70-200HP TRACTORS
As with ALL Valentini Buriers, the 'VE' Series is Quick-Hitch Compatible, and has been Providing Excellent Residue Burying & Surface Inversion while Achieving Superior Seed Bed Preparation & Finish Grading Results in All Types of Soils & Soil Conditions. In the sample video (below), whether it’s the Large, Deeply Packed Gravel, or the Thick Stand of Canary Grass, the Burying Results are Obvious, and this Excellent Performance is Achieved with the Efficiency of One Pass! Along with Bullet Proof Reliability, Several Options are Available to Enhance the One Pass Efficiency of the Valentini Buriers! For Ag Applications: Bed Formers/Elevated Bed Shapers, and a Variety of Rear Rollers are Available to Contribute to the One Pass Efficiency! For Grading Applications: a Variety of Rear Rollers are available, Providing Features from Working Depth Control, to Surface Compaction & Finishing/Conditioning, to Rollers for Wet/Muddy Soil Conditions.
STANDARD FEATURES:
Quick Hitch Compatible, Cat 2/3, 3-Point Hitch.
540/1000RPM Large Sump Gearbox.
Cam Clutch Protected PTO Shaft on Double Transmission Models:
It Doesn’t Get Any Better than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing, & Resetting, After Locked Rotor Conditions.
6 Blades Per Flange:
Includes Counter Flange Kit To Minimize Blade Breakage in Rocky & Hard Ground!
Round & Slotted Top Link Holes.
Oil Bath Side Gear Drive.

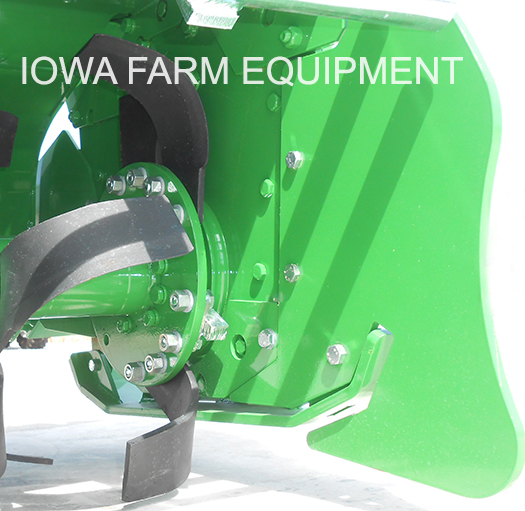

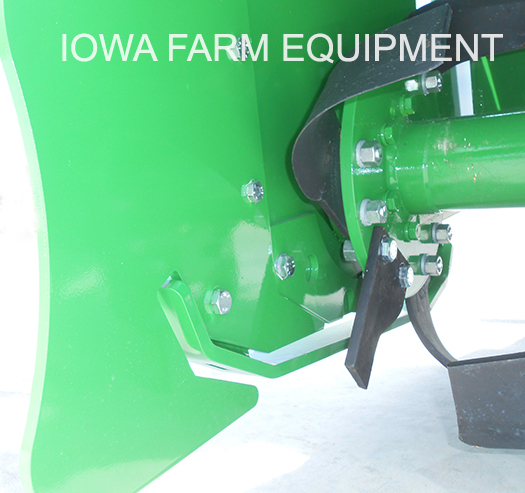

Two Unique Scraper Blades On End Flanges Prevent Vegetation From Wrapping For Bearing Seal Protection.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes For Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Front Safety Guards For Personnel & Equipment Protection.

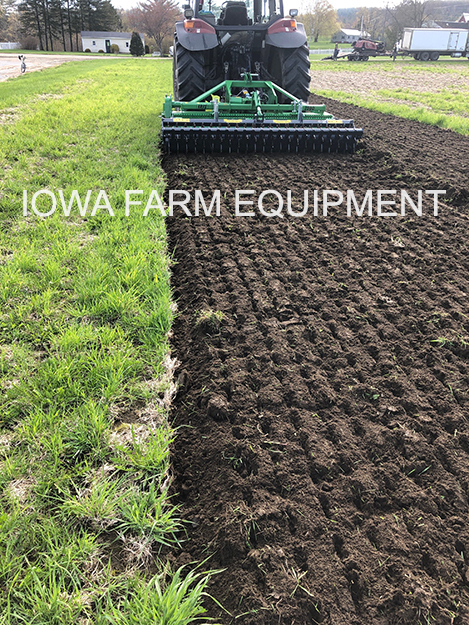

Valentini 'IR' 2000 Burier Inverting & Burying Thick Stands of Cover Crop In an Efficient Single Pass!

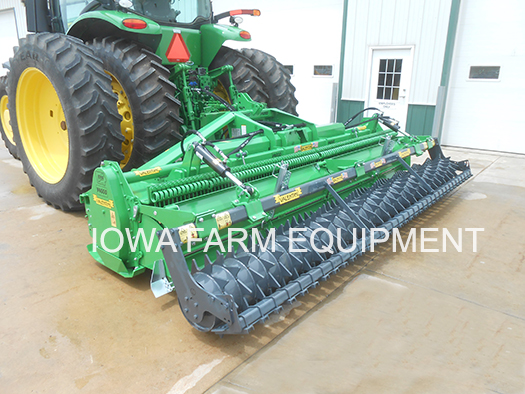

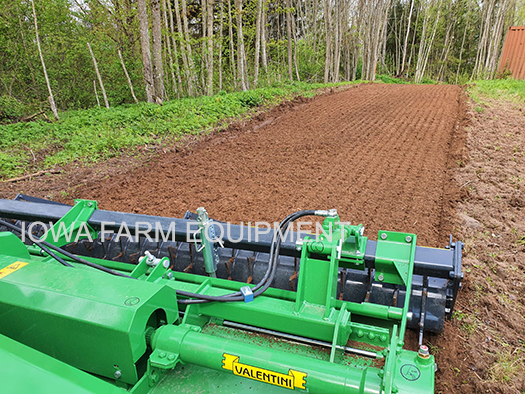

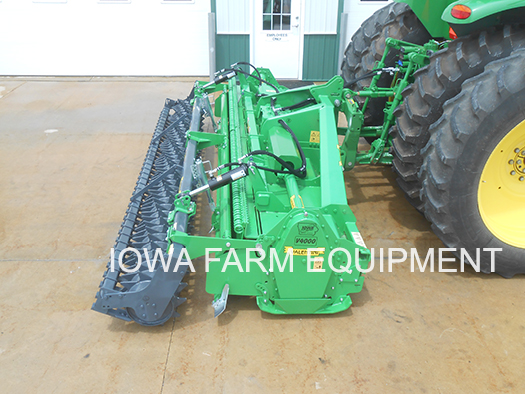

Valentini VE4000DT with Hydraulically Controlled Packer Roller
Valentini VE4000DT with Hydraulically Controlled Packer Roller
Valentini VE4000DT with Hydraulically Controlled Packer Roller
Valentini VE4000DT Burier Producing Beautiful Seed Beds In An Efficient ‘Single Pass’!
Front & Rear Iso Views On Transport with Optional Rippers
QUICK HITCH COMPATIBILITY
Another Standard Feature!
Valentini Burier's Rotor With Counter Flange Kit!
Blade Reinforcing Counter-Flange Kit Is Standard, Minimizing Blade Breakage When Working in the Hardest & Rockiest Ground Conditions, Contributing to the Unique Efficiencies of Valentini Buriers!
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Use the Hydraulic Adjustment Option & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
ACCESSORIES
'VE' SERIES BURIER SPECIFICATIONS
MODEL
VE2000
VE2300
VE2500
VE2800
VE3000DT
VE3300DT
VE3500DT
VE4000DT
Tractor Horsepower (PTO)
70-120HP
80-120HP
90-120HP
100-120HP
120-220HP
130-220HP
150-220HP
160-220HP
Hitch/Hitch Category
CAT 2
CAT 2, 3N, 3
PTO Speed
540RPM
1000RPM
Working Width
7'-0"
7'-9"
8'-6"
9'-4"
10'-2"
11'-0"
11'-10"
13'-6"
Overall Width
7'-7"
8'-4"
9'-2"
10'-0"
11'-6"
12'-4"
13'-2"
14'-10"
Quantity of Blades
48
54
60
66
72
78
84
96
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 5” Dia, Subject To Concentration
Rotor RPM's
239 RPM
230 RPM
Blade Tips RPM's
323 RPM
290 RPM
Weight with Packer Roller
3,120lbs.
3,490lbs.
3,861lbs.
4,233lbs.
4,781lbs.
5,167lbs.
5,557lbs.
6,323lbs.
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
'VE' SERIES BURIER SPECIFICATIONS
MODEL
VE2000
VE2300
VE2500
VE2800
VE3000DT
VE3300DT
VE3500DT
VE4000DT
Tractor Horsepower (PTO)
70-120HP
80-120HP
90-120HP
100-120HP
120-220HP
130-220HP
150-220HP
160-220HP
Hitch/Hitch Category
CAT 2
CAT 2, 3N, 3
PTO Speed
540RPM
1000RPM
Working Width
7'-0"
7'-9"
8'-6"
9'-4"
10'-2"
11'-0"
11'-10"
13'-6"
Overall Width
7'-7"
8'-4"
9'-2"
10'-0"
11'-6"
12'-4"
13'-2"
14'-10"
Quantity of Blades
48
54
60
66
72
78
84
96
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 5” Dia, Subject To Concentration
Rotor RPM's
239 RPM
230 RPM
Blade Tips RPM's
323 RPM
290 RPM
Weight with Packer Roller
3,120lbs.
3,490lbs.
3,861lbs.
4,233lbs.
4,781lbs.
5,167lbs.
5,557lbs.
6,323lbs.
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
