Valentini 'VP' Series Stone, Vegetation & Residue Buriers, Inverters, Seed Bed Preparators
Multi-Purpose Functionality: Shop Convertible From Burier To Rotary Tiller
'ALL GEAR SIDE DRIVE' In Oil Bath Gear Box! NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!

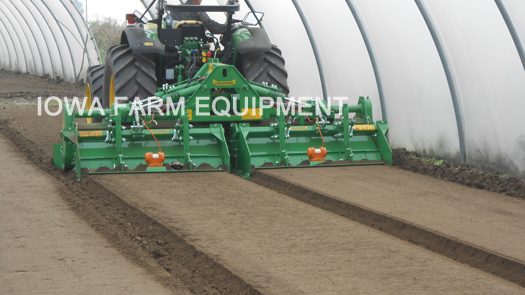

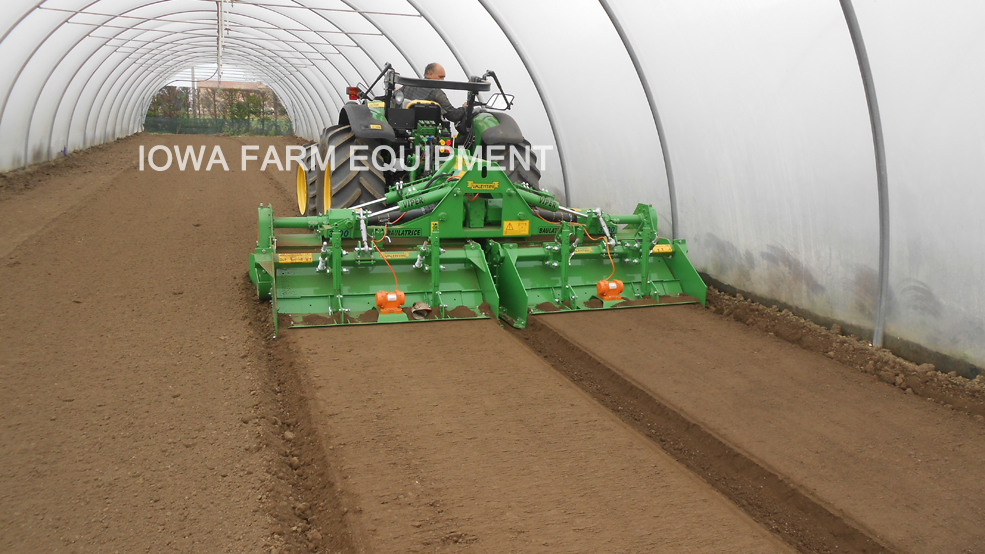

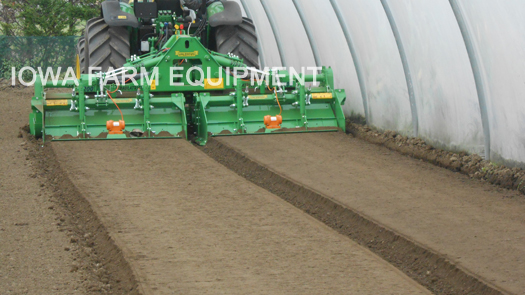

'VP' 3200 Burier with Optional Elevated Bed Shaper
FOR 100-180HP TRACTORS
As with ALL Valentini Buriers, the 'VP' Series is Quick-Hitch Compatible, and has been Providing Excellent Residue Burying & Surface Inversion while Achieving Superior Seed Bed Preparation & Finish Grading Results in All Types of Soils & Soil Conditions. In the sample video (below), whether it’s the Large, Deeply Packed Gravel, or the Thick Stand of Canary Grass, the Burying Results are Obvious, and this Excellent Performance is Achieved with the Efficiency of One Pass! Along with Bullet Proof Reliability, Several Options are Available to Enhance the One Pass Efficiency of the Valentini Buriers! For Ag Applications: Bed Formers/Elevated Bed Shapers, and a Variety of Rear Rollers are Available to Contribute to the One Pass Efficiency! For Grading Applications: a Variety of Rear Rollers are available, Providing Features from Working Depth Control, to Surface Compaction & Finishing/Conditioning, to Rollers for Wet/Muddy Soil Conditions.
STANDARD FEATURES:
Quick Hitch Compatible, Cat 2/3, 3-Point Hitch.
1000RPM Large Sump Gearbox.
Cam Clutch Protected PTO Shaft on Double Transmission Models:
It Doesn’t Get Any Better than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing, & Resetting, After Locked Rotor Conditions.
Each Wing Has Actual Drivelines Which Are Also Cam Clutch Protected – These Are Actual PTO Shafts, Not Just Mechanical Links!
6 Blades Per Flange:
Includes Counter Flange Kit To Minimize Blade Breakage in Rocky & Hard Ground!
Round & Slotted Top Link Holes.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades On End Flanges Prevent Vegetation From Wrapping For Bearing Seal Protection.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes For Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Front Safety Guards For Personnel & Equipment Protection.

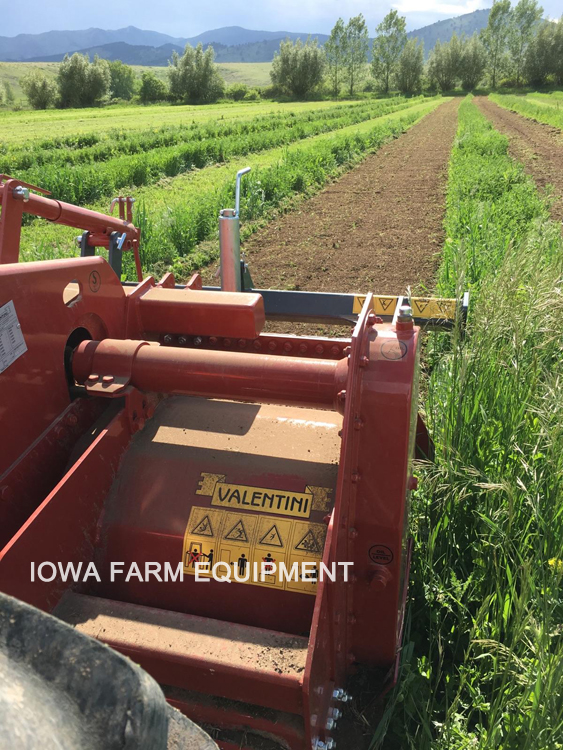

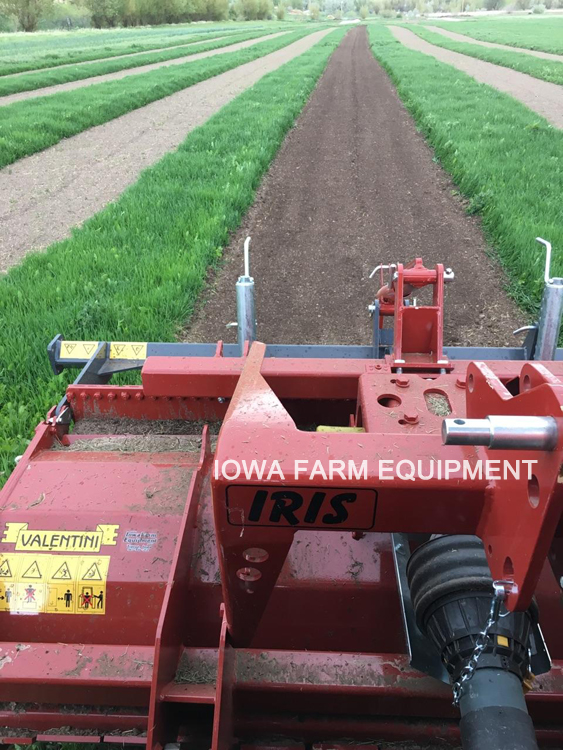

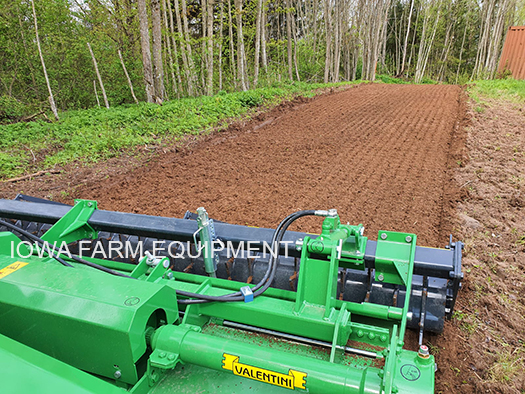

Valentini Burier Inverting Sod & Crop Residue For A Beautiful Seed Bed In One Pass!
'IR' 2000 Burier with Mesh Roller Inverting & Burying Thick Stands of Cover Crop
Front & Rear Iso Views On Transport with Optional Rippers
QUICK HITCH COMPATIBILITY
Another Standard Feature!

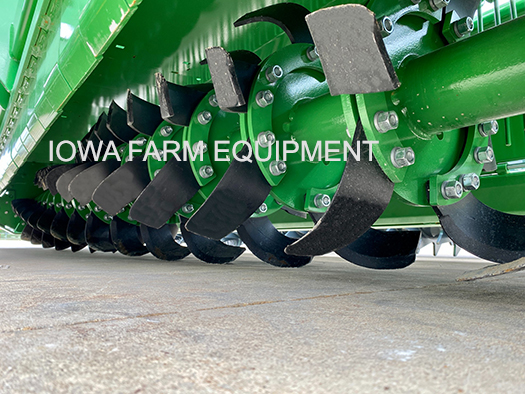

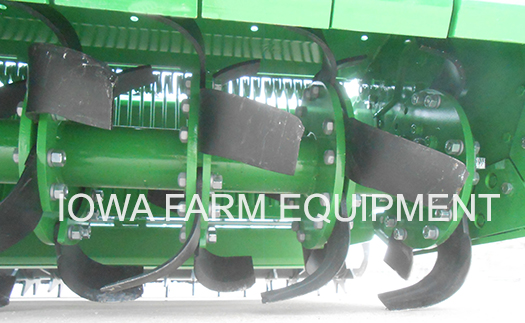

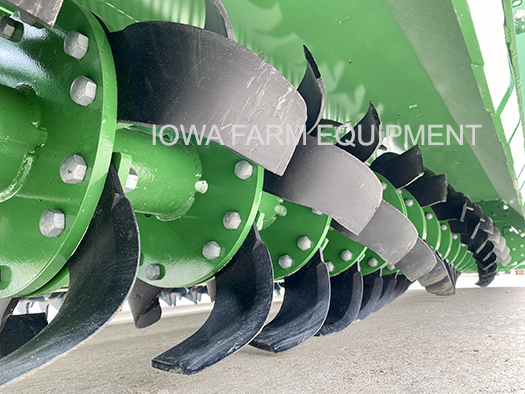

Valentini Burier's Rotor With Counter Flange Kit!
Counter Flange Kit Reduces Blade Breakage In The Hardest & Rockiest Ground Conditions, Contributing To The Unique Efficiencies Of Valentini Buriers!
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Use the Hydraulic Adjustment Option & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
ACCESSORIES
'VP' SERIES BURIER SPECIFICATIONS
MODEL
VP3200
VP3700
VP4200
Tractor Horsepower (PTO)
100-180HP
110-180HP
120-180HP
Hitch/Hitch Category
CAT 2, 3N, 3
PTO Speed
1000RPM
Working Width
10'-8"
12'-4"
14'-0"
Overall Width
11'-6"
13'-2"
14'-10"
Quantity of Blades
72
84
96
Working Depth
10"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 4” Dia, Subject To Concentration
Rotor RPM's
229 RPM
Blade Tips RPM's
289 RPM
Weight with Packer Roller
3,744lbs.
4,319lbs.
4,894lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'VP' SERIES BURIER SPECIFICATIONS
MODEL
VP3200
VP3700
VP4200
Tractor Horsepower (PTO)
100-180HP
110-180HP
120-180HP
Hitch/Hitch Category
CAT 2, 3N, 3
PTO Speed
1000RPM
Working Width
10'-8"
12'-4"
14'-0"
Overall Width
11'-6"
13'-2"
14'-10"
Quantity of Blades
72
84
96
Working Depth
10"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 4” Dia, Subject To Concentration
Rotor RPM's
229 RPM
Blade Tips RPM's
289 RPM
Weight with Packer Roller
3,744lbs.
4,319lbs.
4,894lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
