Valentini 'AU' Series Stone, Vegetation & Residue Buriers, Inverters, Seed Bed Preparators
Multi-Purpose Functionality: Shop Convertible From Burier To Rotary Tiller
'ALL GEAR SIDE DRIVE' In Oil Bath Gear Box! NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!
AU4000DT Burier with Standard Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Adjustment!
AU3000 Burier with Hydraulically Adjusted Cage Roller
FOR 140-350HP TRACTORS
As with ALL Valentini Buriers, the 'AU' Series is Quick-Hitch Compatible, and has been Providing Excellent Residue Burying & Surface Inversion while Achieving Superior Seed Bed Preparation & Finish Grading Results in All Types of Soils & Soil Conditions. In the sample video (below), whether it’s the Large, Deeply Packed Gravel, or the Thick Stand of Canary Grass, the Burying Results are Obvious, and this Excellent Performance is Achieved with the Efficiency of One Pass! Along with Bullet Proof Reliability, Several Options are Available to Enhance the One Pass Efficiency of the Valentini Buriers! For Ag Applications: Bed Formers/Elevated Bed Shapers, and a Variety of Rear Rollers are Available to Contribute to the One Pass Efficiency! For Grading Applications: a Variety of Rear Rollers are available, Providing Features from Working Depth Control, to Surface Compaction & Finishing/Conditioning, to Rollers for Wet/Muddy Soil Conditions.
STANDARD FEATURES:
Quick Hitch Compatible, Cat 2/3, 3-Point Hitch.
1000RPM Large Sump Gearbox.
Cam Clutch Protected PTO Shaft on Double Transmission Models:
It Doesn’t Get Any Better than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
6 Blades Per Flange:
Includes Counter Flange Kit To Minimize Blade Breakage in Rocky & Hard Ground!
Hydraulic Roller Adjustment Kit!
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
Round & Slotted Top Link Holes.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades On End Flanges Prevent Vegetation From Wrapping For Bearing Seal Protection.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Front Safety Guards For Personnel & Equipment Protection.

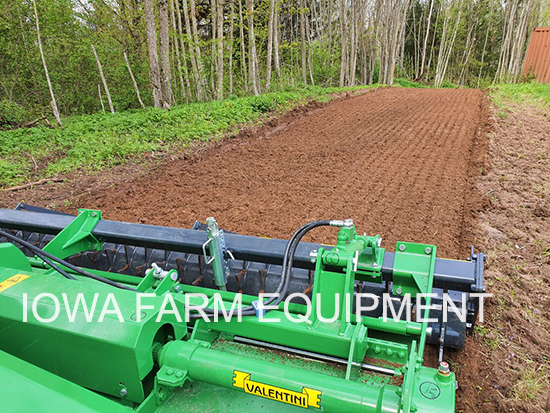

Valentini Burier Inverting Sod & Crop Residue For A Beautiful Seed Bed in One Pass!
'IR' 2000 Burier with Mesh Roller Inverting & Burying Thick Stands of Cover Crop

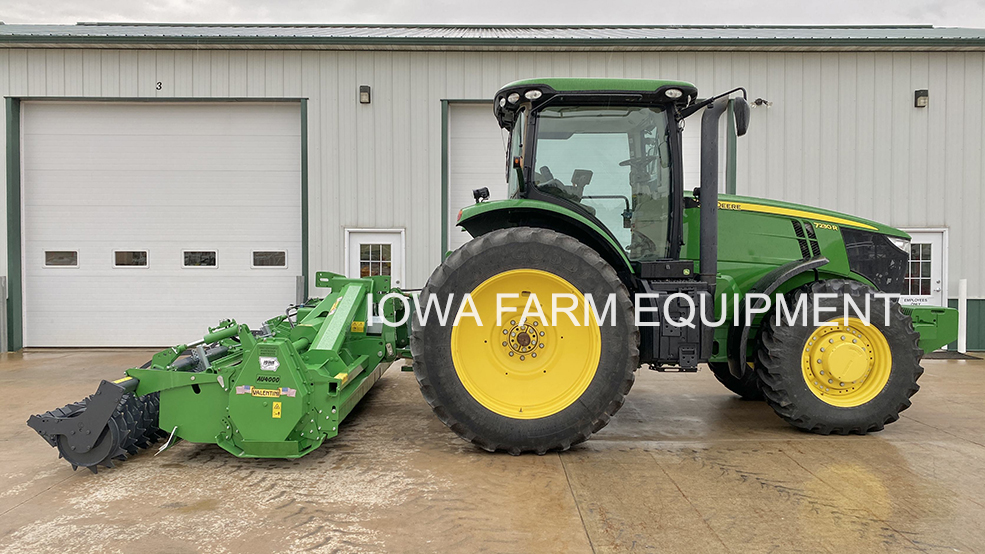

Side View of Valentini AU4000DT Burier Tiller on a Deere 7230R

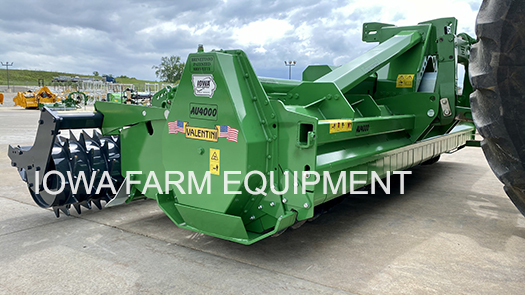

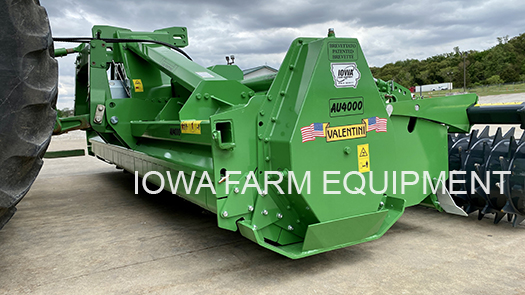

Valentini AU4000DT Stone Burier Tiller

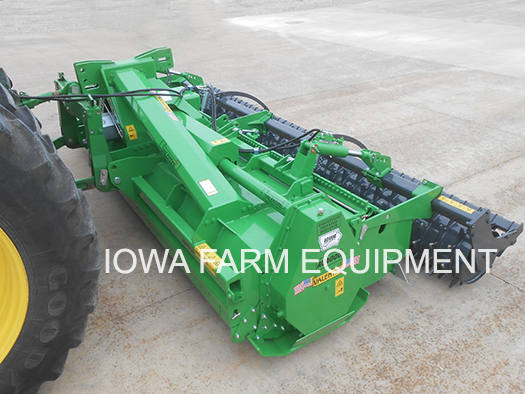

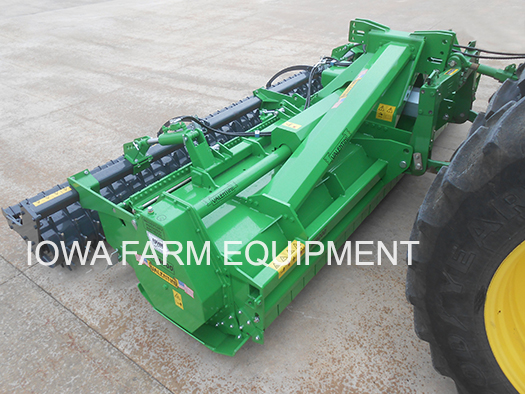

Valentini AU4000DT Burier Tiller Attached with the Convenience of a Quick Hitch!
Valentini AU4000DT Burier Tiller Attached with the Convenience of a Quick Hitch!

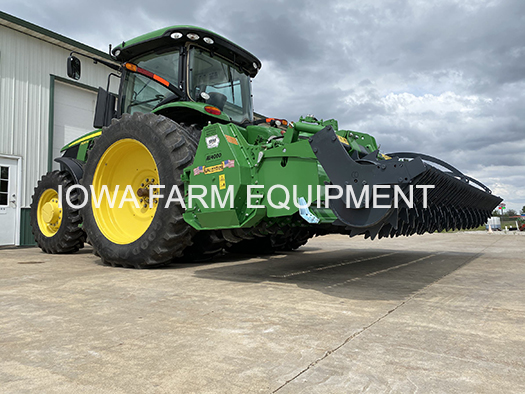

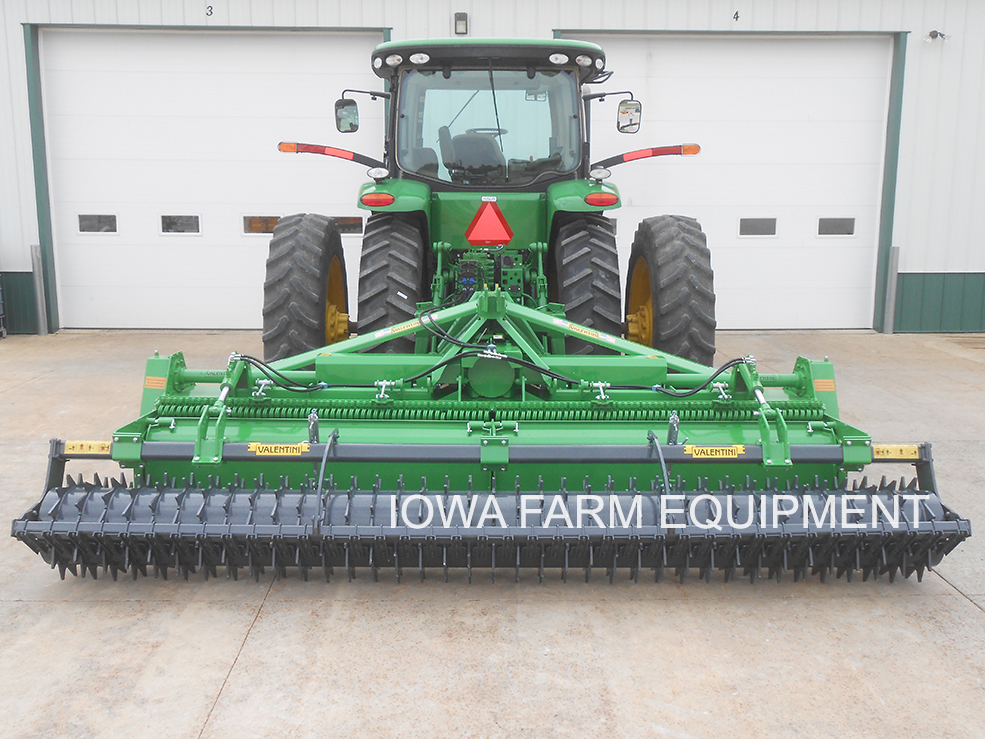

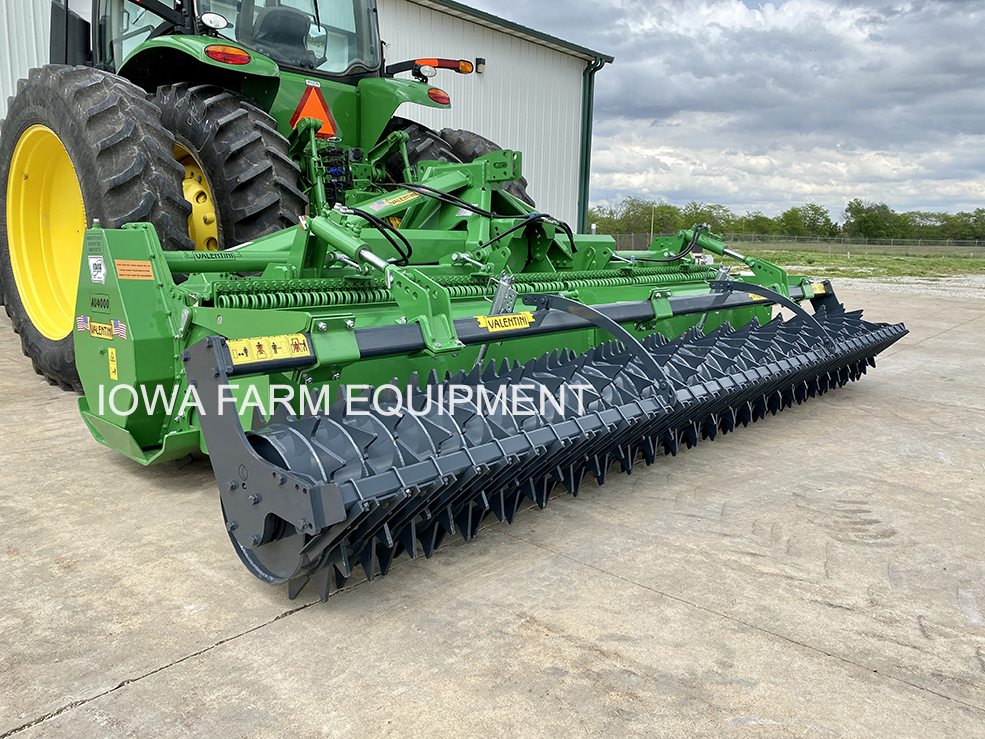

Valentini AU4000DT Burier Tiller with Standard Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Adjustment! Rear Gate Open/Close Positioning Follows The Rear Roller Working Depth Adjustment via Multi-Positionable Linking Brackets.
Front & Rear Iso Views On Transport with Optional Rippers

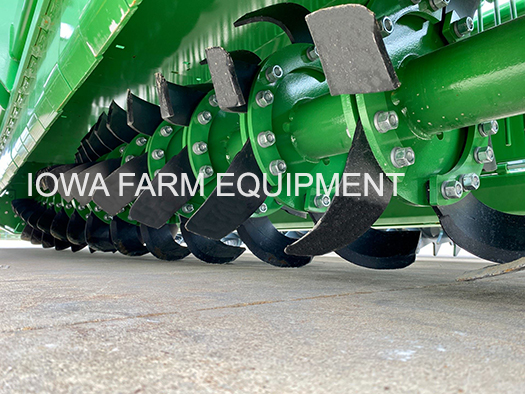

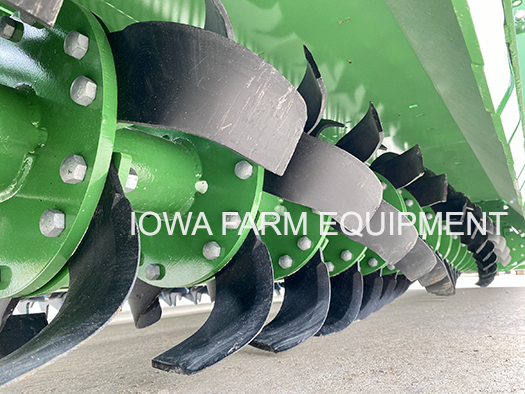

Valentini AU4000DT Burier’s Rotor With Counter Flange Kit! Blade Reinforcing Counter-Flange Kit Is Standard, Minimizing Blade Breakage When Working in the Hardest & Rockiest Ground Conditions, Contributing to the Unique Efficiencies of Valentini Buriers!
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Use the Hydraulic Adjustment Option & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
ACCESSORIES
'AU' SERIES BURIER SPECIFICATIONS
MODEL
AU2800
AU3000
AU3500DT
AU4000DT
AU4500DT
AU5000DT
Tractor Horsepower (PTO)
140-220HP
160-220HP
180-350HP
200-350HP
240-350HP
260-350HP
Hitch/Hitch Category
CAT 2, 3N
CAT 3N, 3
PTO Speed
1000RPM
Working Width
9'-4"
10'-2"
11'-10"
13'-6"
15'-2"
16'-10"
Overall Width
10'-0"
10'-10"
13-2"
14'-10"
16'-5"
18'-1"
Quantity of Blades
66
72
84
96
108
120
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 5”-6" Dia, Subject To Concentration
Rotor RPM's
245 RPM
Blade Tips RPM's
306 RPM
Weight with Packer Roller
5,398lbs.
5,890lbs.
6,712lbs.
7,700lbs.
8,701lbs.
9,696lbs.
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
'AU' SERIES BURIER SPECIFICATIONS
MODEL
AU2800
AU3000
AU3500DT
AU4000DT
AU4500DT
AU5000DT
Tractor Horsepower (PTO)
140-220HP
160-220HP
180-350HP
200-350HP
240-350HP
260-350HP
Hitch/Hitch Category
CAT 2, 3N
CAT 3N, 3
PTO Speed
1000RPM
Working Width
9'-4"
10'-2"
11'-10"
13'-6"
15'-2"
16'-10"
Overall Width
10'-0"
10'-10"
13-2"
14'-10"
16'-5"
18'-1"
Quantity of Blades
66
72
84
96
108
120
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rock & Debris Burying Capacity
Max 5”-6" Dia, Subject To Concentration
Rotor RPM's
245 RPM
Blade Tips RPM's
306 RPM
Weight with Packer Roller
5,398lbs.
5,890lbs.
6,712lbs.
7,700lbs.
8,701lbs.
9,696lbs.
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
