IOWA FARM EQUIPMENT

Valentini Contractor Series Road Grinder & Stabilizer

Chip Seal Road Reclamation & Renovation, Road Base Grinder & Rejuvenator,
Asphalt Millings Pulverizer, Soil Shredder, Soil Stabilizer

2500 Contractors Series Road Reclaimer

Valentini Contractors Series ‘Asphalt & Chip Seal’ Road Reclaimer Grinder
Valentini’s Unique Contractor Series Grinder Provides New Efficiencies for Rejuvenating Chip Seal Roads & Gravel Road Bases, as Well as Soil Stabilization Activities! The Portability & Convenience of this 3-Point, PTO Powered Design Allows Municipalities & Contractors to Maintain Any Distance or Portion of Roadways Without Introducing Large, Expensive Self-Powered Machines, and Still Achieve Superior, 1-Pass Results! The Efficiencies of the Contractor’s Series Range From its Portability, Convenience & Superior Results to its Quick Change Teeth & its 100% Side Gear Drive (NO drive belts-NO drive chains), Providing Reliability, and a Low Maintenance Life of Ownership, and with its Double Shell Lining, a Long Life! The Contractor Series is Also an Excellent Machine for Breaking Up & Tilling Rock Hard Soils Such As Hard, Dry Southern Clays, or Highly Packed Soils From Heavy Construction Traffic, or Dirt Racing Tracks. The Unique High Speed Rotor with its Spiral Tooth Holder Design Also Contributes to Efficiencies by Reducing the Burden on the Tractor, increasing Ground Speed a Bit & Reducing Fuel Consumption. The Spiral Design Also Provides Excellent Blending Characteristics For Introducing Any Amendments, or Blending Aggregates.

STANDARD EQUIPMENT:

Cat 2/3N/3 Quick Hitch Compatible.
Hydraulically Adjusted Rear Packer Roller (with Mud Scrapers):
- Provides On-The-Fly Working Depth Adjustment.
- Conditioning/Packing of Pulverized Material.
540 or 1000RPM Large Sump Gearbox.
Cam Clutch Protected PTO Shaft!
- It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
- No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
Rear Packer Roller with Hyd. Adj. & Scrapers for:
- Material Conditioning/Packing.
- On-The-Fly Working Depth Adjustment.
Skid Shoes for:
- Side Plate Protection.
Oil Bath 'ALL GEAR SIDE DRIVE'.
- NO Belts, NO Chains!
Single Bolt Quick Change Spiked Blades.
Double Shell Lining.
Floating Pull Arm Hitches.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
- Rear Gates Linked With Rear Roller to Coordinate Raising & Lowering for Automatic Opening & Closing of Rear Gates!
Front & Side Safety Guards for Personnel & Equipment Protection.
Side Ridge Leveler Plates.

Download Contractor Series PDF Brochure

2000 Contractor's Series Road Reclaimer Rejuvenating Chip Seal Roads

Why Recycling and Reclamation?

Your greatest resource is the pavement you’ve already paid for!
Between 80,000,000 and 100,000,000 tons of RAP (Reclaimed Asphalt Pavement)
are milled off US roads each year, creating tremendous stockpiles
of low/no cost, premium raw material.

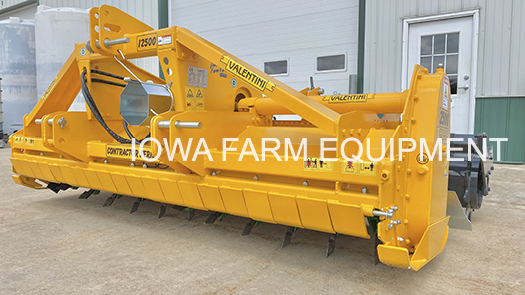

2500 Contractors Series Road Reclaimer

2000 Contractor's Series Road Reclaimer Rejuvenating Chip Seal Roads

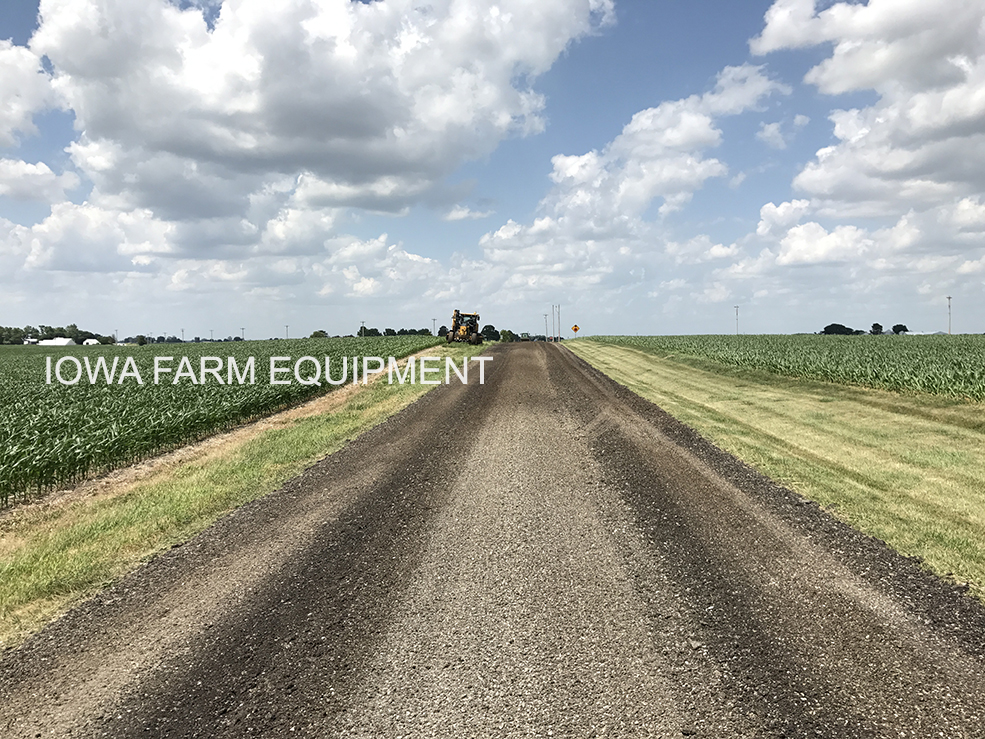

Efficient & Beautiful Chip Seal Renovation Performed By Local Township!
Done On Their Schedule, Done In Their Quantities, Done With Their Equipment,
and Done Much More Economically with Excellent Results!

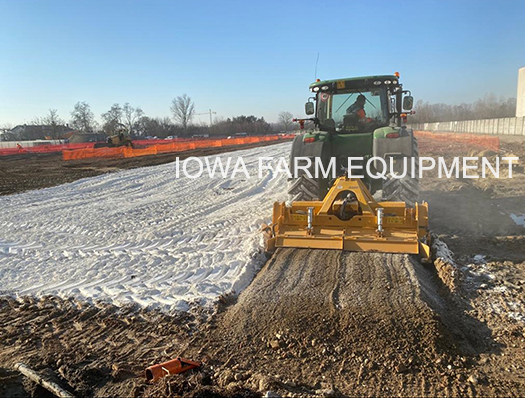

Blending Amendment For Soil Stabilization in a New Parking Lot

10’ Contractor Series 3000 w/Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Control

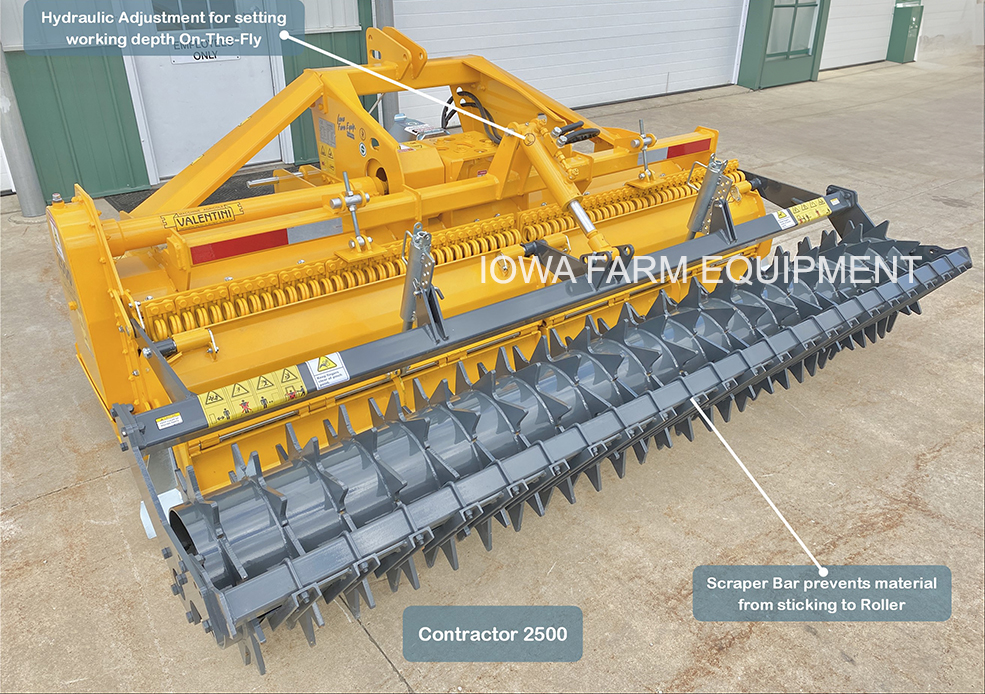

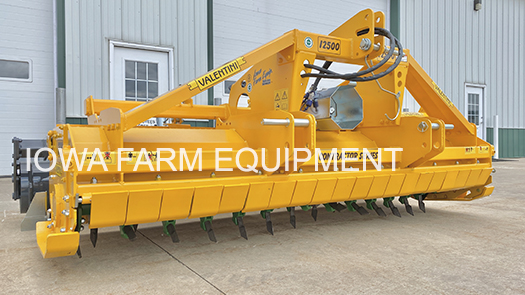

2500 Contractors Series Road Reclaimer with Hydraulically Controlled Packer Roller & Mud Scrapers

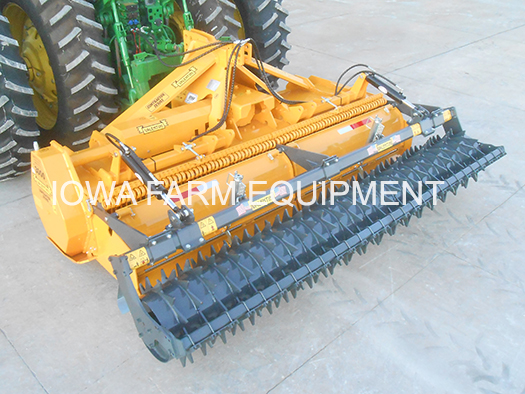

10’ Contractor Series 3000 Road Reclaimer, Soil Stabilizer, Soil Shredder
with Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Control

2500 Contractors Series Road Reclaimer with Hydraulically Controlled Packer Roller & Mud Scrapers

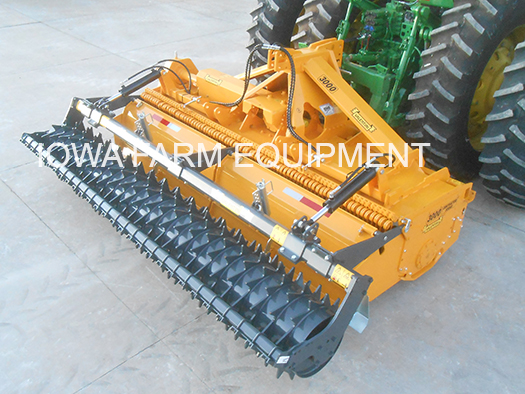

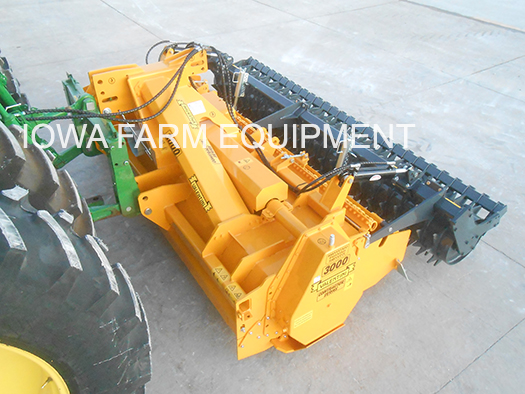

Rear Iso View of Contractor Series 3000 on Cat 3 Quick Hitch!

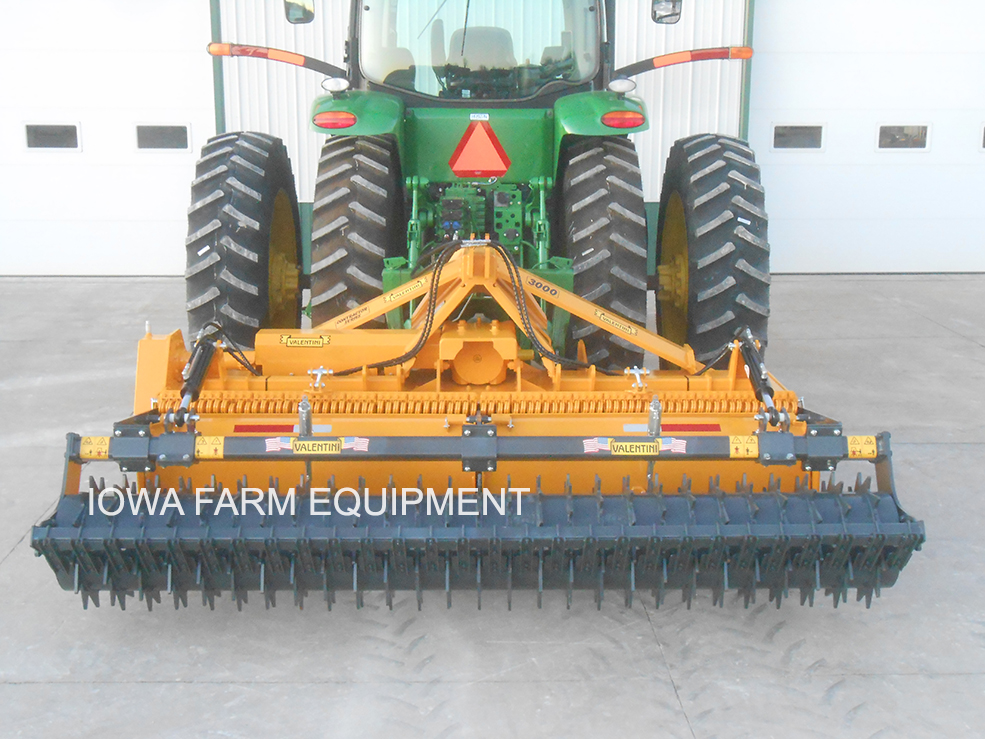

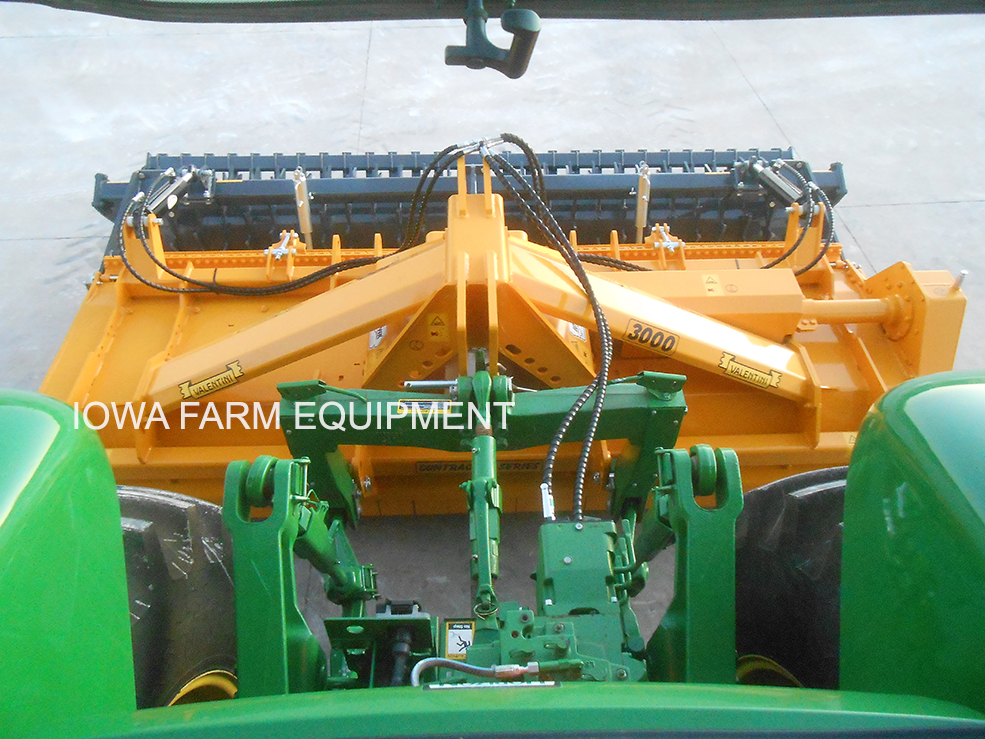

Contractor Series 3000 on Cat 3 Quick Hitch!

Contractor Series Road Grinder & Soil Stabilizer Details

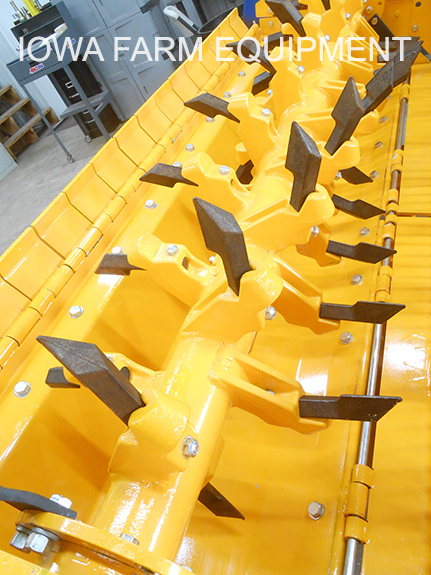

Severe Duty Rotor Highly Populated with High Grade Spiked Shanks
Nested in Severe Duty Holders & Secured with a Single Bolt for Quick & Easy Blade Replacement!

VALENTINI CONTRACTOR SERIES SPECIFICATIONS
MODEL	1500	1800	2000	2300	2500	2800	3000DT*	3500DT*	4000DT*	4500DT*	5000DT*
Tractor HP (PTO)	50-80	55-80	70-150	90-150	100-150	110-180	170-350	200-350	225-350	250-350	275-350
PTO Speed	540 RPM					1000 RPM
Working Width	5'-4"	6'-2"	7'-0"	7'-9"	8'-6"	9'-4"	10'-2"	11'-10"	13'-6"	15'-2"	16'-9"
Overall Width	6'-0"	6'-9"	7'-7"	8'-4"	9'-2"	10'-8"	11'-6"	13'-2"	14'-9"	16'-5"	18'-0"
Qty of Teeth	26	30	36	40	46	50	56	66	76	80	86
Max Working Depth	8"-9" (Ref Note 1)		8"-10" (Ref Note 2)			9"-10" (Ref Note 2)	10"-11" (Ref Note 3)
Tip to Tip Rotor Dia	19"		22"				24"
Blade Tip Speed	436 RPM							413 RPM
Output Shaft To Grade	27-1/2"		35-1/2"
Weight w/Roller (lb's)	2,290	2,632	3,350	3,750	4,161	4,756	7,140	7,719	8,855	10,006	11,150
Weights Are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
NOTE 1: Toughest ground may be limited to 3” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
NOTE 2: Toughest ground may be limited to 4” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
NOTE 3: Toughest ground may be limited to 6” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
Codes/Gen	IR		VE			AT	AU	--	--	--	35% RPM GBS

VALENTINI CONTRACTOR SERIES SPECIFICATIONS
MODEL	1500	1800	2000	2300	2500	2800	3000	3500DT*	4000DT*	4500DT*	5000DT*
Tractor HP (PTO)	50-80	55-80	70-150	90-150	100-150	110-180	170-250	200-350	225-350	250-350	275-350
PTO Speed	540 RPM					1000 RPM
Working Width	5'-4"	6'-2"	7'-0"	7'-9"	8'-6"	9'-4"	10'-2"	11'-10"	13'-6"	15'-2"	16'-9"
Overall Width	6'-0"	6'-9"	7'-7"	8'-4"	9'-2"	10'-8"	11'-6"	13'-2"	14'-9"	16'-5"	18'-0"
Qty of Teeth	26	30	36	40	46	50	56	66	76	80	86
Max Working Depth	8"-9" (Ref Note 1)		8"-10" (Ref Note 2)			9"-10" (Ref Note 2)	10"-11" (Ref Note 3)
Tip to Tip Rotor Dia	19"		22"				24"
Blade Tip Speed	436 RPM							413 RPM
Output Shaft To Grade	27-1/2"		35-1/2"
Weight w/Roller (lb's)	2,290	2,632	3,350	3,750	4,161	4,756	6,774	7,719	8,855	10,006	11,150
Weights Are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
NOTE 1: Toughest ground may be limited to 3” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
NOTE 2: Toughest ground may be limited to 4” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
NOTE 3: Toughest ground may be limited to 6” depth on first pass. Multiple passes, or optional Plow Shares required for max depth in toughest ground.
Codes/Gen	IR		VE			AT	AU	--	--	--	35% RPM GBS

Specifications & Designs Are Subject to Change Without Notice
