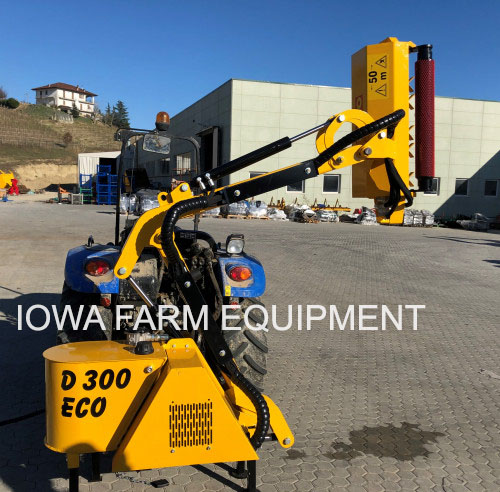

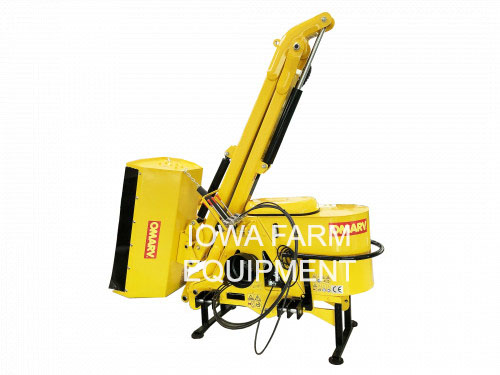

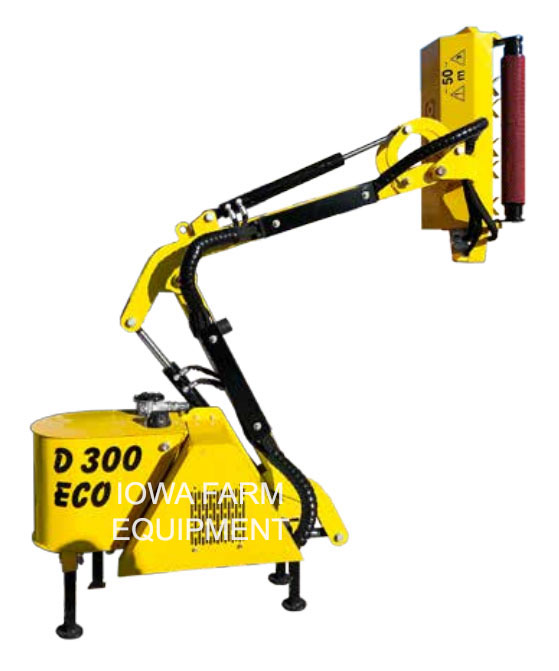

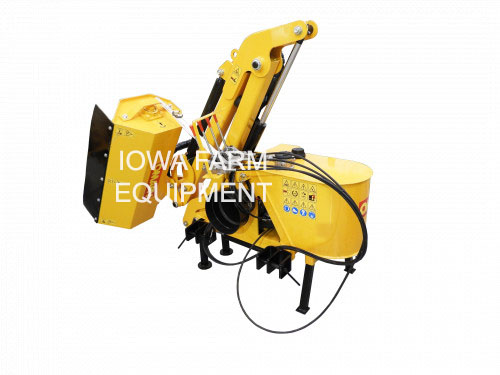

OMARV 'D' Series PROFESSIONAL Flail Type Boom Mowers
OMARV Flail Type Boom Mowers For 70-100HP Tractors: All The Best Features With A Durable & Nimble Flail Head, Providing Superior Cuts & Easy To Handle Deck At The Boom End, Providing Ease Of Operation (ergonomically friendly), Ease Of Suspension (safety w/damage avoidance), Amounting To The Best Performing & Most Efficient Boom Mower! Boom Mowers That Work For You!
540RPM Gearbox Powered By Tractor, Provides Hydraulic Power For Boom & Stick Articulation & Mower Head Function.

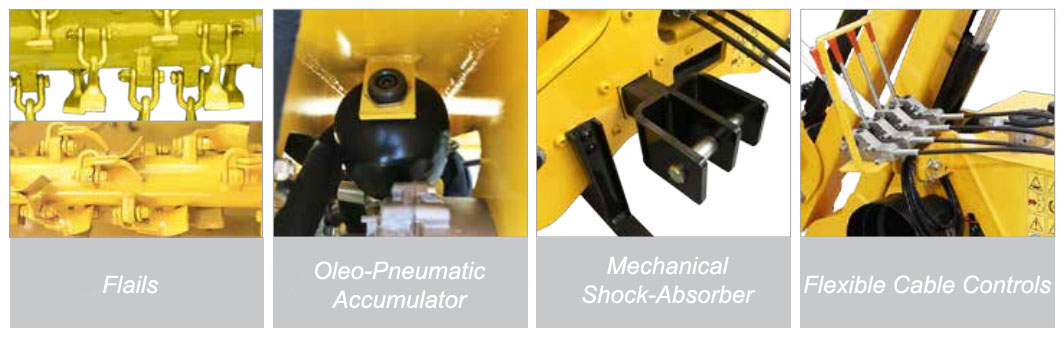

Flexible Cable Controls For In-Cab Controls Placement.
Integral Oil Cooler & Heat Exchanger For Long Component Life & Efficient, Trouble Free Operation.
Nitrogen Accumulator (Cushion ride) & Mechanical Springs Provide Operational & Travel Shock Absorption For Personnel Safety & Comfort, As Well As Mechanical Stress Relief On Components.
Mower Deck Has Rear Roller For Suspension During Prolonged & Static Surface Use, And Also For Cutting Height Adjustment. Roller Can Be Used With Excavators Float Function For Many Advantages.
Self-Lubricating Bushings At All Pivot Points.
Labyrinth Seals At End Of Mower Rotor For Protection Against Intrusion Of Material Into Seals.
Rotor Accommodates Hammer & ‘Y’ Type Blades, For Universal Mowing Capabilities:
Hammer Blades Are Capable Of Larger Diameter Cutting Capacities.
Bi-Directional Mower Deck Rotor.
Rotor Is Highly Populated For Producing The Best Cut & Reducing Demand On The Machines Hydraulic System.
These Videos Present Our 'Hydraulically Articulated Ditch Bank Flail Mowers': The OMARV 'DB Series' for Tractors 100 to 165hp, or The Peruzzo 'Bull Cross Series' for Tractors from 60 to 140hp! Unless you need to 'reach up & over guardrails, or other obstacles' - Activities that the OMARV ‘D’ & Profi ‘D’ Boom Mowers Are The Best Boom Mowers Available For! - you should consider One of the Two Ditch Bank Flail Mowers Presented Above! After watching these videos, you will see these 'Ditch Bank Flail Mowers' have a variety of Superior Performance Capabilities (over all & any Boom Mower), including Full Side Offsetting & 90° Cutting Deck Elevation, Accomodating a variety of uses, particularly trimming along fence lines, trimming back the umbrella overgrowth of trees & bushes, and then there's the Efficiency of service & inspection! - Just set the Deck down on the gearbox guard and everything is ergonomically a 'piece of cake'! Also, since it is PTO Powered, the Bull Cross Series Ditch Bank Flail Mowers have a much greater cutting capacity (4”-5”Dia), and they are much easier & much more efficient to use/operate (especially for continuous roadway shoulder & bank mowing), they are much less susceptible to damage (they are Very Durable Machines!), and they will require much less tractor to suspend & operate, while producing much greater results! These 'Ditch Bank Flail Mowers' will be less than half the cost of Boom Mowers! OMARV & Peruzzo Commercial Ditch Bank Flail Mowers – Making Mowing Fun Again!

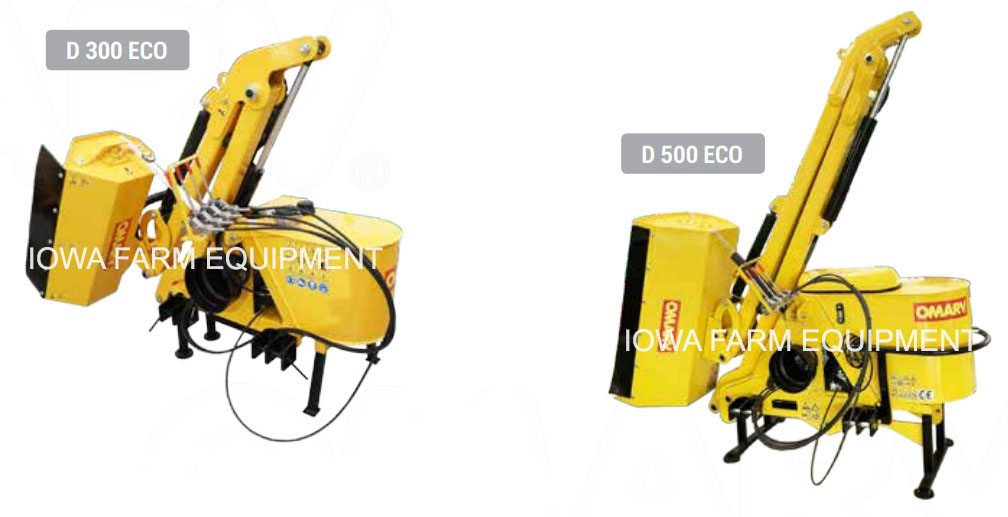

'D' SERIES BOOM FLAIL MOWER SPECIFICATIONS
MODEL
D300ECO
D500ECO
Horsepower
70 - 90HP
80 - 100HP
Working Width
31.5"
39"
Total Length
9'-10"
16'-5"
Number of Hammer Blades / Max Cutting Capacity
20 / 1.50" Dia
24 / 1.50" Dia
Number of Knife Blades / Max Cutting Capacity
20 / 1.25" Dia
24 / 1.25" Dia
Weight
661 lb's
1,841 lb's

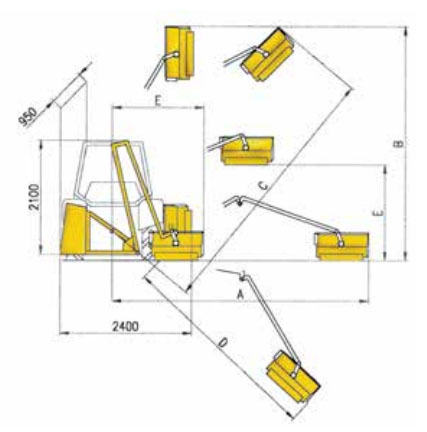

A) Max. Horizontal Reach
9'-10"
16'-5"
B) Max. Vertical Height
10'-2"
16'-1"
C) Max. Reach on a 45° Slope
8'-2"
14'-1"
D) Max. Reach in a 45° Ditch
4'-11"
10'-10"
E) Max. Height in Horizontal Position
3'-3"
9'-2"
Weights are Less Pallets, Crates & PTO Shaft.
'D' SERIES BOOM FLAIL MOWER SPECIFICATIONS
MODEL
D300ECO
D500ECO
Horsepower
70 - 90HP
80 - 100HP
Working Width
31.5"
39"
Total Length
9'-10"
16'-5"
Number of Hammer Blades / Max Cutting Capacity
20 / 1.50" Dia
24 / 1.50" Dia
Number of Knife Blades / Max Cutting Capacity
20 / 1.25" Dia
24 / 1.25" Dia
Weight
661 lb's
1,841 lb's
A) Max. Horizontal Reach
9'-10"
16'-5"
B) Max. Vertical Height
10'-2"
16'-1"
C) Max. Reach on a 45° Slope
8'-2"
14'-1"
D) Max. Reach in a 45° Ditch
4'-11"
10'-10"
E) Max. Height in Horizontal Position
3'-3"
9'-2"
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
