Commercial, Multi Purpose OMARV 'DB' Series 3-Point Ditch Bank Flail Mowers
Commercial Duty Quality, Commercial Duty Performance, & Commercial Duty Features with U.S. Parts & Tech Support!
OMARV Hydraulically Articulated, Multi-Purpose Commercial Ditch Bank Flail Mowers For 70-160HP, 1000RPM Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
OMARV Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!
OMARV Flail Mowers Are Equipped With 17" Dia. Severe Service Duty Rotors That Are Highly Populated With Large, Forged & Hardened Steel Hammer Blades - OMARV Flail Mowers Always Have the Highest Population of Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
OMARV Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
OMARV 'DB’ Series Ditch Bank Flail Mowers' Are Equipped With Severe Duty PTO Shafts With CV Joints On Both Ends!
Offset & Head Positioning Functions Operate Hydraulically.
'Raise & Lower Cylinder' Has Three Unique Features for Performance Efficiency, for Mechanical Protection of the Mower, and for Operator Safety:
Adjustable Flow Control Valve for Hydraulic Speed Control (Conveniently Located at End Of Hose Tips):
Prevents Shock Loads From Operators Abrupt & Rapid Downward Deck Rotation (then hammering our precious earth), or Abrupt & Rapid Upward Deck Rotation (then hammering the mechanical connections):
Set This Valve to a Slower Setting Until You've Mastered Feathering the Controls to Rotate the Deck 90° Upward, or 60° Downward! Once You've Got it, You Can Adjust the Flow Control Valve for Faster Operation!
Horizontal (Left to Right) Mower Deck Oscillation for Automatic Contour Adjustment:
The Cylinder Barrel is Pinned to a Clevis Bracket, Which is Secured to the Mower Deck via a Bracket With an Oval Pin Opening for Oscillation Travel.
Shock Absorbing Accumulator ‘Cushion Valve’ Allows Cylinder Rod Retraction When End Of Deck Encounters Sudden Grade Elevation, Providing More Personnel & Equipment Safety!
Lower Right Rear of 3-Pt Frame Has a Removeable Pin for 'Lock-In-Place' Operation (when mowing level, predictable terrain), or Remove the Pin for Limited & Self-Resetting Breakaway Protection - Also for Front to Rear Deck Oscillation (for following uneven terrain).
Hydraulic Breakaway:
The 'Extend & Retract Cylinder' Has a Relief Valve for Limited & Self-Resetting Breakaway
A Large Deck Enclosure Accommodates Higher Volumes of Material for Superior Finish Results, Superior Mulching Results, Less Burden Transferred to the Tractor & Better Ground Speeds. It's Also Large Enough for the Rear Roller to be Within the Footprint of the Deck (instead of protruding out beyond the back).
The Large Deck Enclosure is Also Large Enough to Have an Adjustable Mulching Door (placed above the roller & behind the rear deflector)!
Full Double Deck Shell Protects the External Shell From Rocks & Other Internal Projectiles:
Rear Roller Also Includes a Full Width Rubber Deflector & Mud Scraper.
Under Deck, Mulching Counter Blade Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Dual Top Link Pin Holes:
One Oval for (more) Front to Rear Deck Oscillation.
One Standard Round Hole for Rigid & Level Deck Suspension.
Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If You're Mowing Along a Fence Line, Tree Line, Building, etc., Instead of Getting Your Entire Tractor Along Side of the Fence or Building (and risk scraping your tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep the Offset Part of the Mower Close to the Edges You Want to Mow and Prevent Any Damage to the Tractor, the Trees, Fencing, Walls, etc. Snagging Posts, Trees or Other Secured Objects Can Also Damage the 3-Point Linkage on the Mower or Even the Pull Arms & Top Link of Your Expensive Tractor.
Much, Much Better Visibility: If the Edge of Any Mower is Flush With the Sidewall of Your Tractors Tire, Forget About Visibility! You'll be Cutting With Your Tractor Tire as a 'Guide', Which is ok in Open Areas, But Again, When You're Mowing up Against Obstacles, You Want Visibility, and the Offset Feature Will Provide That. It Will Also Eliminate the Need to Look Back Over Your Shoulder to See the Mower Deck. A Simple Glance to Your Right Gives You Visibility of the Outer Mowing Edge.
One Of The Many Multi-Purpose Characteristics of Peruzzo Flail Mowers Is That It Provides A Superior Rough Cut (compared to any 'rotary rough cut mower') & A Superior Finish Cut (compared to any 'rotary finish cut mower')! Plus With the 'Forged & Hardened' Hammer Blades on This Flail Mower, You Can Cut 4"-5” Diameter Material & Still Get A Superior Finish Cut Too!
OMARV Flail Mowers Are The Safest & Most Efficient Mowers Available:
With OMARV Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They’re the Easiest for You & Your Tractor to Handle! Plus, the Superior ‘Single-Pass’ Cut of Peruzzo Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!
Use the Transport Locking Pin When Transporting From Place to Place to Prevent Excess Stress on Supporting Linkages.
Mowers Ship Assembled & Ready To Use:
This Means No Assembly Headaches from Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters, No lubrication, No Gearbox Oil Filling & No Waiting Until It's Assembled Before First Use!
Mower Ships with 1000RPM PTO Shaft!
All of These Excellent Features Work Together to Outperform Your Expectations in Rough Cutting, Mulching & Finish Cutting Applications, With Beautiful, Single Pass Results, With Efficient Ground Speeds & With Ease of Demand on Your Costly Tractor & it's Fuel Tank! Most of All, it Makes Mowing Fun Again!

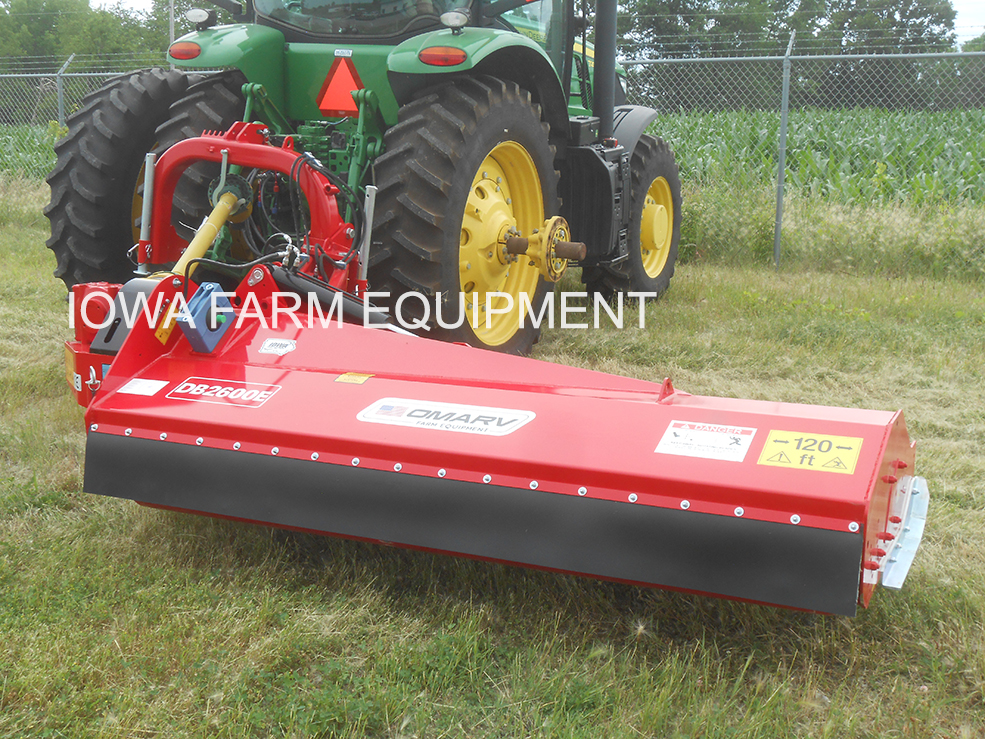

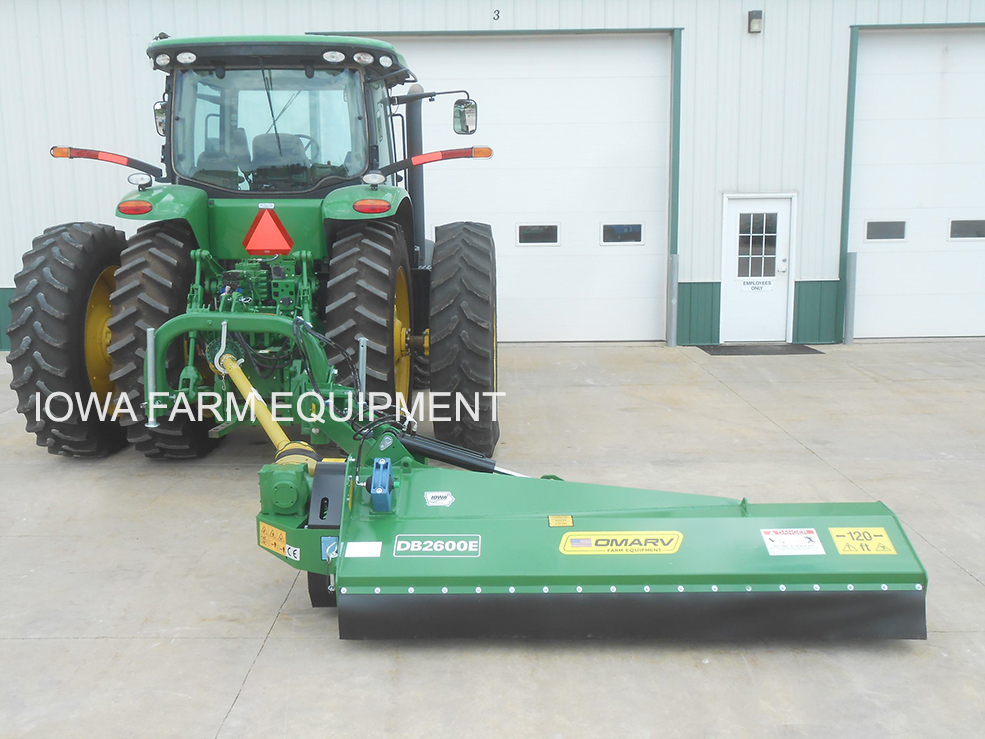

OMARV DB2600 Extended (8’-6” Cut) Right

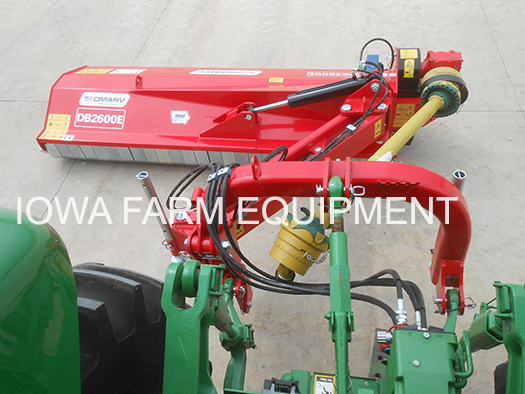

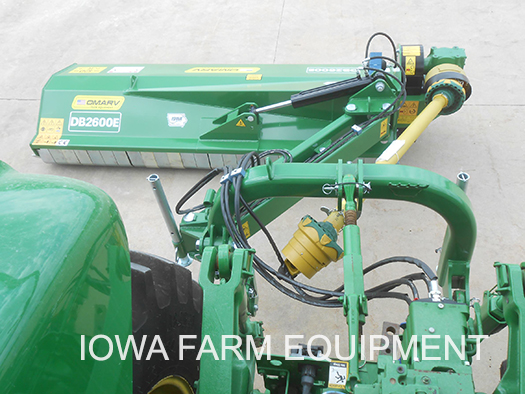

OMARV DB2600 Top Views

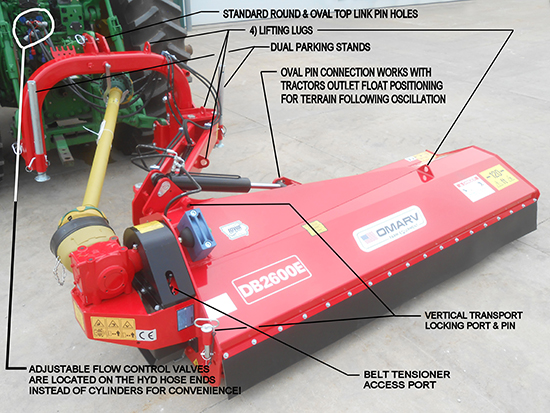

OMARV DB2600 Features & Details

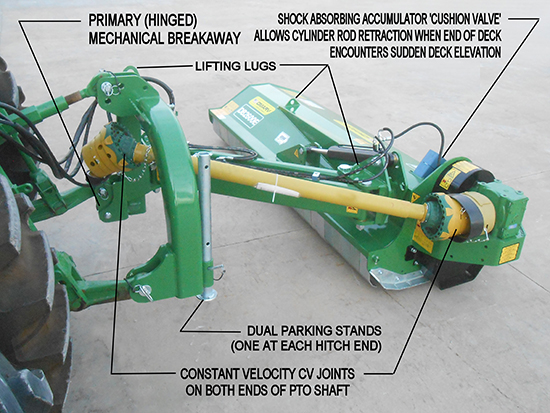

OMARV DB2600 Features & Details
'DB' SERIES DITCH BANK FLAIL MOWER SPECIFICATIONS
MODEL
DB1600
DB1800
DB2000
DB2200
DB2400
DB2600
Horsepower
65 - 100HP
80 - 120HP
100 - 160HP
Working Width
63"
71"
79"
87"
95"
8'-6"
Overall Width
73"
85"
89"
96"
9'-6"
10'-2"
Number of Hammer Blades
34
38
44
48
52
56
Number of Knife Blades
68
76
88
96
104
112
Cutting Capacity
2.5"
Hitch
CAT 2/3N
Weight
1,918 lb's
1,984 lb's
2,050 lb's
2,116 lb's
2,249 lb's
2,315 lb's

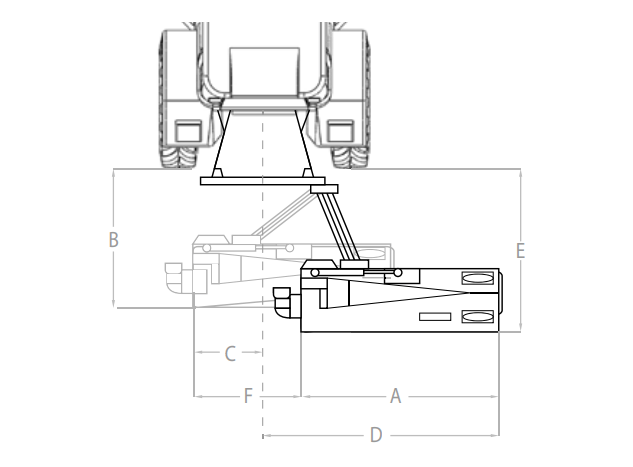

A
63"
71"
79"
87"
95"
8'-6"
B
89"
C
12"
D
9'-7"
10'-3"
10'-11"
11'-7"
12'-2"
12'-10"
E
87"
F
64"
Weights are Less Pallets, Crates & PTO Shaft.
'DB' SERIES DITCH BANK FLAIL MOWER SPECIFICATIONS
MODEL
DB1600
DB1800
DB2000
DB2200
DB2400
DB2600
Horsepower
65 - 100HP
80 - 120HP
100 - 160HP
Working Width
63"
71"
79"
87"
95"
8'-6"
Overall Width
73"
85"
89"
96"
9'-6"
10'-2"
Number of Hammer Blades
34
38
44
48
52
56
Number of Knife Blades
68
76
88
96
104
112
Cutting Capacity
2.5"
Hitch
CAT 2
Weight
1,918 lb's
1,984 lb's
2,050 lb's
2,116 lb's
2,249 lb's
2,315 lb's
A
63"
71"
79"
87"
95"
8'-6"
B
89"
C
12"
D
9'-7"
10'-3"
10'-11"
11'-7"
12'-2"
12'-10"
E
87"
F
64"
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
