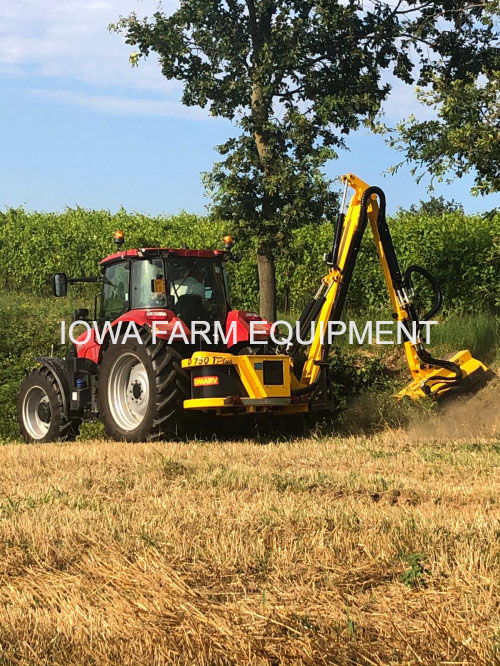

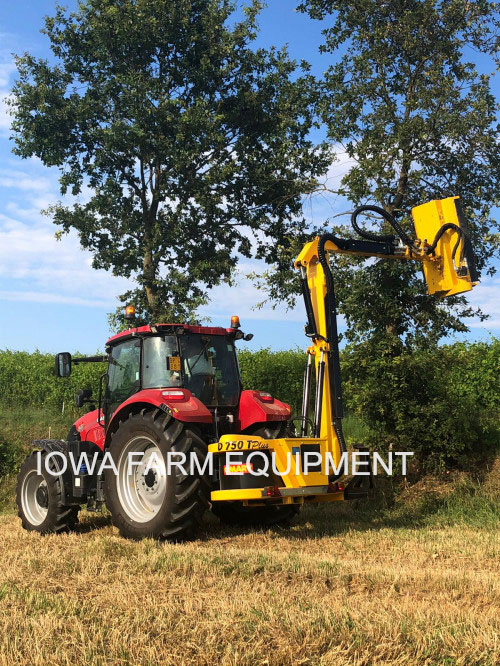

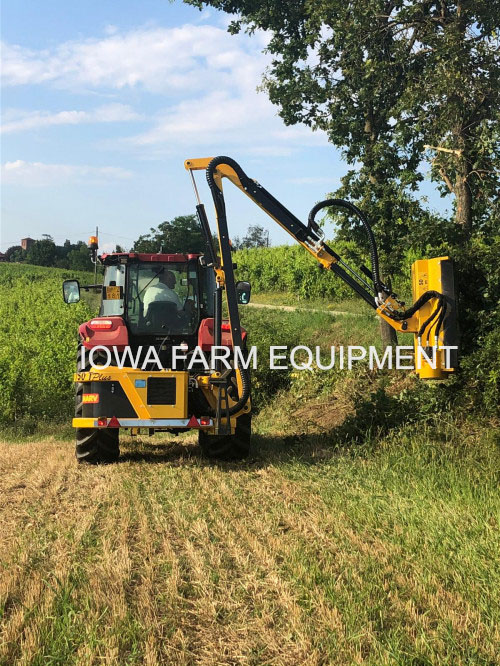

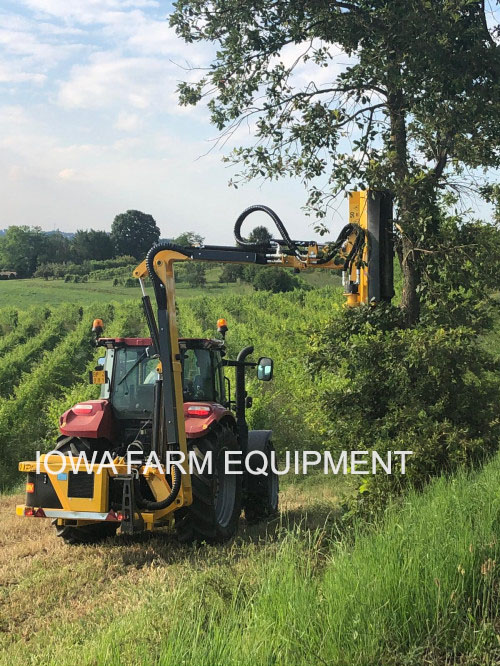

OMARV Flail Type Boom Mowers For 90-130HP Tractors: All The Best Features With A Durable & Nimble Flail Head, Providing Superior Cuts & Easy To Handle Deck At The Boom End, Which Provides Ease Of Operation & Ease Of Suspension, Providing The Best Performing & Most Efficient Boom Mower!

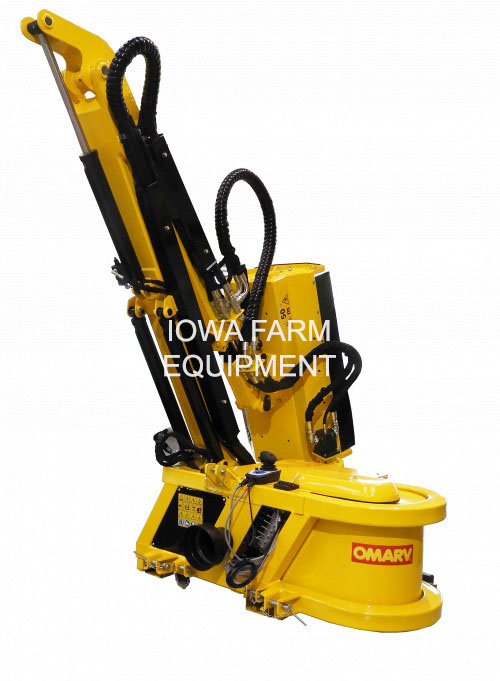

Telescopic Arm For Convenient, Safe & Efficient Maximization Of The 19’ to 24’ Of Max Reach Capability!
540RPM Gearbox Powered By Tractor, Provides Hydraulic Power For Boom & Stick Articulation & Mower Head Function.
Electric Proportional Valve Control Requires Only A Small Diameter Cable (For In-Cab Control Placement) And A Compact, Easy To Use Joystick Body For In Cab Controls & Also Includes Self-Leveling Cutting Head Feature.
Integral Oil Cooler & Heat Exchanger For Long Component Life & Efficient, Trouble Free Operation.

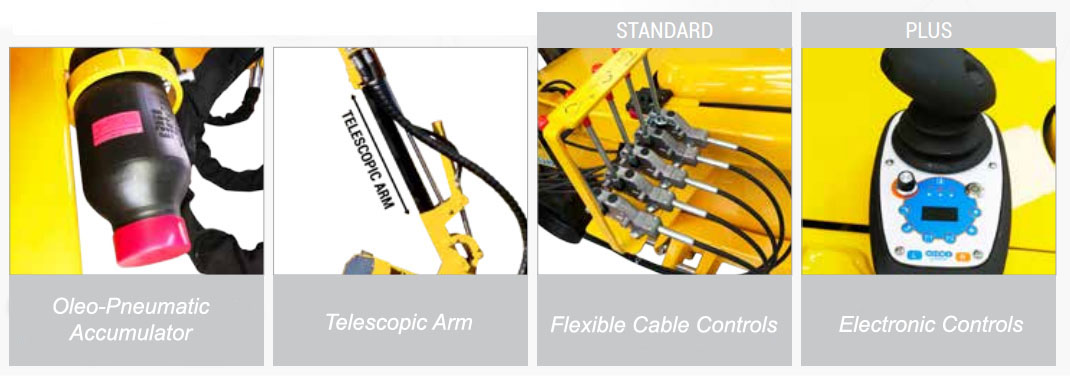

Nitrogen Accumulator (Cushion ride) & Mechanical Springs Provide Operational & Travel Shock Absorption For Personnel Safety & Comfort, As Well As Mechanical Stress Relief On Components.
Mower Deck Has Rear Roller For Suspension During Prolonged & Static Surface Use, And Also For Cutting Height Adjustment. Roller Can Be Used With Excavators Float Function For Many Advantages.
Self-Lubricating Bushings At All Pivot Points.
Labyrinth Seals At End Of Mower Rotor For Protection Against Intrusion Of Material Into Seals.
Rotor Accommodates Hammer & ‘Y’ Type Blades, For Universal Mowing Capabilities:
Hammer Blades Are Capable Of Larger Diameter Cutting Capacities.
Bi-Directional Mower Deck Rotor.
Rotor Is Highly Populated For Producing The Best Cut & Reducing Demand On The Machine's Hydraulic System.
These Videos Present Our 'Hydraulically Articulated Ditch Bank Flail Mowers': The OMARV 'DB Series' for Tractors 100 to 165HP, or The Peruzzo 'Bull Cross Series' for Tractors from 60 to 140HP! Unless you need to 'reach up & over guardrails, or other obstacles' - Activities that the OMARV ‘D’ & Profi ‘D’ Boom Mowers Are The Best Boom Mowers Available For! - you should consider One of the Two Ditch Bank Flail Mowers Presented Above! After watching these videos, you will see these 'Ditch Bank Flail Mowers' have a variety of Superior Performance Capabilities (over all & any Boom Mower), including Full Side Offsetting & 90° Cutting Deck Elevation, Accomodating a variety of uses, particularly trimming along fence lines, trimming back the umbrella overgrowth of trees & bushes, and then there's the Efficiency of service & inspection! - Just set the Deck down on the gearbox guard and everything is ergonomically a 'piece of cake'! Also, since it is PTO Powered, the Bull Cross Series Ditch Bank Flail Mowers have a much greater cutting capacity (4”-5”Dia), and they are much easier & much more efficient to use/operate (especially for continuous roadway shoulder & bank mowing), they are much less susceptible to damage (they are Very Durable Machines!), and they will require much less tractor to suspend & operate, while producing much greater results! These 'Ditch Bank Flail Mowers' will be less than half the cost of Boom Mowers! OMARV & Peruzzo Commercial Ditch Bank Flail Mowers – Making Mowing Fun Again!
'D PROFI T' SERIES BOOM FLAIL MOWER SPECIFICATIONS
MODEL
D 600 T
D 750 T
Horsepower
90 - 110HP
100 - 130HP
Working Width
47"
47"
Total Length
19'-8"
24'-8"
Telescopic Arm
35"
47"
Number of Hammer Blades / Max Cutting Capacity
18 / 2.50" Dia
18 / 3.0" Dia
Number of Knife Blades / Max Cutting Capacity
36 / 1.50" Dia
36 / 2.0" Dia
Weight
2,425 lb's
2,535 lb's
A) Max. Horizontal Reach
18'-8"
23'-7"
B) Max. Vertical Height
19'-0"
23'-11"
C) Max. Reach on a 45° Slope
18'-1"
23'-0"
D) Max. Reach in a 45° Ditch
18'-4"
23'-4"
E) Max. Height in Horizontal Position
13'-1"
18'-1"
Weights are Less Pallets, Crates & PTO Shaft.
'D PROFI T' SERIES BOOM FLAIL MOWER SPECIFICATIONS
MODEL
D 600 T
D 750 T
Horsepower
90 - 110HP
100 - 130HP
Working Width
47"
47"
Total Length
19'-8"
24'-8"
Telescopic Arm
35"
47"
Number of Hammer Blades / Max Cutting Capacity
18 / 2.50" Dia
18 / 3.0" Dia
Number of Knife Blades / Max Cutting Capacity
36 / 1.50" Dia
36 / 2.0" Dia
Weight
2,425 lb's
2,535 lb's
A) Max. Horizontal Reach
18'-8"
23'-7"
B) Max. Vertical Height
19'-0"
23'-11"
C) Max. Reach on a 45° Slope
18'-1"
23'-0"
D) Max. Reach in a 45° Ditch
18'-4"
23'-4"
E) Max. Height in Horizontal Position
13'-1"
18'-1"
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
