All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer! And Double Skinned Body, All For A Long, Trouble Free Life!
Model ‘U’ Series Valentini Tiller with Hydraulically Adjusted Packer Roller for Efficient ‘On-The-Fly’ Working Depth Adjustment and Soil Conditioning!
FOR 80-170/250HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'U' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Cat 2 Quick Hitch Compatible!
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.
It Doesn’t Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
NO Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!
Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
Side Gear Drive System Is In An Oil Bath Gear Box.
Dual Cylinder Hydraulic Roller Adjustment Kit!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hydraulic Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Roller Includes Mud Scrapers As Shown.
Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage in The Toughest & Rockiest Ground!
Two Unique Rotor Scraper Blades On Each End Flange Prevents Vegetation From Wrapping, Providing Protection For Rotor Seals.
Unique & Patented Labyrinth Seals Ensure Bearings Are Protected from Dirt!
6 Blades Per Flange.
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
Round & Slotted Top Link Holes For Rigid or Floating Functioning.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Tool Free Rear Gate Spring Tension Adjustment For Quick & Easy Shop or Field Adjustments!
Front Safety Guards For Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Valentini U3000 with Hyd Adjusted Packer Roller At Work in a Thick Stand of Alfalfa!

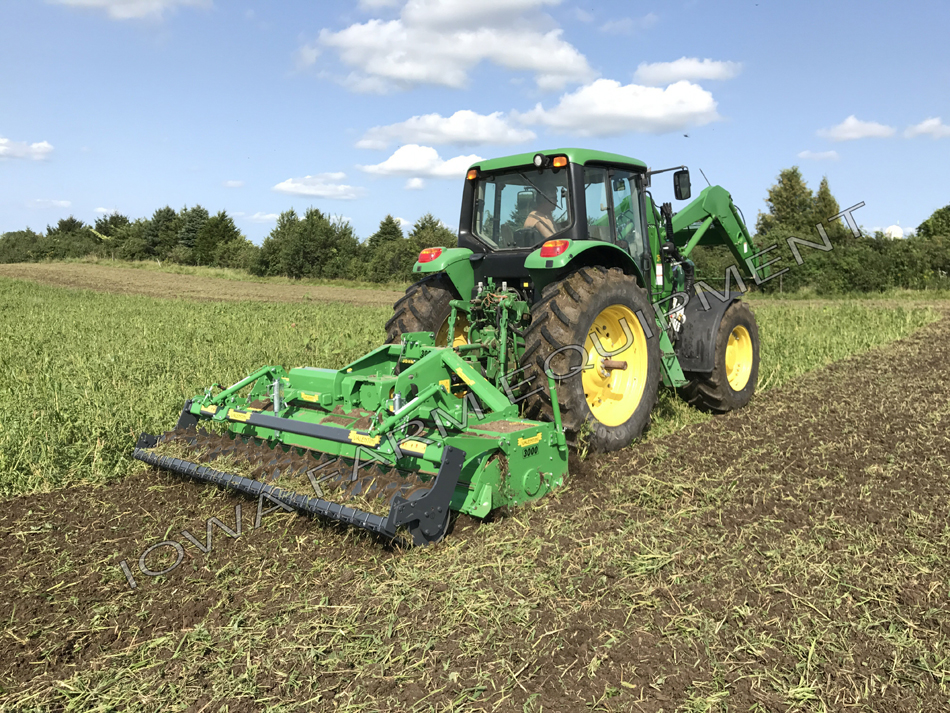

U3000 Valentini Tiller with Hydraulically Adjusted Packer Roller Creating A Perfect & Beautiful Seedbed In One Efficient Pass!
U3000 Valentini Tiller with Hydraulically Adjusted Packer Roller Creating A Perfect & Beautiful Seedbed In One Efficient Pass!

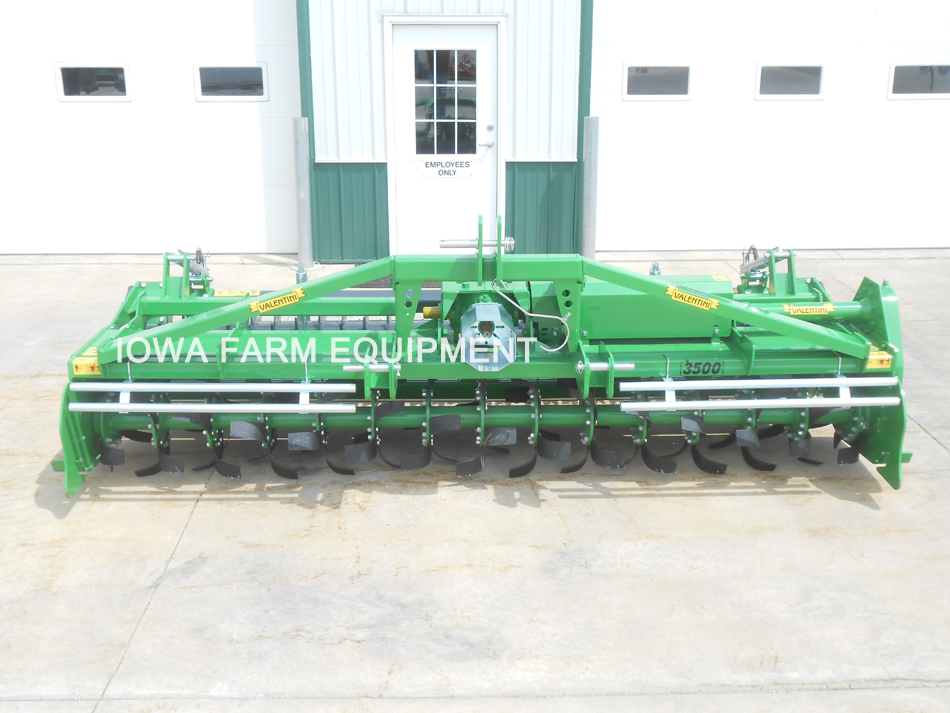

Front View Valentini Model U3500 Rotary Tiller With Packer Roller
Two Types of Scraper Blades on Each Rotor End Flange!
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use the Hydraulic Adjustment Option & Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
ACCESSORIES
'U' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
U2500
U3000
U3500
U4000DT*
Tractor Horsepower (PTO)
80 - 170HP
100 - 170HP
120 - 170HP
140 - 250HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 2, 3N
CAT 2, 3N, 3
Working Width
8'-6"
10'-2"
11'-10"
13'-5"
Overall Width
9'-2"
10'-10"
12'-6"
14'-2"
Quantity of Blades
60
72
84
96
Rotor Diameter
21.25"
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
253 RPM
Blade Tip Speed
310 RPM
Weight
2,356 lbs.
2,494 lbs.
3,140 lbs.
3,897 lbs.
Weight with Roller
3,289 lbs.
3,718 lbs.
4,281 lbs.
4,468 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'U' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
U2500
U3000
U3500
U4000DT*
Tractor Horsepower (PTO)
80 - 170HP
100 - 170HP
120 - 170HP
140 - 250HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 2, 3N
CAT 2, 3N, 3
Working Width
8'-6"
10'-2"
11'-10"
13'-5"
Overall Width
9'-2"
10'-10"
12'-6"
14'-2"
Quantity of Blades
60
72
84
96
Rotor Diameter
21.25"
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
253 RPM
Blade Tip Speed
310 RPM
Weight
2,356 lbs.
2,494 lbs.
3,140 lbs.
3,897 lbs.
Weight with Roller
3,289 lbs.
3,718 lbs.
4,281 lbs.
4,468 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
