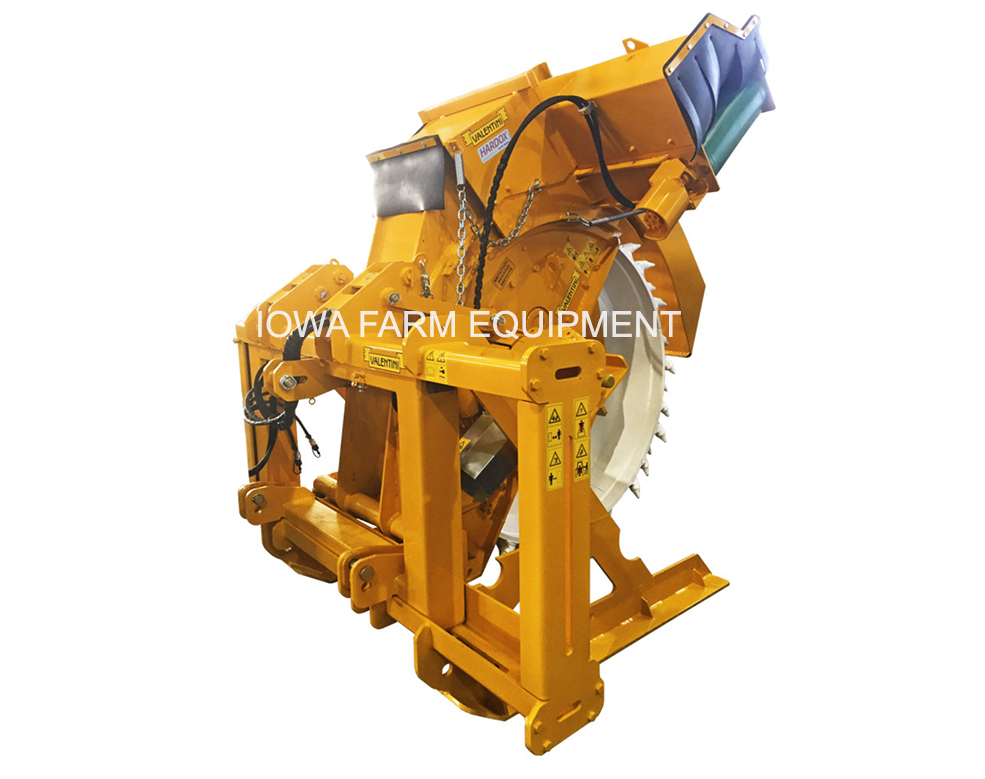

Valentini RA 1100, 1200 & 1500 Series
Tractor PTO Rock & Stone ‘Cutting and Crushing’ Trenchers

Model RA 1500x400 Trencher Cuts an 18” Wide x 57” Deep Trench, Suitable for 300 to 400HP Tractors.

For 250-400HP Tractors

Valentinis’ Rock & Stone ‘Cutting and Crushing’ Trenchers Provide Unparalleled Efficiencies, Uniquely Powerful & Superior Capabilities, Ease of Maintenance & Ownership, and Comfortable Portability by being Powered by Your Tractors PTO! Valentinis’ Rock & Stone ‘Cutting and Crushing’ Trenchers Produce the Same Crushing Results as Valentinis’ Proven Line of Stone Crushers, but in a Concentrated Dimension, with a Vertical Wheel for Efficient, Cost and Time Effective Trenching, Even in the Worst Ground, and the Harder the Ground Conditions, the Better the Trench! Now Nothing Will Get In The Way Of Making Trenches, Anywhere, Anytime, Any Conditions, Providing New Opportunities For Making More, and Winning More ‘Profitable’ Bids…and you won’t get tired of Winning, Winning, Winning! Yes, it works in Moderate Ground Conditions Too!
Valentinis’ Rock & Stone Cutting Trenchers Make Trenching Great & Efficient Again!

STANDARD FEATURES:

Cat 2, 3N, 3 Hitch.
540/1000RPM Severe Duty Valentini Gearbox:
- See SPEC Table (below) for RPM applications.
Shear Bolt Protected PTO Shaft.
Oil Bath Side Gear Drive.
Hydraulically Controlled On-The-Fly Working Depth Adjustment.
35mm Forged & Hardened, Wear Resistant Bullet Style Teeth with Carbide Insert.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!

Same 35mm Carbide Bullet Style Teeth Used On The Larger Crushers!

RA1100-1500 SERIES ROCK WHEEL TRENCHERS SPECIFICATIONS
MODEL	RA 1100x400	RA 1200x400	RA 1500x400	RA 1500x500
Tractor Horsepower	250-300HP	250-340HP	300-400HP	300-400HP
Working Width	16"	16"	18"	22"
Overall Width	90.5"
Working Depth	41"	45"	57"	57"
Rotor RPM	178
Weights (Est'd)	8,300LBS	8,800LBS	14,960LBS	15,840LBS
Weights are Less Pallets, Crates & PTO Shaft.

RA1100-1500 SERIES ROCK WHEEL TRENCHERS SPECIFICATIONS
MODEL	RA 1100x400	RA 1200x400	RA 1500x400	RA 1500x500
Tractor Horsepower	250-300HP	250-340HP	300-400HP	300-400HP
Working Width	16"	16"	18"	22"
Overall Width	90.5"
Working Depth	41"	45"	57"	57"
Rotor RPM	178
Weights (Est'd)	8,300LBS	8,800LBS	14,960LBS	15,840LBS
Weights are Less Pallets, Crates & PTO Shaft.

Specifications & Designs Are Subject to Change Without Notice
