VALENTINI 'PD' Folding Series Wide Area Rock & Stone Crushers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!
Working Widths Up To 14’

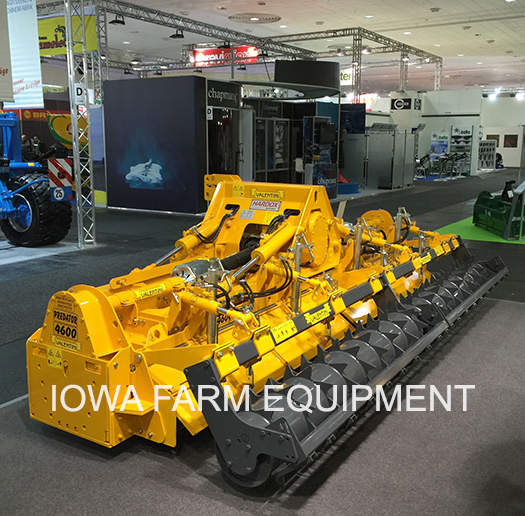

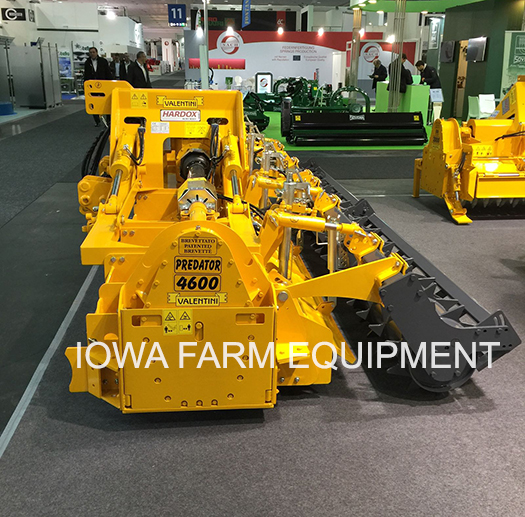

Valentini PD4600DT Displayed At Equipment Show
'PD' SERIES STONE CRUSHERS FOR 200-350HP TRACTORS Working Widths from 10'-6" to 14'-0"
As with ALL Valentini Crushers, the 'PD' Series has been providing Superior Single Pass Results in All Applications: Land Reclamation, Agriculture (Row Crop Fields, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), Roadway Maintenance & Paving (Gravel & Chip Seal Roads, Asphalt Roads & Highways), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Rock & Stone Crushing, Stump Mulching, Soil Shredding, Soil Stabilization, and Asphalt Pulverizing/Grinding, Valentini Crushers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance, Even Shaving Tops off of the Outcroppings of Embedded Boulders, Even at Work Crushing & Pulverizing Limestone!

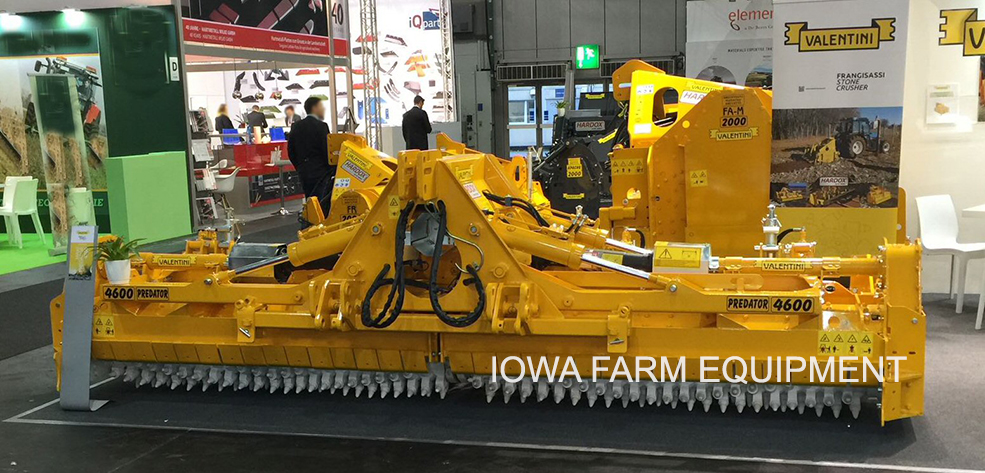

Valentini PD4600DT Displayed At Equipment Show
STANDARD FEATURES:
Category 2, 3-Point Hitch.
Cam Clutch Protected PTO Shaft!
It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
Dual Transmission Models have Slip Clutch Protected Side Drive Shafts.
Crushers 'Diminishing Chamber' is Comprised of the Following:
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
Containment Door Constructed for Extreme Service Duty & Wear Resistance.
Crusher Body Internal Hardox Lining is Replaceable.
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
Keep Front Gate Closed for Max Deflector Use, or Open For Max Working Depth.
Rear Gate Adjusters Include Shock Absorption System.
Extreme Service Duty Rotor is Shock & Wear Resistant.
19" Rotor Working Diameter, Tip to Tip.
Central & Side Gear Drives in Oil Bath Gearboxes.
Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Hydraulically Adjusted Rear Skid Shoes.

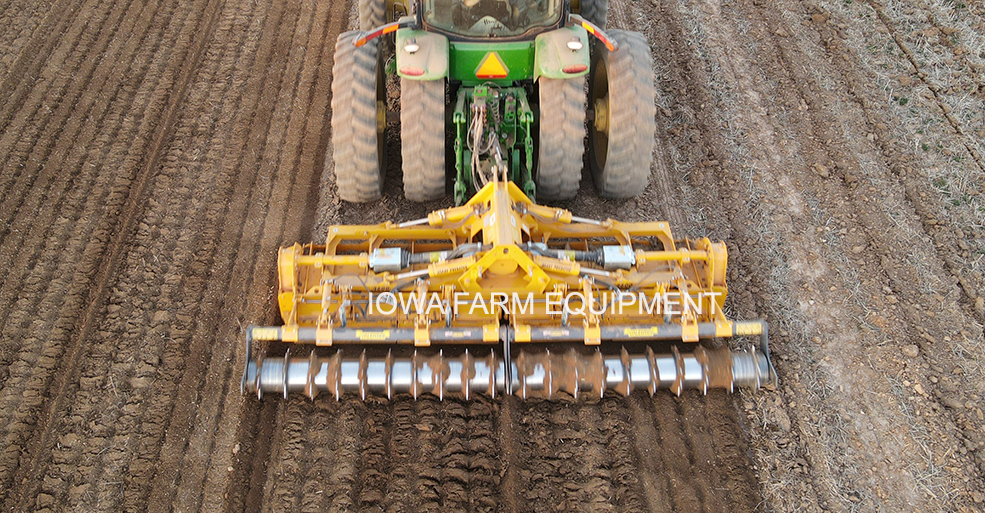

PD4600DT Crushing Rock & Establishing A Beautiful Seedbed In One Easy Pass!

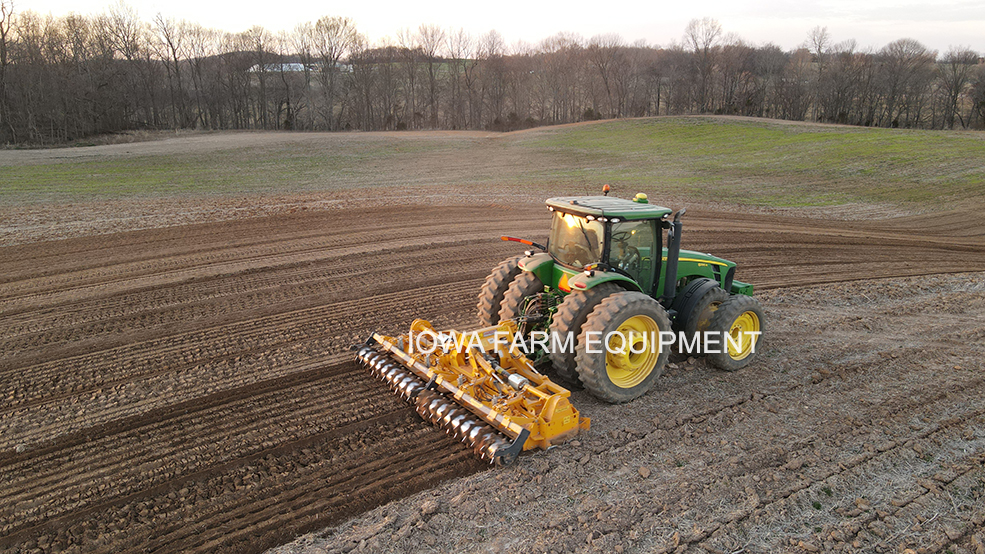

PD4600DT Solving Rock Plague & Building A Beautiful Seed Bed In One Easy Pass!

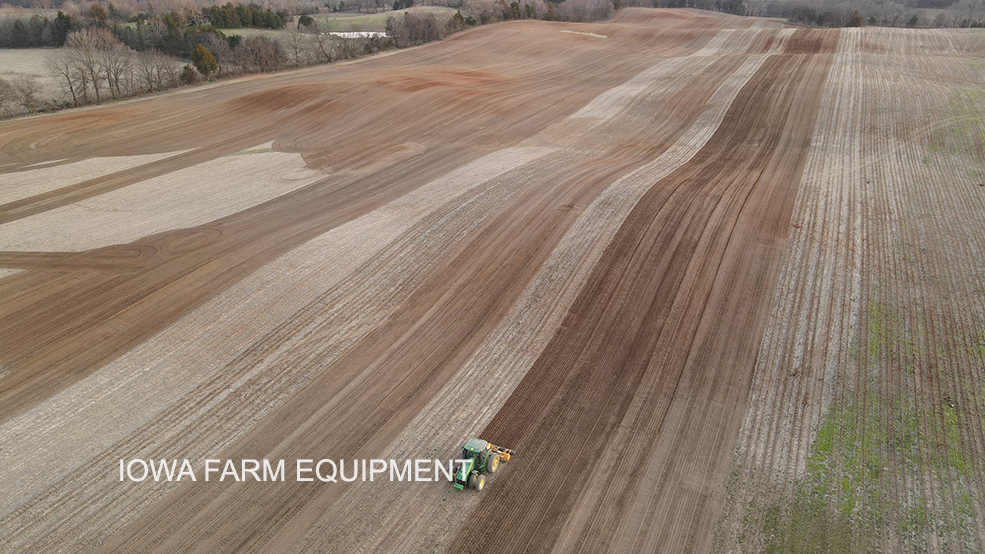

PD4600DT Crushing & Building A Beautiful Seedbed Efficiently On A Large Scale!

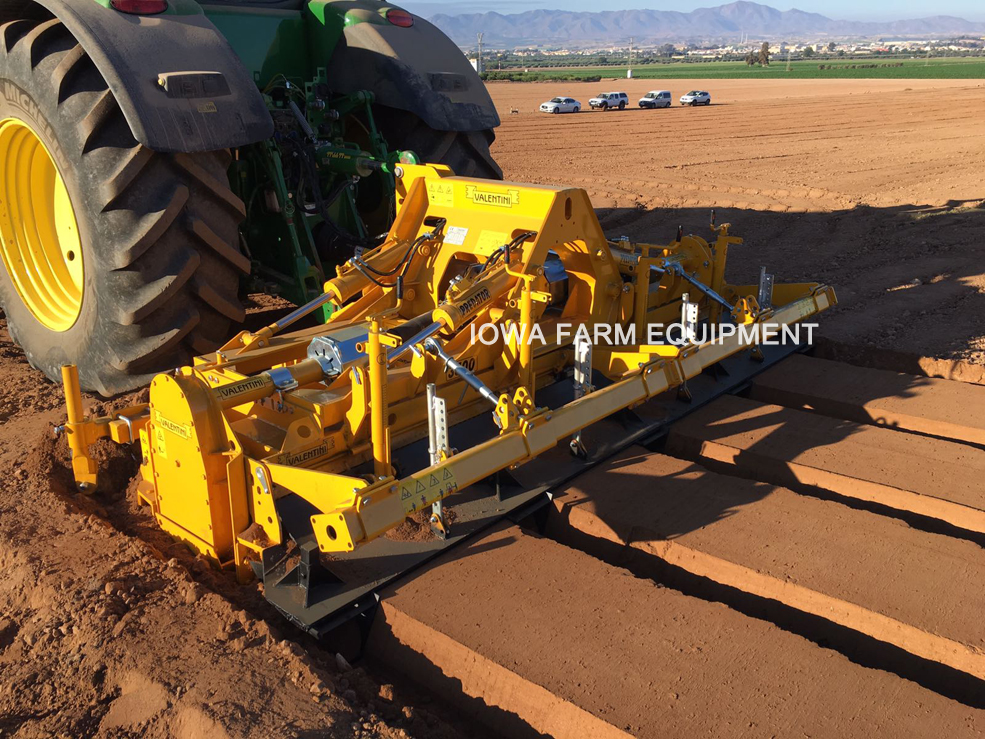

PD3500DT Crushing Rock, Pulverizing Hard Dirt Clods & Building Beautiful Elevated Beds In One Efficient Pass!

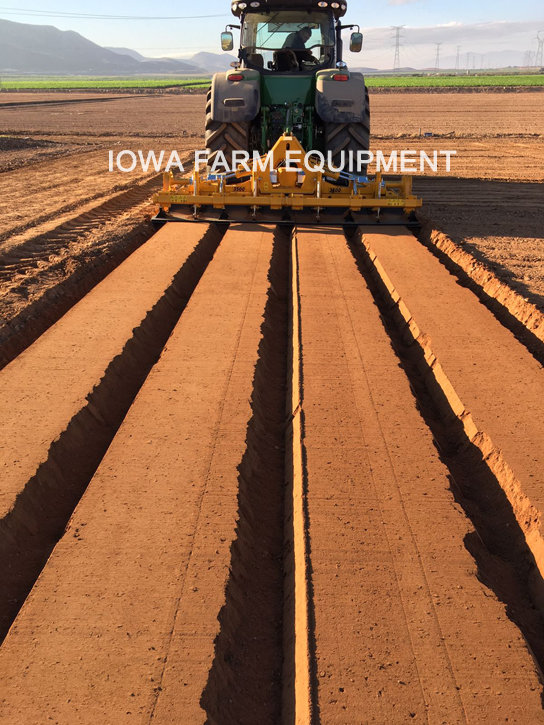

PD3500DT Crushing Rock & Dirt Clods, And Building Beautiful Elevated Beds In A Large Scale Application In One Efficient Pass!

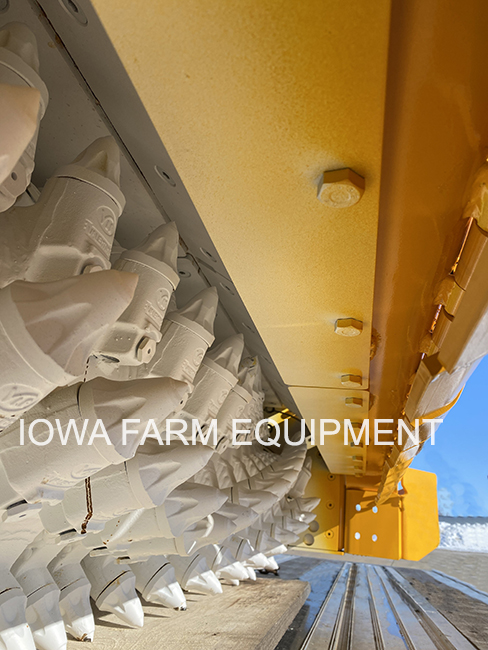

PD Series Stone Crushing & Milling Bullet Style Teeth, Arranged In Chevron Pattern. Valentini Crushers ALWAYS Have The Highest Population Of Teeth, Reducing The Demand On The Tractor, Increasing Ground Speed & Producing The Best Results, Efficiently!
Valentini’s Carbide ‘Bullet Style Teeth’ For The Most Severe Conditions, Including Milling!
Efficiently ‘Chevron Patterned’ with Anvil Counter Crushing Bar & Secondary Reducing Grid
For Stone Crushing, Finer Mulching of Wood Debris, and Sandy, Abrasive Soil Conditions!
'PD' SERIES CRUSHER SPECIFICATIONS
MODEL
PD3200DT
PD3500DT
PD3700DT
PD4600DT
Tractor Horsepower (PTO)
200-260HP
210-260HP
220-260HP
250-350HP
Rotor Speed
253 RPM
Working Width
10'-6"
11'-4"
12'-2"
14'-0"
Overall Width
11'-4"
12'-2"
13'-0"
14'-10"
Quantity of Teeth
213
235
249
295
Working Depth on Non-Passive Surfaces
(e.g. Asphalt, Sheets of Granite, etc.)
3"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
6"
Weight
8,600 lbs.
9,560 lbs.
10,050 lbs.
12,600 lbs.
Weights Include Roller, but are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
'PD' SERIES CRUSHER SPECIFICATIONS
MODEL
PD3200DT
PD3500DT
PD3700DT
PD4600DT
Tractor Horsepower (PTO)
200-260HP
210-260HP
220-260HP
250-350HP
Rotor Speed
253 RPM
Working Width
10'-6"
11'-4"
12'-2"
14'-0"
Overall Width
11'-4"
12'-2"
13'-0"
14'-10"
Quantity of Teeth
213
235
249
295
Working Depth on Non-Passive Surfaces
(e.g. Asphalt, Sheets of Granite, etc.)
3"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
6"
Weight
8,600 lbs.
9,560 lbs.
10,050 lbs.
12,600 lbs.
Weights Include Roller, but are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
