Valentini 'MSQ' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer! And Double Skinned Body, All For A Long, Trouble Free Life!
'MSQ' Series Folding Tiller Shown with Optional Hyd. Adjusted Cage Roller
FOR 190-300HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'MSQ' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Cat 3, 3N Quick Hitch Compatible!
1000RPM Large Sump Gearbox:
Cam Clutch Protected PTO Shaft.
It Doesn’t Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
NO Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!
Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
Each Wing Has Actual Drivelines Which Are Also Cam Clutch Protected – These Are Actual PTO Shafts, Not Just Mechanical Links!
Side Gear Drive System Is In An Oil Bath Gear Box.
Dual Cylinder Hydraulic Roller Adjustment Kit!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hydraulic Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Roller Includes Mud Scrapers As Shown.
Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage in The Toughest & Rockiest Ground!
Two Unique Rotor Scraper Blades On Each End Flange Prevents Vegetation From Wrapping, Providing Protection For Rotor Seals.
Unique & Patented Labyrinth Seals Ensure Bearings Are Protected from Dirt!
6 Blades Per Flange.
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
Round & Slotted Top Link Holes For Rigid or Floating Functioning.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Tool Free Rear Gate Spring Tension Adjustment For Quick & Easy Shop or Field Adjustments!
Front Safety Guards For Personnel & Equipment Protection.
'MSQ' Series Folding Tiller Shown with Optional Hyd. Adjusted Bed Shapers

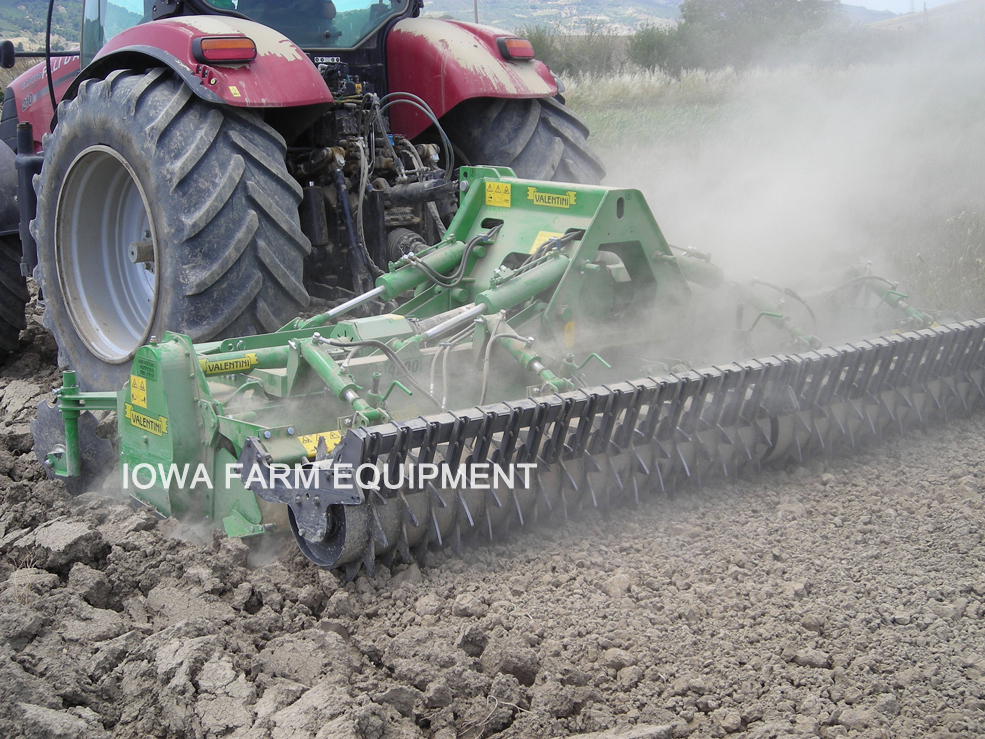

'MSQ Series Folding Tiller with Hydraulically Adjusted Packer Roller

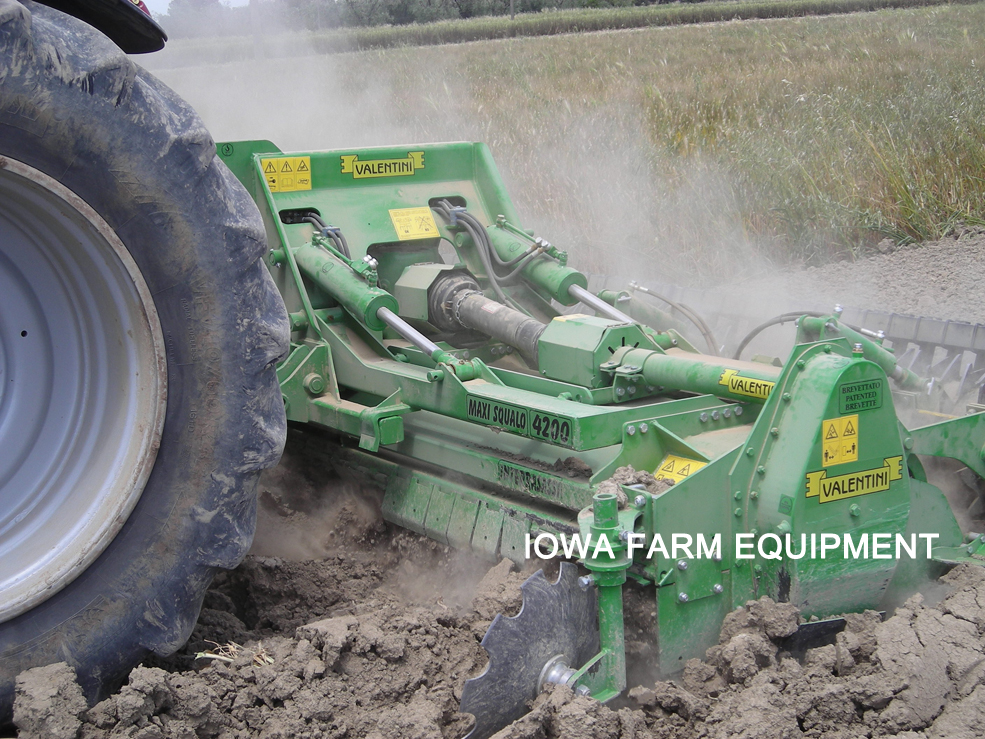

'MSQ' Series Folding Tiller with Hydraulically Adjusted Packer Roller & Front Notched Discs
'MSQ' Series Folding Tiller with Hydraulically Adjusted Packer Roller & Front Notched Discs
Front & Rear Iso Views On Transport with Optional Rippers
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
ACCESSORIES
'MSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
MSQ3700DT*
MSQ4200DT*
MSQ4700DT*
MSQ5200DT*
MSQ5700DT*
Tractor Horsepower (PTO)
190 - 300HP
190 - 300HP
190 - 300HP
200 - 300HP
250 - 300HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3
Working Width
12'-4"
14'-0"
15'-7"
17'-4"
19'-0"
Overall Width
13'-2"
14'-10"
16'-6"
18'-2"
19'-10"
Quantity of Blades
84
96
108
120
132
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
259 RPM's
Blade Tip Speed
324 RPM's
Weight
5,060 lbs.
5,720 lbs.
6,160 lbs.
6,600 lbs.
7,040 lbs.
Weight with Roller
6,578 lbs.
7,128 lbs.
7,810 lbs.
8,096 lbs.
8,470 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'MSQ' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
MSQ3700DT*
MSQ4200DT*
MSQ4700DT*
MSQ5200DT*
MSQ5700DT*
Tractor Horsepower (PTO)
190 - 300HP
190 - 300HP
190 - 300HP
200 - 300HP
250 - 300HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3
Working Width
12'-4"
14'-0"
15'-7"
17'-4"
19'-0"
Overall Width
13'-2"
14'-10"
16'-6"
18'-2"
19'-10"
Quantity of Blades
84
96
108
120
132
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
259 RPM's
Blade Tip Speed
324 RPM's
Weight
5,060 lbs.
5,720 lbs.
6,160 lbs.
6,600 lbs.
7,040 lbs.
Weight with Roller
6,578 lbs.
7,128 lbs.
7,810 lbs.
8,096 lbs.
8,470 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
