MT9000 Folding Tiller with Manually Adjusted Cage Roller
As with ALL Valentini Power Harrows, the 'MT' Series Is Quick-Hitch Compatible, and has been providing Excellent Soil Conditioning & Seed Bed Preparation in all types of soils - without inverting the soil, leaving nutrients on the top layer, leaving weed seeds deep & dormant, and not inverting moist substructure soils, preventing unwanted loss of moisture! The results have been proven in applications varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the most unconventional settings, Valentini has proven to have Bullet Proof Reliability, while producing Excellent Results in one pass! Whether your ground conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, expect to get the results you want with Valentini Power Harrows.
STANDARD FEATURES:
Quick Hitch Compatible, Cat 3, 3-Point Hitch.
Floating Pull Arm Hitches.
1000RPM Large Sump Heavy Duty Gearbox.
Cam Clutch Protected PTO Shaft:
It Doesn’t Get Any Better than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing, & Resetting, After Locked Rotor Conditions.
Hydraulic Power Folding Function Uses Double Acting Cylinders.
9" Spacing Between Rotors Provides The Highest Population of Blades.
Adjustable Leveling Bar For Seed Bed Leveling, Finish Grading, Soil Conditioning, Filling Ruts & Washouts, etc!
Side Skirts for Containment are Adjustable & Don’t Interfere with Maximum Penetration Like Skid Shoes Do!
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Rear Roller Provides Lateral Working Stability & A Level Working Table On The Most Uneven Ground. It Also Produces Excellent Soil Conditioning, and is an Excellent Tool For Working Depth Adjustment!
The Hydraulic Adjust Kit Allows ‘On-The-Fly’ Working Depth Adjustment!

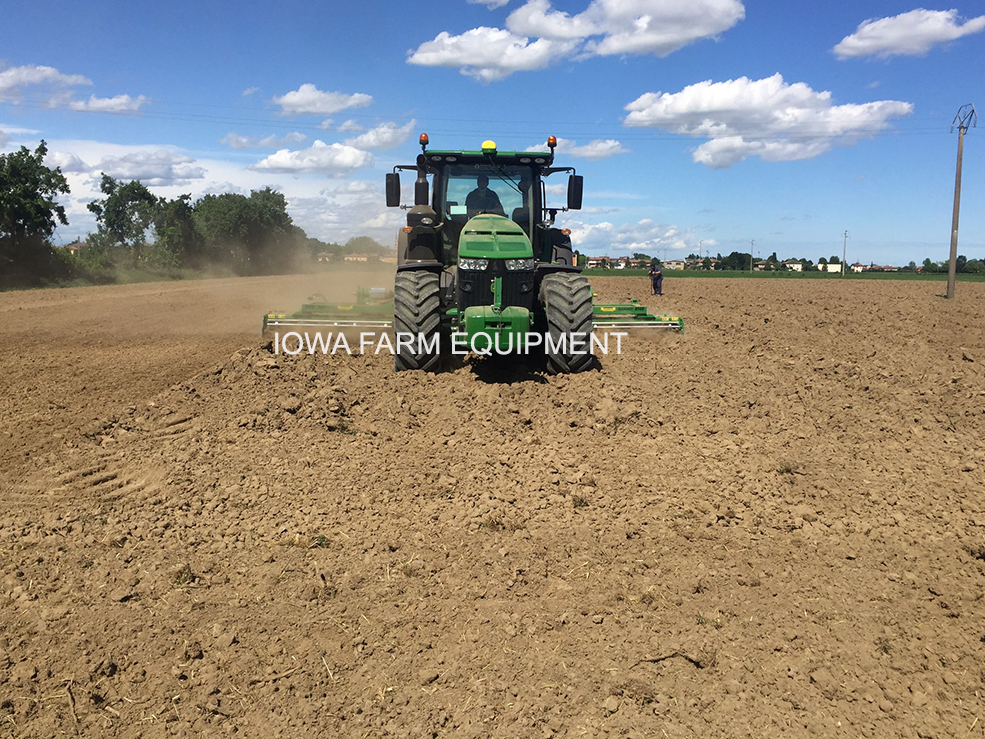

Valentini Power Harrow at Work in ‘Post Construction Soils’, Simultaneously Creating a Beautiful Seed Bed While Producing Excellent Finish Grading Results in an Efficient Single Pass:
MT8000 Power Harrow With Bed Shaper Producing Excellent & Beautiful Single Pass Results!

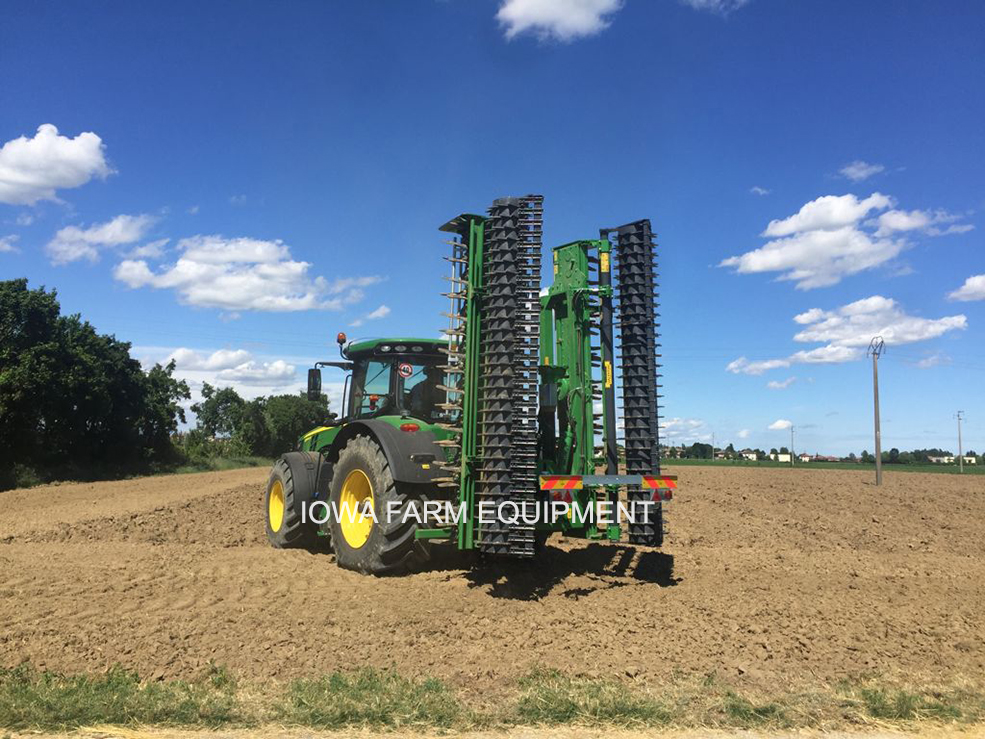

MT8000 Power Harrow Folded Up For Easy Transport!

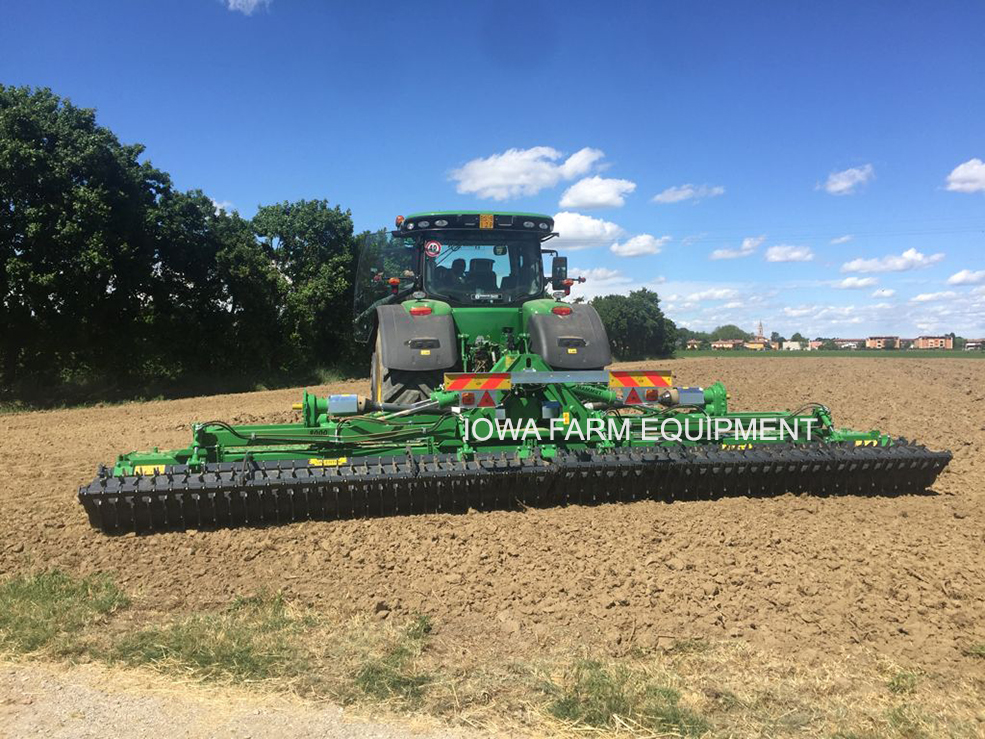

MT8000 Power Harrow Staged For Field Work
MT8000 Power Harrow Staged For Field Work
MT8000 Power Harrow Producing More Excellent Single Pass Results!
Satisfied Customers Photo of Valentini PR3000 Power Harrow Producing Excellent & Efficient Single Pass Motocross Track Grooming Results!
Customer Video of Valentini Tiger 2300 w/Hydraulic Roller Adjust Kit for 'On-The-Fly' Working Depth Adjustment! At Work Producing Excellent Single Pass Grooming Results on Their MX Dirt Track!
Close Ups Of Same Customers Moto Cross Grooming Results, Again In One Efficient Pass!
More Close Ups Of Same Customers Moto Cross Grooming Results!
Another Satisfied Customers Valentini PR3000 Power Harrow Producing Excellent & Efficient Single Pass Motocross Track Grooming Results After They Chisel Plowed!
With 9-1/2” Rotor Spacing, Valentini Power Harrows Have The Highest Population Of Blades To Produce Excellent PTO Powered Single Pass Results & Reduce The Demand On Your Tractor!
The Standard Leveling Bar Makes Valentini Power Harrows Excellent For Pasture Renovation By Producing Level & Conditioned Seed Bed Soils. It Also Makes It A Versatile PTO Powered Tool For Rough & Finish Grading, Filling Washouts, Conditioning Dirt Race Tracks, Conditioning Equestrian Paths & Paddocks, Fire Breaks & Dirt Trails, And Much, Much More!
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Use the Hydraulic Adjustment Feature & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
'MT' SERIES POWER HARROW SPECIFICATIONS
MODEL
5000
6000
7000
8000
9000
Tractor Horsepower (PTO)
200 - 400HP
250 - 400HP
300 - 400HP
350 - 400HP
380 - 400HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3, 4N
Rotor
361 RPM
Working Width
16'-6"
19'-6"
22'-4"
25'-3"
28'-2"
Overall Width
16'-8"
19'-8"
22'-6"
25'-5"
28'-4"
Number of Blades
44
52
60
68
76
Working Depth
12"
Weight with Packer Roller
7,700 lbs.
8,800 lbs.
9,922 lbs.
11,110 lbs.
12,210 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'MT' SERIES POWER HARROW SPECIFICATIONS
MODEL
5000
6000
7000
8000
9000
Tractor Horsepower (PTO)
200 - 400HP
250 - 400HP
300 - 400HP
350 - 400HP
380 - 400HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3, 4N
Rotor
361 RPM
Working Width
16'-6"
19'-6"
22'-4"
25'-3"
28'-2"
Overall Width
16'-8"
19'-8"
22'-6"
25'-5"
28'-4"
Number of Blades
44
52
60
68
76
Working Depth
12"
Weight with Packer Roller
7,700 lbs.
8,800 lbs.
9,922 lbs.
11,110 lbs.
12,210 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
