Valentini 'VN' Series Rock & Stone Crushers, Asphalt Grinders & Milling Machines, Soil Stabilizers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!

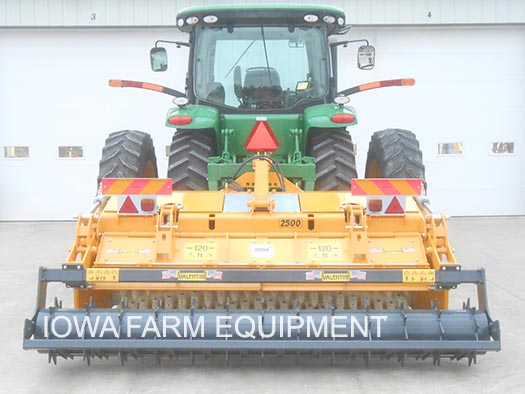

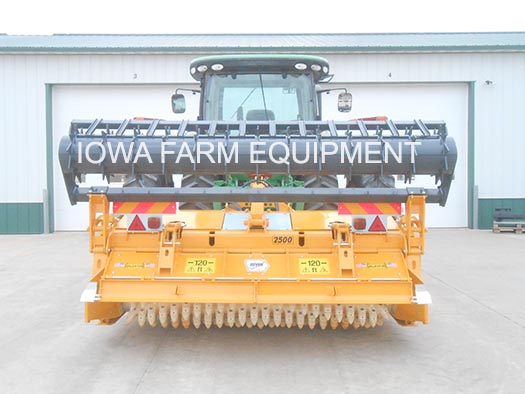

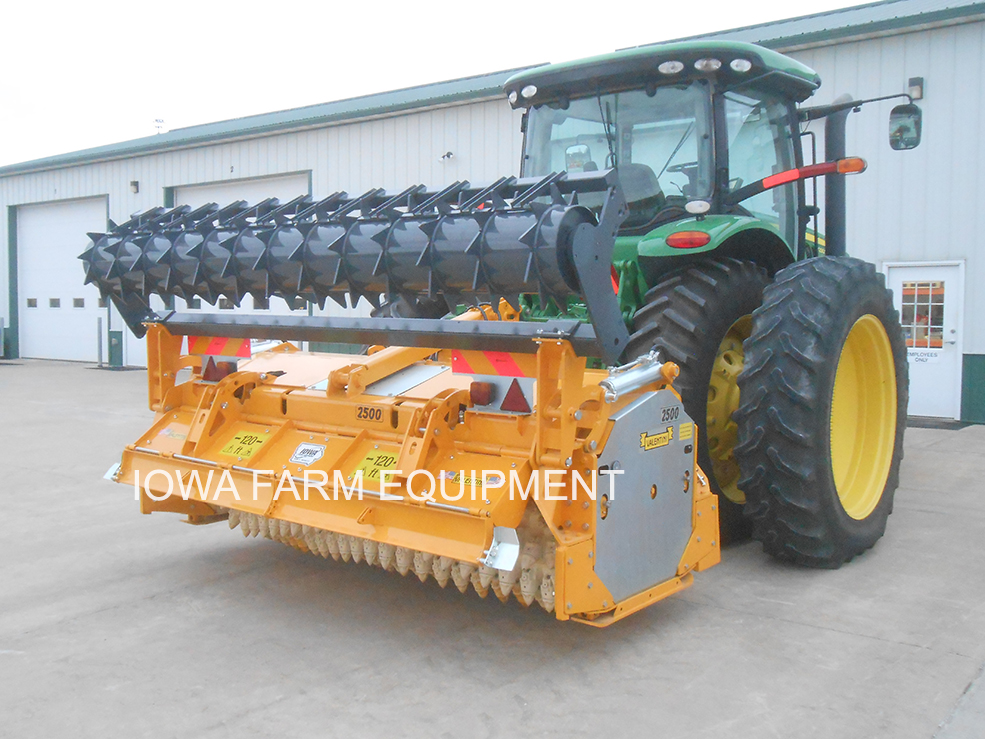

Valentini VN2500DT With Hydraulically Controlled Packer Roller, Hydraulically Controlled Rear Gate, and Height Adjustable Skid Shoes. Use the Hydraulically Controlled Packer Roller for ‘On-The-Fly’ Working Depth Control. Use the Hydraulically Controlled Rear Gate for ‘On-The-Fly’ Control of the Diminishing Chamber: The More the Gate is Closed, the Smaller the Particles, But the Greater Demand, and Slower Ground Speed, The More the Gate is Opened, the Larger the Particles, and Less Demand, and Faster Ground Speed!
'VN' SERIES STONE CRUSHERS FOR 110-380HP TRACTORS
As with ALL Valentini Crushers, the 'VN' Series has been providing Superior Single Pass Results in All Applications: Land Reclamation, Agriculture (Row Crop Fields, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), Roadway Maintenance & Paving (Gravel & Chip Seal Roads, Asphalt Roads & Highways), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Rock & Stone Crushing, Stump Mulching, Soil Shredding, Soil Stabilization, and Asphalt Pulverizing/Grinding, Valentini Crushers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance, Even Shaving Tops off of the Outcroppings of Embedded Boulders, Even at Work Crushing & Pulverizing Limestone!
STANDARD FEATURES:
Category 2, 3-Point Hitch.
Cam Clutch Protected PTO Shaft!
It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
Dual Transmission Models have Slip Clutch Protected Side Drive Shafts.
Crushers 'Diminishing Chamber' is Comprised of the Following:
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
Containment Door Constructed for Extreme Service Duty & Wear Resistance.
Crusher Body Internal Hardox Lining is Replaceable.
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
Keep Front Gate Closed for Max Deflector Use, or Open For Max Working Depth.
Extreme Service Duty Rotor is Shock & Wear Resistant.
26.5" Rotor Working Diameter, Tip to Tip.
Central & Side Gear Drives in Oil Bath Gearboxes.
Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
VN2300 Performing Commercial Soil Stabilization

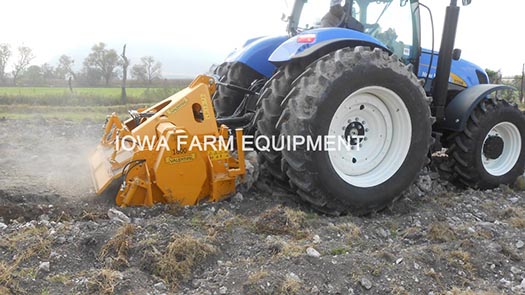

Valentini VN2500DT Rock Crusher Reclaiming Rock Plagued, Fallow But Fertile Primitive Ground ‘In One Efficient Pass’ in Demanding Conditions!

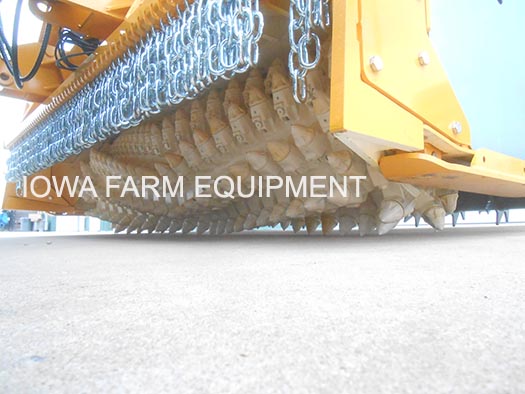

Bullet Style Carbide Teeth in an Efficient Chevron Pattern
Valentini VN2500DT Rock Crusher Reclaiming More Rock Plagued, and Fallow Ground ‘In One Efficient Pass’, Recovering Wasteland For Productive Service!

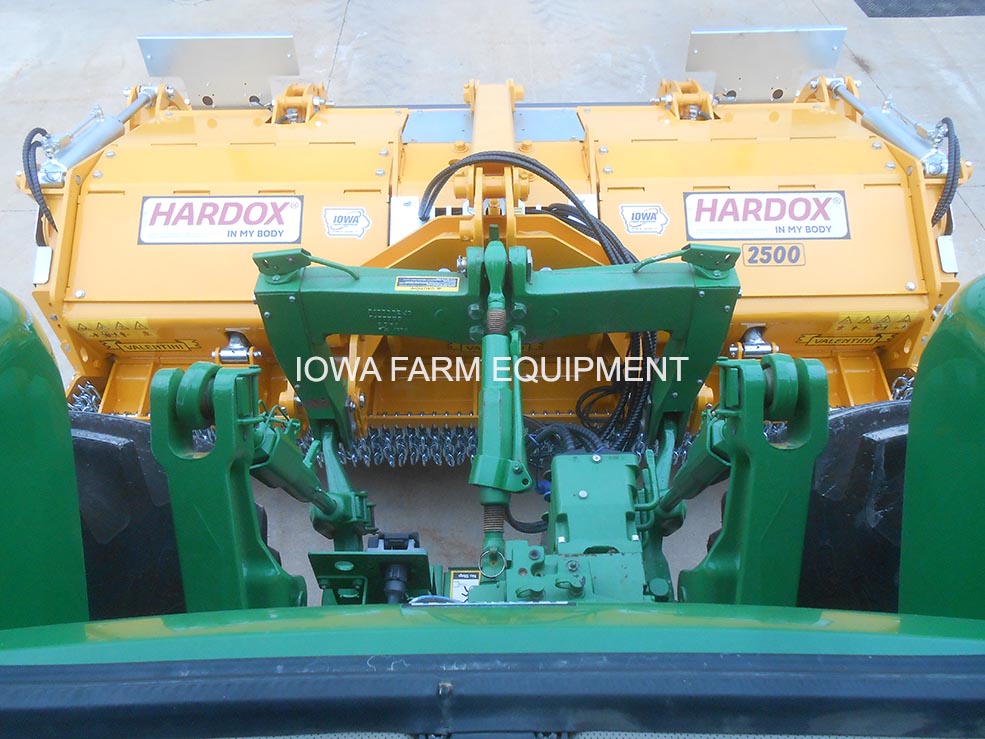

Top View (From Tractor Cab) of The Valentini VN2500DT Stone Crusher
For Stone Crushing, Finer Mulching of Wood Debris, and Sandy, Abrasive Soil Conditions!

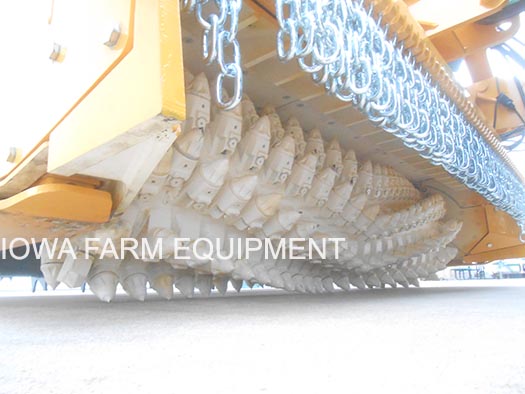

Valentini’s Carbide ‘Bullet Style Teeth’ For The Most Severe Conditions, Including Milling!
Efficiently ‘Chevron Patterned’ with Anvil Counter Crushing Bar & Secondary Reducing Grid

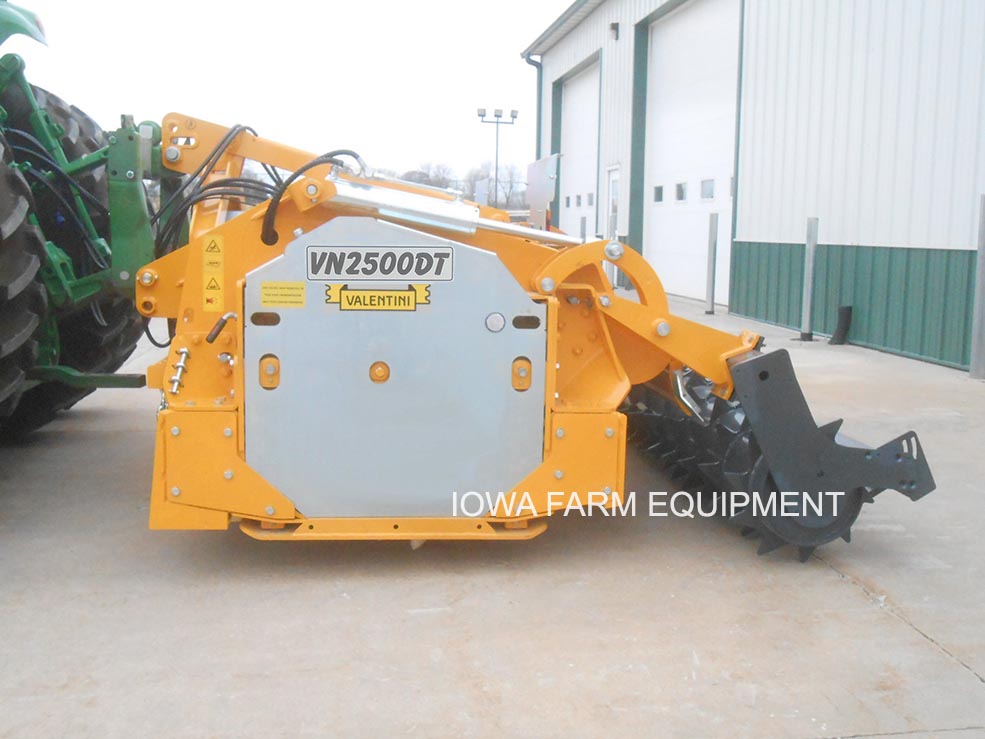

Valentini ‘VN 2500DT’ Side View: Roller Down, Side Skid Shoes Retracted

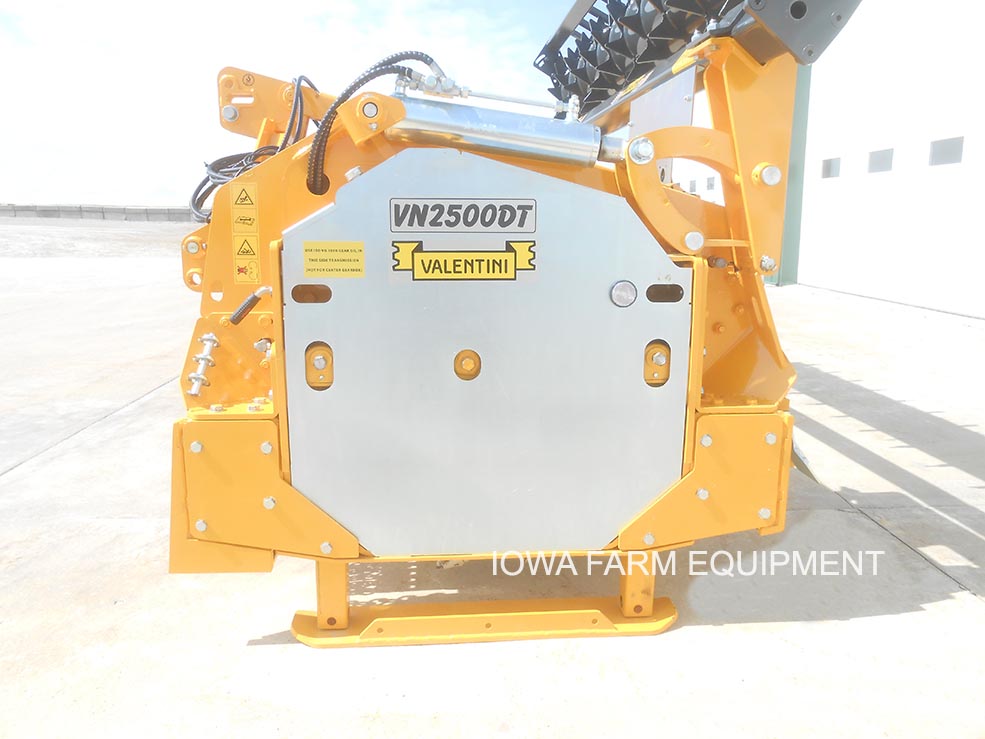

Valentini ‘VN 2500DT’ Side View: Roller Up, Side Skid Shoes Extended: Left & Right Side Plate Cutouts Are For Access To Skid Shoe Retract-Extend Adjustment
'VN' SERIES CRUSHER SPECIFICATIONS
MODEL
VN1000
VN1300
VN1500
VN1800DT
VN2000DT
VN2300DT
VN2500DT
VN2800DT
Tractor Horsepower (PTO)
110-190HP
130-190HP
140-190HP
180-380HP
200-380HP
220-380HP
230-380HP
250-380HP
Rotor Speed
245 RPM
Working Width
42"
52"
62"
74"
81"
7'-11"
8'-5"
9'-8"
Overall Width
60"
70"
80"
90"
98"
9'-2"
9'-10"
10'-9"
Quantity of Teeth
90
110
130
168
186
198
215
232
Working Depth on Non-Passive Surfaces
(e.g. Asphalt, Sheets of Granite, etc.)
7"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
14"
Weight
4,950 lbs.
5,830 lbs.
6,710 lbs.
9,130 lbs.
9,790 lbs.
10,780 lbs.
11,440 lbs.
12,000 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Rollers.
(DT) Denotes Double Transmission.
'VN' SERIES CRUSHER SPECIFICATIONS
MODEL
VN1000
VN1300
VN1500
VN1800DT
VN2000DT
VN2300DT
VN2500DT
VN2800DT
Tractor Horsepower (PTO)
110-190HP
130-190HP
140-190HP
180-380HP
200-380HP
220-380HP
230-380HP
250-380HP
Rotor Speed
245 RPM
Working Width
42"
52"
62"
74"
81"
7'-11"
8'-5"
9'-8"
Overall Width
60"
70"
80"
90"
98"
9'-2"
9'-10"
10'-9"
Quantity of Teeth
90
110
130
168
186
198
215
232
Working Depth on Non-Passive Surfaces
(e.g. Asphalt, Sheets of Granite, etc.)
7"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
14"
Weight
4,950 lbs.
5,830 lbs.
6,710 lbs.
9,130 lbs.
9,790 lbs.
10,780 lbs.
11,440 lbs.
12,000 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Rollers.
(DT) Denotes Double Transmission.
Specifications & Designs Are Subject to Change Without Notice
