All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!

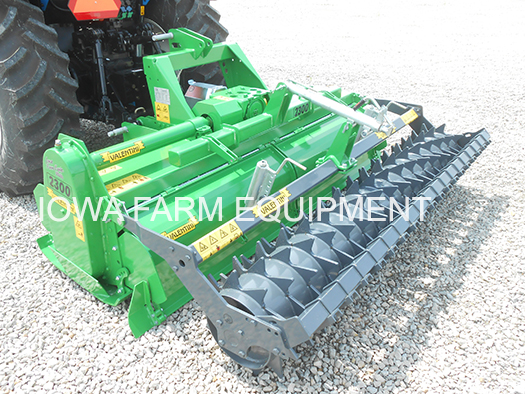

H2300 Tiller with Manually Adjusted Packer Roller: Hydraulically Adjusted Rollers Are Now A Standard Feature Providing Efficient ‘On-The-Fly’ Working Depth Adjustment While Achieving Beautiful & Efficient Single Pass Results!

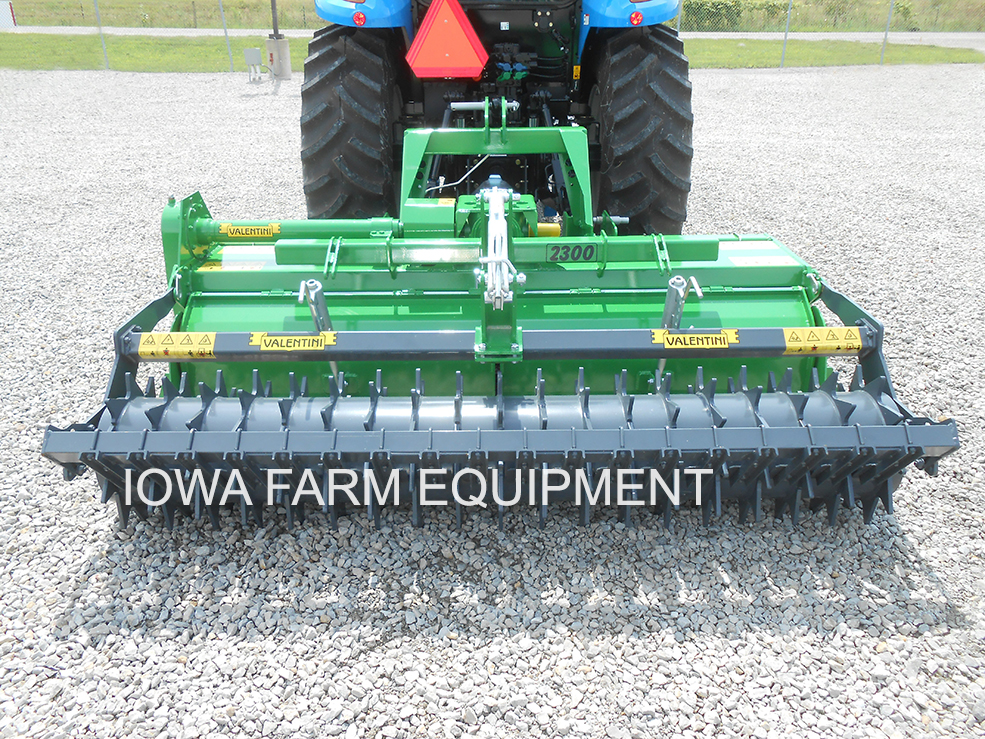

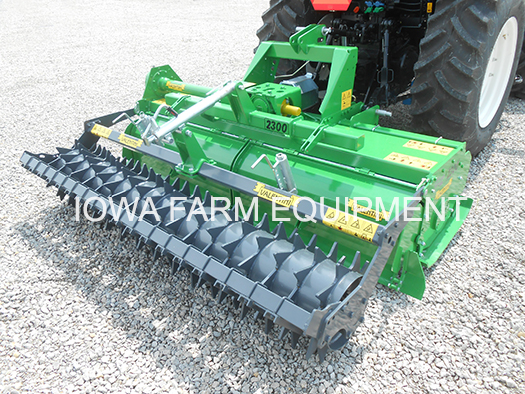

'H' Series Tiller with Packer Roller
FOR 55-100PTO HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'H' Series Tiller Is Quick-Hitch Compatible, and Includes 'Hydraulic Rear Roller Adjustment' For Convenient & Efficient 'On-The-Fly' Working Depth Adjustment! You Can Expect Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Quick Hitch Compatible, Cat 2, 3-Point Hitch.
540RPM Large Sump Gearbox:
Shear Bolt Protected PTO Shaft.
Hydraulic Roller Adjustment Kit!
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
6 Blades per Flange.
Round & Slotted Top Link Holes.
Oil Bath Side Gear Drive.
Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Skid Shoes for Working Depth Adjustment.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Front & Side Safety Guards for Personnel & Equipment Protection.
Sample Video of Valentini Tiller with Culti-Packer Roller
Sample Video of Valentini U3000 Tiller with Culti-Packer Roller
Sample Video of Valentini Tiller with Cage Roller

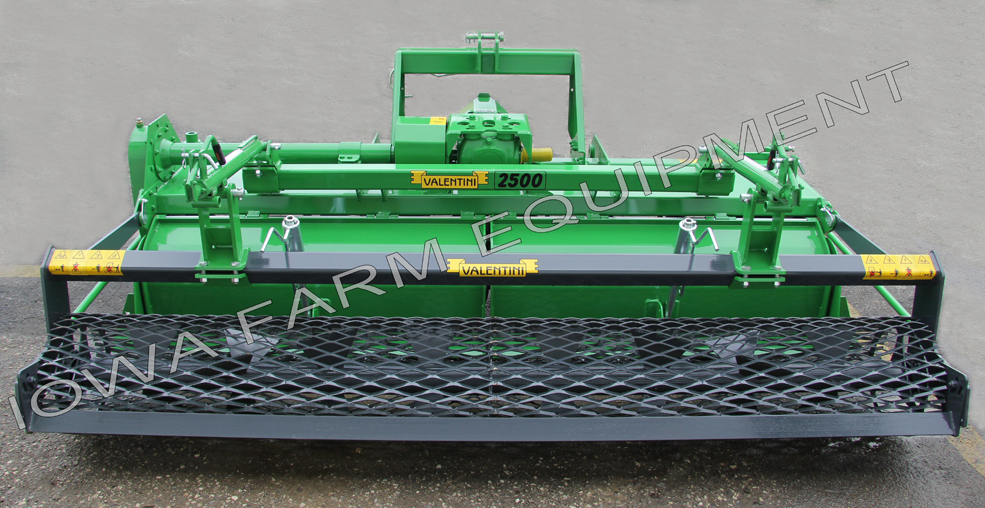

Model H2500 Tiller Shown with Optional Basket Roller & Manual Depth Adjustment
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use the Hydraulic Adjustment & Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
ACCESSORIES
'H' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
H1800
H2000
H2300
Tractor Horsepower (PTO)
55 - 100HP
60 - 100HP
65 - 100HP
PTO Speed
540 RPM
Hitch/Hitch Category
CAT 2
Working Width
73"
83"
93"
Overall Width
81"
91"
100"
Overall Length
47"
Overall Height
43"
Quantity of Blades
42
48
54
Rotor Diameter
20"
Working Depth
10"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
239 RPM's
Blade Tip Speed
323 RPM's
Weight
1,416 lbs.
1,562 lbs.
1,705 lbs.
Weight with Roller
2,182 lbs.
2,333 lbs.
2,480 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'H' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
H1800
H2000
H2300
Tractor Horsepower (PTO)
55 - 100HP
60 - 100HP
65 - 100HP
PTO Speed
540 RPM
Hitch/Hitch Category
CAT 2
Working Width
73"
83"
93"
Overall Width
81"
91"
100"
Overall Length
47"
Overall Height
43"
Quantity of Blades
42
48
54
Rotor Diameter
20"
Working Depth
10"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
239 RPM's
Blade Tip Speed
323 RPM's
Weight
1,416 lbs.
1,562 lbs.
1,705 lbs.
Weight with Roller
2,182 lbs.
2,333 lbs.
2,480 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
