Valentini 'ER' Series 3-Point 'Folding' Rotary Tillers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer! And Double Skinned Body, All For A Long, Trouble Free Life!
'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller
FOR 180-400HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'ER' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
Sample Video of Valentini U3000 Tiller with Culti-Packer Roller
It Doesn’t Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
NO Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!
Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
Each Wing Has Actual Drivelines Which Are Also Cam Clutch Protected – These Are Actual PTO Shafts, Not Just Mechanical Links!
Side Gear Drive System Is In An Oil Bath Gear Box.
Dual Cylinder Hydraulic Roller Adjustment Kit!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hydraulic Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Roller Includes Mud Scrapers As Shown.

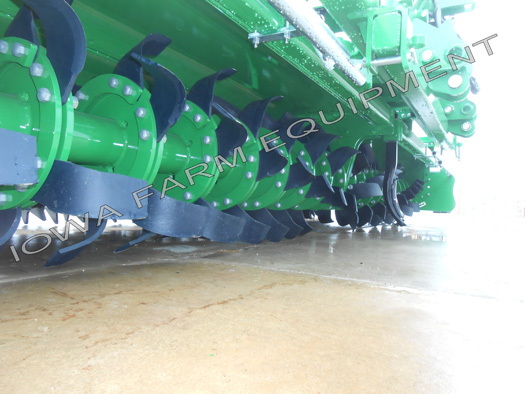

Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage in The Toughest & Rockiest Ground!
Two Unique Rotor Scraper Blades On Each End Flange Prevents Vegetation From Wrapping, Providing Protection For Rotor Seals.
Unique & Patented Labyrinth Seals Ensure Bearings Are Protected from Dirt!
6 Blades Per Flange.
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
Round & Slotted Top Link Holes For Rigid or Floating Functioning.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Tool Free Rear Gate Spring Tension Adjustment For Quick & Easy Shop or Field Adjustments!
Front Safety Guards For Personnel & Equipment Protection.

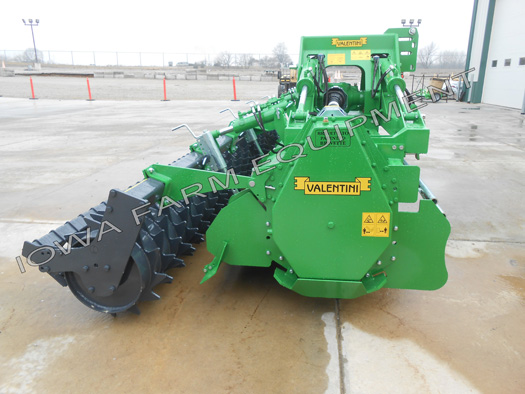

'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller
Front & Rear Iso Views On Transport with Optional Rippers

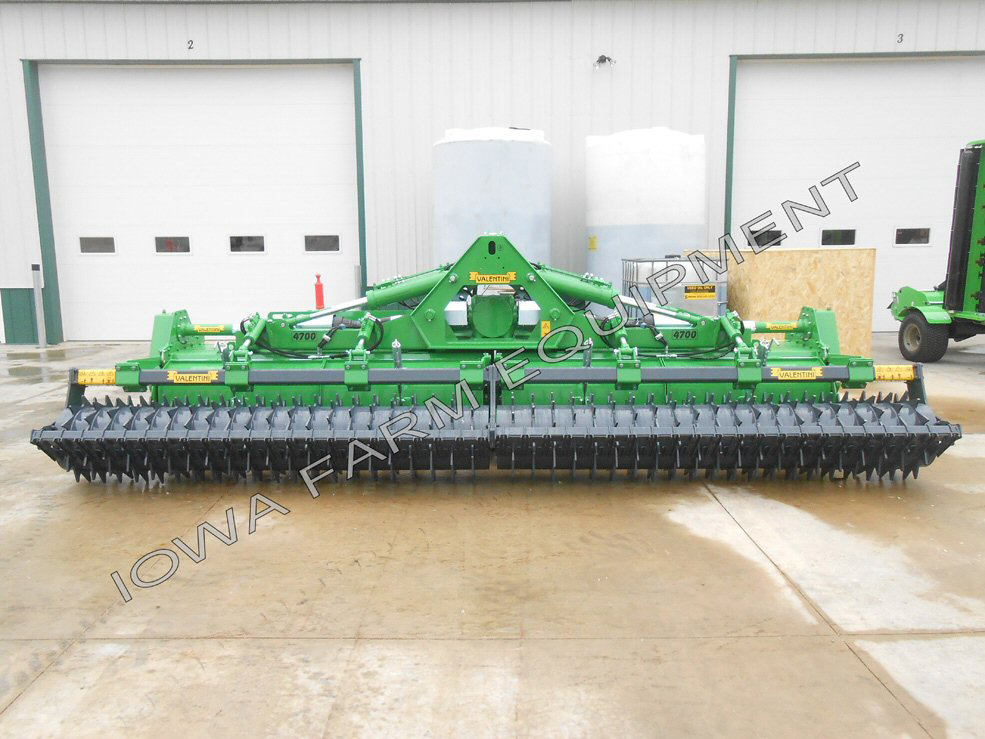

'ER' Series Folding Tiller Direct Mounted On 3-Point

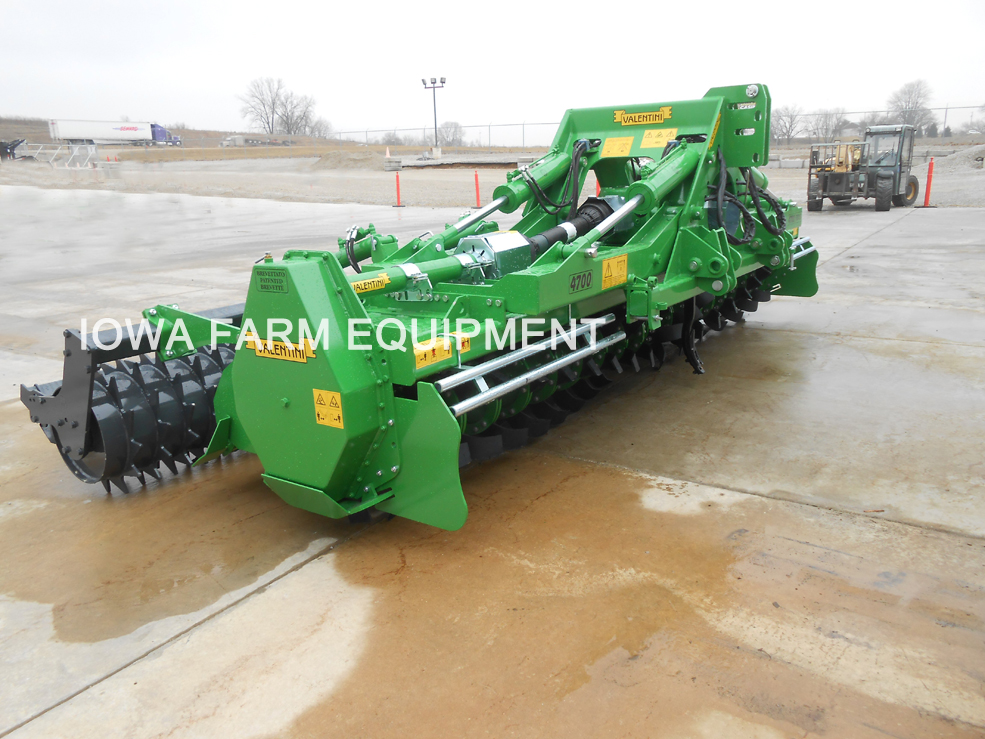

'ER' Series Tiller Shown with Center Ripper & Optional Culti-Packer Roller
'ER' Series Tiller Shown with Center Ripper & Optional Culti-Packer Roller

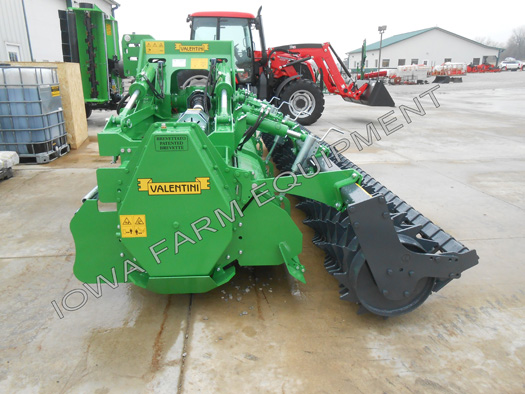

'ER' Series Folding Tiller Shown with Optional Culti-Packer Roller

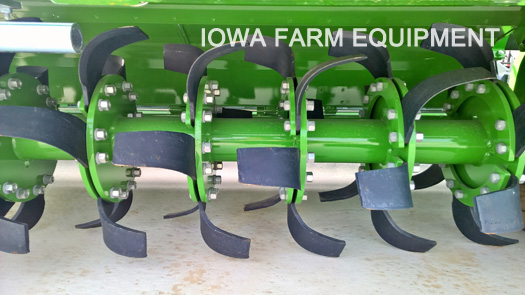

'ER' Series Tiller Rotor Shown with Optional Counter Flange Kit (for Dry Hard Dirt/Clay & Stony Conditions)
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use The Hydraulic Roller Adjustment Feature To Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
ACCESSORIES
'ER' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
ER4200DT*
ER4700DT*
ER5200DT*
ER5700DT*
ER6200DT*
ER6700DT*
ER7200DT*
ER7700DT*
Tractor Horsepower (PTO)
180-400HP
200-400HP
220-400HP
240-400HP
260-400HP
280-400HP
300-400HP
320-400HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3, 4N
Working Width
14'-0"
15'-7"
17'-4"
19'-0"
20'-6"
22'-2"
23'-9"
25'-6"
Overall Width
14'-10"
16'-6"
18'-2"
19'-10"
21'-4"
23'-0"
24'-8"
26'-4"
Quantity of Blades
96
108
120
132
144
156
168
180
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
245 RPM's
Blade Tip Speed
306 RPM's
Weight
7,106 lbs.
7,656 lbs.
8,250 lbs.
8,580 lbs.
9,020 lbs.
9,460 lbs.
9,900 lbs.
10,450 lbs.
Weight with Roller
8,272 lbs.
9,086 lbs.
9,746 lbs.
10,120 lbs.
10,780 lbs.
11,352 lbs.
12,078 lbs.
12,562 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
'ER' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
ER4200DT*
ER4700DT*
ER5200DT*
ER5700DT*
ER6200DT*
ER6700DT*
ER7200DT*
ER7700DT*
Tractor Horsepower (PTO)
180-400HP
200-400HP
220-400HP
240-400HP
260-400HP
280-400HP
300-400HP
320-400HP
PTO Speed
1000 RPM
Hitch/Hitch Category
CAT 3N, 3, 4N
Working Width
14'-0"
15'-7"
17'-4"
19'-0"
20'-6"
22'-2"
23'-9"
25'-6"
Overall Width
14'-10"
16'-6"
18'-2"
19'-10"
21'-4"
23'-0"
24'-8"
26'-4"
Quantity of Blades
96
108
120
132
144
156
168
180
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
245 RPM's
Blade Tip Speed
306 RPM's
Weight
7,106 lbs.
7,656 lbs.
8,250 lbs.
8,580 lbs.
9,020 lbs.
9,460 lbs.
9,900 lbs.
10,450 lbs.
Weight with Roller
8,272 lbs.
9,086 lbs.
9,746 lbs.
10,120 lbs.
10,780 lbs.
11,352 lbs.
12,078 lbs.
12,562 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
*(DT) Denotes Double Transmission
Specifications & Designs Are Subject to Change Without Notice
