Valentini 'AA' Series Rock & Stone Crushers, Asphalt Grinders & Milling Machines, Soil Stabilizers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!

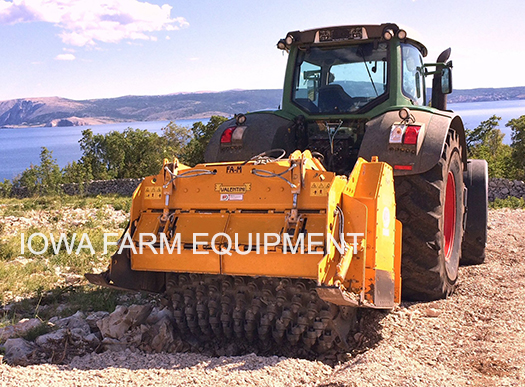

Valentini ‘AA” Series Crusher Grinding Embedded Limestone Outcroppings In One Efficient Pass!
'AA' SERIES STONE CRUSHERS FOR 200-450HP TRACTORS
As with ALL Valentini Crushers, the 'AA' Series has been providing Superior Single Pass Results in All Applications: Land Reclamation, Agriculture (Row Crop Fields, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), Roadway Maintenance & Paving (Gravel & Chip Seal Roads, Asphalt Roads & Highways), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Rock & Stone Crushing, Stump Mulching, Soil Shredding, Soil Stabilization, and Asphalt Pulverizing/Grinding, Valentini Crushers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance, Even Shaving Tops off of the Outcroppings of Embedded Boulders, Even at Work Crushing & Pulverizing Limestone!
STANDARD FEATURES:
Category 3, 3-Point Hitch.
Single Speed Unit, 1000RPM.
Cam Clutch Protected Main PTO Shaft!
It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
All Models are Dual Transmission Units with Slip Clutch Protected Side Drive Shafts.
Crushers 'Diminishing Chamber' is Comprised of the Following:
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
Containment Door Constructed for Extreme Service Duty & Wear Resistance.
Crusher Body Internal Hardox Lining is Replaceable.
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
Keep Front Gate Closed for Max Deflector use, or Open For Max Working Depth.
Extreme Service Duty Rotor is Shock & Wear Resistant.
Rotor Working Diameter, Tip to Tip:
31.5” ‘L’ Series.
36” ‘N’ Series.
45.5” ‘M’ Series.
Central & Side Gear Drives in Oil Bath Gearboxes.
Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Hydraulically Adjusted Rear Skid Shoes.
In Addition to Accommodating The Deepest Grinding, Valentini’s Protruding Rotors Also Keep the Machine Out of the Ground, Reducing Resistance, Reducing Power Consumption, Dramatically Increasing Fuel efficiency, and Allowing For Better Ground Speeds! Valentini’s Bullet Style Teeth (For Most Severe Applications), Are Efficiently ‘Chevron Patterned’ with Secondary Reducing Grid.
Valentini ‘AA’ Series Crusher Milling/Grinding Asphalt Highways.
Valentini ‘AA’ Series Asphalt Milling/Grinding Results!

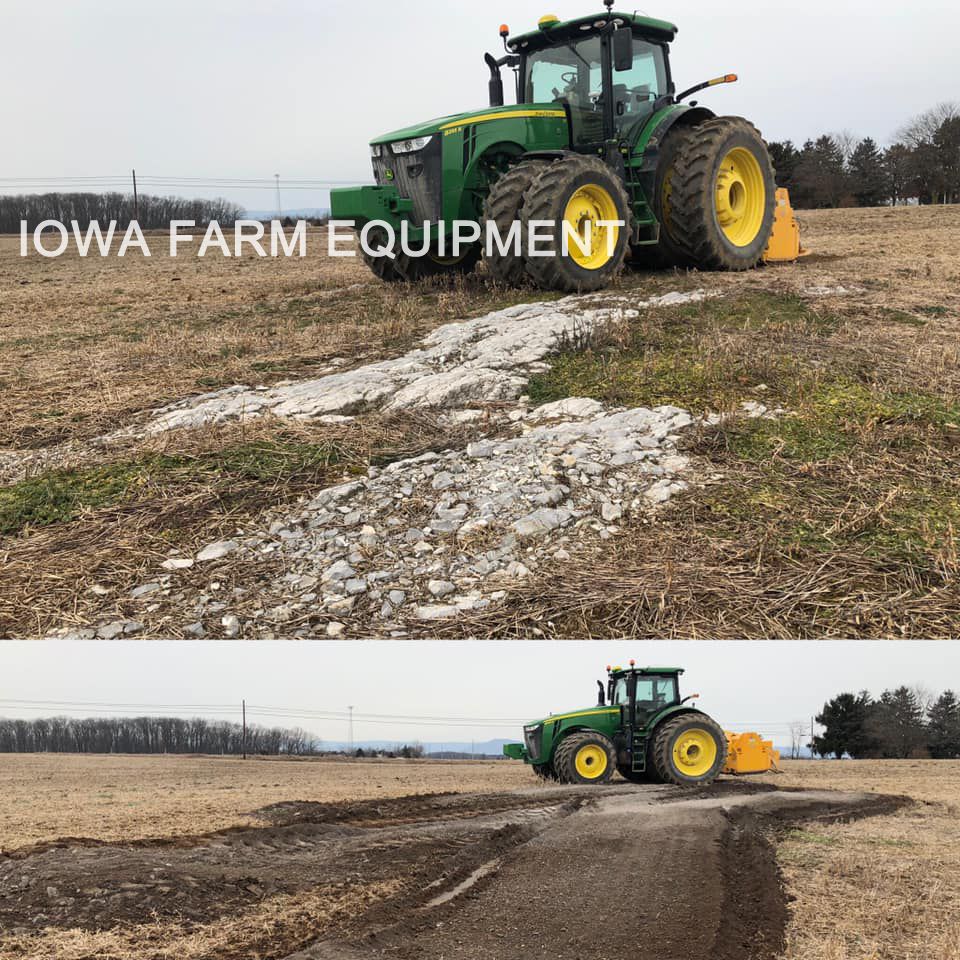

Valentini ‘AA’ Series Crusher Grinding Limestone Outcroppings In An Efficient Single Pass! See Standing Outcroppings at Left Center, and See Beautiful Single Pass Results at Center! With Outcroppings Ground Down & Eliminated, More Ground Is Now In Production, But More Importantly, Damage to Tillage Equipment, Planting Equipment, and Harvesting Equipment Has Been Eliminated, Along with the Costs of Parts, Repairs & the Discouraging Interruption of Down Time!

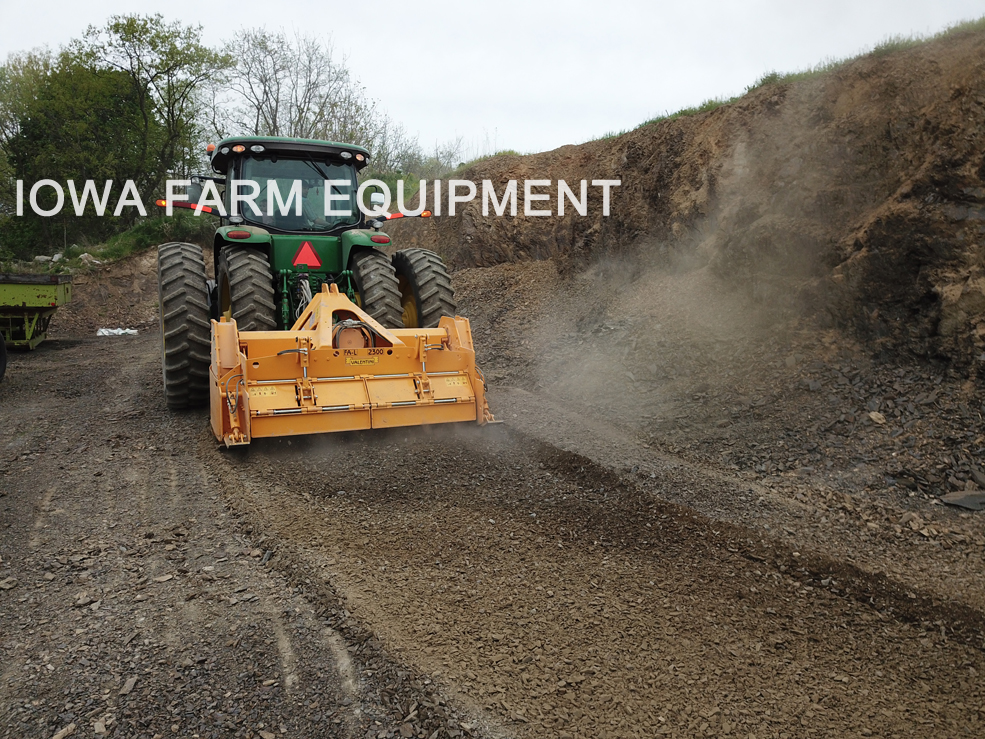

Valentini ‘AA” Series Grinding in Thick Shale!

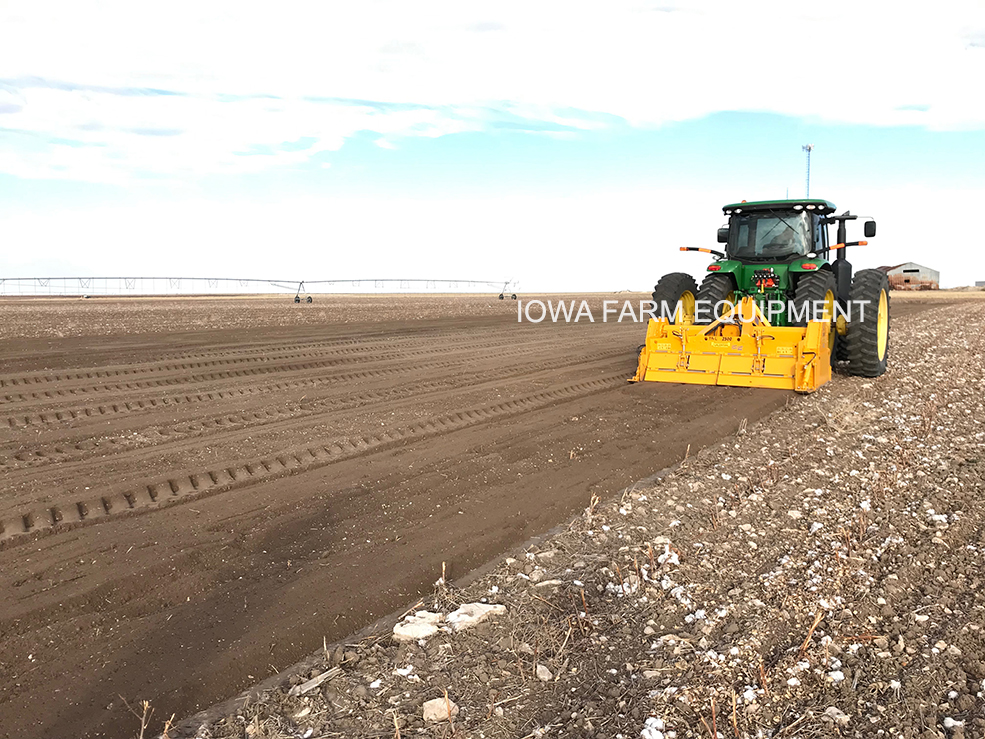

Valentini ‘AA” Series Efficiently Recovering Large Area of Wasteland (Next to Pivot Irrigated Fields) Now Available For Agricultural Use…All In One Beautiful & Efficient Pass!

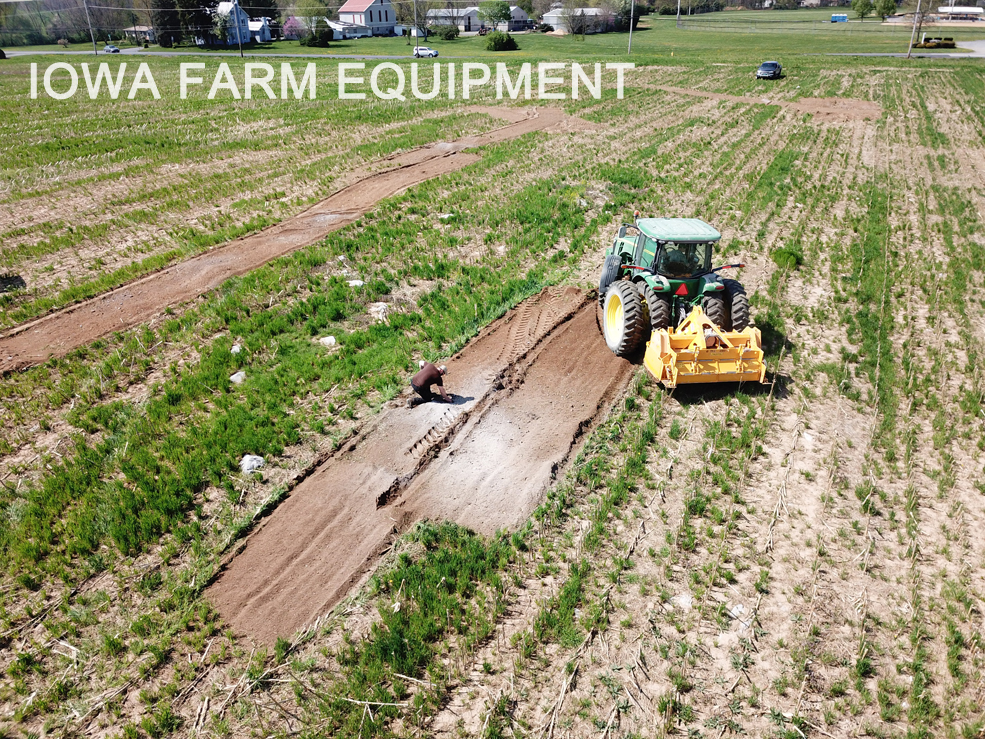

Same Field As Above, with Same Beautiful Single Pass Results!
For Stone Crushing, Finer Mulching of Wood Debris, and Sandy, Abrasive Soil Conditions!

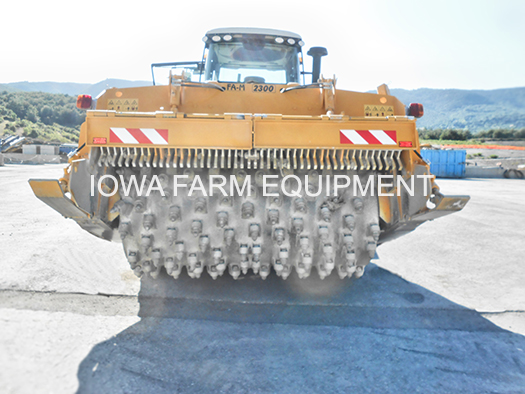

Valentini’s Carbide ‘Bullet Style Teeth’ For The Most Severe Conditions, Including Milling!

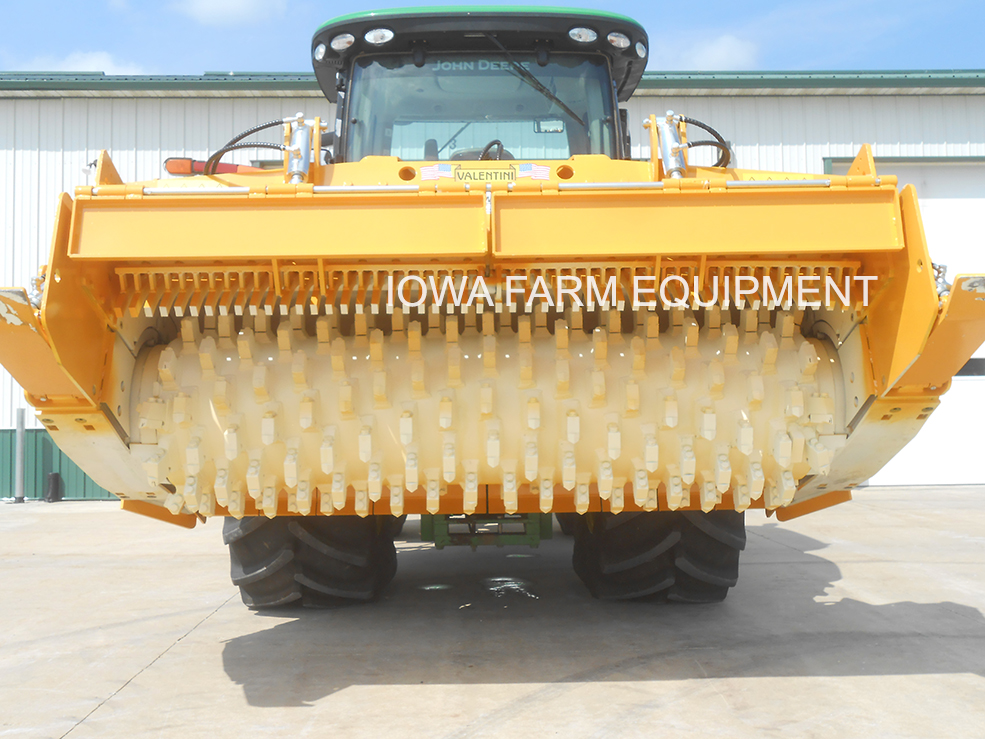

Efficiently ‘Chevron Patterned’ with Anvil Counter Crushing Bar & Secondary Reducing Grid
Top View Valentini ‘AA” Series Crusher!
'AA' SERIES CRUSHER SPECIFICATIONS
MODEL
AA1800DT
AA2000DT
AA2300DT
AA2500DT
AA2800DT
AA3000DT
L
N
M
L
N
M
L
N
M
L
N
L
N
L
N
Tractor Horsepower (PTO)
200-450HP
220-450HP
320-450HP
220-450HP
240-450HP
340-450HP
240-450HP
280-450HP
360-450HP
280-450HP
320-450HP
300-450HP
340-450HP
320-450HP
360-450HP
Rotor Diameter
31.5"
36"
45.5"
31.5"
36"
45.5"
31.5"
36"
45.5"
31.5"
36"
31.5"
36"
31.5"
36"
Working Width
5'-9"
6'-7"
7'-5"
8'-3"
9'-1"
9'-11"
Overall Width
7'-3"
8'-1"
8'-11"
9'-9"
10'-7"
11'-5"
Quantity of Teeth
152
170
230
170
185
265
198
220
302
214
238
232
256
250
274
Side Drive Gears (Qty)
4
6
4
6
4
6
4
4
4
Working Depth on Passive Surfaces*
(e.g. Dirt, Gravel, Sod, etc.)
16"
20"
28"
16"
20"
28"
16"
20"
28"
16"
20"
16"
20"
16"
20"
Working Depth on Non-Passive Surfaces**
(e.g. Asphalt, Sheets of Granite, etc.)
7.5"
10.6"
16"
7.5"
10.6"
16"
7.5"
10.6"
16"
7.5"
10.6"
7.5"
10.6"
7.5"
10.6"
Weight (lbs.)
11,880
12,056
16,060
12,430
12,980
16,720
13,200
14,080
17,600
14,014
15,400
14,850
16,720
15,730
18,040
Weights are Less Pallets, Crates, PTO Shaft & Rollers.
(DT) Denotes Double Transmission
*This dimension represents Maximum Single Pass Working Depth, subject to moderate ground conditions, allowing Max. Plow Share & Skid penetration. **This dimension represents the distance from the Tip of the Teeth, to the bottom of the Skid Shoes – typically applicable to determining Max. Single Pass Milling Depth (on Asphalt, Chip Seal Roads & other Hard Surfaces).
'AA' SERIES CRUSHER SPECIFICATIONS
MODEL
AA1800DT
AA2000DT
AA2300DT
AA2500DT
AA2800DT
AA3000DT
L
N
M
L
N
M
L
N
M
L
N
L
N
L
N
Tractor Horsepower (PTO)
200-450HP
220-450HP
320-450HP
220-450HP
240-450HP
340-450HP
240-450HP
280-450HP
360-450HP
280-450HP
320-450HP
300-450HP
340-450HP
320-450HP
360-450HP
Rotor Diameter
31.5"
36"
45.5"
31.5"
36"
45.5"
31.5"
36"
45.5"
31.5"
36"
31.5"
36"
31.5"
36"
Working Width
5'-9"
6'-7"
7'-5"
8'-3"
9'-1"
9'-11"
Overall Width
7'-3"
8'-1"
8'-11"
9'-9"
10'-7"
11'-5"
Quantity of Teeth
152
170
230
170
185
265
198
220
302
214
238
232
256
250
274
Side Drive Gears (Qty)
4
6
4
6
4
6
4
4
4
Working Depth on Passive Surfaces*
(e.g. Dirt, Gravel, Sod, etc.)
16"
20"
28"
16"
20"
28"
16"
20"
28"
16"
20"
16"
20"
16"
20"
Working Depth on Non-Passive Surfaces**
(e.g. Asphalt, Sheets of Granite, etc.)
7.5"
10.6"
16"
7.5"
10.6"
16"
7.5"
10.6"
16"
7.5"
10.6"
7.5"
10.6"
7.5"
10.6"
Weight (lbs.)
11,880
12,056
16,060
12,430
12,980
16,720
13,200
14,080
17,600
14,014
15,400
14,850
16,720
15,730
18,040
Weights are Less Pallets, Crates, PTO Shaft & Rollers.
(DT) Denotes Double Transmission
*This dimension represents Maximum Single Pass Working Depth, subject to moderate ground conditions, allowing Max. Plow Share & Skid penetration. **This dimension represents the distance from the Tip of the Teeth, to the bottom of the Skid Shoes – typically applicable to determining Max. Single Pass Milling Depth (on Asphalt, Chip Seal Roads & other Hard Surfaces).
Specifications & Designs Are Subject to Change Without Notice
