All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer! And Double Skinned Body, All For A Long, Trouble Free Life!
Model AR3000 Tiller with Optional Cage Roller & Standard Hydraulic Adjust Kit Providing Efficient ‘On-The-Fly’ Working Depth Adjustment While Achieving Beautiful & Efficient Single Pass Results!
FOR 60-130HP TRACTORS
As with ALL Valentini Rotary Tillers, the 'AR' Series Tiller Is Quick-Hitch Compatible, and has Been Providing Excellent Soil Conditioning Results in All Types of Soils! In Applications Varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the Most Unconventional Settings, Valentini has Proven to Have Bullet Proof Reliability, While Producing Excellent Results in One Pass! Whether your Ground Conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, Expect to get the Results you want with Valentini Tillers!
STANDARD FEATURES:
Cat 2 Quick Hitch Compatible!
540/1000RPM Large Sump Gearbox:
Shear Bolt Protected PTO Shaft.
Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
Side Gear Drive System Is In An Oil Bath Gear Box.
Dual Cylinder Hydraulic Roller Adjustment Kit!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hydraulic Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Roller Includes Mud Scrapers As Shown.
Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage in The Toughest & Rockiest Ground!
Two Unique Rotor Scraper Blades On Each End Flange Prevents Vegetation From Wrapping, Providing Protection For Rotor Seals.
Unique & Patented Labyrinth Seals Ensure Bearings Are Protected from Dirt!
6 Blades Per Flange.
Adjustable Skid Shoes For Gearbox & Side Plate Wear Protection.
Round & Slotted Top Link Holes For Rigid or Floating Functioning.
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
Tool Free Rear Gate Spring Tension Adjustment For Quick & Easy Shop or Field Adjustments!
Front Safety Guards For Personnel & Equipment Protection.
Sample Video of Valentini U3000 Tiller with Hydraulically Controlled Culti-Packer Roller

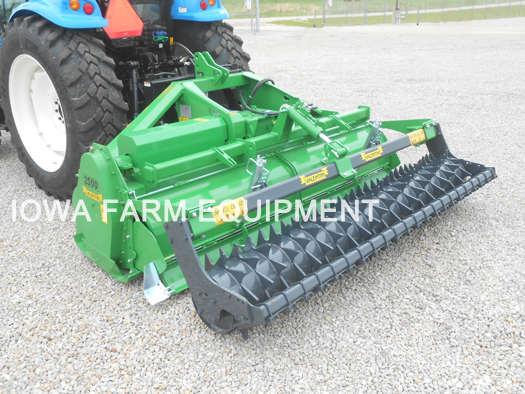

Model AR2500 Tiller with Hydraulically Controlled Packer Roller

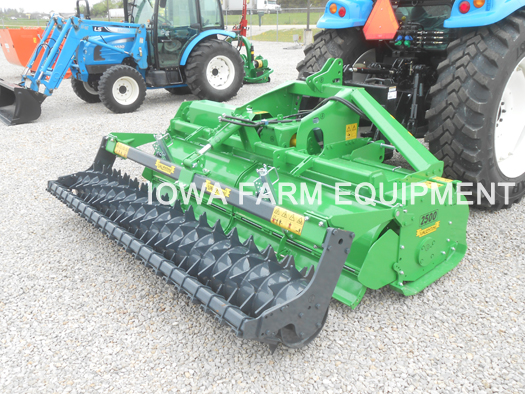

Model AR2500 Tiller with Hydraulically Controlled Packer Roller

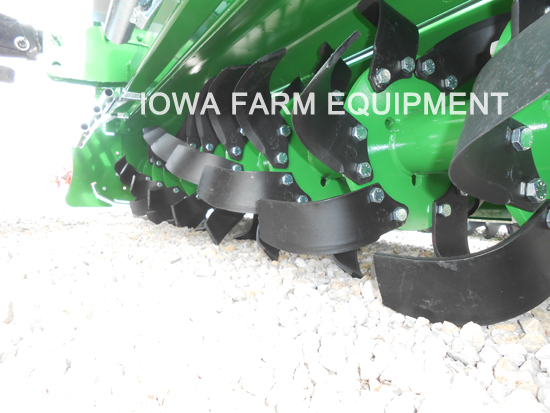

Model AR2500 Tiller Rotor Blades
Two Types of Scraper Blades on Each Rotor End Flange!
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Valentini Rear Rollers Provide Superior Working Depth Adjustment & Soil Conditioning.
Use the Hydraulic Adjustment & Make Working Depth Adjustments ‘On-The-Fly’ From Your Tractor's Operator Station!
Valentini Rear Rollers Also Provide A ‘Tiller Body Leveling Function’ By Preventing The Skid Shoes From
Dropping Into Ruts, Furrows, Or Previously Tilled Loamy Soil When Tilling Adjacent Rows!
ACCESSORIES
Customer Review: "Love the tiller, and you guys did a great job of setting it up. I've had my experience with shoddy work from some places in the past where I had to spend days re-assembling things that were done incorrectly or backwards. Thanks to your assembly guys!" ~ Satisfied Customer, PA
'AR' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
AR2000
AR2300
AR2500
AR3000
Tractor Horsepower (PTO)
60 - 130HP
70 - 130HP
80 - 130HP
100 - 130HP
PTO Speed
540 RPM
1000 RPM
Hitch/Hitch Category
CAT 2
Working Width
83"
93"
102"
122"
Overall Width
91"
100"
110"
130"
Quantity of Blades
48
54
60
72
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
239 RPM
Blade Tip Speed
323 RPM
Weight
2,063 lbs.
2,212 lbs.
2,373 lbs.
2,712 lbs.
Weight with Roller
2,933 lbs.
3,119 lbs.
3,306 lbs.
3,604 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'AR' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
AR2000
AR2300
AR2500
AR3000
Tractor Horsepower (PTO)
60 - 130HP
70 - 130HP
80 - 130HP
100 - 130HP
PTO Speed
540 RPM
1000 RPM
Hitch/Hitch Category
CAT 2
Working Width
83"
93"
102"
122"
Overall Width
91"
100"
110"
130"
Quantity of Blades
48
54
60
72
Working Depth
11"
(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)
Rotor Speed
239 RPM
Blade Tip Speed
323 RPM
Weight
2,063 lbs.
2,212 lbs.
2,373 lbs.
2,712 lbs.
Weight with Roller
2,933 lbs.
3,119 lbs.
3,306 lbs.
3,604 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
