Valentini 'RA' Series Forestry Tillers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains
Only Excellent Results & Excellent Power Transfer!
Only Excellent Results & Excellent Power Transfer!
Rock Crushing Capable
RA2300DT Front Gate Closed
'RA' SERIES FORESTRY TILLERS FOR 100-230HP TRACTORS
As with ALL Valentini Forestry Tillers, the 'RA' Series has been Providing Superior 'Single Pass' Results in All Applications: Land Clearing & Reclamation, Agriculture (Row Cropping, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Stump Grinding, Soil Shredding, Soil Stabilization and even Stone Crushing, Valentini Forestry Tillers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance in the Absolute Worst & Most Demanding Conditions, Crushing Rock! Compared to Rock Crushing the Largest, Hardest Tree Stumps, and any other Timber or Organic Matter, even the Driest & Hardest Clay Soils & Shale, are a Piece of Cake!
STANDARD FEATURES:
- Category 2, 3-Point Hitch.
- Cam Clutch Protected PTO Shaft!
- It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
- No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
- Dual Transmission Models have Slip Clutch Protected Side Drive Shafts.
- Forestry Tiller's 'Diminishing Chamber' is Comprised of the Following:
- Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
- Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
- Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
- Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
- Containment Door Constructed for Extreme Service Duty & Wear Resistance.
- Forestry Tiller's Body Internal Hardox Lining is Replaceable.
- Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
- Keep Front Gate Closed for Max Deflector use, or Open For Max Working Depth.
- Extreme Service Duty Rotor is Shock & Wear Resistant.
- 25" Rotor Working Diameter, Tip to Tip.
- Central & Side Gear Drives in Oil Bath Gearboxes.
- Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
- Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
- Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
- Hydraulically Adjusted Rear Skid Shoes.
RA2300DT ISO View, Front Gate Closed
Valentini's Multi-Purpose Carbide 'Rock & Wood Bits'
For Mulching Wood Debris, Stump Grinding & Stone Crushing in the
Most Demanding Conditions, Including Sandy, Abrasive Soils, Leaving Behind a Beautiful Seed Bed!
Most Demanding Conditions, Including Sandy, Abrasive Soils, Leaving Behind a Beautiful Seed Bed!

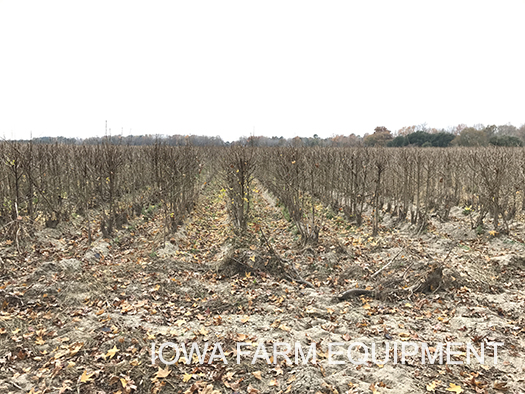

Valentini ‘VN1000’ Forestry Tiller w/Offset to Accommodate Driving & Mulching Thru Rows as Shown!

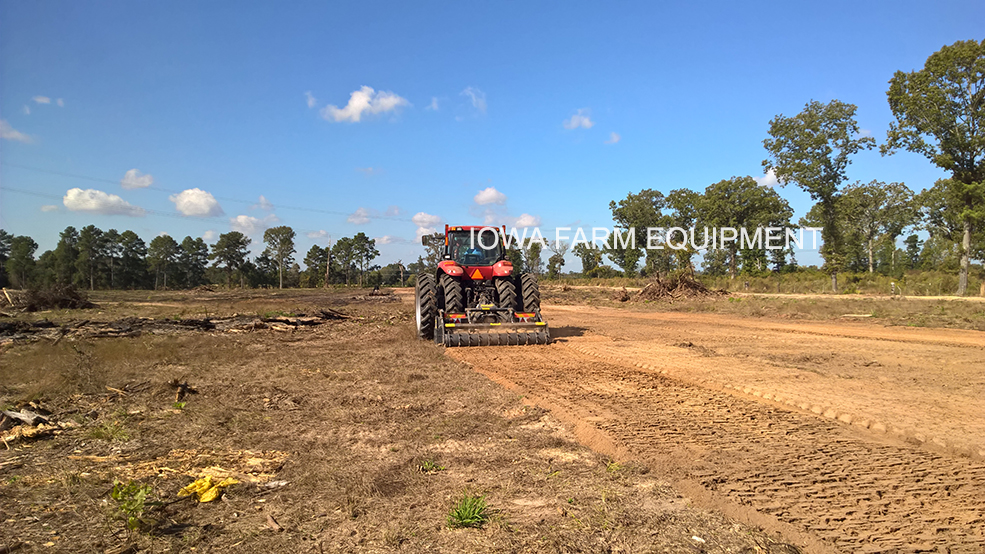

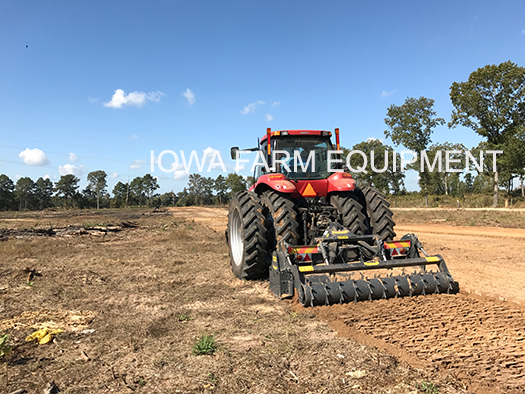

Valentini ‘RA2500’ Forestry Tiller Deep Mulching Stumps & Roots After Clear Cutting a Large Field of Mature Mixed Trees!
RA2300DT with Hydraulically Controlled Packer Roller
RA2300DT with Hydraulically Controlled Packer Roller
RA1000 Mulching Vineyard Rows with a High Concentration of Rock!
‘RA’ Series Mulching Vineyard Rows with a High Concentration of Rock!
RA1300 Efficiently Reclaiming Open Fields
| 'RA' SERIES FORESTRY TILLER SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| MODEL | RA1000 | RA1300 | RA1500 | RA1800DT | RA2000DT | RA2300DT |
| Tractor Horsepower | 100-150HP | 110-150HP | 130-150HP | 140-230HP | 150-230HP | 160-230HP |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM | 1000 RPM | 1000 RPM | 1000 RPM |
| Rotor Speed | 236 RPM | 259 RPM | ||||
| Working Width | 42" | 52" | 62" | 72" | 82" | 92" |
| Overall Width | 56" | 66" | 76" | 86" | 96" | 105" |
| Quantity of Teeth | 88 | 106 | 124 | 142 | 160 | 178 |
Working Depth on Non-Passive Surfaces(e.g. Hard & Dry Heavy Soils, etc.) |
6" | |||||
Working Depth on Passive Surfaces(e.g. Dirt, Gravel, Sod, etc.) |
10" | |||||
| Weight | 3,916 lbs. | 4,180 lbs. | 4,620 lbs. | 5,984 lbs. | 6,600 lbs. | 6,930 lbs. |
| Weights are Less Pallets, Crates, PTO Shaft & Rollers. | ||||||
| (DT) Denotes Double Transmission | ||||||
| 'RA' SERIES FORESTRY TILLER SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| MODEL | RA1000 | RA1300 | RA1500 | RA1800DT | RA2000DT | RA2300DT |
| Tractor Horsepower | 100-150HP | 110-150HP | 130-150HP | 140-230HP | 150-230HP | 160-230HP |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM | 1000 RPM | 1000 RPM | 1000 RPM |
| Rotor Speed | 236 RPM | 259 RPM | ||||
| Working Width | 42" | 52" | 62" | 72" | 82" | 92" |
| Overall Width | 56" | 66" | 76" | 86" | 96" | 105" |
| Quantity of Teeth | 88 | 106 | 124 | 142 | 160 | 178 |
Working Depth on Non-Passive Surfaces(e.g. Hard & Dry Heavy Soils, etc.) |
6" | |||||
Working Depth on Passive Surfaces(e.g. Dirt, Gravel, Sod, etc.) |
10" | |||||
| Weight | 3,916 lbs. | 4,180 lbs. | 4,620 lbs. | 5,984 lbs. | 6,600 lbs. | 6,930 lbs. |
| Weights are Less Pallets, Crates, PTO Shaft & Rollers. | ||||||
| (DT) Denotes Double Transmission | ||||||
Specifications & Designs Are Subject to Change Without Notice
