All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains Only Excellent Results & Excellent Power Transfer!
Rock Crushing Capable
Adjustable Working Width Makes It Perfect For Many Applications:
Orchard & Vineyard Side Dressing Preparation ‘Strip Till’ Rock Clearing/Crushing, Mulching ‘Elevated Bed’ Rock Clearing/Crushing, Mulching ‘Produce & Strawberry Rows’ Rock Clearing/Crushing, Mulching
Hydraulically Adjustable ‘On-The-Fly’ Inside Spacings of 7’ to 10’
INTER-ROW, SPLIT ROW SERIES FORESTRY TILLERS
As with ALL Valentini Forestry Tillers, the Inter-Row Series has been Providing Superior Single Pass Results in ALL Suitable Applications: Orchard & Vineyard Aisleway Side Dressing, Strip Till Mulching & Rock Crushing While Developing Beautiful Seedbeds, 'Elevated Bed' Mulching, Stone Crushing & Seed Bed Development, 'Produce & Strawberry Rows' Mulching, Rock Clearing & Seed Bed Development.
Sample Video Depicts Excellent Single Pass Results of The L1500 Crusher: Actual Inter-Row Crusher Video Coming Soon!
STANDARD FEATURES:
Category 2, 3-Point Hitch.
Shear Bolt Protected 540RPM PTO Shaft.
Forestry Tiller's 'Diminishing Chamber' is Comprised of the Following:
Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
Containment Door Constructed for Extreme Service Duty & Wear Resistance.
Forestry Tiller's Body Internal Hardox Lining is Replaceable.
Extreme Service Duty Rotor is Shock & Wear Resistant.
19" Rotor Working Diameter, Tip to Tip.
Side Gear Drives are in Oil Bath Gearboxes.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Wear Plates/Skid Shoes on Both Sides of Forestry Tiller.

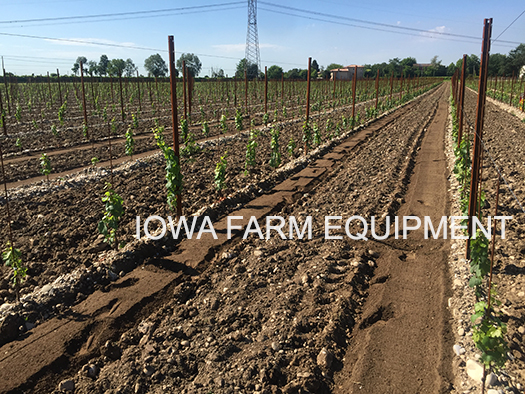

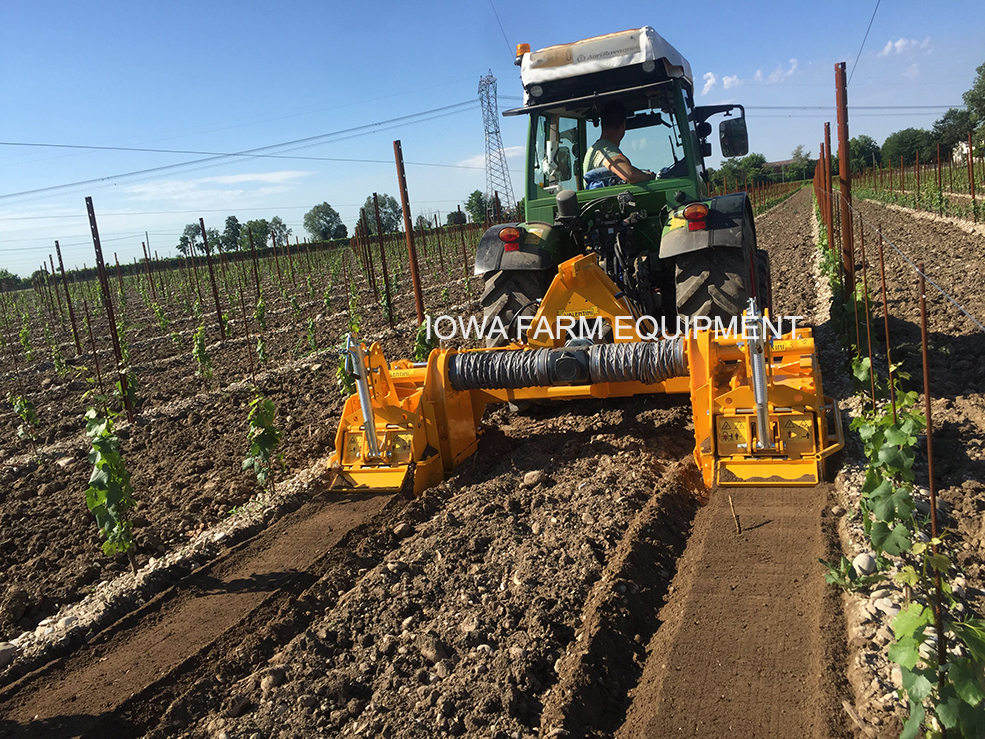

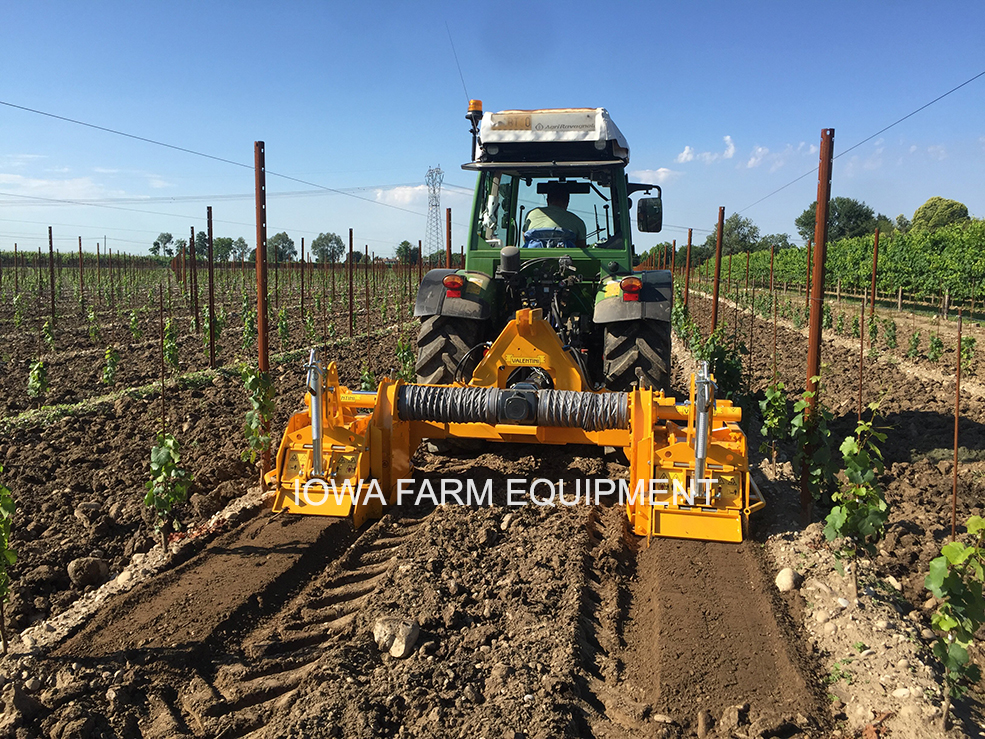

Valentini Inter-Row Mulcher Producing Deep, Beautiful & Dual Row Results in an Efficient Single Pass!

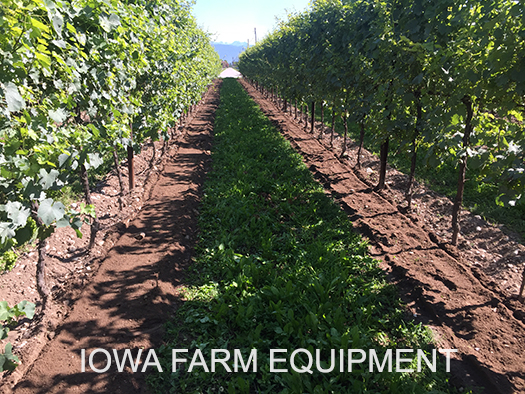

Valentini Inter-Row Mulcher Producing The Same Beautiful & Efficient ‘Single Pass’ Results Mulching Right at the Plant Bases to Accommodate Side Dressing Work!!
For Mulching Wood Debris, Stump Grinding & Stone Crushing in the Most Demanding Conditions, Including Sandy, Abrasive Soils, Leaving Behind a Beautiful Seed Bed!
Valentini ‘VN1000’ Forestry Tiller w/Offset to Accommodate Driving & Mulching Thru Rows as Shown!
Valentini ‘RA2500’ Forestry Tiller Deep Mulching Stumps & Roots After Clear Cutting a Large Field of Mature Mixed Trees!
INTER-ROW SERIES FORESTRY TILLER SPECIFICATIONS
MODEL
1000
Tractor Horsepower (PTO)
70-110HP
Working Width For Each Crushing Head
18"
Min Outside Overall Width (Center Contracted)
6'-11"
Total Max Outside Overall Width (Center Extended)
9'-10"
Total Distance of 'On-The-Fly' Adjustment Available
35"
Quantity of Teeth
103
Working Depth on Non-Passive Surfaces
(e.g. Hard & Dry Heavy Soils, etc.)
3"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
6"
Rotor Speed
323 RPM
Weight
3,086 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
INTER-ROW SERIES FORESTRY TILLER SPECIFICATIONS
MODEL
1000
Tractor Horsepower
70-110HP
Working Width For Each Section
18"
Closed Width
6'-11"
Total Width
9'-10"
Quantity of Teeth
103
Working Depth on Non-Passive Surfaces
(e.g. Hard & Dry Heavy Soils, etc.)
3"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
6"
Rotor Speed
323 RPM
Weight
3,086 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
