VALENTINI SEVERE DUTY 'CR' SERIES PTO POWERED 3-POINT FORESTRY MULCHERS, GRINDERS
Fixed Hardened Tool Steel or Carbide Blades Mulch & Grind To 6” Dia! Suitable For 70 to 130HP Tractors 1000RPM Gearbox
Valentini 71” Forestry Mulcher Rear 3-PT Mounted: See Additional Photos (Below) For Front 3PT Mounted!

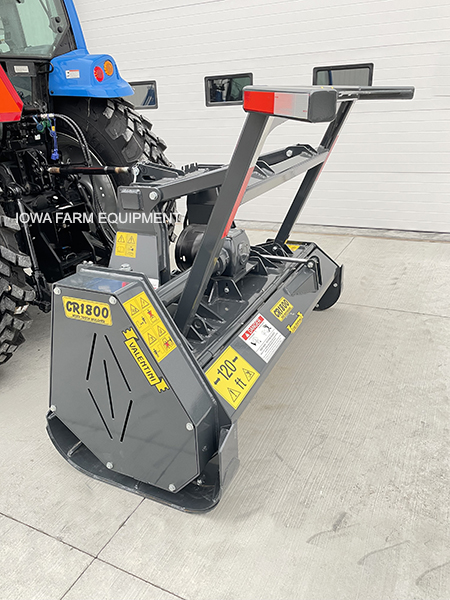

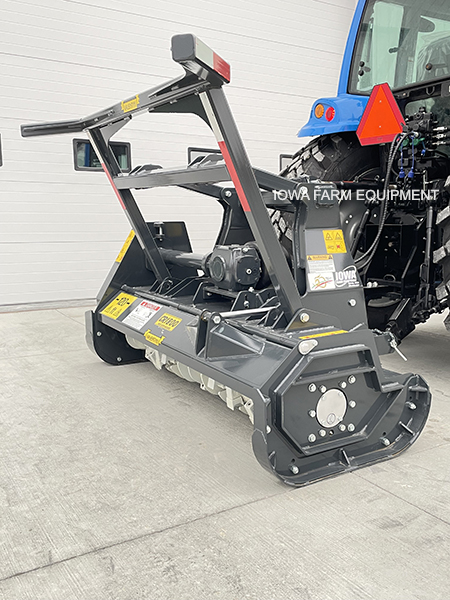

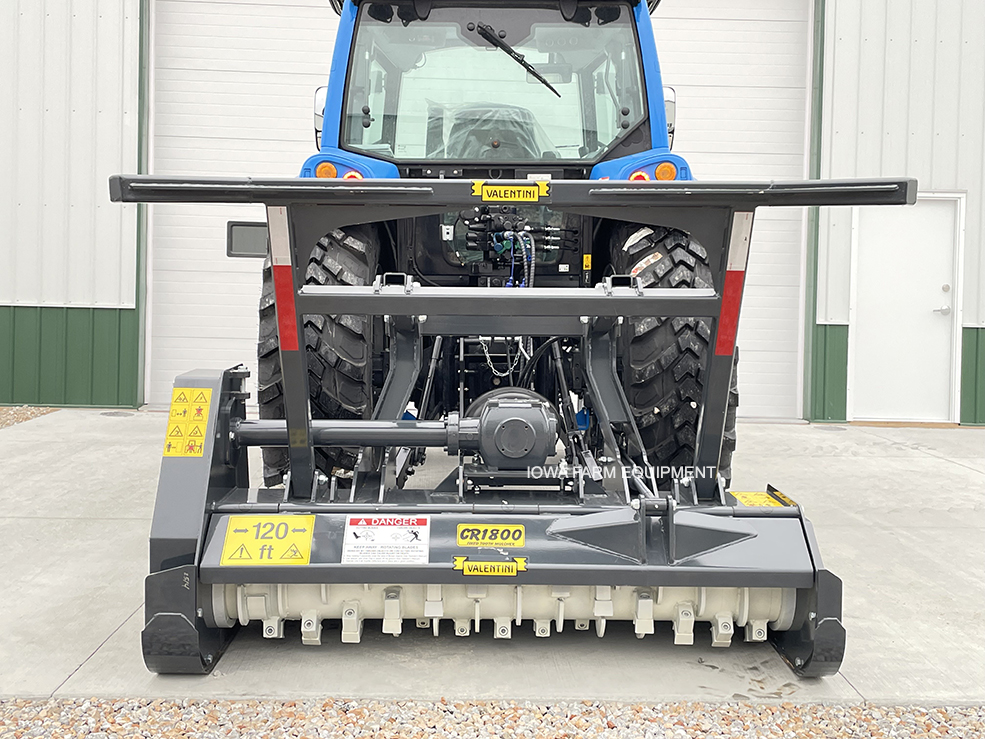

Valentini 71” Forestry Mulcher Rear 3-PT Mounted

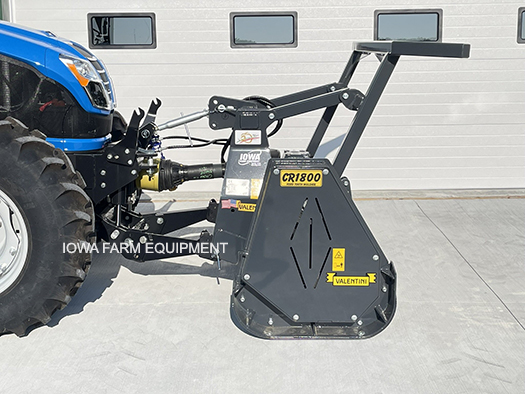

Valentini 71” Forestry Mulcher Front 3-PT Mounted & Elevated!
VALENTINI ‘CR’ Series Forestry Mulchers, Grinders: 63” to 79” Working Widths, Mulch Flush to Grade!
As with all Valentini Equipment, the ‘CR’ Series Forestry Mulchers are Severe Duty Machines that Provide Excellent
Land Clearing & Reclamation Results with Efficiency and with Operator Ease & Conveniences!
The Durable & Reliable Quality of Valentini Products Combined with Excellent Results Produce
the Single Pass Efficiencies Necessary for Todays Commercial Operations.
The Valentini ‘CR’ Series Mulcher, Grinder Is Built For Durability with Streamlined Design for Ease of External & Internal Maintenance. The Opening of the Rear Gate Accommodates Thorough Mulching Activities by Allowing the Stuffing of the Most Dense, Thickest Stands of All Types of Vegetation to Ensure Single Pass Efficiency! When Mulching in Stands of Limp or Brittle Clusters, the Fully Open Rear Gate Allows Maximum Material to Have Direct Contact with the Rotor Blades, Preventing the ‘Flattening of Vegetation’ Which Interferes With Thorough Mulching! If Further Reduction of Mulched Vegetation Fragments is Desired, Drive Back Over the Mulched Area with the Rear Gate Closed. Fully Opening the Rear Gate Also Provides Ease of Blade & Rotor Inspection & Maintenance Activities! All Lubrication Points are Clearly Marked and in Obvious & Easily Accessed Locations.
STANDARD FEATURES:
Mulch & Grind Trees & Vegetation Up To 6” Diameter, Flush To Grade!
Drive-Over Stump Grinding Capable for Tractors w/Creeper Speeds!
Severe Duty 1000RPM Large Sump Gearbox & PTO Shaft w/Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the PTO Shaft to the Tractors Output Shaft:
O.R. Clutch Enables Free Spin of the PTO Shaft For Alignment!
Second, Smooth Shut Down:
O.R. Clutch Allows Mower Gearbox to Free-Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the Tractors PTO Brake!
540RPM Gearbox Available Separately.
Severe Duty, Computer Balanced, Highly Populated Rotor With Bite-Limiting Collars For Each Tooth:
Bite Limiting Collars At Each Tooth Ensures The Most Efficient Mulching & Grinding Operation By Coordinating Each Carbide Tooths Entry Into Vegetation With The Tractors Available HP! This Eliminates ‘Bogging & Reacceleration Cycles’ of The Tractor & Mulcher, Eliminates ‘Low End Lugging’ Of Tractors Engine, Ensures Best Possible Fuel Consumption & Eliminates Irritating Mulching Activities For The Operator – We’re Making Land Clearing & Mulching Fun Again!
Large 9” Dia. Rotor Is Highly Populated With Heavy Duty Hardened Tool Steel Mulching Knives:
Tool Steel Blades Are Reversible & Sharpenable.
Blade Tip to Blade Tip Diameter is 16”!
Carbide Blades (Reversible) Are Also Available and Should Be Considered For Rocky Ground.
Both Tooth Types Are Depicted In Photos:
If Your Ground Is Reasonably Free From Rocks, Sand & Other Debris, The Hardened Sharp Steel Mulching Knives Will Provide More Aggressive Mulching With The Best Ground Speeds.
If Your Ground Has Much Fixed Objects (Rock/Boulders, Steel Posts, etc.), Then Consider Our Swinging Hammer Model Which Will Allow Some ‘Kick-Back’ For Providing Blade Protection When Contacting ‘Non-Vegetation’ Fixed Objects.
Hydraulically Operated Mulching Door Can Be Operated ‘On-The-Fly’ To Coordinate Ground Speed & Desired Results In Varied Demands:
Extra Large 9” Dia. Rear Roller Can Be Used For 2”-4” of Cutting Height Adjustment, Also ‘On-The-Fly’!
Open, Close & Full Travel Function Of Rear Mulching Door Also ‘On-The-Fly’:
Fully Open To Drive Back Over Material To Mulch, Stuffing Material Into The Mulcher, Grinder.
Then Closed (Full Or Partially While Driving Forward) If Further Reduction Of Material Is Desired.
Double Skinned Mulcher w/Each Deck At 5/16” Thick!
Under Deck Serrated Mulching Counter Blade Captures Material For Further Reduction.
Extra Wide Adjustable Bolt-On Skid Shoes Provide Support On Softest Grounds While Allowing Mulching & Grinding Activity To Be Flush To Grade!
Skid Shoes Can Be Adjusted For 1” Of Working Height Adjustment.
Front & Rear Radiused Skid Shoes For Contact with Stumps & Prevention of Material Accumulation.
Skid Shoes & All Working Contact Parts Made with Abrasion Resistant Steel!
Double Sets of Top Link Pin Holes:
Two Standard Diameter Pin Holes Use Pull Arm Draft Control Or Maintain A Desired Elevation To Follow Tractors Pull Arm Position.
Center Horizontal Oval Pin Hole Allows Mulcher To Follow Terrain With About 3” Of Float At The Top Link Pin.
Top Of Heavy Duty Push Bar Is 58” From Grade.
Double Row Of Heavy Duty Front Chain Guards.
The Severe Duty Rating Of This Mulcher/Grinder Allows For Multiple Efficient Applications:
Land Clearing & Mulching Of Saplings, Young Trees (To 6” Dia), Dense & Heavy Stands Of Vegetation.
Sample Photos Show Mulcher on a Tractor - Tractor NOT Included!

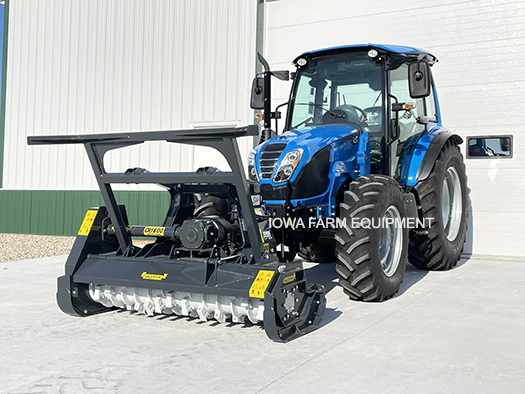

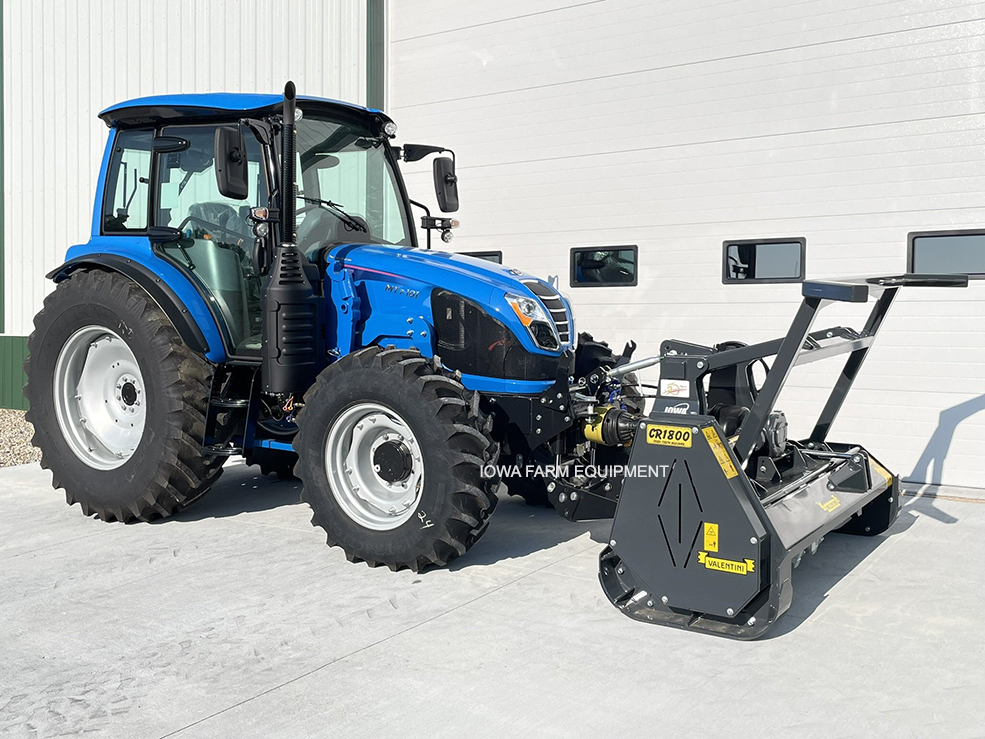

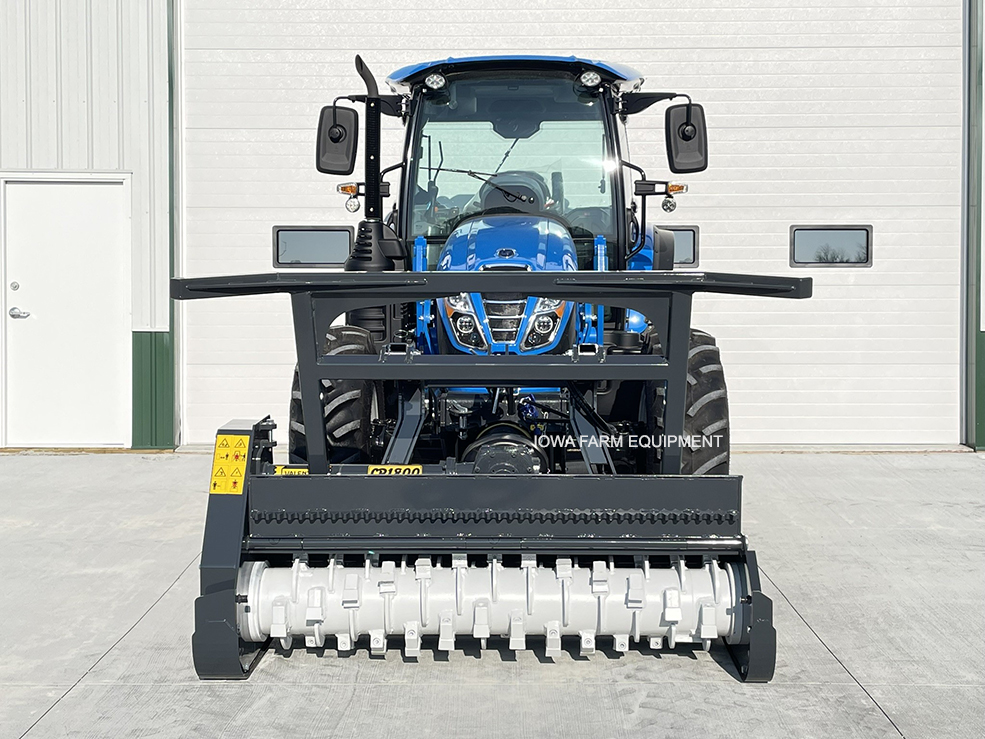

Valentini CR1800 Forestry Mulcher Front 3-PT Mounted!

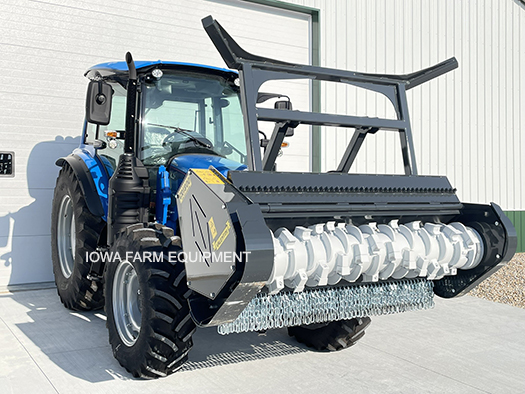

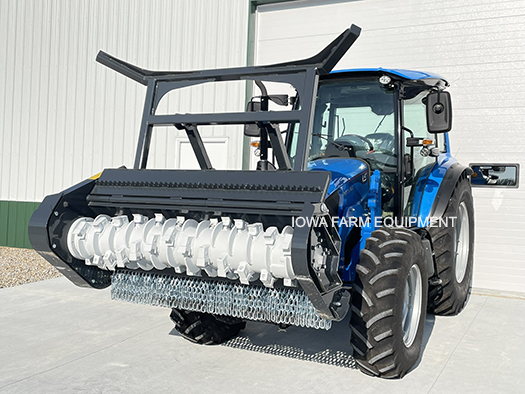

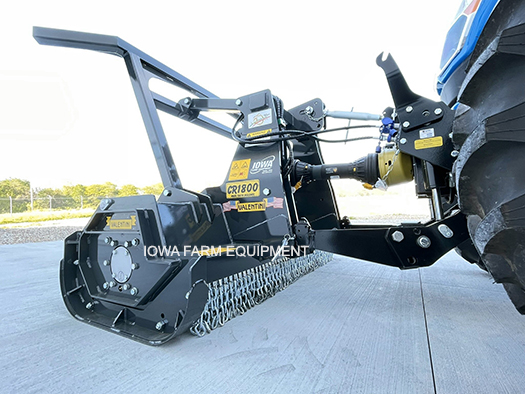

Valentini 71” Forestry Mulcher Front 3-PT Mounted, Mulcher Door Open
Yes, We Have Front PTO & Hitch Assemblies Available & In Stock!

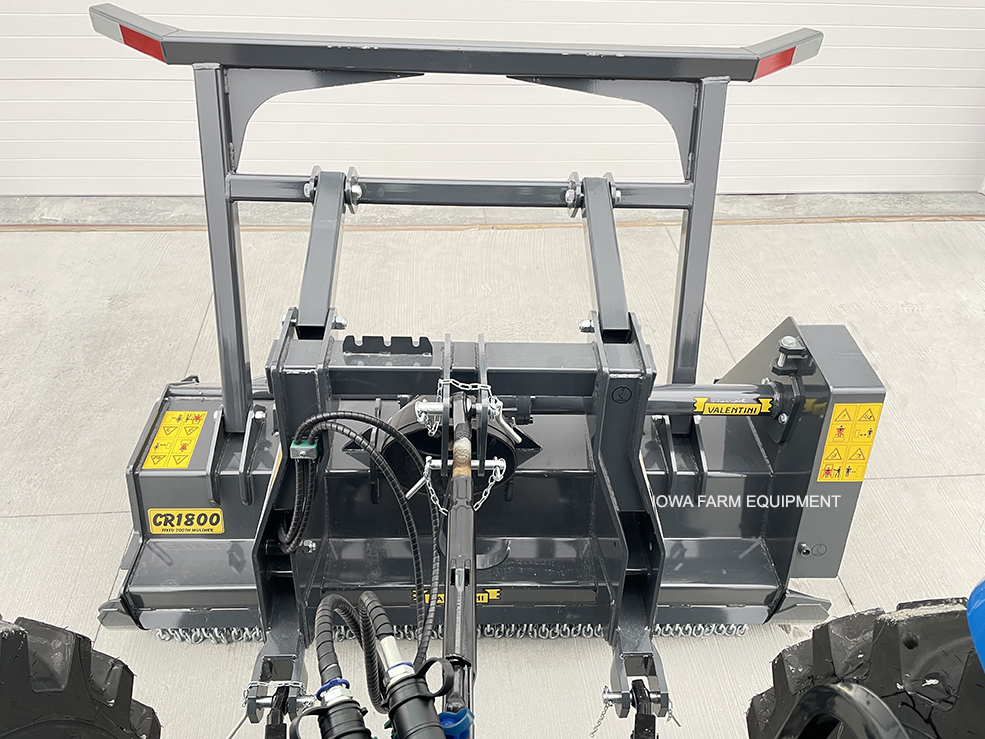

Top View Valentini CR1800
Yes, We Sell These Nice Packages Too!
Valentini CR1800 Severe Duty Rotor with Sharp & Hardened Tool Steel Knives, Front Chain Guards and Serrated Under Deck Counter Mulching Blade

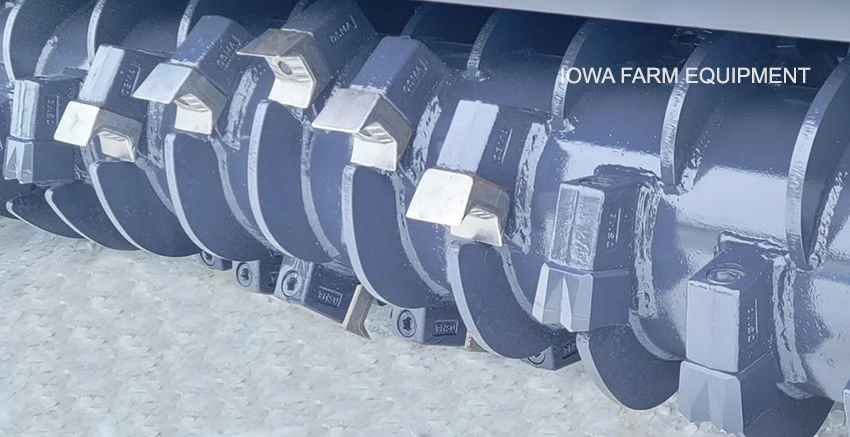

Valentini CR1800 Severe Duty Rotor with Sharp & Hardened Tool Steel Knives Center & Carbide Blades at Sides of Rotor: Yes, Rotor Can Be Outfitted This Way!
VALENTINI 'CR' SERIES SPECIFICATIONS
MODEL
CR1600
CR1800
CR2000
Tractor Horsepower (Engine)
70-130HP
80-130HP
90-130HP
PTO Speed
1000RPM (5400 Optional)
Hitch Category
CAT 2
Mulching Capacity
6" Diameter (Min 100-120HP Req'd for Max Mulching Capacity)
Working Width
63"
71"
79"
Overall Width
72"
80"
88"
Quantity of Blades
33
39
45
Working Depth
Mulches & Grinds Flush To Grade
Rotor Diameter
9"
Rotor Speed
2450RPM's
Blade Tip to Blade Tip Dia.
16"
Weight
2,085lbs.
2,515lbs.
2,835lbs.
VALENTINI 'CR' SERIES SPECIFICATIONS
MODEL
CR1600
CR1800
CR2000
Tractor Horsepower (Engine)
70-130HP
80-130HP
90-130HP
PTO Speed
1000RPM (5400 Optional)
Hitch Category
CAT 2
Mulching Capacity
6" Diameter (Min 100-120HP Req'd for Max Mulching Capacity)
Working Width
63"
71"
79"
Overall Width
72"
80"
88"
Quantity of Blades
33
39
45
Working Depth
Mulches & Grinds Flush To Grade
Rotor Diameter
9"
Rotor Speed
2450RPM's
Blade Tip to Blade Tip Dia.
16"
Weight
2,085lbs.
2,515lbs.
2,835lbs.
Specifications & Designs Are Subject to Change Without Notice
