Valby TG25 Demolition Grapple
|
A Demolition Grapple for Excavators in the 11 to 17 Ton Range.
The Above Grapple is the TG25DG with Rigid Mount Rotator and Pin-On Coupler for a CAT315 Excavator.
|
| SPECIFICATIONS | |
| Max. Load | 8,800 lbs. |
| Weight without Rotator | 2,140 lbs. |
| Max. Gripping Force | 12,814 lb-force |
| Max. Working Pressure | 5076 PSI |

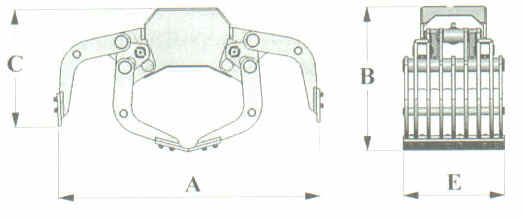

| A | 77" |
| B | 43" |
| C | 34" |
| E | 31-1/2" |
| Recommended Rotator - Rigid Mount | KR15, SDR20.2 |
