Selvatici S3514, 11’-6” Spader with Manually Adjusted Rear Rake

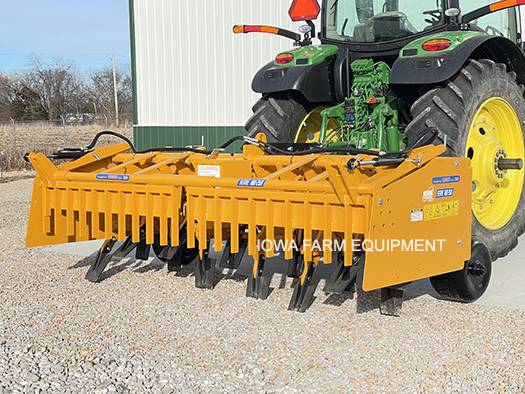

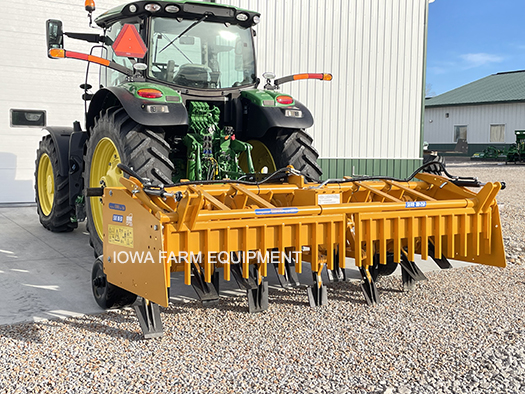

Selvatici S3514, 11’-6” Spader with Hydraulically Adjusted Rear Rake & Large Front Gage Wheels
The Large S180-250 Series Spaders Have Multi-Speed Gearboxes, Suitability For 70 – 250HP Tractors, Working Widths Up To 15’ Wide, and Provide Highly Concentrated Penetrations Up to 16.5” Deep, With Single Pass Efficiency!
STANDARD FEATURES:
Heavy Duty, 540 or 1000RPM, Large Sump Multi-Speed Gearbox.
Slip Clutch Protected PTO Shaft.
Category 2, 3-Point Hitch with Clevis Style Hitch Pin Frames.
Multi-Speed, Large Sump Gearbox, with Easy Shift External Lever For Accommodating a Broad Range of Soil Types & Activities!
Selvatici's Wear-Resistant Spader Blades Use 'Ultra-High Strength Steel, Alloyed With 30MnB5 Boron' To Endure Tough Ground & Rocks!
Multiple Holding Positions of Rear Gate, From Open to Closed:
Works in Conjunction with Multi-Speed Gearbox, For Varied Soil Results, and Varied Soil Moisture.
Multi-Positioned, Anti-Clogging Frame Also Accommodates Varied Soil Moisture Conditions.
Greaseable Bearings with Metal Seals For Extended (50hour) Intervals.
Skid Shoes For Easy, Tool Free Working Depth Control.
Selvatici Spader Operating at Low, Medium & High Gearbox Speeds: ‘0:00-0:30’ Low Speed with Excellent Structure Retention! ‘0:31-0:45’ All 3-Speeds - Ref Text In Lower Left of Window for Speed Ref!

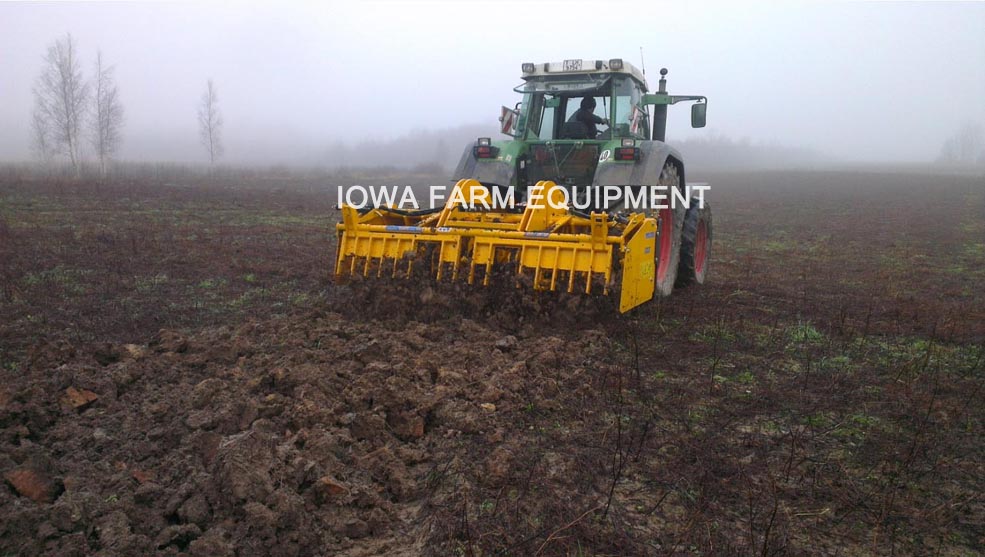

Selvatici Spader Operating at Highest Gearbox Speed To Produce Quality Seedbed While Maintaining As Much Soil Structure Possible!
Selvatici Spader Operating at Highest Gearbox Speed To Produce Quality Seedbed While Maintaining As Much Soil Structure Possible!
Selvatici S180.250 Series Spader

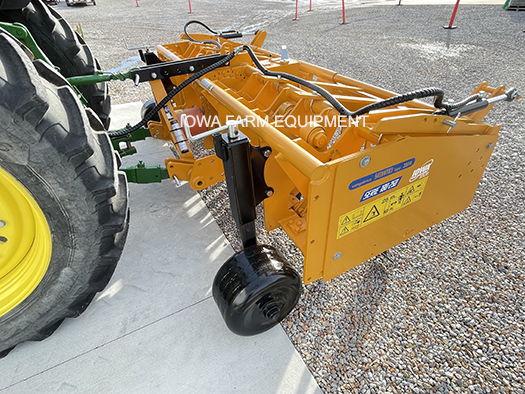

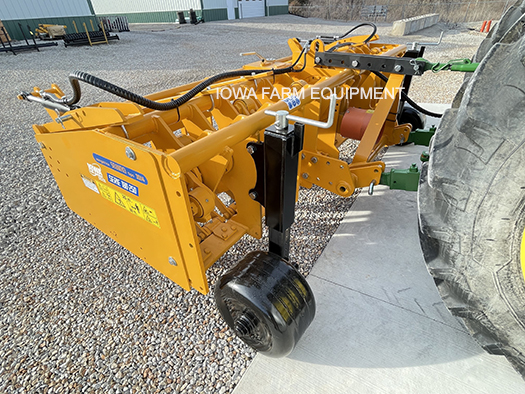

Selvatici S3514, 11’-6” Spader with Large Front Gage Wheels: Large Front Gage Wheels Have Infinite Adjustment, Provide Excellent Suspension For These Larger Machines & Don’t Accumulate Debris

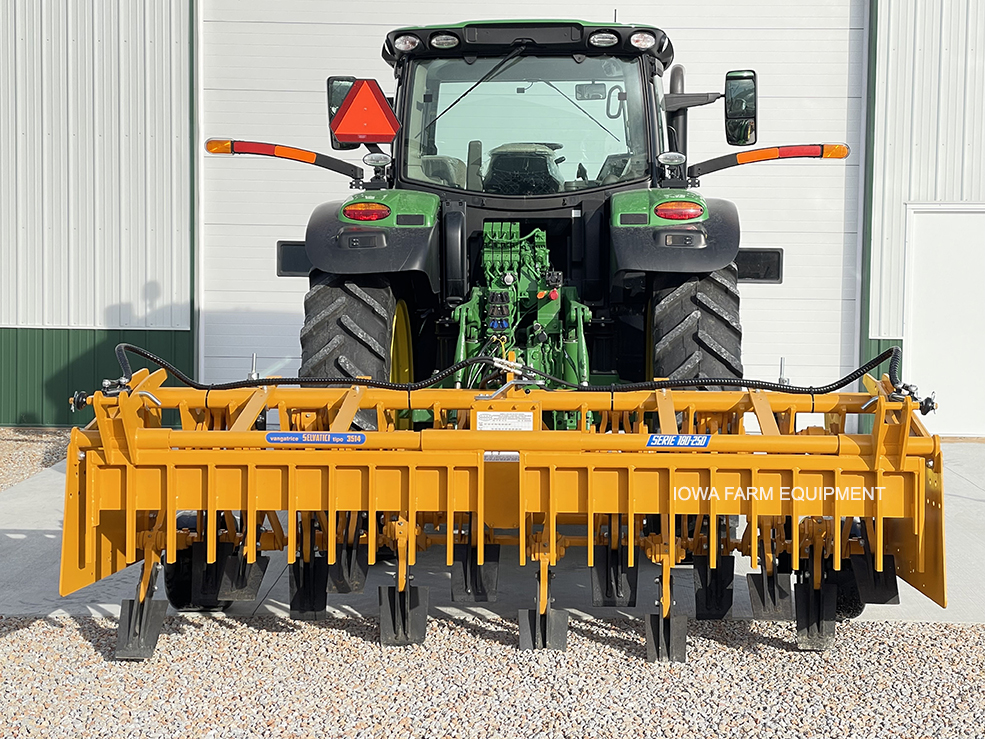

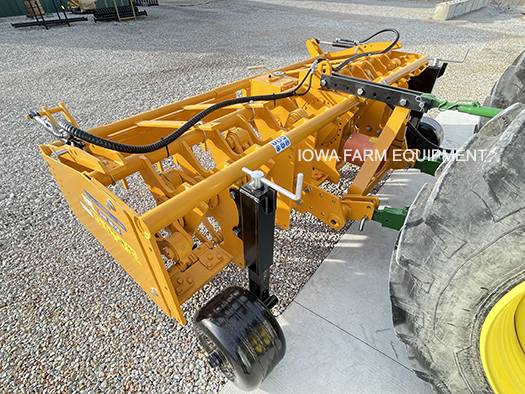

Selvatici S3514, 11’-6” Spader with Hydraulically Adjusted Rear Rake & Large Front Gage Wheels
Selvatici S180.250 Series Spader

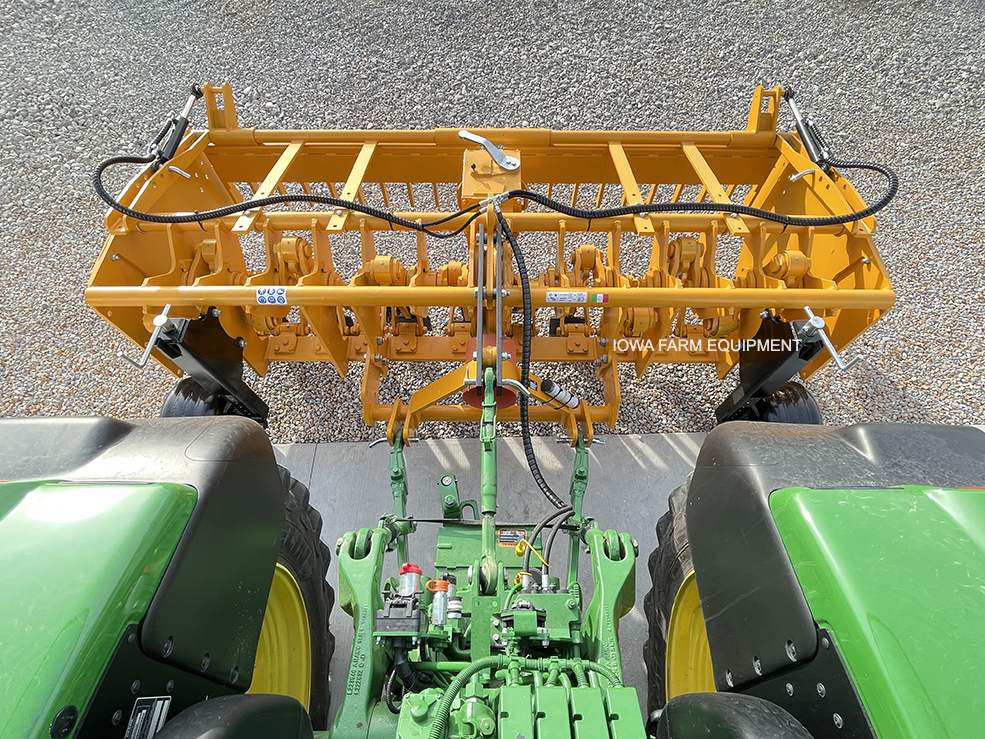

Cab View of Selvatici S3514, 11’-6” Spader: Hydraulically Adjusted Rear Rake & Large Front Gage Wheels

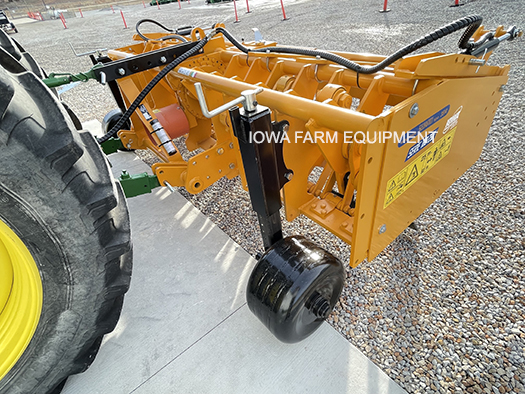

Selvatici S3514, 11’-6” Large Front Gage Wheels w/Infinite Adjustment
S180.250 SERIES SPECIFICATIONS
MODEL
S2008
S2208
S2508
S2510
S2710
S3010
S3012
S3512
S3514
S4016
S4516
Working Width
79"
87"
97"
97"
9'-0"
9'-10"
9'-10"
11'-6"
11'-6"
13'-2"
14'-8"
Overall Width
81"
89"
99"
99"
9'-2"
10'-0"
10'-0"
11'-8"
11'-8"
13'-4"
14'-10"
Minimum HP
70HP
75HP
80HP
90HP
120HP
130HP
140HP
Maximum HP
250HP
Maximum Working Depth
17"
Number of Spades
8
10
12
14
16
Gearbox Speeds @540RPM
109, 120, 133, 147, 163, 180, 199, 221 & 245RPM’s
Gearbox Speeds @1000RPM
117, 131, 147, 164, 182, 202, 223 & 247RPM’s
Weight
4,277lbs.
4,396lbs.
4,633lbs.
4,851lbs.
5,132lbs.
5,346lbs.
5,280lbs.
6,059lbs.
6,400lbs.
7,627lbs.
8,007lbs.
S180.250 SERIES SPECIFICATIONS
MODEL
S2008
S2208
S2508
S2510
S2710
S3010
S3012
S3512
S3514
S4016
S4516
Working Width
79"
87"
97"
97"
9'-0"
9'-10"
9'-10"
11'-6"
11'-6"
13'-2"
14'-8"
Overall Width
81"
89"
99"
99"
9'-2"
10'-0"
10'-0"
11'-8"
11'-8"
13'-4"
14'-10"
Minimum HP
70HP
75HP
80HP
90HP
120HP
130HP
140HP
Maximum HP
250HP
Maximum Working Depth
17"
Number of Spades
8
10
12
14
16
Gearbox Speeds @540RPM
109, 120, 133, 147, 163, 180, 199, 221 & 245RPM’s
Gearbox Speeds @1000RPM
117, 131, 147, 164, 182, 202, 223 & 247RPM’s
Weight
4,277lbs.
4,396lbs.
4,633lbs.
4,851lbs.
5,132lbs.
5,346lbs.
5,280lbs.
6,059lbs.
6,400lbs.
7,627lbs.
8,007lbs.
Specifications & Designs Are Subject to Change Without Notice
