Selvatici Series R150.200
Tractor 3-Point Spaders, Spading Machines

Bullet Proof, Durable, Low Demand Machines Producing Unparalleled Results!

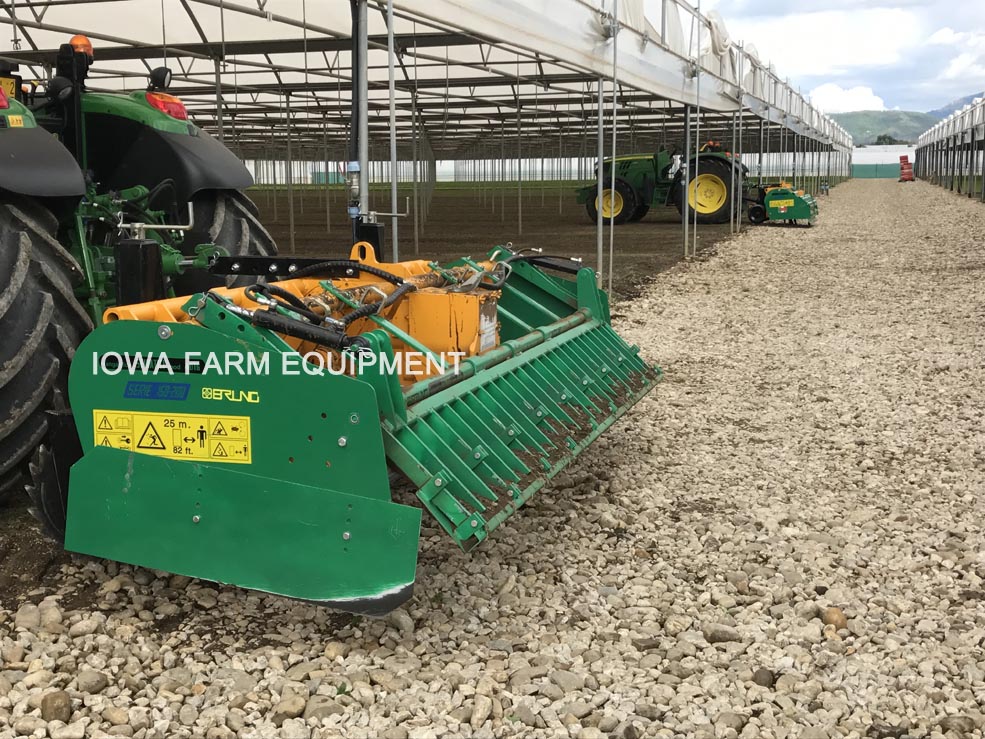

Selvatici Series R150.200 Staged, and Ready to Work Greenhouse Buildings!

The R150-200 Series Spaders Are Suitable For 70 – 200HP Tractors, With Working Widths Up To 13’ Providing Highly Concentrated Penetrations Up to 14” Deep, With Single Pass Efficiency.

STANDARD FEATURES:

Heavy Duty, 540 or 1000RPM, Large Sump Multi-Speed Gearbox.
Slip Clutch Protected PTO Shaft.
Category 2, 3-Point Hitch with Clevis Style Hitch Pin Frames.
Multi-Speed Gearbox, with Easy Shift External Lever For Accommodating a Broad Range of Soil Types & Activities!
Selvatici's Wear-Resistant Spader Blades Use 'Ultra-High Strength Steel, Alloyed With 30MnB5 Boron' To Endure Tough Ground & Rocks!
Multiple Holding Positions of Rear Gate, From Open to Closed:
- Works in Conjunction with Multi-Speed Gearbox, For Varied Soil Results, and Varied Soil Moisture.
Multi-Positioned, Anti-Clogging Frame Also Accommodates Varied Soil Moisture Conditions.
Greaseable Bearings with Metal Seals For Extended (50hour) Intervals.
Skid Shoes For Easy, Tool Free Working Depth Control.

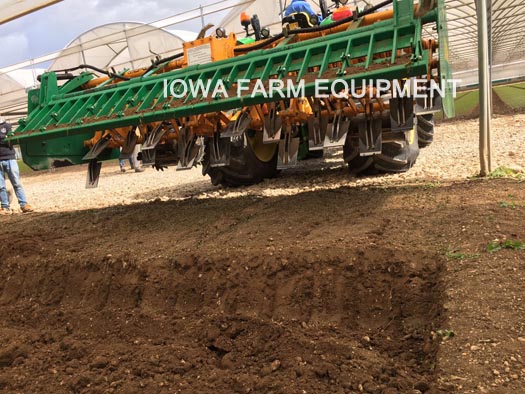

Spader in High Gearbox Speed For Deep Spading & Seedbed Preparation

R150.200 SERIES SPECIFICATIONS
MODEL	R2510	R2710	R2712	R3012	R3514	R4016
Working Width	8'-1"	8'-10"	8'-10"	9'-10"	11'-6"	13'-2"
Overall Width	8'-3"	9'-0"	9'-0"	10'-0"	11'-8"	13'-4"
Minimum HP	70HP	75HP	75HP	80HP	90HP	100HP
Maximum HP	200HP
Maximum Working Depth	14"
Number of Spades	10		12		14	16
Gearbox Speeds @540RPM	109, 120, 133, 147, 163, 180, 199, 221 & 245RPM’s
Gearbox Speeds @1000RPM	117, 131, 147, 164, 182, 202, 223 & 247RPM’s
Weight	3,263 lbs.	3,329 lbs.	3,660 lbs.	3,748 lbs.	4,233 lbs.	4,718 lbs.

R150.200 SERIES SPECIFICATIONS
MODEL	R2510	R2710	R2712	R3012	R3514	R4016
Working Width	8'-1"	8'-10"	8'-10"	9'-10"	11'-6"	13'-2"
Overall Width	8'-3"	9'-0"	9'-0"	10'-0"	11'-8"	13'-4"
Minimum HP	70HP	75HP	75HP	80HP	90HP	100HP
Maximum HP	200HP
Maximum Working Depth	14"
Number of Spades	10		12		14	16
Gearbox Speeds @540RPM	109, 120, 133, 147, 163, 180, 199, 221 & 245RPM’s
Gearbox Speeds @1000RPM	117, 131, 147, 164, 182, 202, 223 & 247RPM’s
Weight	3,263 lbs.	3,329 lbs.	3,660 lbs.	3,748 lbs.	4,233 lbs.	4,718 lbs.

Specifications & Designs Are Subject to Change Without Notice
