Selvatici Series P150.150 3-Point Spading Machines -- Iowa Farm Equipment

Selvatici Series P150.150
Tractor 3-Point Spaders, Spading Machines

Bullet Proof, Durable, Low Demand Machines Producing Unparalleled Results!

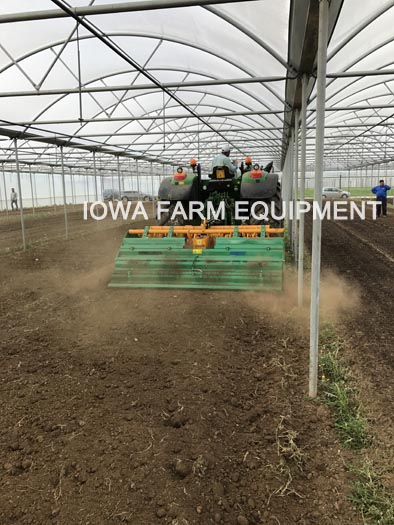

Video of Selvatici Series P150.150 At Work In Greenhouse Building, Operating At Low Gear Box Speed!
Video shows Bivenga Version of the 150.150 Spader. The Standard version makes concentrated 14” deep penetrations, and the Bivenga Series, with Double Bladed Shanks, is capable of making 14” or 26” concentrated penetrations. For more information on the Bivenga Series, click on the Bivenga Series links, on the main ‘Selvatici Spading Machines’ page!

The P150-150 Series Spaders Are Suitable For Utility & Higher HP Tractors, With Working Widths Up To 13’. They Provide Highly Concentrated Soil Penetrations Up to 14” Deep, Efficiently, in a Single Pass.

STANDARD FEATURES:

Heavy Duty, 540 or 1000RPM, Large Sump 3-Speed Gearbox.
Slip Clutch Protected PTO Shaft.
Category 2, 3-Point Hitch with Clevis Style Hitch Pin Frames.
3-Speed Gearbox, with Easy Shift External Lever For Accommodating a Broad Range of Soil Types & Activities!
Selvatici's Wear-Resistant Spader Blades Use 'Ultra-High Strength Steel, Alloyed With 30MnB5 Boron' To Endure Tough Ground & Rocks!
Multiple Holding Positions of Rear Gate, From Open to Closed:
- Works in Conjunction with Multi-Speed Gearbox, For Varied Soil Results, and Varied Soil Moisture.
Multi-Positioned, Anti-Clogging Frame Also Accommodates Varied Soil Moisture Conditions.
Greaseable Bearings with Metal Seals For Extended (50hour) Intervals.
Skid Shoes For Easy, Tool Free Working Depth Control.

Spader in High Gearbox Speed For Deep Spading & Seedbed Preparation

P150.150 SERIES SPECIFICATIONS
MODEL	P1506	P1656	P1808	P2008	P2208	P2210	P2510	P2710	P2712	P3012	P3514	P4016
Working Width	5'-0"	5'-5"	6'-0"	6'-7"	7'-3"	7'-3"	8'-1"	8'-10"	8'-10"	9'-10"	11'-6"	13'-2"
Overall Width	5'-2"	5'-7"	6'-2"	6'-9"	7'-5"	7'-5"	8'-3"	9'-0"	9'-0"	10'-0"	11'-8"	13'-4"
Minimum HP	50HP		55HP	58HP	60HP	65HP	70HP	75HP		80HP	90HP	100HP
Maximum HP	150HP
Maximum Working Depth	14"
Number of Spades	6		8			10			12		14	16
Gearbox Speeds @540RPM	145, 167 & 204RPM’s
Gearbox Speeds @1000RPM	140, 163 & 205RPM’s
Weight	1,940lbs.	1,984lbs.	2,381lbs.	2,425lbs.	2,491lbs.	2,866lbs.	2,910lbs.	2,976lbs.	3,307lbs.	3,395lbs.	3,880lbs.	4,365lbs.

P150.150 SERIES SPECIFICATIONS
MODEL	P1506	P1656	P1808	P2008	P2208	P2210	P2510	P2710	P2712	P3012	P3514	P4016
Working Width	5'-0"	5'-5"	6'-0"	6'-7"	7'-3"	7'-3"	8'-1"	8'-10"	8'-10"	9'-10"	11'-6"	13'-2"
Overall Width	5'-2"	5'-7"	6'-2"	6'-9"	7'-5"	7'-5"	8'-3"	9'-0"	9'-0"	10'-0"	11'-8"	13'-4"
Minimum HP	50HP		55HP	58HP	60HP	65HP	70HP	75HP		80HP	90HP	100HP
Maximum HP	150HP
Maximum Working Depth	14"
Number of Spades	6		8			10			12		14	16
Gearbox Speeds @540RPM	145, 167 & 204RPM’s
Gearbox Speeds @1000RPM	140, 163 & 205RPM’s
Weight	1,940lbs.	1,984lbs.	2,381lbs.	2,425lbs.	2,491lbs.	2,866lbs.	2,910lbs.	2,976lbs.	3,307lbs.	3,395lbs.	3,880lbs.	4,365lbs.

Specifications & Designs Are Subject to Change Without Notice
