Selvatici Spader Providing Early Spring Weed Control & Deep Moisture Retention for Surface Irrigation!
The M120-35 Series Spader Provides Highly Concentrated Soil Penetrations Up to 10” Deep, Efficiently, in a Single Pass, Even With Sub-Compact Tractors As Small As 15HP. Working Widths Can Be As Narrow As 32”, Accommodating Smaller Tractors, and Those Narrow, Restricted Working Widths; Such As Vineyards & Cane Berry Aisles, Elevated Beds, Orchard & Nursery Rows, and Various Other Narrow Working Requirements, Particularly For Making Narrow, Deep Spaded Strips For Erosion Control On Rolling, Erodible Hillsides.
STANDARD FEATURES:
Heavy Duty, 540RPM, Large Sump 3-Speed Gearbox.
Slip Clutch Protected PTO Shaft.
Category 1, 3-Point Hitch with Clevis Style Hitch Pin Frames.
3-Speed Gearbox, with Easy Shift External Lever For Accommodating a Broad Range of Soil Types & Activities!
Selvatici's Wear-Resistant Spader Blades Use 'Ultra-High Strength Steel, Alloyed With 30MnB5 Boron' To Endure Tough Ground & Rocks!
Multiple Holding Positions of Rear Gate, From Open to Closed:
Works in Conjunction with Multi-Speed Gearbox, For Varied Soil Results, and Varied Soil Moisture.
Multi-Positioned, Anti-Clogging Frame Also Accommodates Varied Soil Moisture Conditions.
Greaseable Bearings with Metal Seals For Extended (50hour) Intervals.
Skid Shoes For Easy, tool Free Working Depth Control.

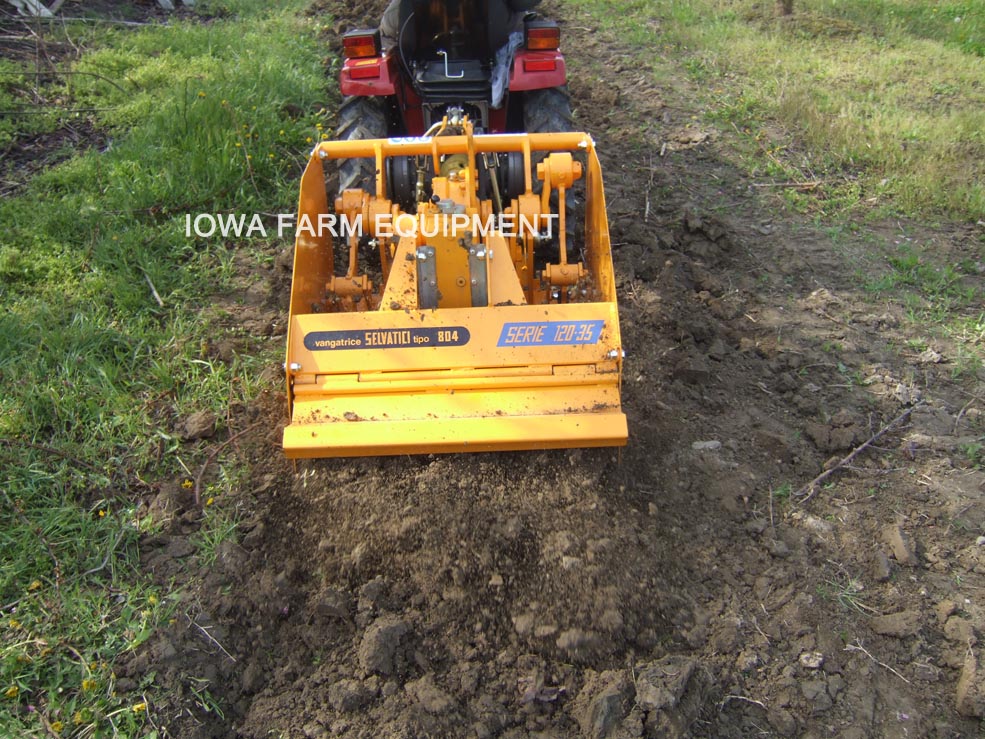

Selvatici Spader In Low Speed, Early Spring Weed Control & Deep Moisture Retention for Surface Irrigation!
Selvatici Spader In Low Speed, Operating Efficiently On a Low HP, Sub-Compact Tractor!
Selvatici Spader Producing Efficient, Desired Results on a Low HP Sub-Compact Tractor!
M120.35 SERIES SPECIFICATIONS
MODEL
M804
M904
M1004
M1206
M1306
M1456
Working Width
32"
35"
39"
47"
51"
57"
Overall Width
34"
37"
41"
50"
53"
59"
Minimum HP
15HP
15HP
15HP
18HP
20HP
25HP
Maximum HP
35HP
Maximum Working Depth
10"
Number of Spades
4
6
Gearbox Speeds
145, 167 & 206RPM's
Weight
540 lbs.
551 lbs.
562 lbs.
695 lbs.
706 lbs.
728 lbs.
M120.35 SERIES SPECIFICATIONS
MODEL
M804
M904
M1004
M1206
M1306
M1456
Working Width
32"
35"
39"
47"
51"
57"
Overall Width
34"
37"
41"
50"
53"
59"
Minimum HP
15HP
15HP
15HP
18HP
20HP
25HP
Maximum HP
35HP
Maximum Working Depth
10"
Number of Spades
4
6
Gearbox Speeds
145, 167 & 206RPM's
Weight
540 lbs.
551 lbs.
562 lbs.
695 lbs.
706 lbs.
728 lbs.
Specifications & Designs Are Subject to Change Without Notice
