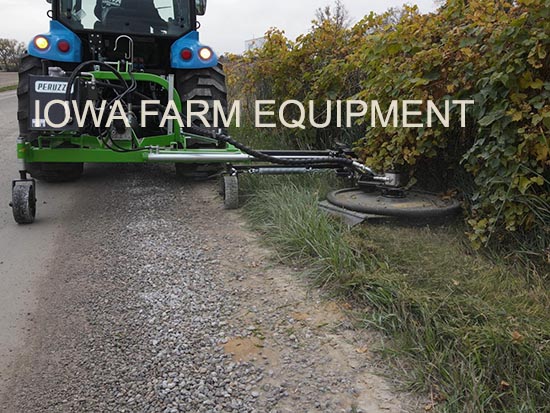

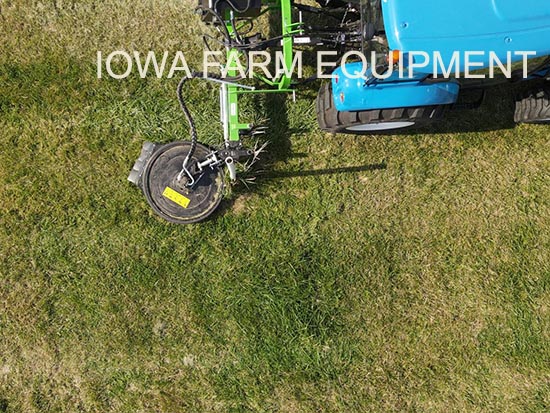

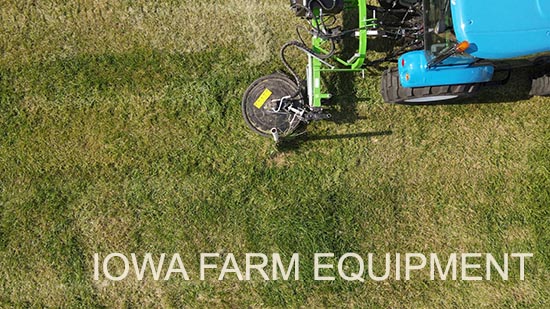

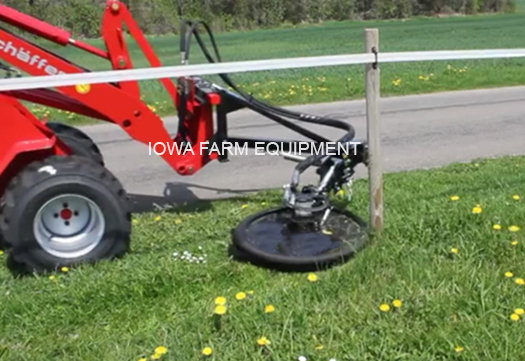

Trim Along Edges Of Fence Posts, Nursery Tree Lines, Orchard Tree Rows, Vineyard Rows, Under Guard Rails, Or Under & Around Any Other Obstacles!
Left Hand Side Trimmer Head Mounting Available
The Peruzzo Side Trim Mower Is a Sophisticated Attachment, With Many Positioning Features & Grooming Options, All Complimented With Excellent Single Pass Performance, Providing Efficiencies Necessary For Todays Trimming, Grooming & Maintenance Operations! With a 31" Dia Cutting Width, it's the largest available and for Reliable Quality, it's Not a Cheap Imported Product!

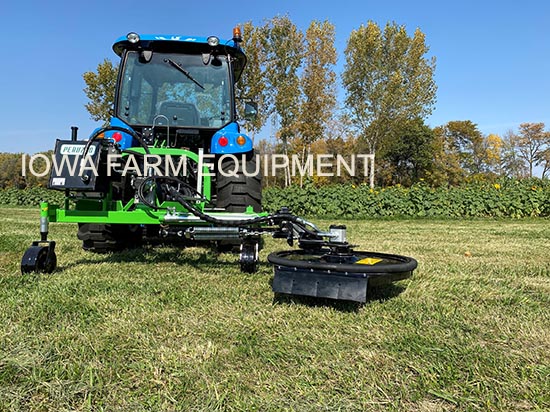

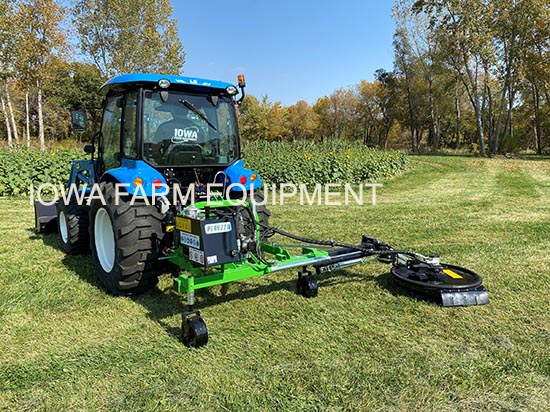

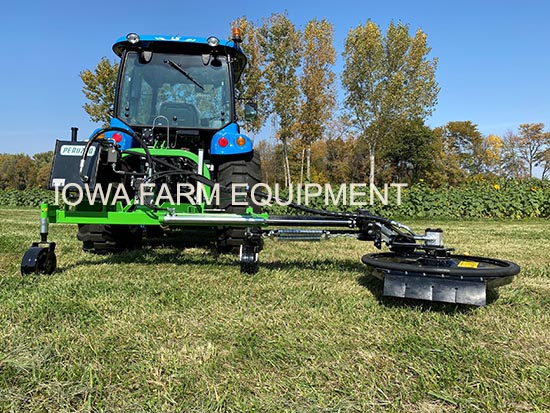

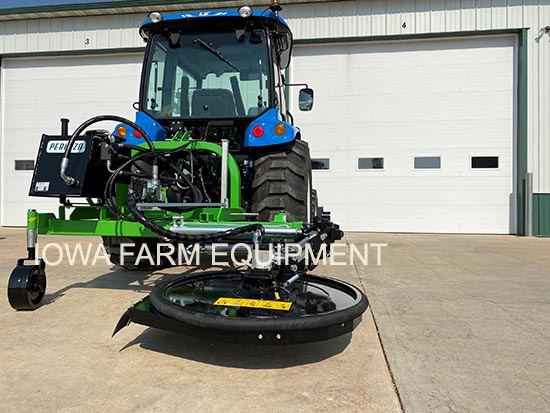

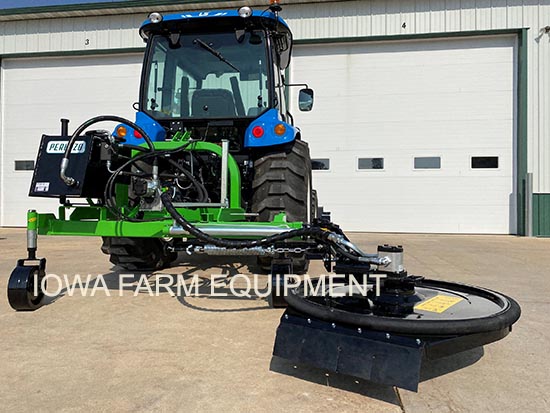

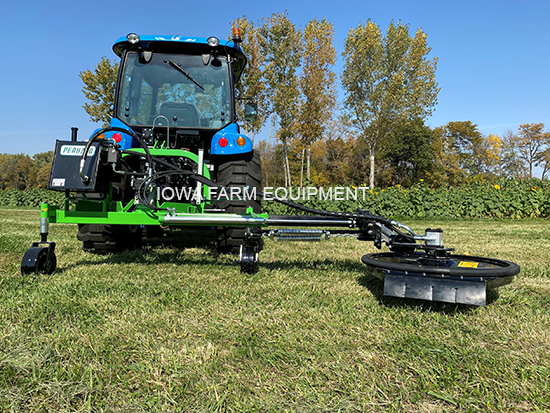

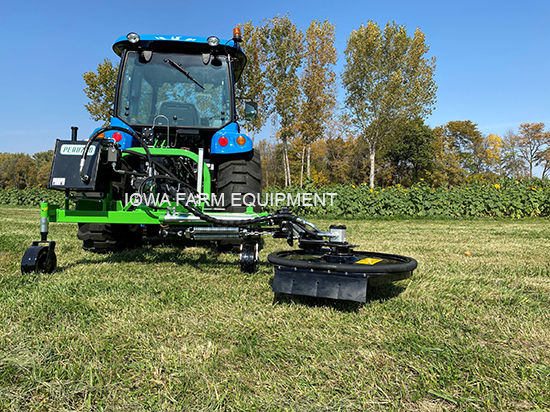

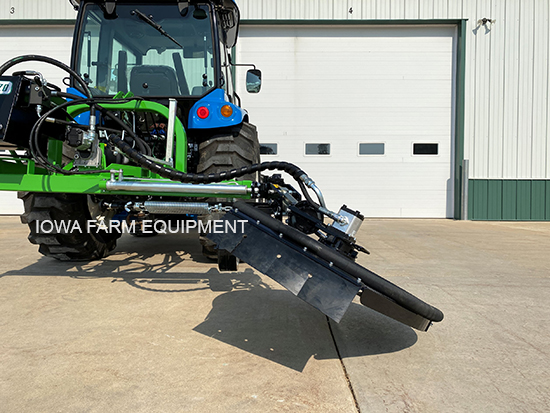

STSC-101 Self-Contained 3-Point Hydraulically Powered Telescoping Side Trim Mower: Fully Retracted in Left Photo - Fully Extended (24") in Right Photo Functions Operable 'On-The-Fly' From Tractor Cab!

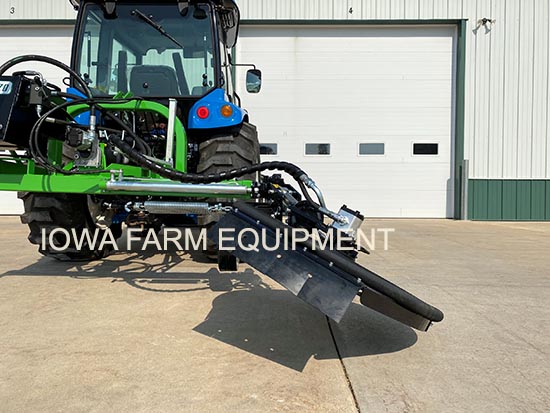

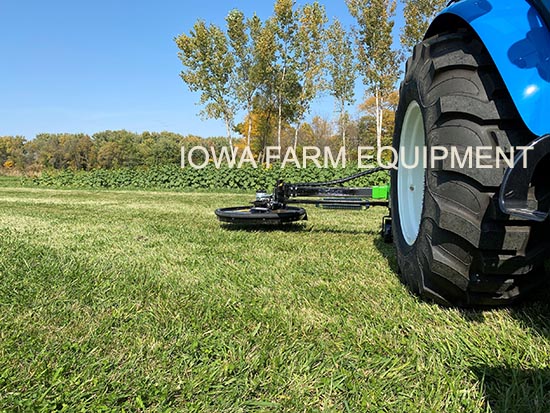

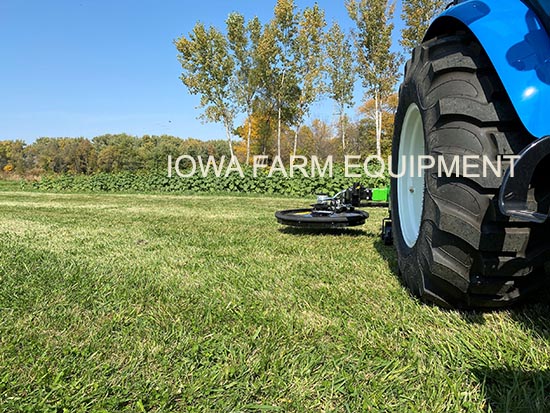

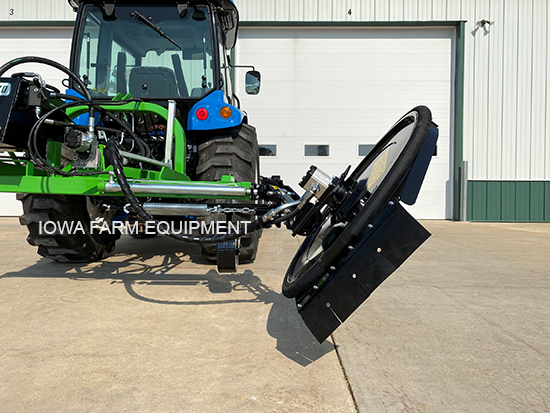

STSC-101 Side Trim Mower Head Positioning is Infinite Between Positions Shown: These Angled Head Positions Are Performed Mechanically/Manually Prior To Use. Hydraulically Adjusted Head Angling Positioning is Available But Will Double The Cost.
Mower Assembly Includes a 'Self-Contained Hyd. System' to Power The Mower Head, and Includes a 9 Gallon Hydraulic Reservoir, PTO Pump & 540RPM PTO Shaft.
Assembly is Pre-Plumbed & Reservoir Filled.
Direct Drive Hydraulic Motor on Mower Head.
Integrated Pressure Relief Valve For Drive System Protection.
Rotary Mower Head Has 2) Sharpenable Solid Steel Swinging Blades To Provide The Best Possible Cut!

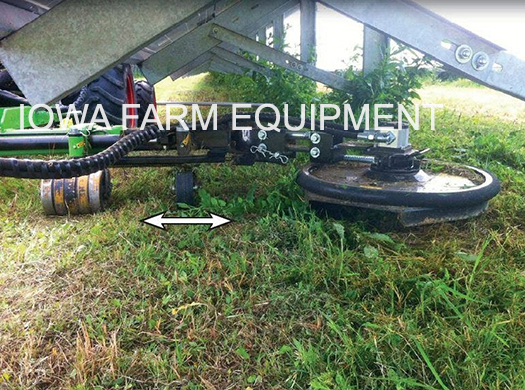

Rotary Head Telescopes Out 24" & Can Be Extended or Retracted 'On-The-Fly,' and Requires 1 Set of Hydraulic Outlets.
Horizontal Mower Head Swing Return Managed by an Adjustable Double Spring Tension System:
Swing Tension Can Be Mild For Fragile Stems, Trunks & Posts, or Rigid For Faster Ground Speed, and Also For Steep, Uphill Travel!
Cutting Operation Continues While Operating Offset, and/or Raising/Lowering Tractors 3-Point!
Powder Coated Paint!

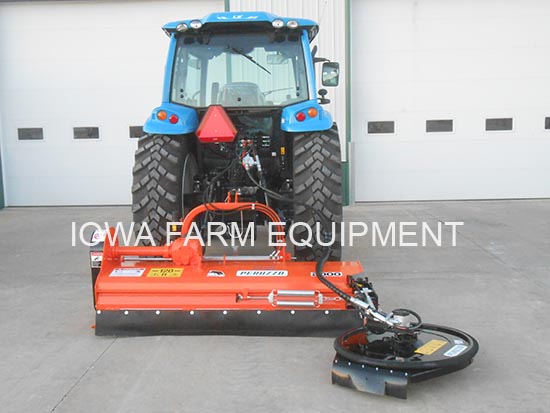

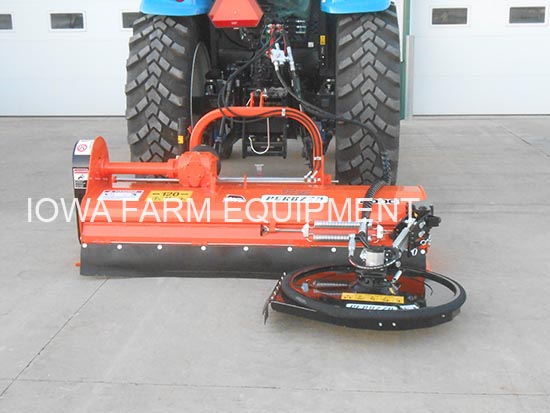

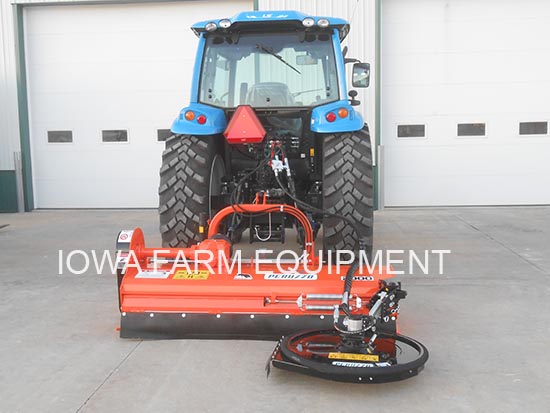

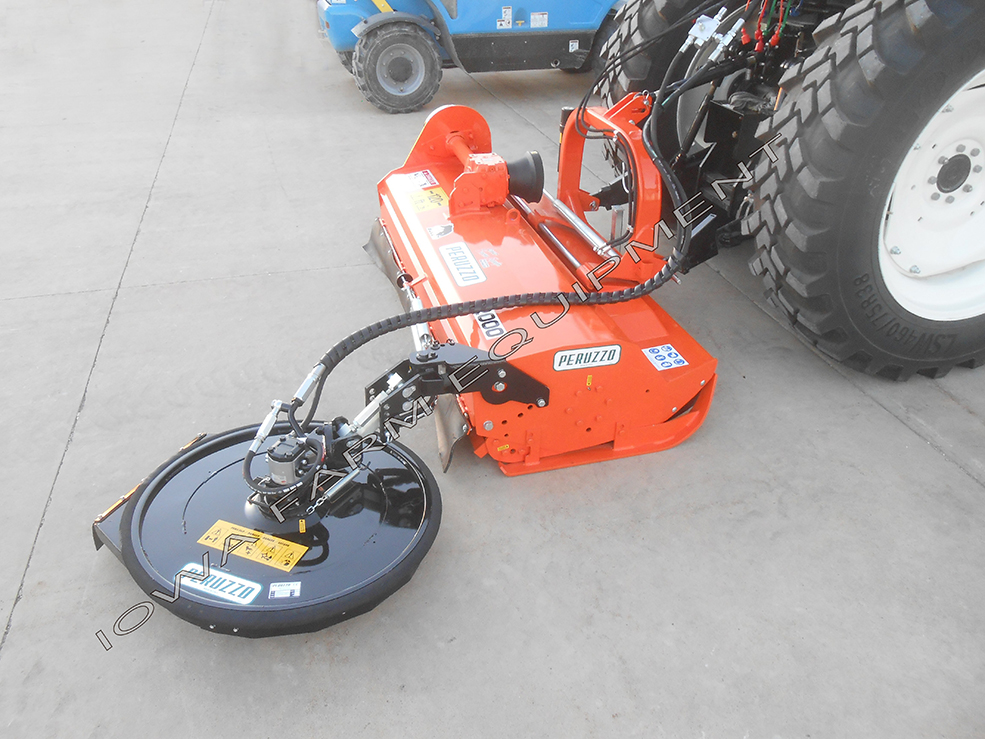

Peruzzo Offsetable Center Mounted Bull Mower with 31" Dia. Side Trim Head Shown Extended & Retracted

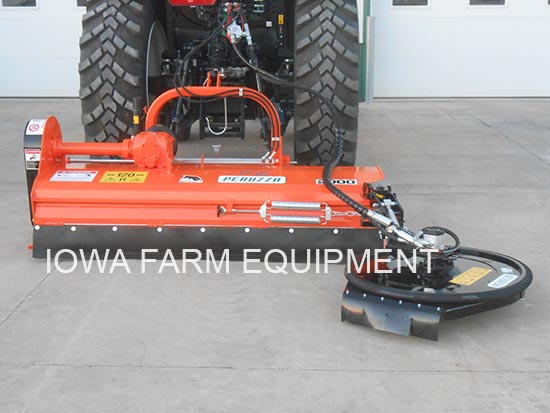

Peruzzo Bull Mower with 31" Dia. Side Trim Head

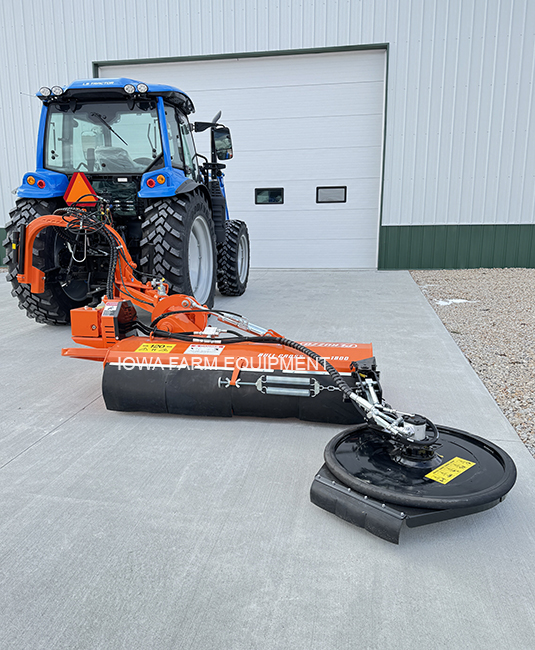

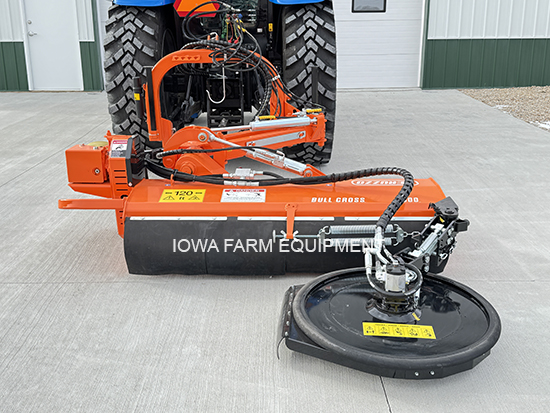

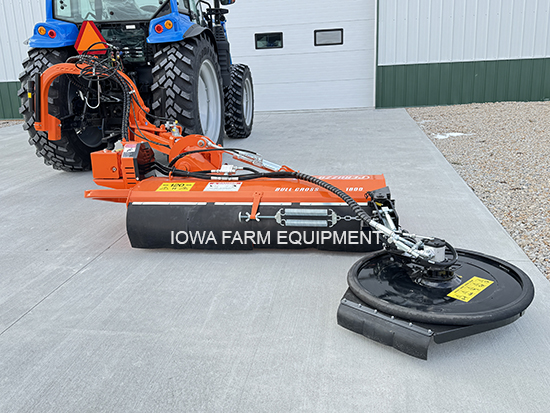

Peruzzo Bull Cross Mower with 31” Side Trim Head – Unparalleled Reach & Mowing Production!
Use the Peruzzo 31" Side Trim Head on the Largest Peruzzo Bull Cross 2200E And You'll Have 86" of Mowing Width Working While Using the Side Trimming Head!

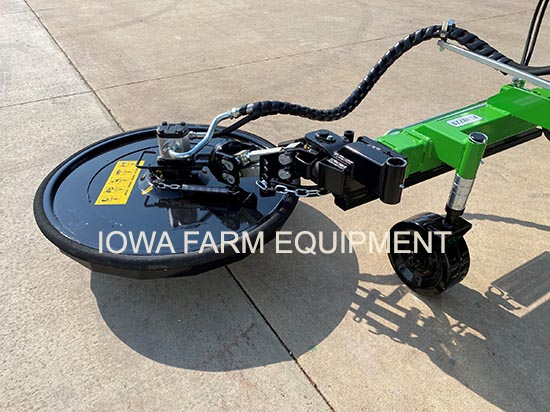

STSC-101 & SIDE TRIM HEAD DETAILS

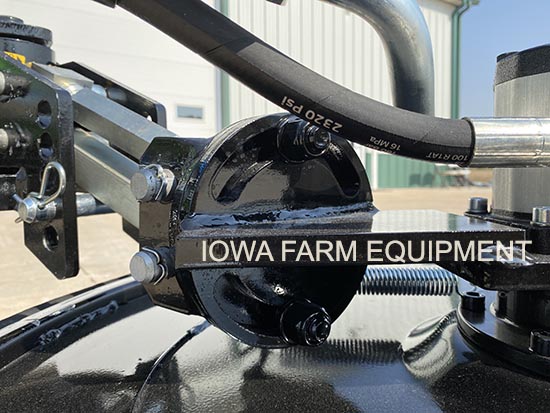

More STSC-101 Cutting Head Positioning Adjustments

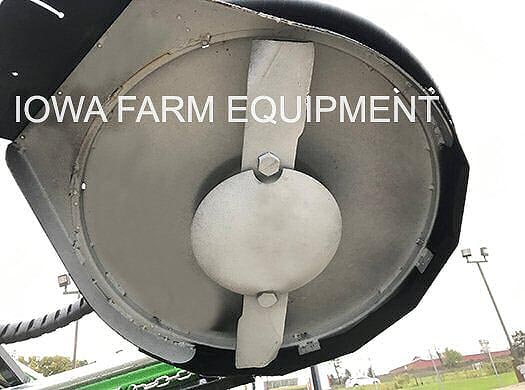

STH-101 Side Trim Mower Blades
Customer Review: "Thank you for the Perruzzo Side Trimmer, I used it today on 2 acres of blueberries and it worked well like I had hoped, well designed machine. Thanks also for the help in getting it here." ~ Satisfied Customer, NH
Dimension From Top of Cutter Deck to Bottom of Pan Carrier
4"
Overall Vertical Dimension (Bottom of Blade Carrier to Top of Hyd Motor) of Mower Head
11"
Outside Edge/Max Reach of Mower Head From Hitch Frame Center-Line, Fully Retracted
70"
Right Side Hyd Telescoping Offset
24" (Requires 1 Set Hyd. Outlets)
Max. Reach From Hitch Frame Center-Line, Extended
96"
Blades (Sharpenable)
5/16" Thick x 3-1/8" Wide x 8-3/4" Long
Hyd. Reservoir Capacity
9 Gallons
Weight
575 lbs. (w/Reservoir Full)
Weights are Less Pallets, Crates & PTO Shaft.
Note 1: Foam Rubber Bumper Around the Head is 1-1/2" Dia. The Metal Channel the Rubber Bumper is Secured to is 3/4".
Specifications & Designs Are Subject to Change Without Notice
