OMARV Heavy Duty 'MP' Series Folding Flail Mower Shredders
OMARV Ditch Bank Flail Mowers with 1000RPM Gearbox For 150-180HP Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
OMARV Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!

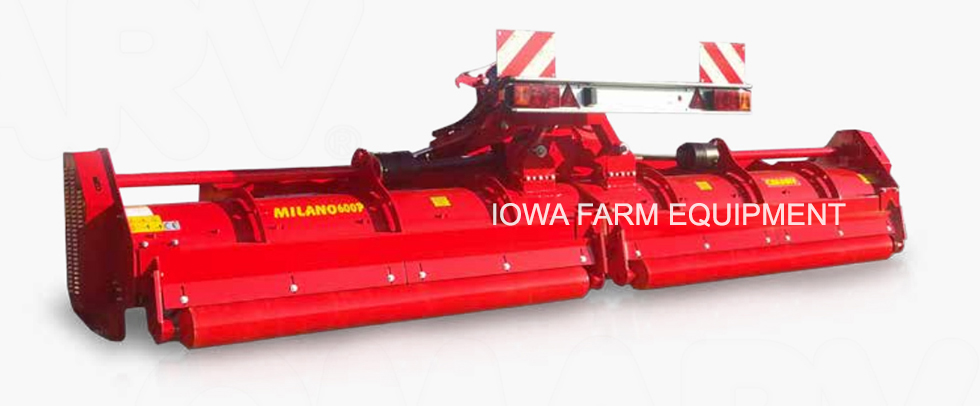

OMARV HD Ditch Bank Flail Mower with External Gearbox for 150-180HP
The 'MP' Series Heavy Duty, 3-Point Folding Multi-Purpose Flail Mower/Stalk Chopper, Is Perfectly Suited For Use in a Variety of Demanding Applications. This Series is Perfect For Use in Mowing, Shredding & Mulching Crop Residue Such As Corn Stalks, Cotton, Grass, Straw, Potato Leaves, Beet Leaves, Sugar Cane & More, Plus In General for the Mowing/Shredding/Mulching of Bushes, Trees & Shrubs Up to 4" in Diameter.
1000RPM Gearbox.
CAT 2/3N, 3-Point Hitch.

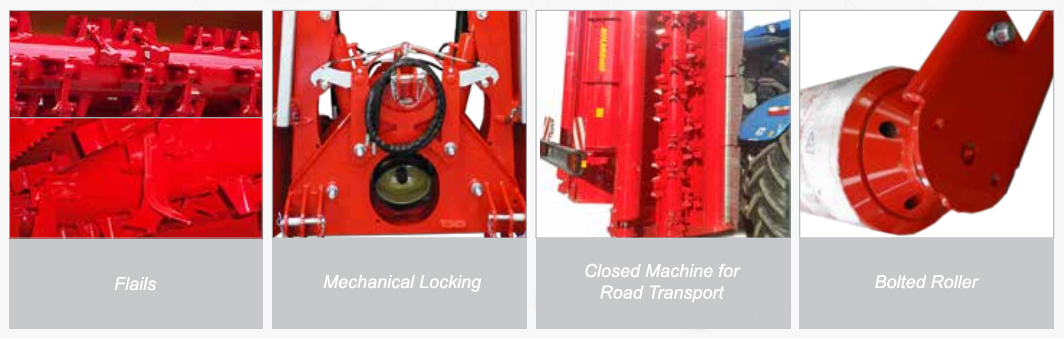

Lateral Hydraulic Movement with Mechanical Locking System.
Adjustable Skid Shoes.
Self-Cleaning Roller.
Automatic Belt Tensioning.
Centralized Greasing.
Double Bolted Rib.
Double Counter-Knife.
Rotor Diameter: 8.7".
Rotor Speed: 1800RPM
Roller Diameter: 8.7"
Below bullet items copied from FFM Series Page:
Adjustable Cutting Height.
Multi-Point Lubrication Manifold Eliminates The Need To Remove The Belt Cover For Lubrication.
Externally Mounted Gearbox Provides Maximum Reach.
Gearbox Includes Overrunning Clutch For Easy PTO Shaft Alignment & Smooth Freewheel Shutdown.
Shock Absorbing Oleo-Pneumatic Accumulator.
Vertical Rotation 90° Upward, 50° Downward.
Actual Video Coming Soon, But Expect Functionality & Performance To Be Identical.
'MP' SERIES DITCH BANK FLAIL MOWER SPECIFICATIONS
MODEL
600MP
640MP
Horsepower
150-180HP
Working Width
19'-8"
21'-0"
Folded Width
8'-2"
Number of Hammer Blades
64
68
Number of Knife Blades
136
144
Belts SPBX
10
Cutting Capacity
4" Diameter
Hitch
CAT 2/3N
Weight
6,548 lb's
7,319 lb's

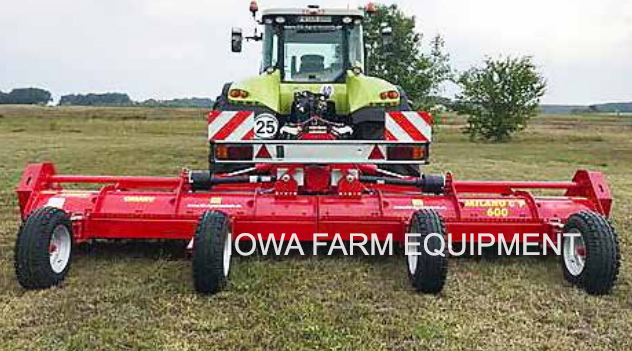

Optional Transport System with Wheels
Number of Wheels
4
Wheel Dimensions
10.75/15-3
Weights are Less Pallets, Crates & PTO Shaft.
'MP' SERIES DITCH BANK FLAIL MOWER SPECIFICATIONS
MODEL
600MP
640MP
Horsepower
150-180HP
Working Width
19'-8"
21'-0"
Folded Width
8'-2"
Number of Hammer Blades
64
68
Number of Knife Blades
136
144
Belts SPBX
10
Cutting Capacity
4" Diameter
Hitch
CAT 2/3N
Weight
6,548 lb's
7,319 lb's
Optional Transport System with Wheels
Number of Wheels
4
Wheel Dimensions
10.75/15-3
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
