OMARV Flail Forage Harvester For 45-100HP Tractors
The OMARV ‘FH’ Series Harvester Is an Excellent Option For Harvesting Daily Forage Feed, For Harvesting Windrowed Feed, For Harvesting Various Crops to Use For Compost, and with the Unique Range of Cutting Height, it is one of the Only Options to Satisfy CRP, or Other Regulatory Mowing Requirements of 6” to 8”, with a Decent Cut!
The ‘On-The-Fly’ Hydraulic Spout Rotation, and Hydraulic Deflector Control Features Provide The Higher Level of Efficiency Necessary For Todays Agricultural Activities, as well as Providing Operator & Equipment Safety:
Spout Rotates From Rear Center 25° Clockwise.
Set Towards The Rear To Fill A Forage Wagon, Barge Box, Etc.
Swing 25° Rear Center To Right To Disperse Cover Crop, Unharvested Produce, etc!
The Harvesters Offset Feature Enables Crop Efficiencies by Preventing Traffic on Windrowed, or Standing Crop.
The Long, and Deeply Cupped Hardened Steel Blades Provide More Efficiencies by Producing an Excellent Cut, Greater Crop Propulsion, and Reduced Demand to Your Tractor:
6" Dia. Heavy Duty Rotor Has a 23" ‘Blade Tip To Blade Tip’ Diameter!
Swinging Type Blades Provide Protection Against Rocks, and other Fixed Objects.
Blades Cut Against Two Counter Blades: One Large Primary (1"x4"x3"x13/16" Thick) Modified 'C' Channel Counter Blade At Lower Front & One 3"x1/8" At Top Rear For Final Reduction.
Primary Counter Blade Has 2" Of Gap Adjustment (Edge of Channel to Edge of Blades) To Control Clipping Size & Demand Back To Your Tractor.
Primary Counter Blade Is Factory Set At Mid Cutting Range, Providing 1" Additional Closing Or Opening!
Both Counter Blades Are Bolt-On For Ease Of Adjustment & Replacement!
OMARV Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
The Streamlined Design Not Only Has a Modern Product Appearance, But it Also Eliminates Standing Water, Standing Crop, Dirt, etc., Preventing Rust, and Premature Aging of the Harvesters Exterior.
Clevis Style Pinned Connection At Rear For Trailer Tongue Connection.
Includes 540RPM PTO Shaft!

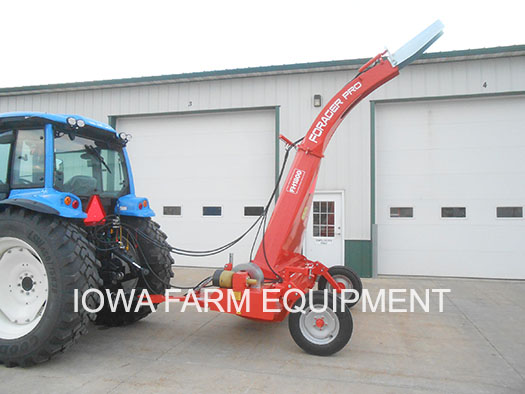

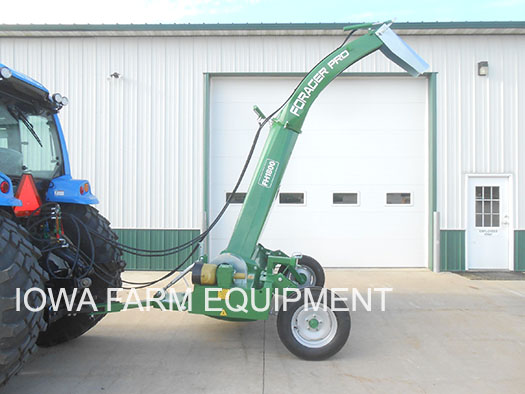

Front & Rear Side Views Depict Rear Clevis Style Hitch, Rear Wheels Turnbuckle For Cutting Height Adj., Front Turnbuckle For Pitch, Hydraulic Cylinders & Parking Stand
Harvesting Windrowed Hay
OMARV’s ‘FH’ Series Harvesters with Hydraulic Spout & Deflector Adjustments Provide Efficient ‘On-The-Fly’ Adjustments!

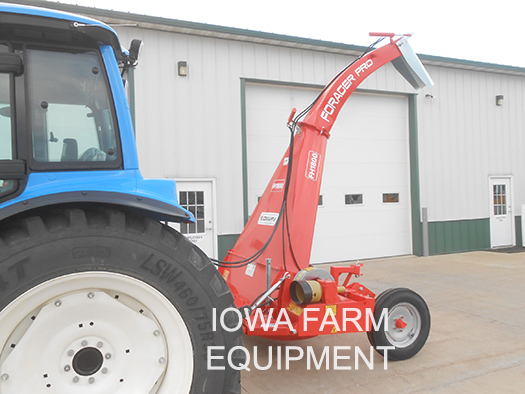

Right Offset Clears Rear Tire Tracks!

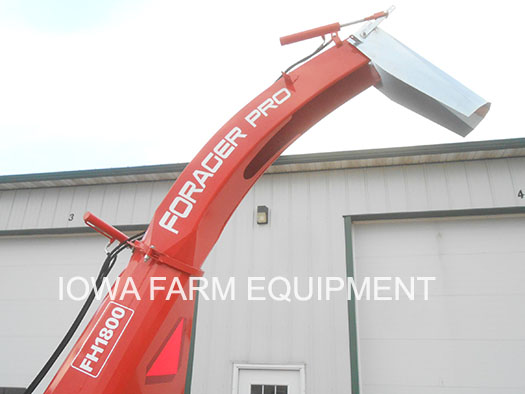

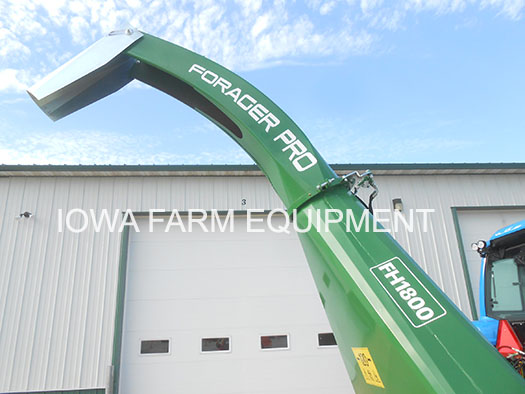

Place Your Crop Discharge Anywhere ‘On-The-Fly’ with Hydraulic Spout Rotation &Hydraulic Deflector Control, Shown In Max Down & Max Up Positions! These Efficient & Convenient OMARV Harvesters - They Even Look Good!

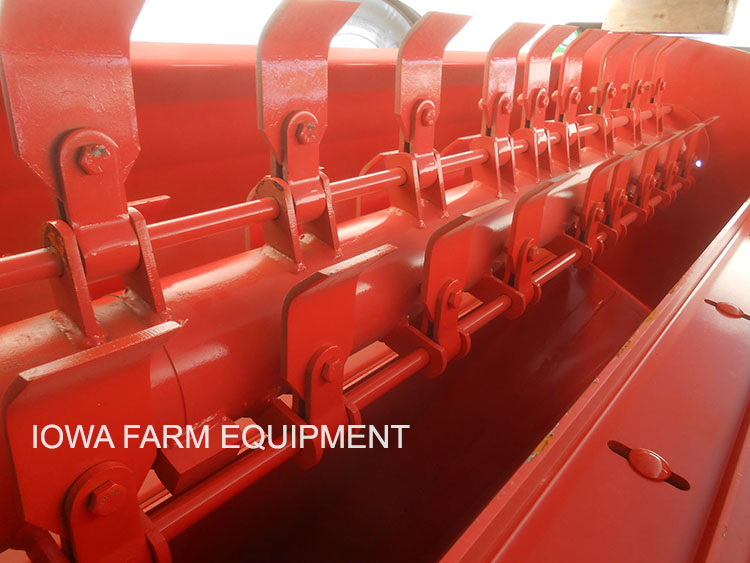

Highly Populated Rotor With Extra Long Blades For Efficient Cutting Results, Reduced Demand On Your Tractor & Maximum Propulsion Of Cut Crop!
'FH' SERIES SPECIFICATIONS
MODEL
150
180
Working Width
59"
71"
Overall Width
71"
79"
Number of Hammer Blades
24
27
Belts SPBX
4
Horsepower
60 - 100HP
Wheel Dimensions
5.00-8
Weight
1,499 lb's
1,720 lb's
Weights are Less Pallets, Crates & PTO Shaft.
'FH' SERIES SPECIFICATIONS
MODEL
150
180
Working Width
59"
71"
Overall Width
71"
79"
Number of Hammer Blades
24
27
Belts SPBX
4
Horsepower
60 - 100HP
Wheel Dimensions
5.00-8
Weight
1,499 lb's
1,720 lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
