OMARV Double Hitch 'R' Series Super Duty, Articulated Ditch Bank Flail Mowers, Mulchers Rear 3-Point ‘or’ Front & Rear 3-Point Mountable!
(6.5’ to 8.5’ Working Widths; 80-160HP Tractors, 540/1000RPM)
OMARV Heavy Duty Commercial 'R' Series: 78", 87" or 102" Cut, Hydraulic Side Shift, Raise & Lower - Front or Rear 3-Point Mountable!
Expect This OMARV Mower & ALL Of The Equipment We Sell To Be Quality Equipment That Will Serve You Well For A Lifetime And Provide A Good Resale Value Too!
This OMARV Flail Mower Has a 17" Dia. Severe Service Duty Rotor With, Depending on the Model, 44, 48 or 56 Large Forged & Hardened Steel Hammer Blades - OMARV Flail Mowers Always Have the Highest Population of Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
These Substantial Blades Can Be Sharpened Multiple Times & Typically Have a Very Long Life!

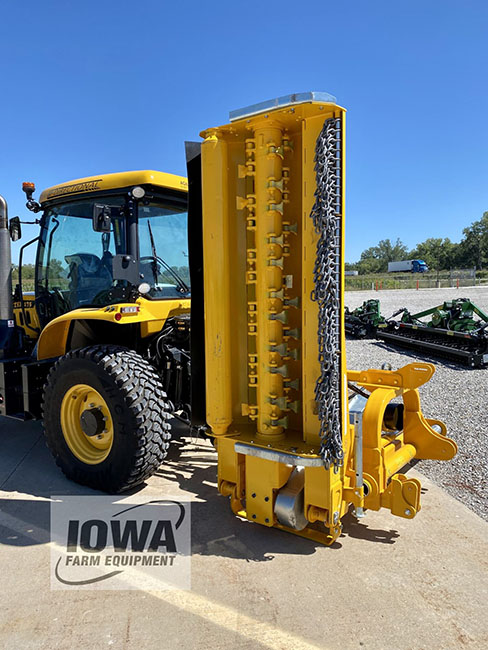

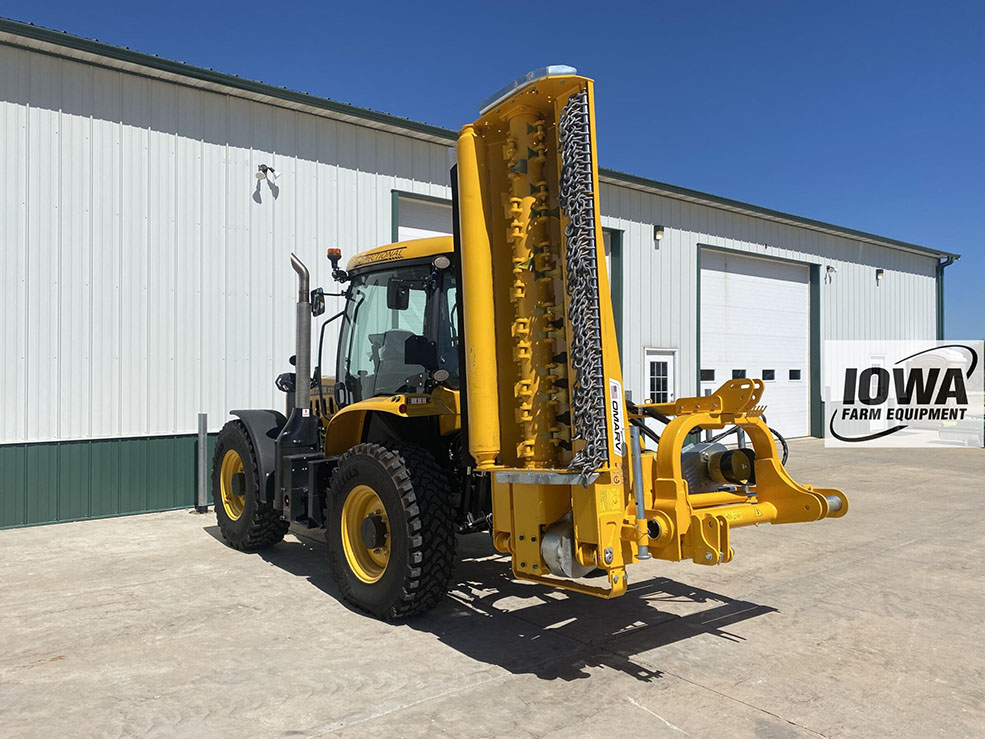

Use The Convenience of The Upward 90° Rotation & Remain Standing to Inspect, Sharpen & Service The Blades!
OMARV 'R' Series Roadside Ditch Bank Flail Mowers Are Equipped With Severe Duty PTO Shafts With CV Joints on BOTH Ends!
OMARV Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
Offset & Head Positioning Functions Operate Hydraulically.
'Raise & Lower Cylinder' Has Three Unique Features for Performance Efficiency, for Mechanical Protection of the Mower, and for Operator Safety:
Adjustable Flow Control Valve for Hydraulic Speed Control:
Prevents Shock Loads From Operators Abrupt & Rapid Downward Deck Rotation (then hammering our precious earth), or Abrupt & Rapid Upward Deck Rotation (then hammering the mechanical connections):
Set This Valve to a Slower Setting Until You've Mastered Feathering the Controls to Rotate the Deck 90° Upward, or 70° Downward! Once You've Got it, You Can Adjust the Flow Control Valve for Faster Operation!
Horizontal (Left to Right) Mower Deck Oscillation for Automatic Contour Adjustment:
The Cylinder Barrel is Pinned to a Clevis Bracket, Which is Secured to the Mower Deck via a Bracket With an Oval Pin Opening for Oscillation Travel.
Safety Locking Valve for More Personnel & Equipment Safety!
Lower Right Rear of 3-Pt Frame Has a Removable Pin for 'Lock-In-Place' Operation (when mowing level, predictable terrain), or Remove the Pin for Limited & Self-Resetting Breakaway Protection - Also for Front to Rear Deck Oscillation (for following uneven terrain).
Hydraulic Breakaway:
The 'Extend & Retract Cylinder' Has a Relief Valve for Limited & Self-Resetting Breakaway.
OMARV'S Ditch Bank Flail Mower Series Includes a Pneumatic Cushion Ride System Which Cushions Shock Load Transfer From Abrupt Operator Articulation (of the Large Mower Head) & From Sudden Grade Recesses, or Drops!
A Large Deck Enclosure Accommodates Higher Volumes of Material for Superior Finish Results, Superior Mulching Results, Less Burden Transferred to the Tractor & Better Ground Speeds. It's Also Large Enough for the Rear Roller to be Within the Footprint of the Deck (instead of protruding out beyond the back).
Full Double Deck Shell Protects the External Shell From Rocks & Other Internal Projectiles:
Rear Roller Also Includes a Full Width Rubber Deflector & Mud Scraper.
Dual Top Link Pin Holes:
One Oval for (more) Front to Rear Deck Oscillation.
One Standard Round Hole for Rigid & Level Deck Suspension.
Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If You're Mowing Along a Fence Line, Tree Line, Building, etc., Instead of Getting Your Entire Tractor Along Side of the Fence or Building (and risk scraping your tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep the Offset Part of the Mower Close to the Edges You Want to Mow and Prevent Any Damage to the Tractor, the Trees, Fencing, Walls, etc. Snagging Posts, Trees or Other Secured Objects Can Also Damage the 3-Point Linkage on the Mower or Even the Pull Arms & Top Link of Your Expensive Tractor.
Much, Much Better Visibility: If the Edge of Any Mower is Flush With the Sidewall of Your Tractors Tire, Forget About Visibility! You'll be Cutting With Your Tractor Tire as a 'Guide', Which is ok in Open Areas, But Again, When You're Mowing up Against Obstacles, You Want Visibility, and the Offset Feature Will Provide That. It Will Also Eliminate the Need to Look Back Over Your Shoulder to See the Mower Deck. A Simple Glance to Your Right Gives You Visibility of the Outer Mowing Edge.
The Multi-Purpose Characteristic of OMARV Flail Mowers Provides a 'Rough Cut' That's Superior to Any 'Rotary Rough Cut Mower', and a 'Finish/Manicure Cut' That's Superior To Any 'Rotary Finish Mower'! Plus With the 'Forged & Hardened' Hammer Blades, You Can Cut 4" Diameter Material & Still Get A Superior Finish Cut Too!
OMARV Flail Mowers Are The Safest & Most Efficient Mowers Available:
With OMARV Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They're the Easiest for You & Your Tractor to Handle! Plus, the Superior 'Single-Pass' Cut of OMARV Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!
With the External Gearbox & Unique Hitch Configuration of OMARV Mowers, Expect to Get the Most Right Side Reach Possible!
Use the Transport Lock When Transporting From Place to Place to Prevent Excess Stress on Supporting Linkages.
Mower Ships Assembled & Ready To Use:
This Means No Assembly Headaches from Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters & No Waiting Until It's Assembled Before First Use!
All of These Excellent Features Work Together to Outperform Your Expectations in Rough Cutting, Mulching & Finish Cutting Applications, With Beautiful, Single Pass Results, With Efficient Ground Speeds & With Ease of Demand on Your Costly Tractor & it's Fuel Tank! Most of All, it Makes Mowing Fun Again!

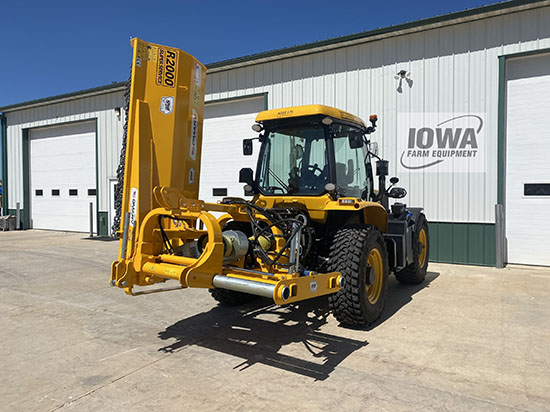

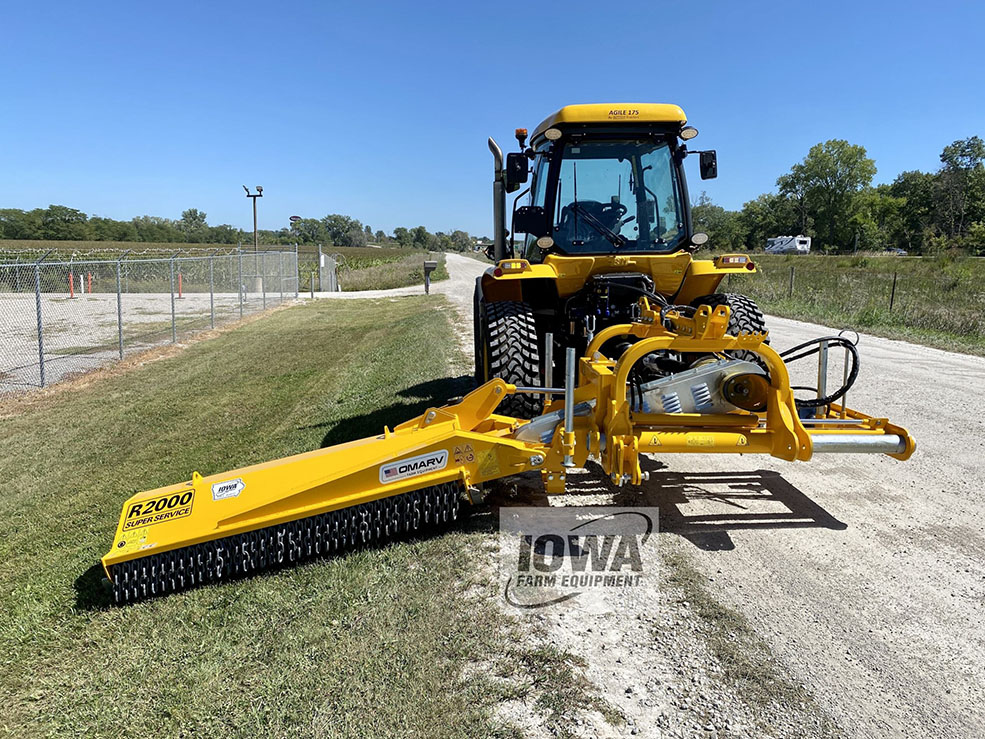

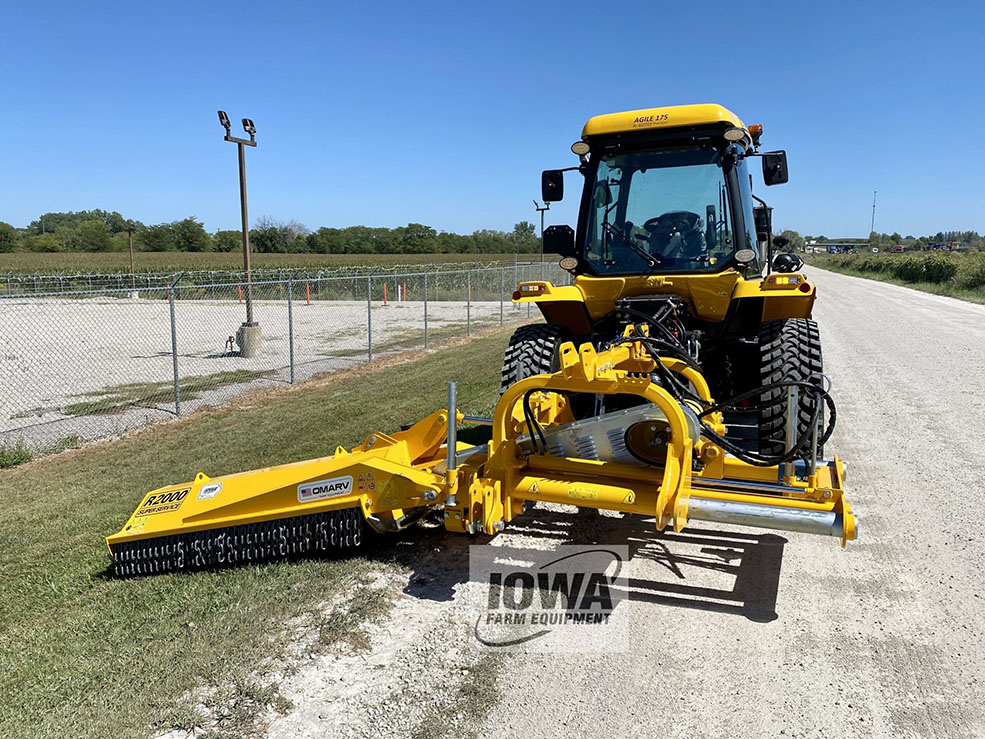

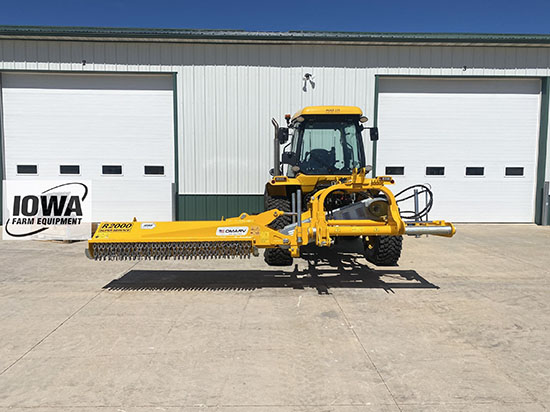

OMARV R2000 on Our ADROIT 175 Bi-Directional BETTER Tractor with Front & Rear 3-Points & PTO’s!
OMARV R2000 on Our ADROIT 175 Bi-Directional BETTER Tractor with Front & Rear 3-Points & PTO’s!
OMARV 'R' SERIES SPECIFICATIONS
MODEL
R1600
R1800
R2000
R2200
R2400
R2600
Tractor Horsepower
65 - 100HP
80 - 120HP
100 - 160HP
Hitch
CAT 2
Max. Horizontal Reach From Centerline to Outside Cutting Edge
11'-7"
12'-3"
12'-11"
13'-7"
14'-3"
15'-0"
Mowing Width
5'-3"
5'-11"
6'-6"
7'-3"
7'-11"
8'-6"
Overall Deck Width
6'-10"
7'-5"
6'-10"
7'-7"
9'-5"
10'-0"
Max. Upward Angle
90°
Max. Downward Angle
70°
Number of Hammer Blades
34
38
44
48
52
56
Cutting Capacity
4" Diameter Material
Rotor Diameter
17", Blade Tip to Blade Tip
RPM
540 or 1000
Hydraulic Outlets
Two Sets Required
Weight
2,612 lb's
2,711 lb's
2,815 lb's
2,979 lb's
3,130 lb's
3,359 lb's
Weights are Less Pallets, Crates & PTO Shaft.
OMARV 'R' SERIES SPECIFICATIONS
MODEL
R1600
R1800
R2000
R2200
R2400
R2600
Tractor Horsepower
65 - 100HP
80 - 120HP
100 - 160HP
Hitch
CAT 2
Max. Horizontal Reach From Centerline to Outside Cutting Edge
11'-7"
12'-3"
12'-11"
13'-7"
14'-3"
15'-0"
Mowing Width
5'-3"
5'-11"
6'-6"
7'-3"
7'-11"
8'-6"
Overall Deck Width
6'-10"
7'-5"
6'-10"
7'-7"
9'-5"
10'-0"
Max. Upward Angle
90°
Max. Downward Angle
70°
Number of Hammer Blades
34
38
44
48
52
56
Cutting Capacity
4" Diameter Material
Rotor Diameter
17", Blade Tip to Blade Tip
RPM
540 or 1000
Hydraulic Outlets
Two Sets Required
Weight
2,612 lb's
2,711 lb's
2,815 lb's
2,979 lb's
3,130 lb's
3,359 lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
