OMARV Severe Duty Commercial 'CT' Series Multi-Purpose Excavator Flail Mowers/Mulchers/Shredders: Heavy Duty Hammer Blades & Rear Rollers
Suitable for 3.5 to 7 Ton Excavators

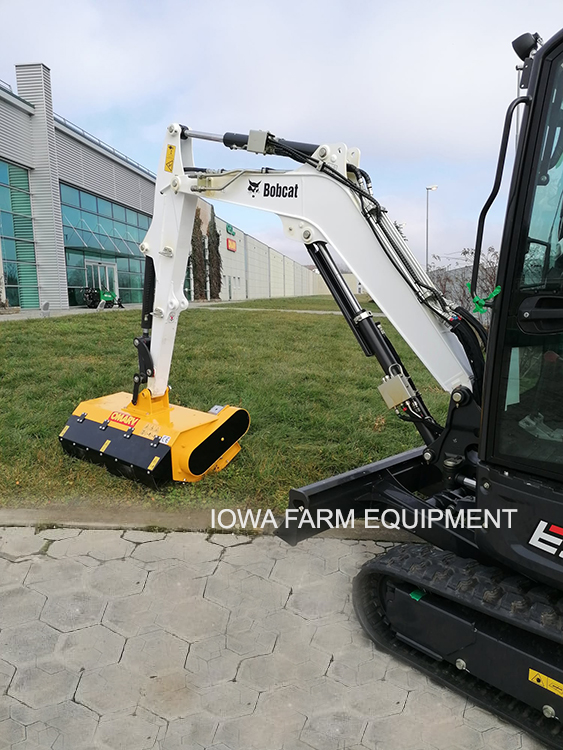

OMARV CT120 w/Bobcat Pin-On Coupler Quick Couplers Are Available For All Makes & Models

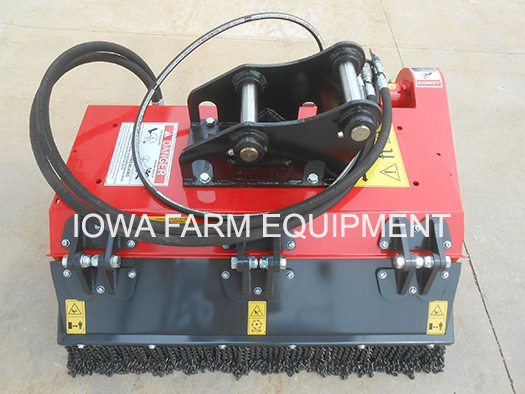

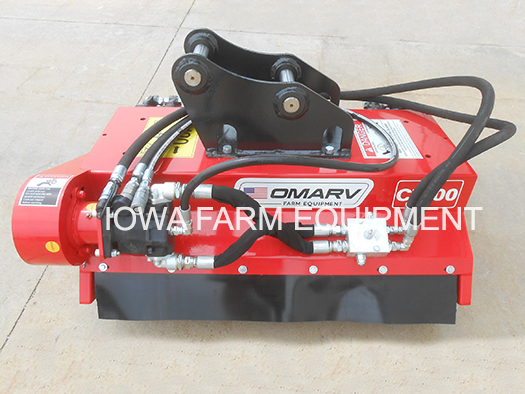

OMARV ‘CT100’ Commercial Duty Flail Mower/Mulcher with Hammer Blades, Rear Rollers & Quick Coupler Front & Rear Views
OMARV Commercial Duty Flail Mulchers/Mowers: Excellent Single Pass Rough Cutting & Finish Mowing Results All With The Same Mower Deck & Blades! OMARV Flail Mowers Make Mowing & Mulching Efficient Again!
Suitable For 3.5 to 7 Ton Machines with Hydraulic Flow Rates of 12 to 30GPM’s.
OMARV Flail Mowers Are Always Highly Populated With Blades To Provide The Best Possible Cut & Reduce The Burden On Your Excavator:

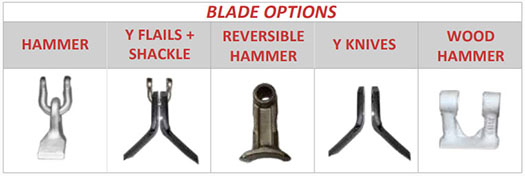

OMARV’s Swinging Hammer Blades Will Last Longer & Be More Efficient During Operation By Reducing The Demand Back To Your Excavators Hydraulic System – Very Important On Smaller Excavators With Limited Hydraulic Capacity, Particularly During Demanding Applications! OMARV’s Swinging Hammer Blades Are Double Sided & Sharpenable, Adding To The Life Of OMARV’s Hammer Blades!
Along With The Severe Duty Swinging Hammer Blades, The Spiral Blade Arrangement On The Rotor Makes The Flail & Mulching Deck Perfect For Thick, Heavy Grasses, Reeds, Brushes, Branches, Prunings, Saplings, And Small Trees Up To 3”!
Higher Flow Rates Are Required For Maximum Performance!
In Addition To The Built-In Hydraulic Pressure Relief Valve, The Hydraulic Case Drain Ensures Smooth Shutdown, and Hydraulic System Protection of The Excavator.
Rear Roller Is Adjustable For Cutting Height Setting.
Excavator Quick Coupler Is Included.

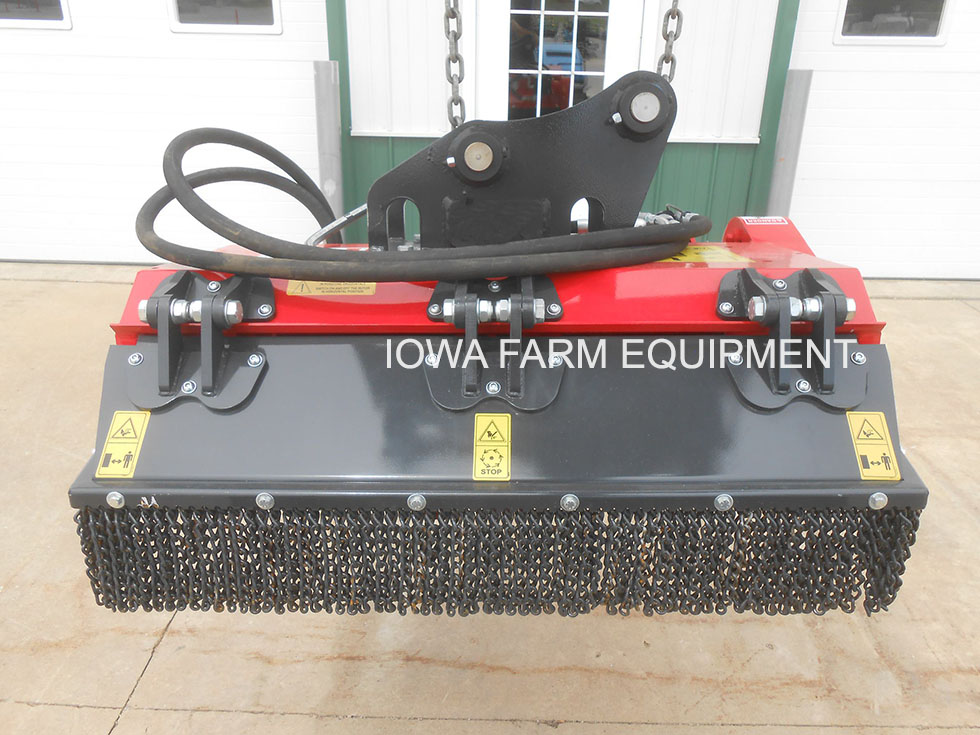

Front View w/Quick Coupler & Severe Duty Hinged Access Cover

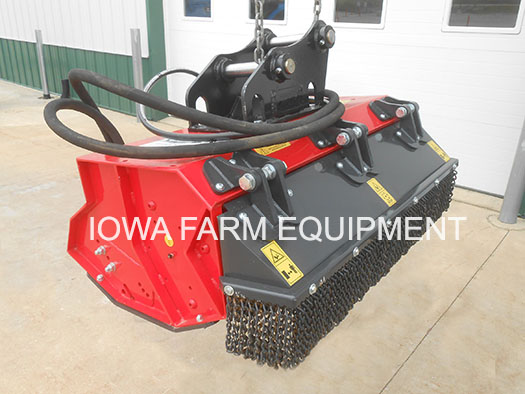

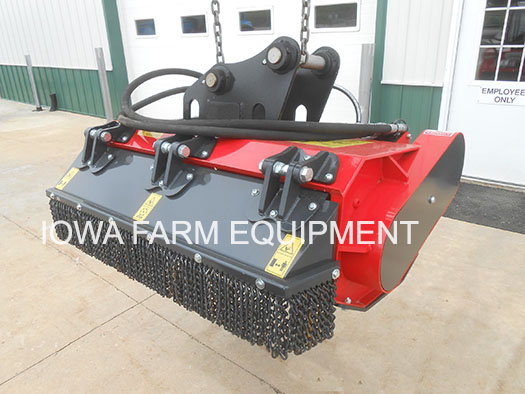

Front Iso View w/Quick Coupler & Severe Duty Hinged Access Cover

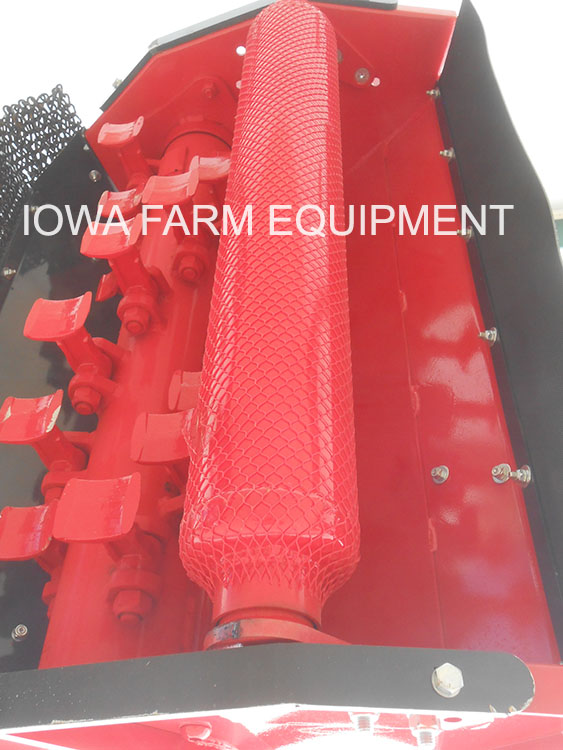

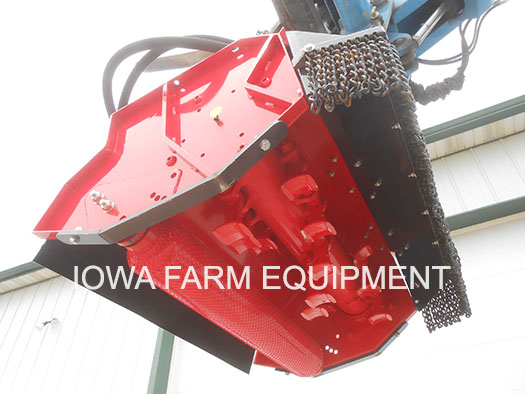

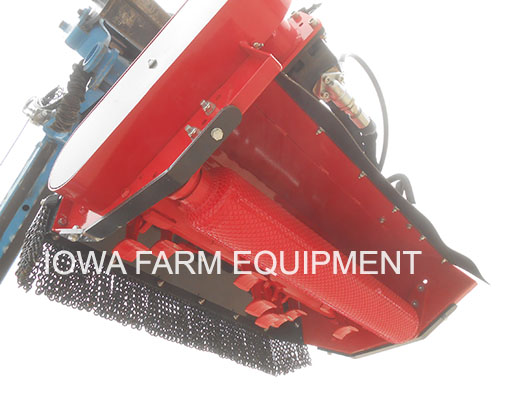

CT100 Bottom View Showing Rotor with Blades & Rear Roller With Large Open Area Around Rotor & Blades, Which Accommodates Rapid, Unhindered Pass-Thru Of Large Volumes Of Material, Which Reduces Demand On The Excavators Hydraulic System, Contributing to Cooler Hyd System Operation and Enabling Efficient Performance By Reducing Under Deck Clogging!
OMARV 'CT' SERIES SPECIFICATIONS
MODEL
CT80
CT100
CT120
Working Width
32"
40"
48"
Number of Hammers
18
24
30
Cut Capacity with Hammers
3"
Number of Y Knives
36"
48
60
Cut Capacity with Y Knives
1.5"
Max PSI
3100-3250
3100-3250
3200-3700
Hyd Flow Required
12 GPM
16 GPM
16 GPM
Rec. Excavator Size
3.5 Ton
5 Ton
7 Ton
Weight
396 lb's
495 lb's
594 lb's
Weights are Less Pallets, Crates & Excavator Coupler.
OMARV 'CT' SERIES SPECIFICATIONS
MODEL
CT80
CT100
CT120
Working Width
32"
40"
48"
Number of Hammers
18
24
30
Cut Capacity with Hammers
3"
Number of Y Knives
36"
48
60
Cut Capacity with Y Knives
1.5"
Max PSI
3100-3250
3100-3250
3200-3700
Hyd Flow Required
12 GPM
16 GPM
16 GPM
Rec. Excavator Size
3.5 Ton
5 Ton
7 Ton
Weight
396 lb's
495 lb's
594 lb's
Weights are Less Pallets, Crates & Excavator Coupler.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
