Left & Right Side or Rear Center Discharge, Front or Rear 3PT Mountable Left & Right Hydraulically Offsetable Deck Rear Hitch & PTO for Trailing Attachments
(4’ to 9’-2” Widths, 22-100HP)
Efficiently Precise Single Pass Results Commercial Quality Rotary Mowers with All the Best Features, Superior Cuts and Safest Operations Generous Overlap Between Deck Blades Ensures Single Pass Perfection Even at High Ground Speeds. ‘On-The-Fly’ Hydraulic Left & Right Side Shifting for Single Pass Precision. Fully Shrouded Deck & Side Trim Head for Crop Protection & Operator Safety. Low Profile Deck & Side Trim Head for Fence, Orchard & Vinyard Row Aisles. Excellent Fit, Finish & Performance with Safety & Efficiency! EQUIPMENT THAT WORKS FOR YOU!
STANDARD FEATURES:
Double Sided Blades & Reversible Hitch for Rear or Front 3Pt Mounting.
ZMG Models Offer Widest Working Widths w/Single Side Trim Head.
Left & Right Right Side Shifting Center Deck.
Discharge Location Selectable: Each Side to Crop Base, or All Rear to Aisleway.
Weight Balanced Side Trim Head for Synchronized Positioning with Main Deck.
Front Gage Wheels & Rear Roller for Cutting Height Adjustment.
Cat 1 & 2 Suitable.
540RPM PTO Shaft.
Expect Excellent Fit, Finish & Performance with All Ilmer Products Double Gearbox For Front or Rear Mounting 6” Right & 6” Left Hydraulic Side Shift

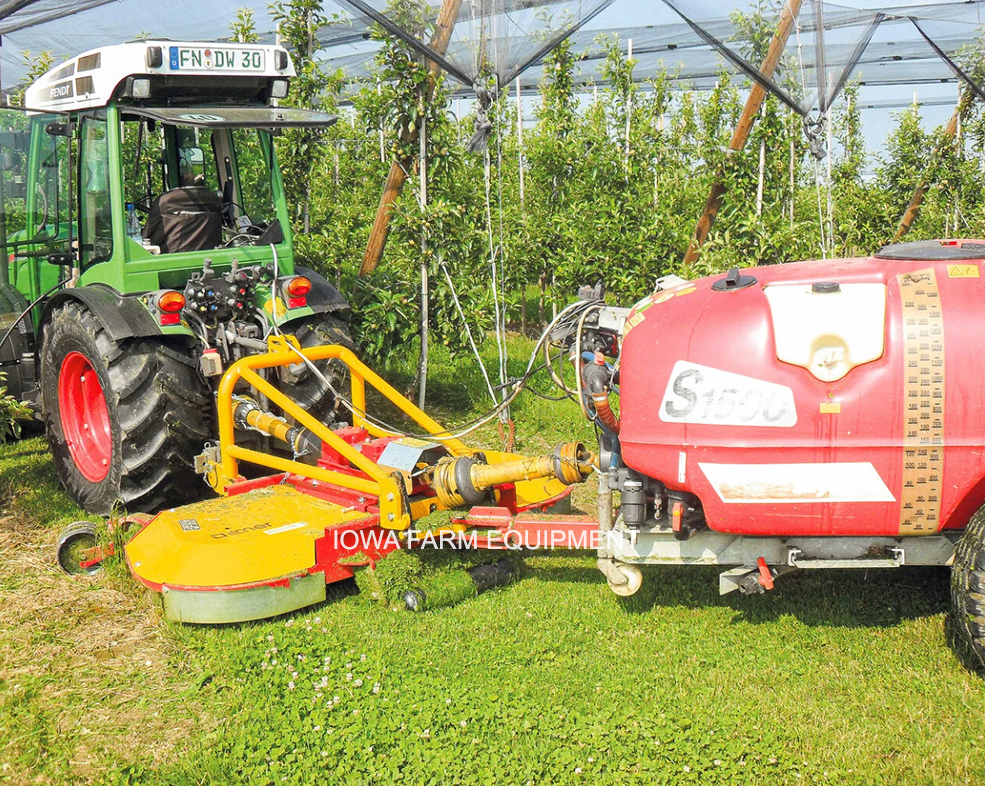

ZMG Series Shown Pulling an Aisleway Sprayer For Increased Single Pass Efficiency! The ZMG’s Rear Hitch is Integrated Into The Overall Structure For Load Distribution

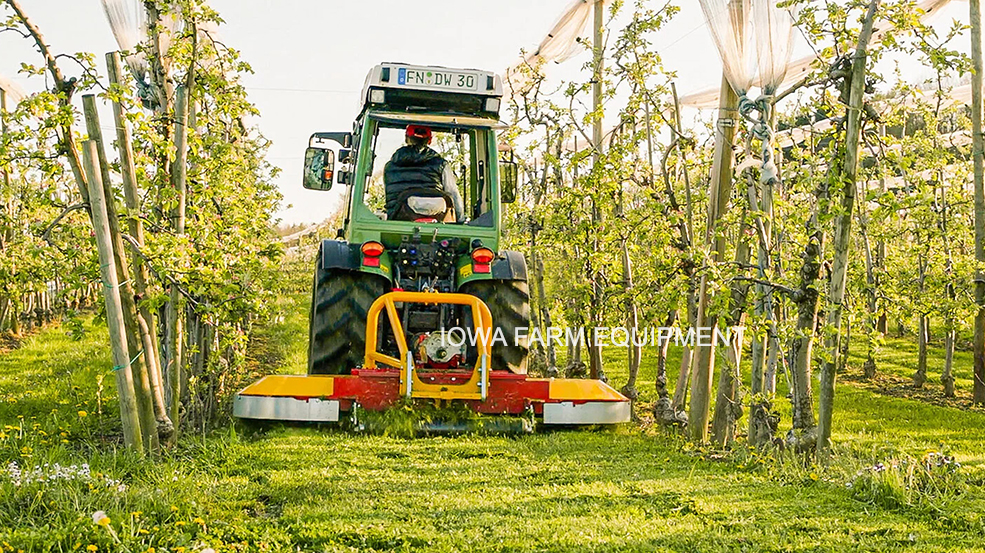

ZMG 240 Shown at Work Manicuring Entire Aisleway in One-Pass
'ZMG' SERIES ROTARY MOWER SERIES SPECIFICATIONS
MODEL
ZMG 120
ZMG 160
ZMG 180
ZMG 210
ZMG 220
ZMG 230
ZMG 240
ZMG 260
ZMG 280
Working Width
3'-11"
5'-3"
5'-11"
6'-11"
7'-3"
7'-7"
7'-10"
8'-6"
9'-2"
Number of Blades
3
HP Range (Engine)
22HP
24HP
30HP
35HP
37HP
40HP
43HP
47HP
50HP
DIMENSIONS (Closed Swing Arms)
Width
49"
65"
73"
85"
89"
93"
96"
104"
112"
Depth
45"
53"
55"
53"
55"
Side Shift (optional)
--
6 + 6"
Weight
827lb's
915lb's
959lb's
1,047lb's
1,069lb's
1,113lb's
1,113lb's
1,168lb's
1,235lb's
Weights are Less Pallets, Crates & PTO Shaft.
'ZMG' SERIES ROTARY MOWER SERIES SPECIFICATIONS
MODEL
ZMG 120
ZMG 160
ZMG 180
ZMG 210
ZMG 220
ZMG 230
ZMG 240
ZMG 260
ZMG 280
Working Width
3'-11"
5'-3"
5'-11"
6'-11"
7'-3"
7'-7"
7'-10"
8'-6"
9'-2"
Number of Blades
3
HP Range (Engine)
22HP
24HP
30HP
35HP
37HP
40HP
43HP
47HP
50HP
DIMENSIONS (Closed Swing Arms)
Width
49"
65"
73"
85"
89"
93"
96"
104"
112"
Depth
45"
53"
55"
53"
55"
Side Shift (optional)
--
6 + 6"
Weight
827lb's
915lb's
959lb's
1,047lb's
1,069lb's
1,113lb's
1,113lb's
1,168lb's
1,235lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
