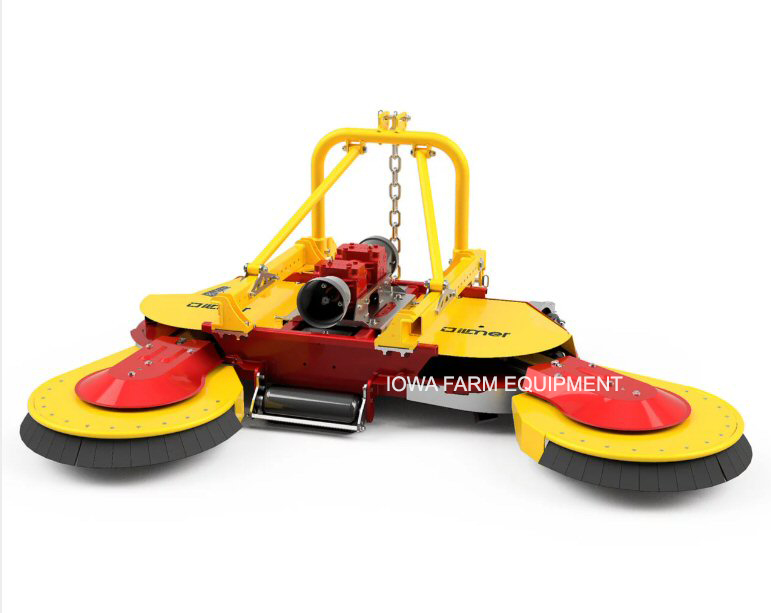

ILMER ‘SMG’ SERIES AISLEWAY MOWERS

Left & Right Discharge, Front or Rear 3PT Mounting
Hyd Trim Head Positioning w/o Swingback or Spring Return
Widest w/Dual Side Trimming Heads
(4’ to 15’ Widths, 28-110HP)
Efficiently Precise Single Pass Results
Commercial Quality Rotary Mowers with All the Best Features, Superior Cuts and Safest Operations
Generous Overlap Between Main Deck & Side Trimmer Blades Ensures Single Pass Perfection
‘On-The-Fly’ Hydraulic Operator Adjustments for Side Trim Head Positioning
Fully Shrouded Deck & Side Trim Head for Crop Protection & Operator Safety
Low Profile Deck & Side Trim Head for Fence Row Aisles & Sides of Structures
Excellent Fit, Finish & Performance with Safety & Efficiency!
EQUIPMENT THAT WORKS FOR YOU!

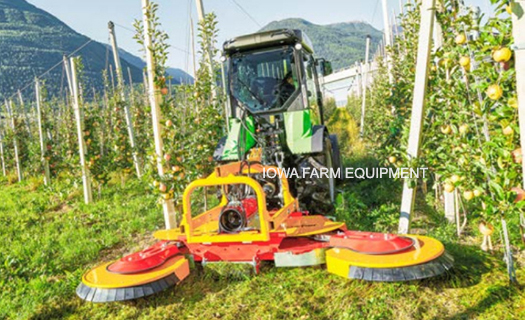

SMG Shown at Work w/Independently Controllable Side Trim Heads
Ground Speed & Hydraulic Positioning Work Together for the Best Results
Current Hitch Version is Reversible For Front or Rear Mounting
SMG SERIES AISLEWAY & SIDE TRIMMING MOWER SPECIFICATIONS
MODEL 250/58 290/72 300/72 335/72 355/72 375/72 410/72 450/72
Tractor HP 34 - 80 41 - 80 48 - 80 54 - 100 59 - 100 65 - 100 70 - 100 75 - 100
Working Width Deck 5'-3" 5'-5" 6'-1" 7'-1" 7'-7" 8'-3" 9'-4" 10'-8"
S.T. Head (each) 25" (63) 30" (77)
Working Width w/Both S.T. Heads Min/Max: 5'-3"/8'-6" (250) 5'-5"/9'-6" (290) 6'-1"/9'-10" (300) 7'-1"/11'-0" (335) 7'-7"/11'-8" (355) 8'-3"/12'-4" (375) 9'-4"/13'-5" (410) 10'-8"/14'-9" (450)
Offset (Optional) 15" Left & 15" Right
Overall Width* 65" 67" 75" 87" 87" 101" 115" 130"
Overall Depth* 69" 73" 75" 79" 83" 73" 83" 87"
Hitch CAT 1 & 2
Front or Rear
Qty Blades/Spindles 1-Deck & 2 (1 Each) Side Trim Head
Weight 1,200lb's 1,243lb's 1,287lb's 1,364lb's 1,430lb's 1,551lb's 1,705lb's 1,848lb's
Legend:
* = with both S.T.H's. Locked Back In Transport Position
S.T.H = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
SMG SERIES AISLEWAY & SIDE TRIMMING MOWER SPECIFICATIONS
MODEL 250/58 290/72 300/72 335/72 355/72 375/72 410/72 450/72
Tractor HP 34 - 80 41 - 80 48 - 80 54 - 100 59 - 100 65 - 100 70 - 100 75 - 100
Working Width Deck 5'-3" 5'-5" 6'-1" 7'-1" 7'-7" 8'-3" 9'-4" 10'-8"
S.T. Head (each) 25" (63) 30" (77)
Working Width w/Both S.T. Heads Min/Max: 5'-3"/8'-6" (250) 5'-5"/9'-6" (290) 6'-1"/9'-10" (300) 7'-1"/11'-0" (335) 7'-7"/11'-8" (355) 8'-3"/12'-4" (375) 9'-4"/13'-5" (410) 10'-8"/14'-9" (450)
Offset (Optional) 15" Left & 15" Right
Overall Width* 65" 67" 75" 87" 87" 101" 115" 130"
Overall Depth* 69" 73" 75" 79" 83" 73" 83" 87"
Hitch CAT 1 & 2
Front or Rear
Qty Blades/Spindles 1-Deck & 2 (1 Each) Side Trim Head
Weight 1,200lb's 1,243lb's 1,287lb's 1,364lb's 1,430lb's 1,551lb's 1,705lb's 1,848lb's
Legend:
* = with both S.T.H's. Locked Back In Transport Position
S.T.H = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
