Left & Right Discharge Hyd Trim Head Positioning & Swingback Sensitivity Setting Narrowest w/Dual Side Trimming Heads
(3' to 5' Widths, 18-80HP)
Efficiently Precise Single Pass Results Commercial Quality Rotary Mowers with All the Best Features, Superior Cuts and Safest Operations Generous Overlap Between Main Deck & Side Trimmer Blades Ensures Single Pass Perfection Multiple ‘On-The-Fly’ Hydraulic Operator Adjustments for Single Pass Precision Fully Shrouded Deck & Side Trim Head for Crop Protection & Operator Safety Low Profile Deck & Side Trim Head for Fence Row Aisles & Sides of Structures Excellent Fit, Finish & Performance with Safety & Efficiency! EQUIPMENT THAT WORKS FOR YOU!

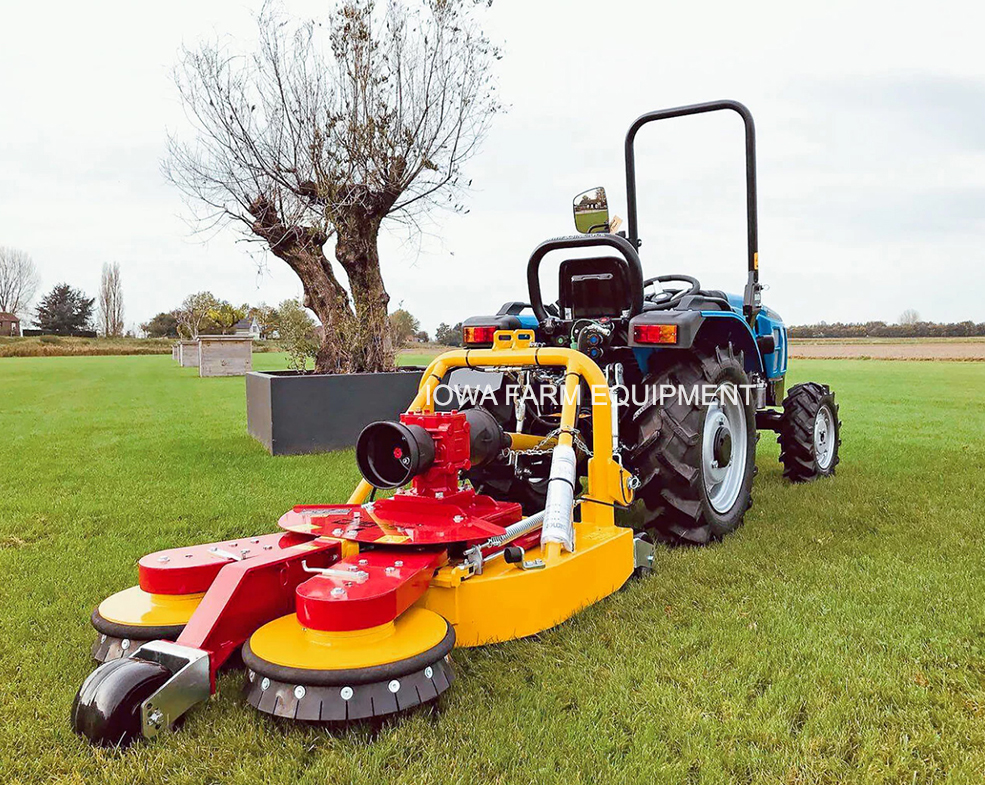

KMG Shown at Work w/Independently Controllable Side Trim Heads Ground Speed & Sensitivity Settings Work Together for the Best Results
Very Narrow KMG Shown on Compact Tractor ILMER SMG Are Suitable for the narrowest Aisleways!
KMG SERIES AISLEWAY & SIDE TRIMMING MOWER SPECIFICATIONS
MODEL
150/40
160/48
Tractor HP
18 - 80
18 - 80
Working Width
Deck
35"
40"
S.T. Head (each)
16" (40)
19" (48)
Working Width w/Both S.T. Heads Min / Max:
35" / 59" (150)
40" / 63" (160)
Overall Width*
36"
42"
Overall Depth*
71"
71"
Hitch
CAT 1 Rear Only
Qty Blades/Spindles
1-Deck & 2 (1 Each) Side Trim Head
Weight
750lb's
783lb's
Legend: * = with both S.T.H's. Locked Back In Transport Position S.T.H. = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
KMG SERIES AISLEWAY & SIDE TRIMMING MOWER SPECIFICATIONS
MODEL
150/40
160/48
Tractor HP
18 - 80
18 - 80
Working Width
Deck
35"
40"
S.T. Head (each)
16" (40)
19" (48)
Working Width w/Both S.T. Heads Min / Max:
35" / 59" (150)
40" / 63" (160)
Overall Width*
36"
42"
Overall Depth*
71"
71"
Hitch
CAT 1 Rear Only
Qty Blades/Spindles
1-Deck & 2 (1 Each) Side Trim Head
Weight
750lb's
783lb's
Legend: * = with both S.T.H's. Locked Back In Transport Position S.T.H. = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
