Side or Rear Center Discharge, Front or Rear 3PT Mountable Right Hyd Offsetable Deck, Hyd Side Trim Positioning Hyd Side Trim Head Spring Swingback Sensitivity Setting Narrowest Working Widths w/Single Side Trimming Head
(4.5’ to 6’ Widths, 22-80HP)
Efficiently Precise Single Pass Results Commercial Quality Rotary Mowers with All the Best Features, Superior Cuts and Safest Operations Generous Overlap Between Main Deck & Side Trimmer Blades Ensures Single Pass Perfection Multiple ‘On-The-Fly’ Hydraulic Operator Adjustments for Single Pass Precision Fully Shrouded Deck & Side Trim Head for Crop Protection & Operator Safety Low Profile Deck & Side Trim Head for Fence Row Aisles & Sides of Structures Excellent Fit, Finish & Performance with Safety & Efficiency! EQUIPMENT THAT WORKS FOR YOU!
STANDARD FEATURES:
Double Sided Blades & Reversible Hitch for Rear or Front 3Pt Mounting.
IMG Models Offer Narrowest Working Widths w/Single Side Trim Head.
Right Offsetable Center Deck.
Large 31” Diameter Side Trim Head for Maximum ‘Wrap Around’ Cutting Effect.
Hydraulic Spring Tensioning for Side Trim Head Swingback Sensitivity Adjustment.
Hydraulic Side Trim Head Adjustment (CW & CCW).
Side Trim Head can be Mechanically Locked in Retracted Position for Transport.
Discharge Location Selectable: Side to Crop Base, or Rear to Aisleway.
Weight Balanced Side Trim Head for Synchronized Positioning with Main Deck.
Front Gage Wheels & Rear Roller for Cutting Height Adjustment.
Cat 1 & 2 Suitable.
540RPM PTO Shaft.

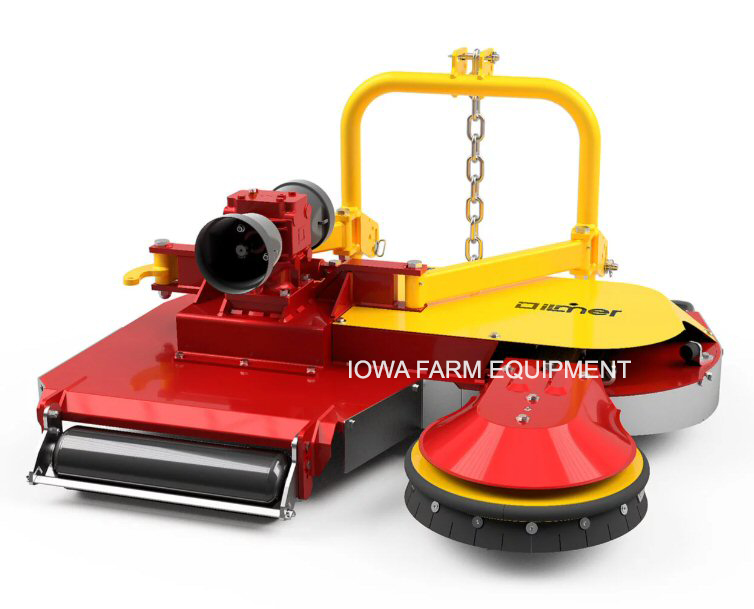

Expect Excellent Fit, Finish & Performance with All Ilmer Products Double Gearbox For Front or Rear Mounting 23” Right Hydraulically Offsetable

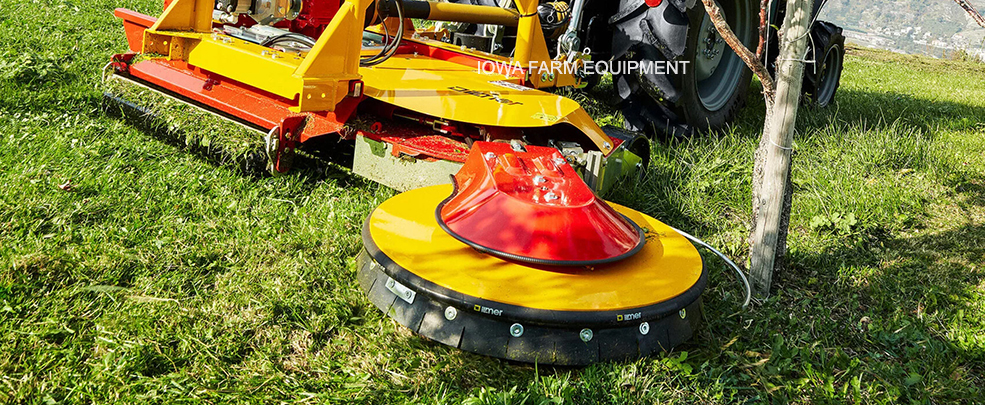

Sensitive Swing Back for Gentle Crop Protection Ground Speed & Sensitivity Settings Work Together for the Best Results!

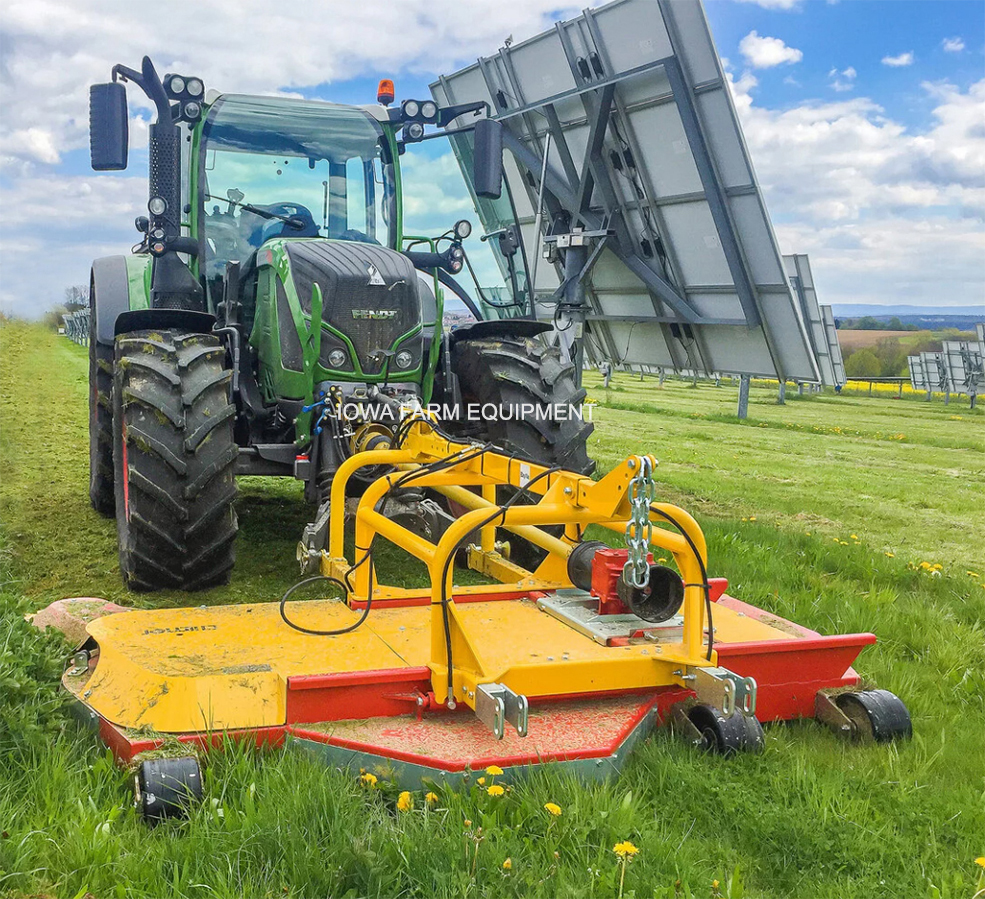

EMG 345/72 Shown at work with Optional Trip Wire

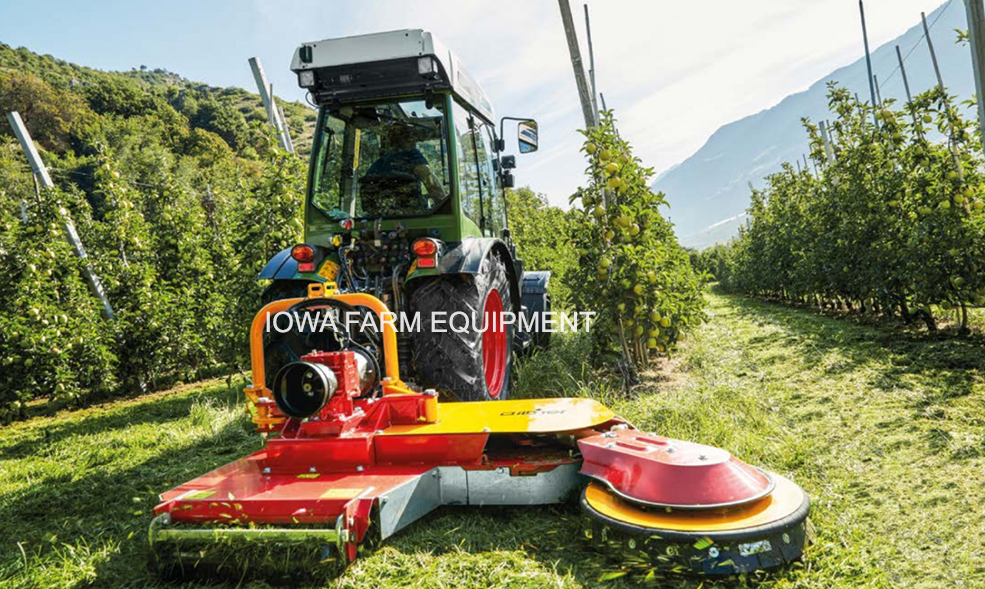

Front or Rear Mountable IMG Series For Improved Visibility Hitches Are now Reversible, not Double as Shown in Above Photo.
IMG SERIES AISLEWAY & SIDE TRIMMING MOWERS SPECIFICATIONS
MODEL
160/48
175/58
185/48
200/48
Tractor HP
22 - 75
25 - 80
29 - 80
Working Width
Deck
49"
49"
59"
59"
S.T. Head
19" (48)
23" (58)
19" (48)
23" (58)
Total Working Width w/S.T. Head Extended
63" (160)
69" (175)
73" (185)
79" (200)
Blade Overlap of Deck & S.T. Head
5"
3"
5"
3"
Right Side Travel**
28"
28"
29"
29"
Overall Width*
51"
51"
61"
61"
Overall Depth
63"
67"
71"
69"
Hitch
CAT 1 & 2
Front or Rear
Qty Blades/Spindles
2-Deck & 1 Side Trim Head
Weight
783lb's
794lb's
849lb's
860lb's
Legend: * = with S.T.H. Locked Back In Transport Position ** = IMG Series Not Centered to Hitch at End of Left Travel S.T.H = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
IMG SERIES AISLEWAY & SIDE TRIMMING MOWERS SPECIFICATIONS
MODEL
160/48
175/58
185/48
200/48
Tractor HP
22 - 75
25 - 80
29 - 80
Working Width
Deck
49"
49"
59"
59"
S.T. Head
19" (48)
23" (58)
19" (48)
23" (58)
Total Working Width w/S.T. Head Extended
63" (160)
69" (175)
73" (185)
79" (200)
Blade Overlap of Deck & S.T. Head
5"
3"
5"
3"
Right Side Travel**
28"
28"
29"
29"
Overall Width*
51"
51"
61"
61"
Overall Depth
63"
67"
71"
69"
Hitch
CAT 1 & 2
Front or Rear
Qty Blades/Spindles
2-Deck & 1 Side Trim Head
Weight
783lb's
794lb's
849lb's
860lb's
Legend: * = with S.T.H. Locked Back In Transport Position ** = IMG Series Not Centered to Hitch at End of Left Travel S.T.H = Side Trim Head
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
