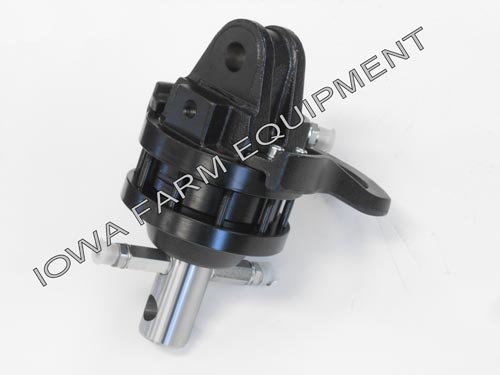

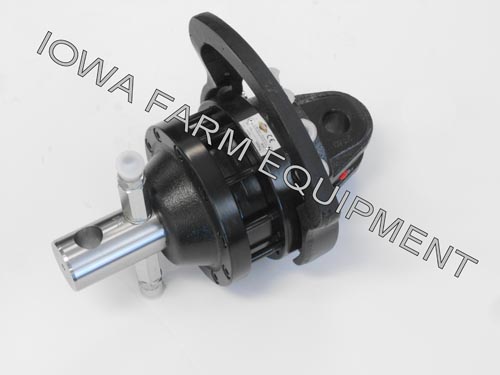

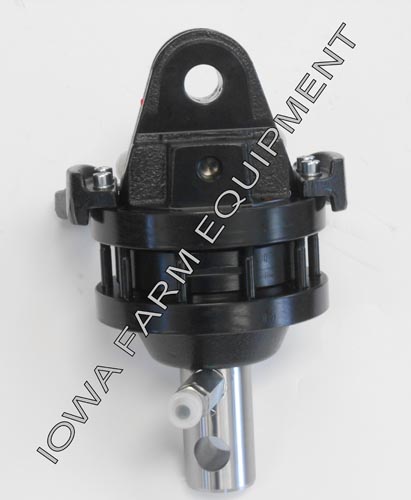

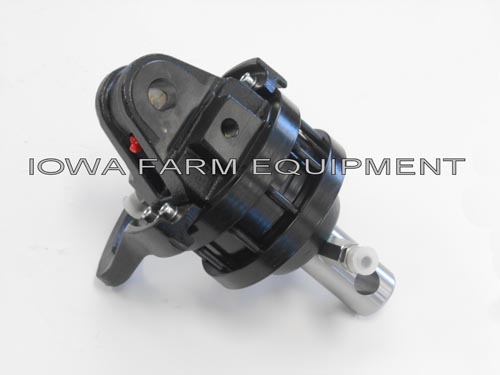

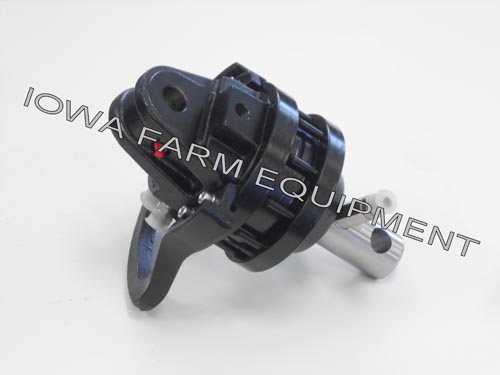

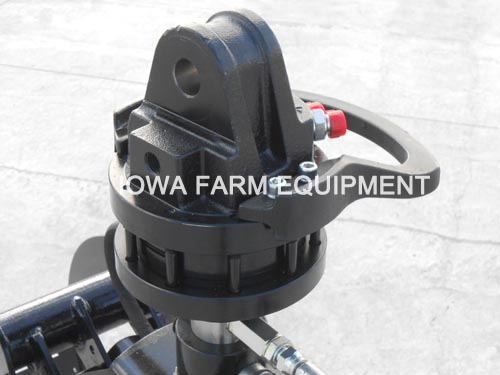

IFE 'HR3603' Series Hydraulic Rotators
'HR3603' ROTATOR SPECIFICATIONS
Static Max. Load 6,614lbs.
Dynamic Max. Load 3,307lbs.
Torque Nm 1000
Rotation 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Rec. Flow Rate 20 Liters/Min
5.3 Gallons/Minute
Max Working Pressure 3629PSI
Max Working Pressure Bar 250
Pin Hole for Attaching to Hanger 1" Diameter

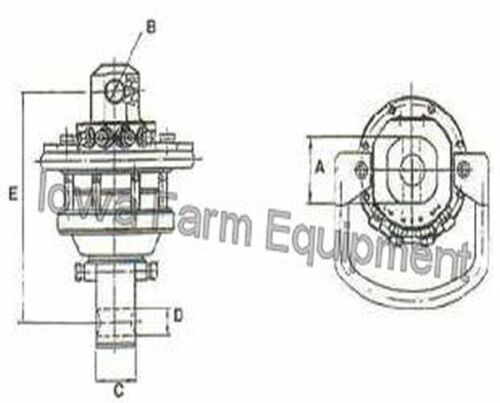

Dimensions:
A 2.362" (60mm)
B 0.984" (25mm)
C 1.948" (49.5mm)
D 0.984" (25mm)
E 9.99" (254mm)
Thread JIC 3/4"
(BPT Is Available as an Option)
Weight 41lbs.
'HR3603' ROTATOR SPECIFICATIONS
Static Max. Load 6,614lbs.
Dynamic Max. Load 3,307lbs.
Torque Nm 1000
Rotation 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Rec. Flow Rate 20 Liters/Min
5.3 Gallons/Minute
Max Working Pressure 3629PSI
Max Working Pressure Bar 250
Pin Hole for Attaching to Hanger 1" Diameter
Dimensions:
A 2.362" (60mm)
B 0.984" (25mm)
C 1.948" (49.5mm)
D 0.984" (25mm)
E 9.99" (254mm)
Thread JIC 3/4"
(BPT Is Available as an Option)
Weight 41lbs.
Specifications & Designs Are Subject to Change Without Notice
