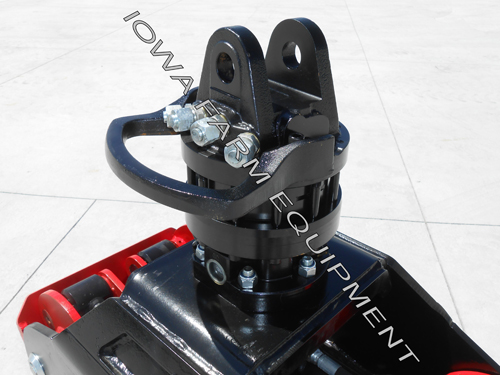

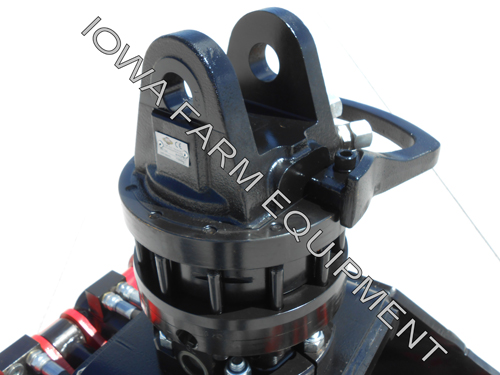

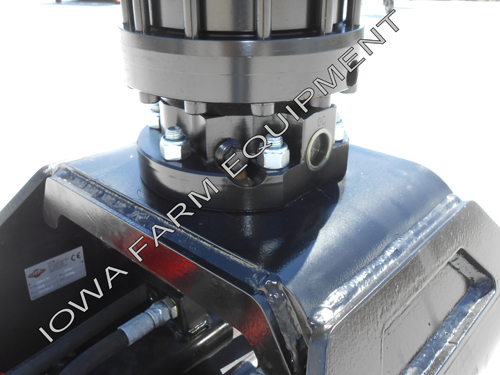

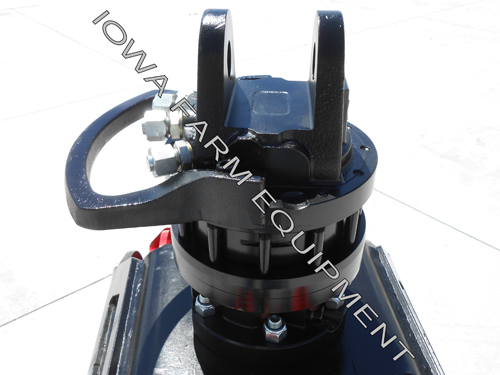

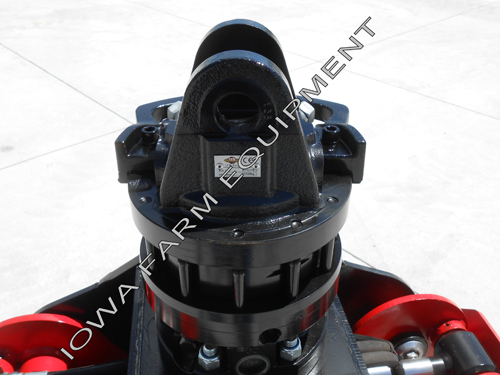

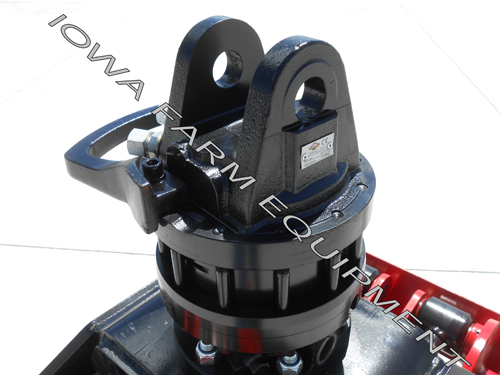

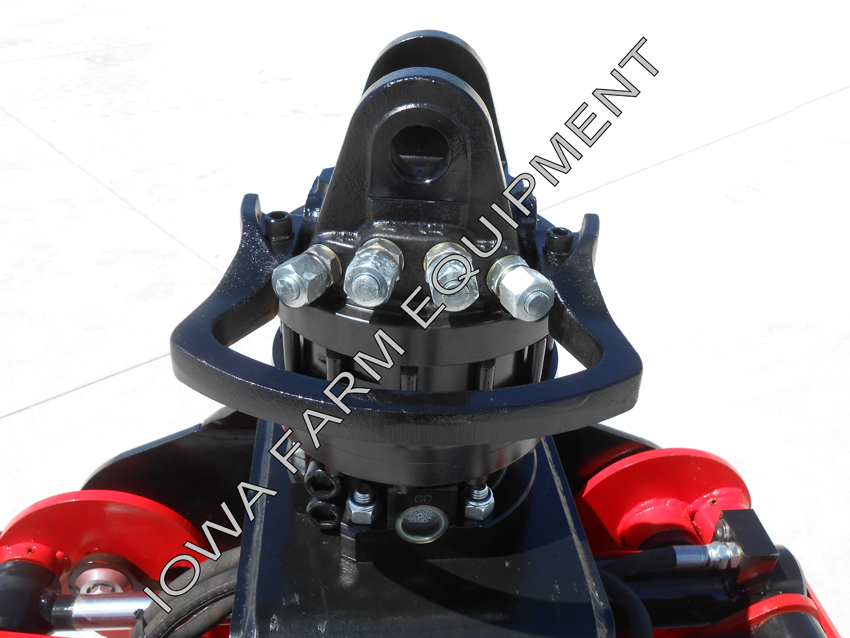

IFE 'HR36011' Series Hydraulic Rotators

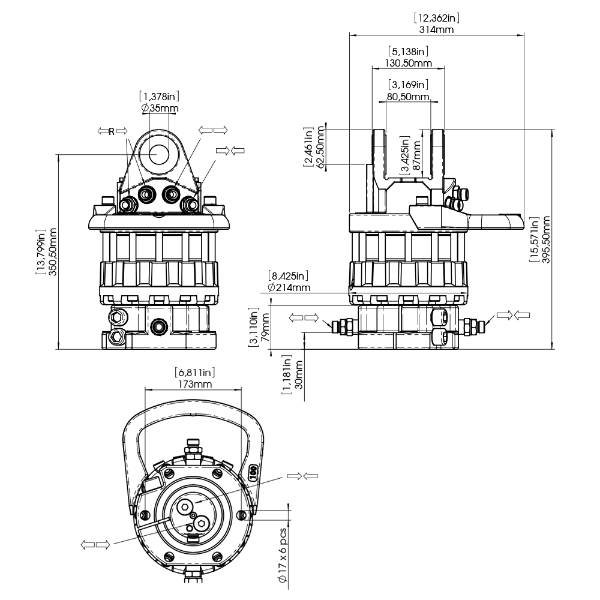

'HR36011' ROTATOR SPECIFICATIONS
MODEL R11CFS R11CFS2*
Static Max. Load 24,251lbs.
Dynamic Max. Load 12,125lbs.
Torque Nm 2700
Rec. Flow Rate 30 Liters/Min
7.9 Gallons/Minute
Max Working Pressure Bar 250
Weight 128lbs.
*The Model R11CFS2 Differs From the Model R11CFS Due to It's Two Oil Ports on the Opposite Sides of the Head of the Rotator.
'HR36011' ROTATOR SPECIFICATIONS
MODEL R11CFS R11CFS2*
Static Max. Load 24,251lbs.
Dynamic Max. Load 12,125lbs.
Torque Nm 2700
Rec. Flow Rate 30 Liters/Min
7.9 Gallons/Minute
Max Working Pressure Bar 250
Weight 128lbs.
*The Model R11CFS2 Differs From the Model R11CFS Due to It's Two Oil Ports on the Opposite Sides of the Head of the Rotator.
Specifications & Designs Are Subject to Change Without Notice
