‘IFE 5T55’ with Rigid Slew Ring Rotator
IFE 5T55 SEVERE DUTY, Universal 55" Pinching Or Bypass 5-Tine Log & Stone Grapple with Rigid Slew Ring Rotator: Suitable For Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!
GRAPPLE SPECIFICATIONS:
Maximum Opening is 55".
Minimum Opening is 4-3/4".
Maximum Lift Capacity is 5500lb's.
Height (grade to top of Grapple) in Open Position is 20".
Add 10" For Height Rotator.
Height (grade to top of Grapple) in Closed Position is 14".
Overall Width of Claw is 14".
Maximum Working Pressure is 3625PSI.
Grapple Weighs 450lb's.
Specifications are based on manufacturer provided data & subject to change.
'SLEW RING' RIGID ROTATOR WITH FLAT PLATE COUPLER SPECIFICATIONS:
Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Maximum Static Load is 15,400lb's.
Maximum Dynamic Load is 5,500lb's.
Max Working Pressure is 3629PSI.
Thread is JIC 7/8".
Rotator Weighs 125lb's.
Specifications are based on manufacturer provided data & subject to change.

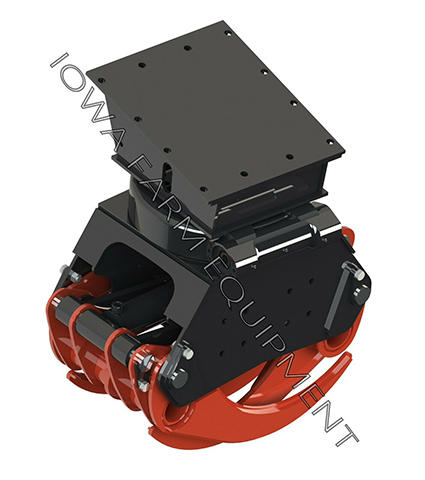

'5T55' Closed with Rigid Slew Ring Rotator

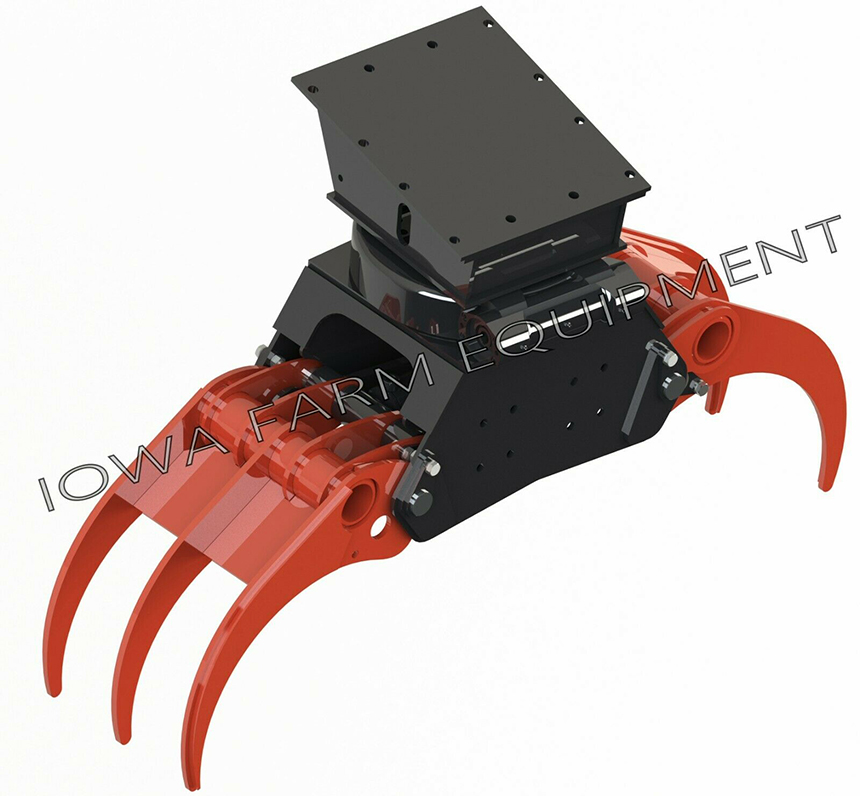

‘IFE 5T55’ with Rigid Slew Ring Rotator

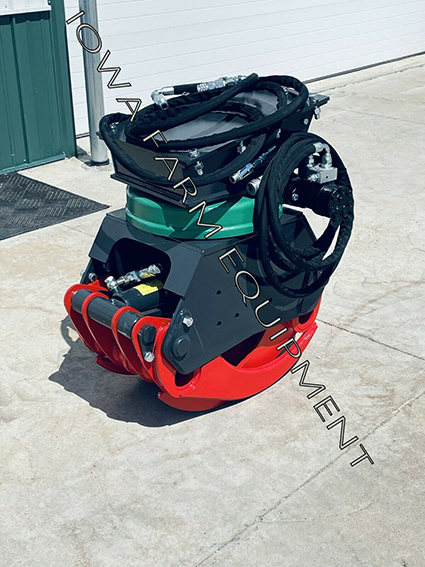

‘5T55’ Closed with Rigid Slew Ring Rotator

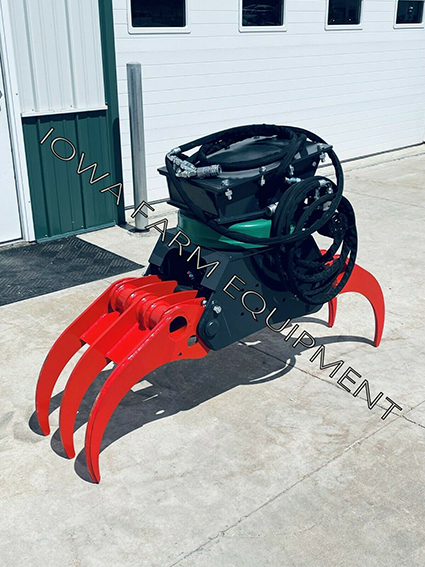

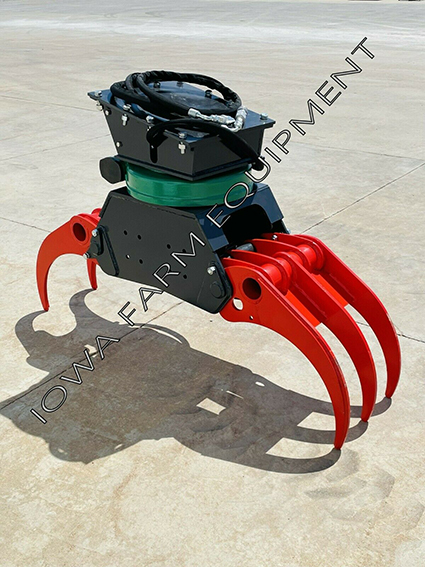

'5T55' Open with Rigid Slew Ring Rotator

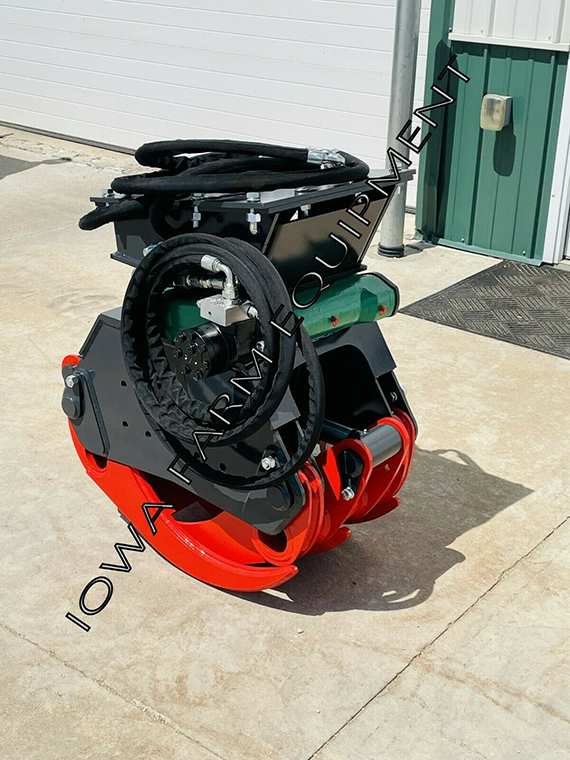

'5T55' Closed with 'Slew Ring' Rigid Rotator with Flat Plate Coupler

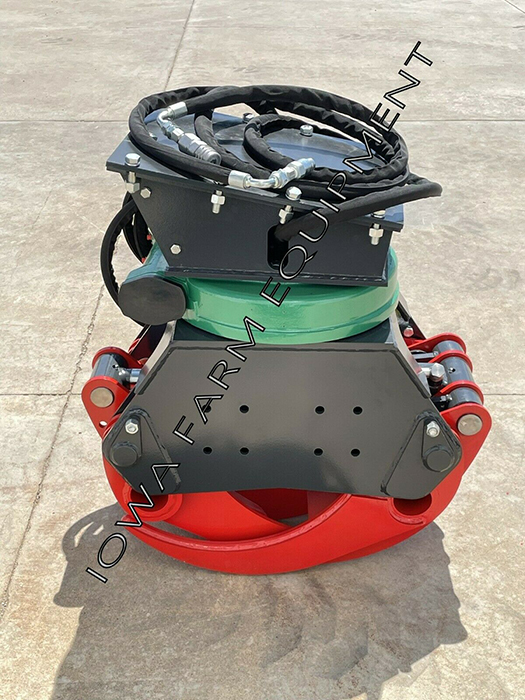

NOTE: Sample Photos are of the Identical Grapple with 62” Opening.
Specifications & Designs Are Subject to Change Without Notice
