Universal Bypass Log Grapples, Bypass Stone & Scrap Grapples
‘IFE 5T62’ with Rigid Slew Ring Rotator
IFE 5T105 SEVERE DUTY, Universal 105" Pinching Or Bypass 5-Tine Log & Stone Grapple with Rigid Slew Ring Rotator: Suitable For Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!
GRAPPLE SPECIFICATIONS:
Maximum Opening is 105".
Minimum Opening is 8".
Maximum Lift Capacity is 22,000lb's.
Height (grade to top of Grapple) in Open Position is 43".
Height (grade to top of Grapple) in Closed Position is 38".
Specifications are based on manufacturer provided data & subject to change.
'SLEW RING' RIGID ROTATOR WITH FLAT PLATE COUPLER SPECIFICATIONS:
Slewing Ring Type Rigid Rotators Hold Their Last Position Without Creeping, Which Means They Will Provide A Sharp, Distinct 'Rotation Start' & 'Distinct Rotation' Stop (Braking), Particularly Compared To Vane Type Rotators Which Will Creep A Bit From Last Position, But Provide A Softer 'Rotation Start' & 'Softer Rotation Stop'.
Slew Ring Type Rotators Are Intended For Extreme Loads, While Vane Type Rotators Can Be More Suitable For Longer Loads That Can Introduce More Inertia At Starting & Stopping!
Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Hydraulic Pressure Relief Valve Is Standard.
Specifications are based on manufacturer provided data & subject to change.

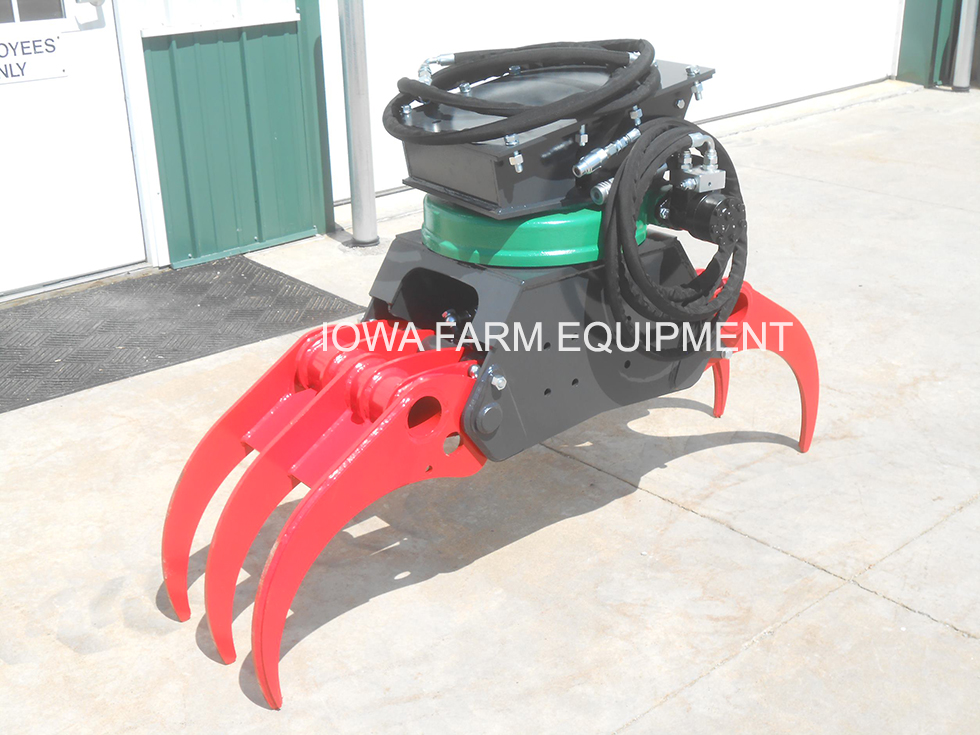

‘IFE 5T’ with Rigid Slew Ring Rotator
'5T62' Closed with Rigid Slew Ring Rotator
‘IFE 5T62’ with Rigid Slew Ring Rotator
'5T62' Open with Rigid Slew Ring Rotator
'5T62' Closed with Rigid Slew Ring Rotator
'5T62' Closed with 'Slew Ring' Rigid Rotator with Flat Plate Coupler
Specifications & Designs Are Subject to Change Without Notice
