Universal Bypass Log Grapples, Bypass Stone & Scrap Grapples

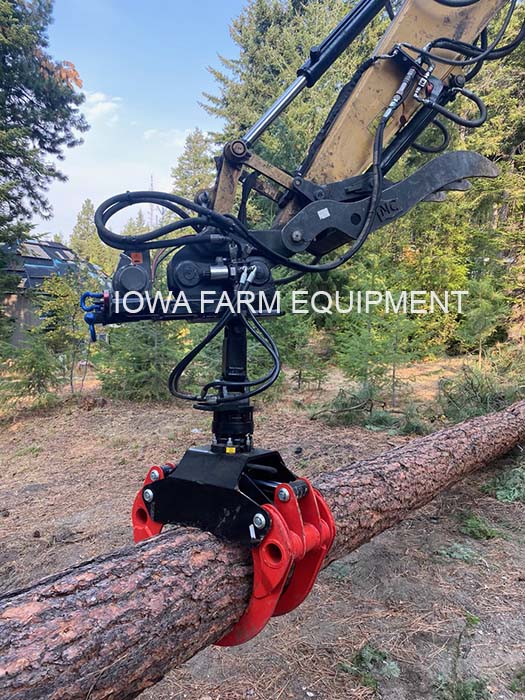

‘4T61’ Grapple & Hanging Rotator Handling a Tree Trunk
The 4-Tine Configuration of IFE’s Universal Bypass Grapples Are Suitable For Handling Log’s, Stones, Boulders, Piles of Brush & Timber, Scrap, and a Variety of Other Materials, Eliminating the Need to Have Multiple Grapples!
GRAPPLE SPECIFICATIONS:
Maximum Opening is 61".
Minimum Opening is 4".
Maximum Lift Capacity is 6600lb's.
Height (grade to top of Grapple) in Open Position is 30".
Height (grade to top of Grapple) in Closed Position is 21".
Overall Width of Claw is 18".
Maximum Working Pressure is 3625PSI.
Grapple Weighs 474lb's.
Specifications are based on manufacturer provided data & subject to change.
HR3607FLG HANGING ROTATOR WITH HANGER SPECIFICATIONS:
Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
Maximum Working Load is 15,400lb's.
Suitable for Most Applications on 8 to 12 Ton Machines.
Moderate Applications Would be Primarily Vertical Lifting of Material.
In Rigorous Skidding Applications, the 11,000lb's Working Capacity Can Quickly be Surpassed. For Those Applications, Consider Upgrading to the HR36011, or HR36016 Rotators.
Max Working Pressure is 3629PSI.
Half Hanger is Included:
Half Hanger Weighs 17lb's.
Overall Width of Rotators Mounting Boss is 5-1/8".
Inside Width of Mounting Boss is 3-1/8".
Rotators Boss Pin Hole is 15/16" Diameter.
Rotator Weighs 100lb's.
Specifications are based on manufacturer provided data & subject to change.

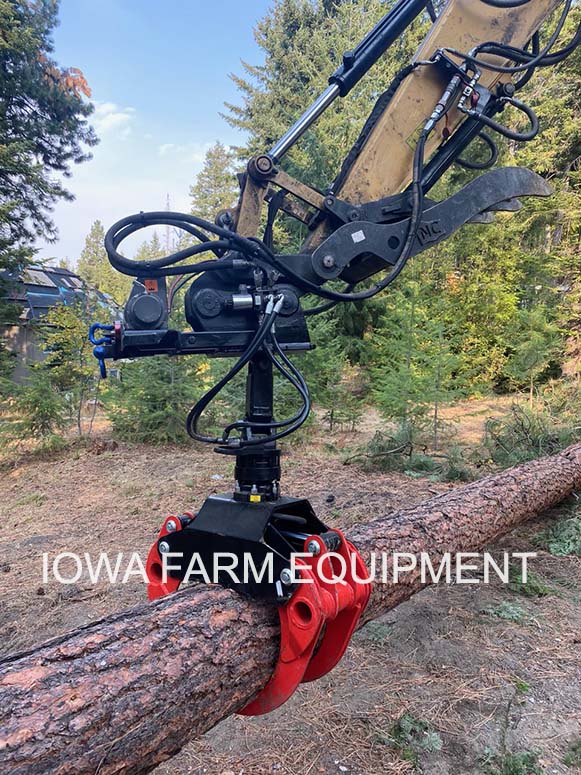

‘4T61’ Grapple & Hanging Rotator Handling a Felled Tree

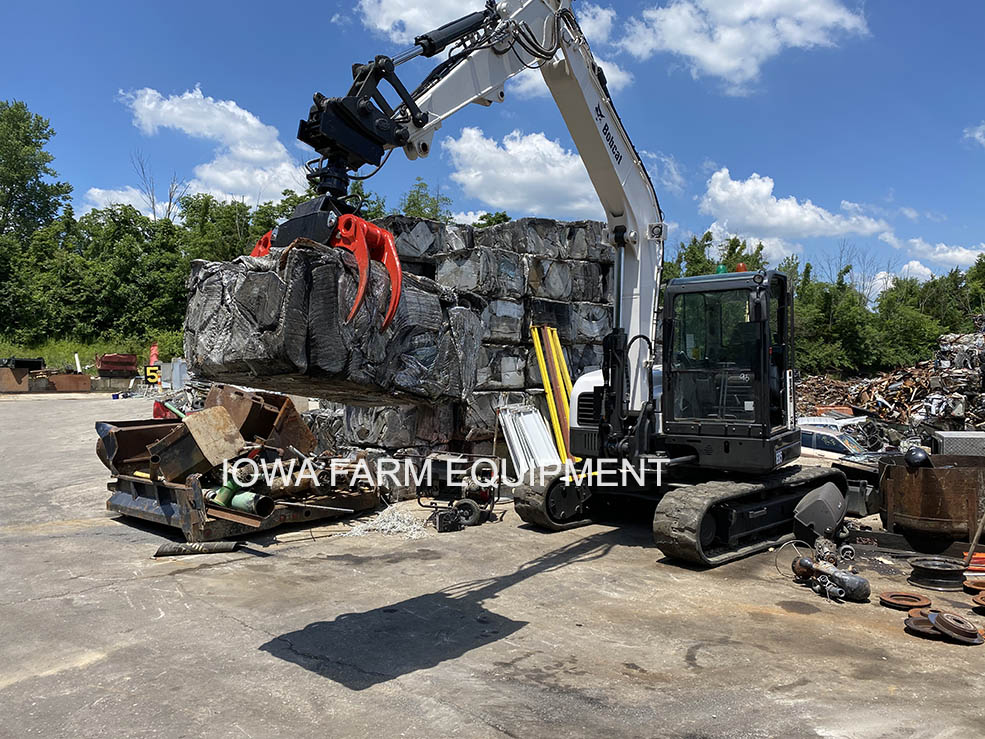

‘IFE 4T55’ with Hanging Rotator at Work in our Customers Scrap Yard!

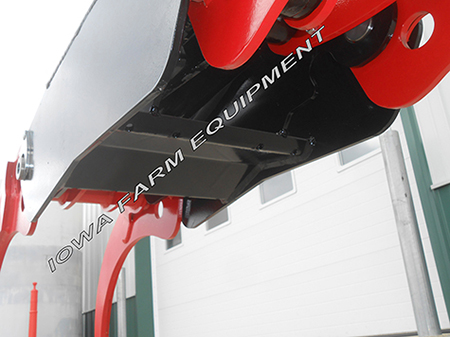

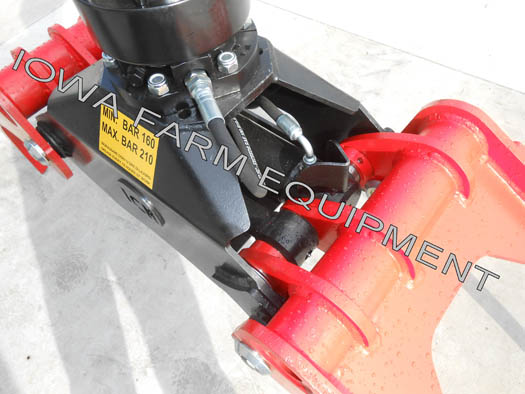

Bottom View of Limb & Branch Guard

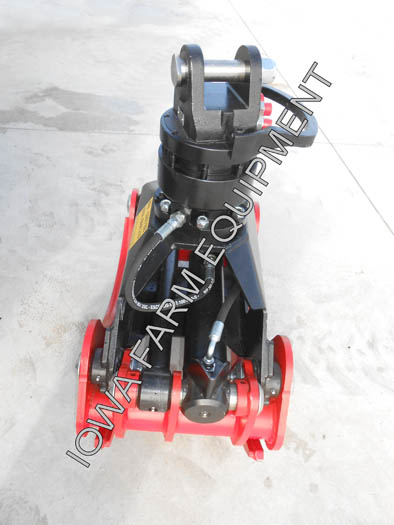

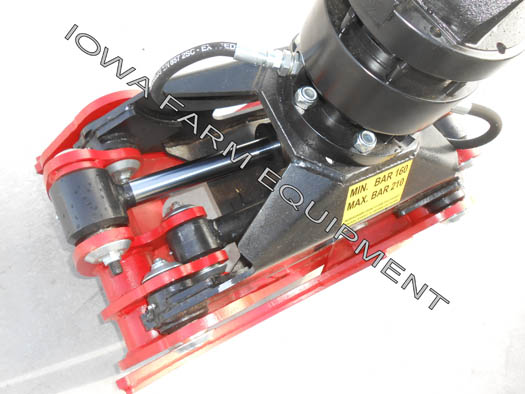

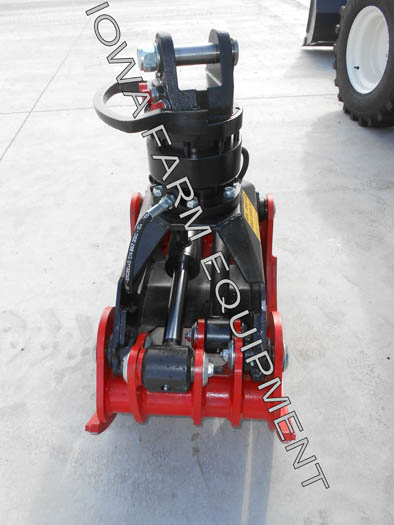

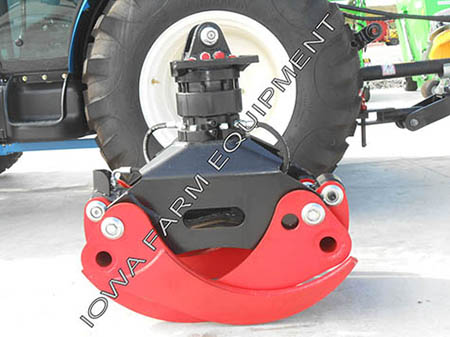

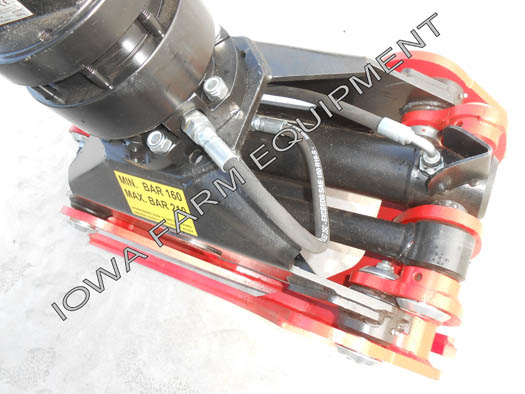

Model '4T61' Closed with 'HR3607' Rotator
Model '4T61' Closed with 'HR3607' Rotator
Model '4T61' Closed with 'HR3607' Rotator

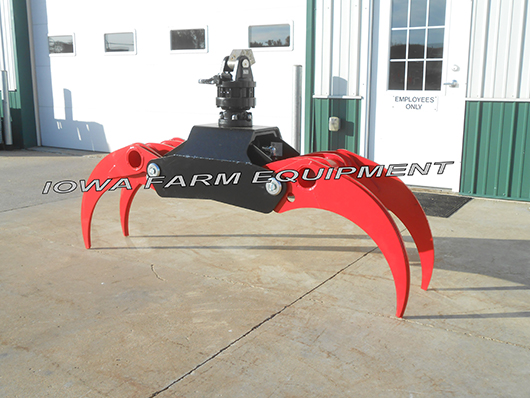

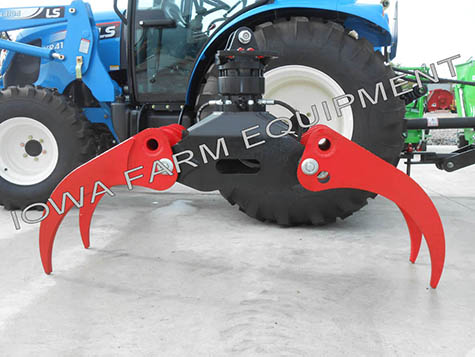

Model '4T61' Open with 'HR3607' Rotator
Model '4T61' Closed with 'HR3607' Rotator
Model '4T61' Open with 'HR3607' Rotator
'4T81' Closed with 'HR36011' Rotator & Half Hanger
‘IFE 4T55’ with Hanging Rotator at Work in our Customers Scrap Yard!
Specifications & Designs Are Subject to Change Without Notice
