Herbicide Free Mechanical Weed Control With Precise Fertilizer Application
Green Earth Z Series Z4R30-5: 4-Crop Rows, 5-Head Inter-Row Tiller Set On 30” Row Spacing
When Following Planters Tire Tracks: Half Width End Units Prevent Double Working End Rows!
When Using GPS: Full Width End Units Can Be Used!
Green Earth Multi-Head, Inter-Row Tillers & Fertilizer Applicators
The Green Earth Multi-Head, Inter-Row Tiller Provides Efficient, Herbicide Free Mechanical Weed Control & Termination Between Rows of Crops, and All Other Vegetation Types. Individual Tiller Heads Are Available with Working Widths as Narrow as 7”, and as Wide as 63”, and in Conjunction with Many Configurable Features; Such as Center to Center Row Spacing, Ganged & Expandable Working Widths, Adjustable Shroud Widths and Adjustable Working Depth. Our Green Earth Inner-Row Tiller is Applicable to Endless Applications with the Same Machine Being Configurable For Endless Variations: All Corn & Bean Row Crop Applications, Produce & Strawberry Farming (flat or elevated beds), Floriculture, Young Seedling Tree Farms, Forestry & Permaculture Applications, Direct Planted or Transplanted Crops & Vegetation, Strip Tilling, and ANY Other Conventional, or Unconventional Application Where Herbicides Can be Efficiently and Effectively Eliminated, and Where Efficient, Waste Free Direct Fertilizer Application is Desired! Of Course, Our Green Earth Inter-Row Tiller is Indispensable For All Organic Applications!
Our Green Earth Inter-Row Tillers Are Available with Tiller Head Quantities from 1 to 20 Heads, and Are Suitable For Tractors Ranging From 30 to 150HP, Accommodating Every Farm & Farmer Type, Every Crop & Vegetation Application, and ANY Other Suitable Application!
In the Most Delicate & Sensitive Applications and for the Most Cautious Management Green Earth Offers Rear Seated Steering for it's Inner-Row Tillers. In Addition to Chemical Free Weed Control & Termination, Green Earth Inter-Row Tillers Provide Soil Conditioning for Increased Moisture Penetration & Rentention, and also for Moderate Soil Leveling & Grading Accommodating Foot Traffic and Harvesting Machines. Adding to the Unparalleled Efficiency of Green Earth Inner-Row Tillers, is the Option of a Fertilizer Box with Individual Row Distribution, Which Can be Used During the Weed Termination Pass, or Separately, Providing Direct Fertilizer Application to the Crop Saving Large Quantities of Fertilizer and Preventing General Fertilizing Which Contributes to Regrowth of Weeds!
STANDARD FEATURES:
Cat 1, 2 & 3N Quick Hitch Compatibility!
Quick Hitch Compatible When Arranged on 30” Rows!
Limitlessly Configurable, Durable & Bullet-Proof Engineering & Construction, Customized For Our U.S. Market!
Rigid Tubular ‘H’ Beam Style Tool Bar.
All Adjustable Securements On The Tool Bar Are:
Severe Duty Quality to Endure Years of Firm Fastening!
The Consistent Configuration of the Rigid Tool Bar, and the Uniquely Engineered Component Securements Allow For Infinite Positioning, Accommodating Consistent Individual Row Spacing, Row Spacing in Groups & Gangs, or Any Other Spacing Configuration!
Flexibility of Row Spacing Along with Expandable Working Width of Each Tilling Head Makes Green Earth Inter-Row Tillers Efficiently Universal by Accommodating Various Applications With the Same Machine!
Vertical 'Up & Down' Tiller Head Oscillation Accommodates Uneven Terrain Ensuring Efficient Performance and Mechanical Protection.
Oil Filled Center Gearbox Has Convenient ‘Visual’ Oil Level Inspection Window.
Tiller Heads Are Chain Driven, Each With Individual Oil Bath Lubrication:
Chain Tensioning Bolt is Conveniently Located at the Front of Each Unit.
Each Unit Also Has a Large Side Door for Inspection & Chain Tensioning.
Gauge Wheels for Height Adjustment.
Guarded Rotating Components.
All Parts Painted or Plated!
540RPM Shear Bolt Protected PTO Shaft.
OPTIONAL FEATURES:
Front ‘Tiller Head’ Mounted Ripper Shanks.
Fertilizer Boxes with Individual Row Distribution System.
Ridging Assemblies Move Soils Onto Any Weeds Between Plants for Growth Inhibition.
Rear Seated Steering With Manual or Hydraulic Control.
Single Seat, Rear Steering Station
Hydraulically Folding Toolbars for Large Assemblies.
Green Earth 5 Head ‘C’ Series On 30” Centers – Head at Right Depicts Vertical Head Oscillation Typical On Each Head

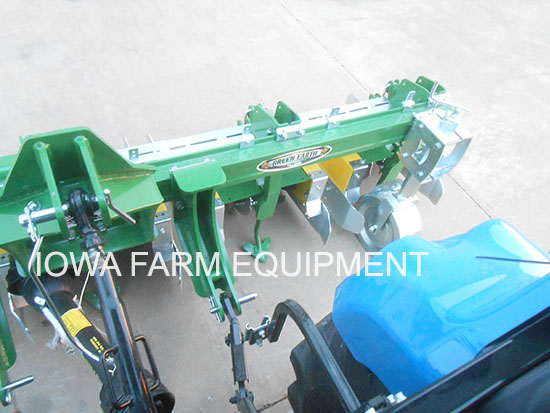

Green Earth C Series 5 Head Inter-Row Tiller

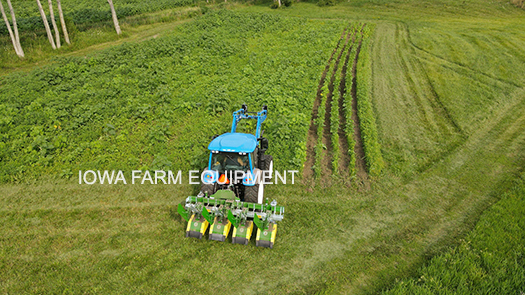

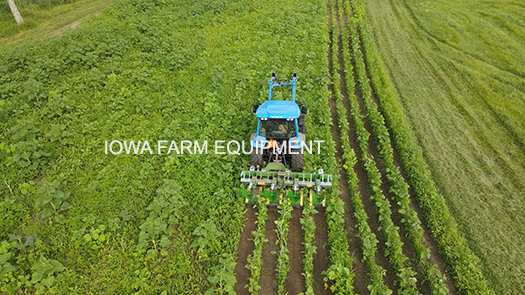

Green Earth Z Series Inter-Row Tiller Producing Beautiful, Herbicide Free Single-Pass Weed Termination Between the Same Rows of Sunflowers & Zinnias!
Green Earth Z Series Inter-Row Tiller Producing Beautiful, Herbicide Free Single-Pass Weed Termination Between the Same Rows of Sunflowers & Zinnias!
Green Earth Z Series Inter-Row Tiller Producing Beautiful, Herbicide Free Single-Pass Weed Termination Between the Same Rows of Sunflowers & Zinnias!
Green Earth Inter-Row Tiller: Left Image: Shown With Mixed Gang Spacing & Depth Adjustable Farrowing Tool Right Image: Shown With Partial Width Head on Each End
Inside View of Green Earth C Series 5 Head Inter-Row Tiller

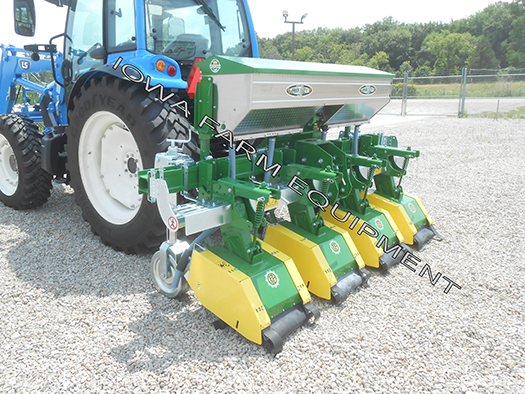

Green Earth Z Series 4-Head Inter-Row Tiller with Fertilizer Box & Drops, Also Available On 'C' Series!

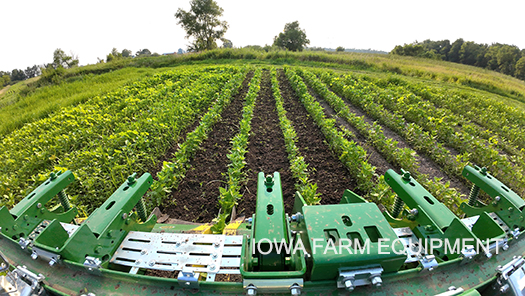

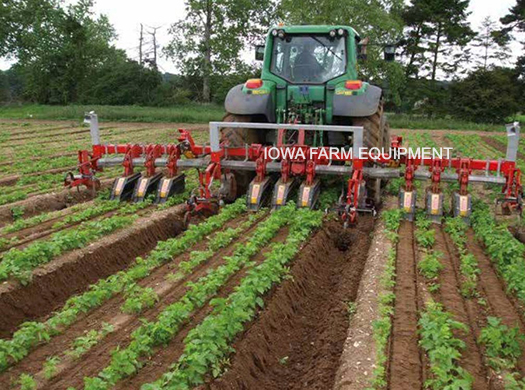

Green Earth Z Series Inner-Row Tiller: 13 Head Assembly on 18" Centers

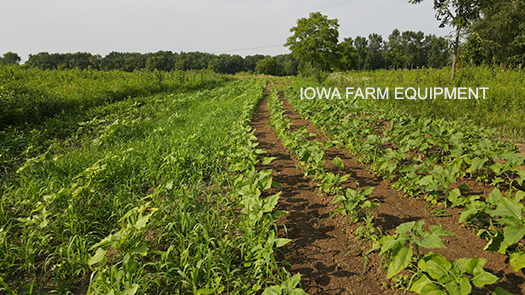

Green Earth Z Series Inter-Row Tiller Producing Beautiful, Herbicide Free Single-Pass Weed Termination Between Narrow Rows of Young, Maturing Sunflowers!
More Beautiful & Efficient, Single Pass Mature Weed Termination From Green Earth!

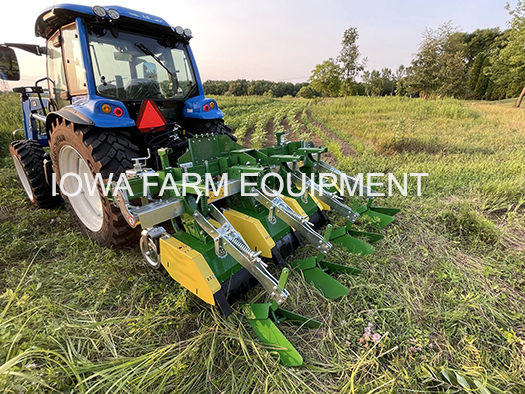

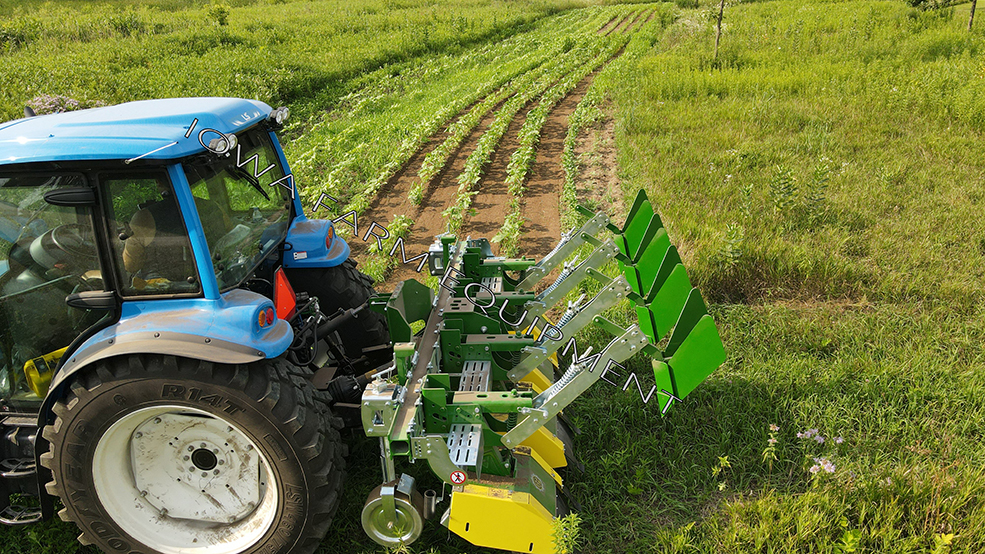

Green Earth Z Series Inner-Row Tiller with Optional Ridging Plates Elevated.
Green Earth Z Series Inner-Row Tiller with Optional Ridging Plates Elevated (left) & Lowered for Use (right).

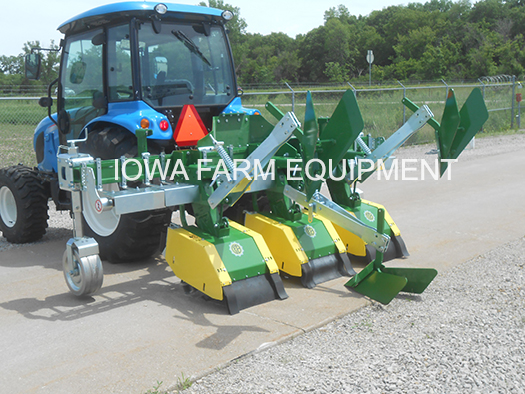

Green Earth Z Series 3-Head Inter-Row Tiller Set Up on 30" Rows

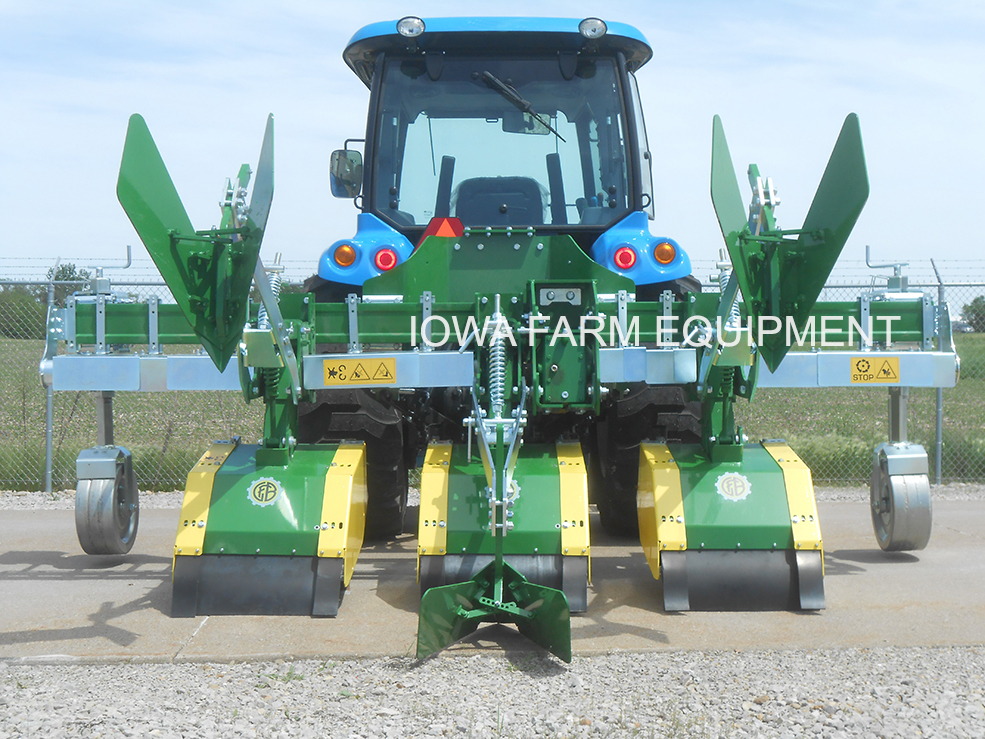

Green Earth Z Series 3 Head Inter-Row Tiller Set Up On 30” Rows

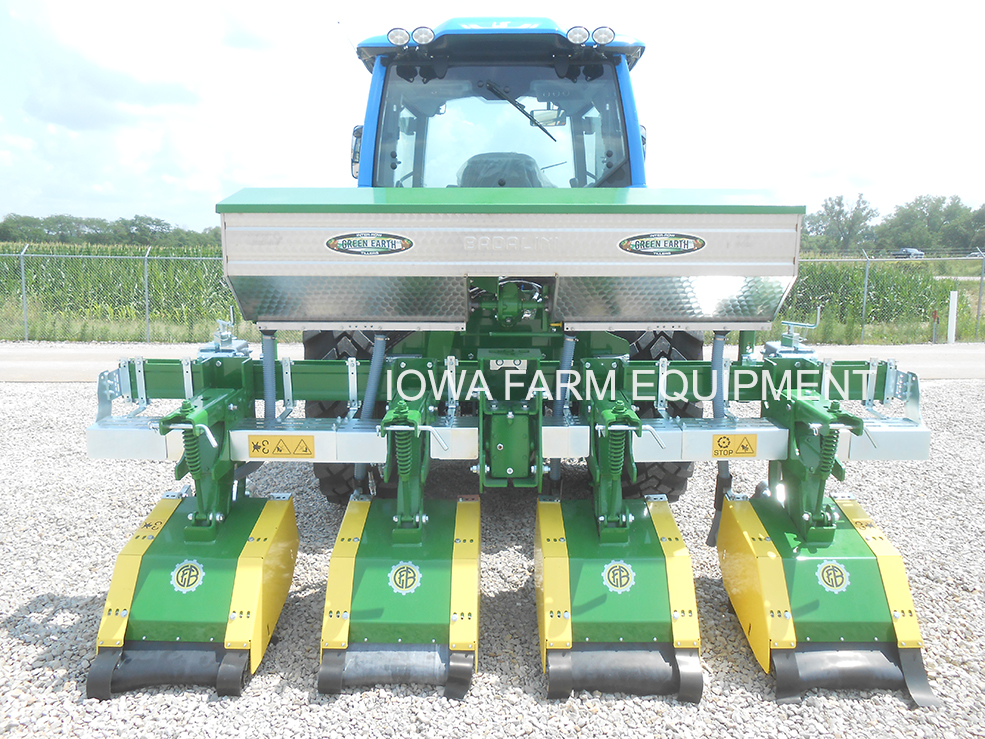

Green Earth Z Series 4 Head Inter-Row Tiller with Fertilizer Box
Green Earth Z Series 4 Head Inter-Row Tiller with Fertilizer Box

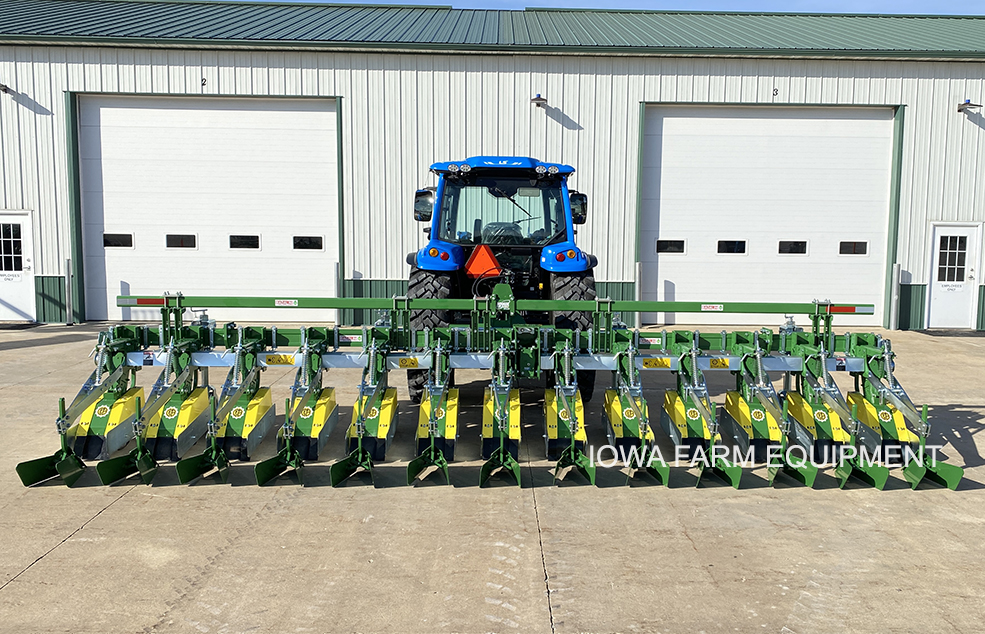

Green Earth Model Z Series 13 Head Inter-Row Tiller

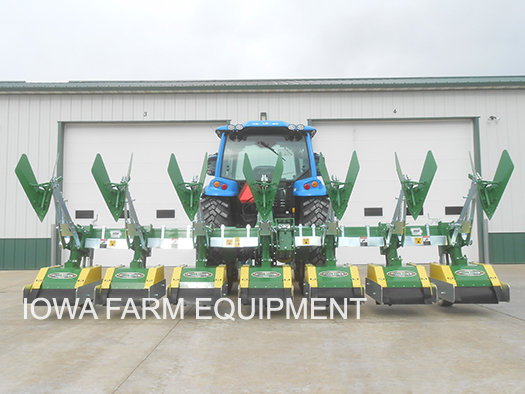

Green Earth Z Series 7 Head Inter-Row Tiller Set on 30” Rows with Ridging Plates Elevated & Out of Service

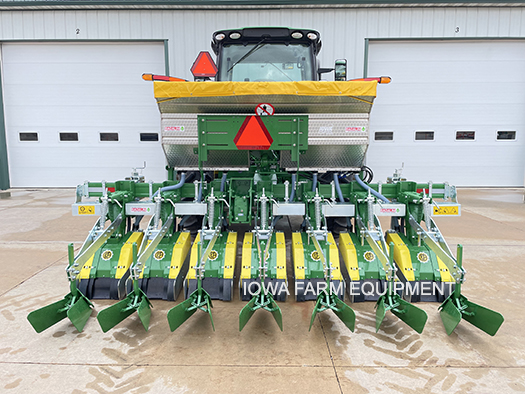

Green Earth 7 Head Inter-Row Tiller on 18” Centers with Fertilizer Box
Two Head Inter-Row Tiller Shown with Optional Rear Packer Rollers
For More Information Call 563-946-2121 Please have information regarding your tractor, the spacing & width of crop rows, and width of area to be tilled!
Specifications & Designs Are Subject to Change Without Notice
