ACMA 'V' Series 3-Point Premium Rotary Tillers

All GEAR Side Drive in Oil Bath - No Belts, NO Chains
& Double Skinned Body, All For Long, Trouble Free Life!

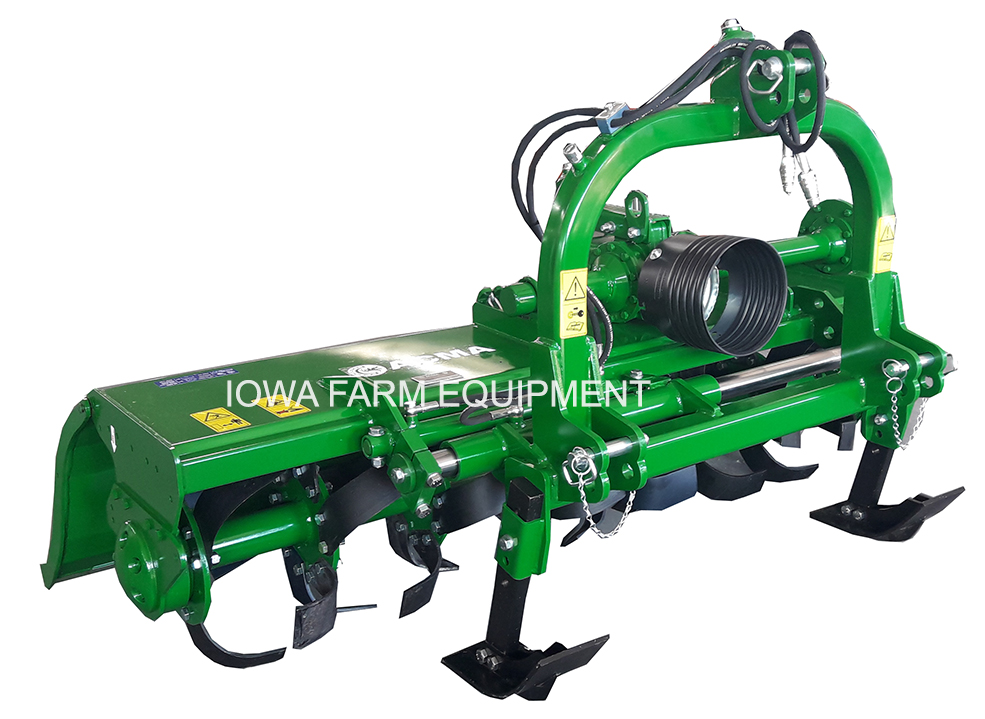

ACMA 'V' Series Offsetable Rotary Tiller

FOR 50-120HP TRACTORS

Heavy Duty Professional Premium Series, 63" to 93" Working Width ACMA 'V' Series, Offsetable, 3-Point, PTO Powered Rotary Tiller With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!

You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!

STANDARD FEATURES:



Sample Video of ACMA 230P Tiller Tilling Food Plots

FOR MORE OF OUR VIDEOS CLICK HERE

Sample Video of ACMA 250P Rotary Tiller For Corn Stalks

FOR MORE OF OUR VIDEOS CLICK HERE

Sample Video of ACMA Rotary Tiller & Seeder

FOR MORE OF OUR VIDEOS CLICK HERE

'V' SERIES ROTARY TILLER SPECIFICATIONS
MODEL 165V 180V 205V 230V
Tractor Horsepower (PTO) 50 - 120HP 50 - 120HP 50 - 120HP 50 - 120HP
PTO Speed 540 RPM
Working Width 5'-3" 6'-1" 6'-11" 7'-9"
Overall Width 5'-11" 6'-9" 7'-7" 8'-4"
Blades Each Flange, TOT 36 42 48 54
Offsetable 24", Hydraulic 'On-The-Fly'
Max. Working Depth 8"
Weight 1,334 lbs. 1,433 lbs. 1,565 lbs. 1,653 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
'V' SERIES ROTARY TILLER SPECIFICATIONS
MODEL 165V 180V 205V 230V
Tractor Horsepower (PTO) 50 - 120HP 50 - 120HP 50 - 120HP 50 - 120HP
PTO Speed 540 RPM
Working Width 5'-3" 6'-1" 6'-11" 7'-9"
Overall Width 5'-11" 6'-9" 7'-7" 8'-4"
Blades Each Flange, TOT 36 42 48 54
Offsetable 24", Hydraulic 'On-The-Fly'
Max. Working Depth 8"
Weight 1,334 lbs. 1,433 lbs. 1,565 lbs. 1,653 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
Specifications & Designs Are Subject to Change Without Notice
