ACMA 'R' Series 3-Point Premium Power Harrows with Seeder

All GEAR Side Drive in Oil Bath - No Belts, NO Chains
& Double Skinned Body, All For Long, Trouble Free Life!

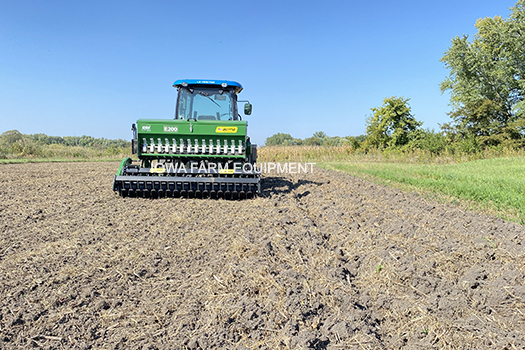

ACMA E200 Power Harrow with Seeder

FOR 80-130HP TRACTORS

Heavy Duty Professional Premium Series, 98" to 120" Working Width ACMA 'R' Series, Cat 2, 3-Point, PTO Powered Power Harrow With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!

You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!

'POWER HARROW' STANDARD FEATURES:

ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
Quick Hitch Compatible!
Heavy Duty Side Plates:
- Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
- Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
- XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
- Packer Roller Also Provides Soil Conditioning.
Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
Easy Top Access Rotor Hubs.
2 Blades Per (Round) Blade Carrier.
Heavy Duty Clevis Style Pull Arm Hitches.
Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!

'SEEDER' STANDARD FEATURES:

R250: 19Bu Capacity: Primary Box @11Bu, Secondary Box @8Bu.
R300: 23Bu Capacity: Primary Box @13Bu, Secondary Box @10Bu.
- Dual Hopper Seed Box Eliminates the Need for a Second Pass When Planting Various Seed Sizes with Differing Flow Rates or Use Both Hoppers For Maximum Capacity!
  - Suitable For Most All Grass Seeds, From Alfalfa to Corn & Beans!
  - Hoppers Can Be Used For Granulated Fertilizers.
  - Built In Agitator Prevents Bridging, Ensures Consistent Flow Rate of Seeds, and Provides Some Blending of Mixed Seed Types.
    - Not recommended For Warm Season Grass Seeds.
  - R250 Has 28 Hopper Openings (14 From each Box):
  - R300 Has 40 Hopper Openings (20 From each Box):
    - Each Opening Flows Thru a ‘4-Position Manual Slide Gate’ For Each Opening, Then Into Individually Adjustable Seed Meters.
    - Slide Gates & Seed Metering Adjustments Are Tool Free Field Adjustable - See Photos!
    - After Passing Thru the Seed Metering Devices, Seeds Flow Down the Drop Tubes (Secured to a Rigid 102” ((R250)) or 10’ ((R300)) Channel) For Placement Onto the Beautiful Seedbed Made By the Power Harrow. Then the (Hydraulically Controlled) Packer Roller Follows to Ensure Excellent Ground Contact For Maximum Germination!
      - All This In One Efficient & Timely Pass!
  - To Adjust Drop Tube Spacing, Any of the Hopper Openings Can be Closed Tool Free With the ‘4-Position Slide Gate’ at Each Opening.
  - Handle at End of Each Seed Hopper for Manually Opening or Closing Total Seed Flow (On/Off) at the Bottom of Each Individual Seed Hopper:
    - Handles Are At Opposite Ends; Right Side for Rear Box, Left Side For Front Box.
    - Handles For Speed Control For Seeding Rate Are Also on Opposite Ends For Each Box.
- Mechanical Seed Level Indicators Are Adjustable and Visible To Tractor Operator.

Sample Video of ACMA 'E' Series Power Harrow with Seeder

FOR MORE OF OUR VIDEOS CLICK HERE

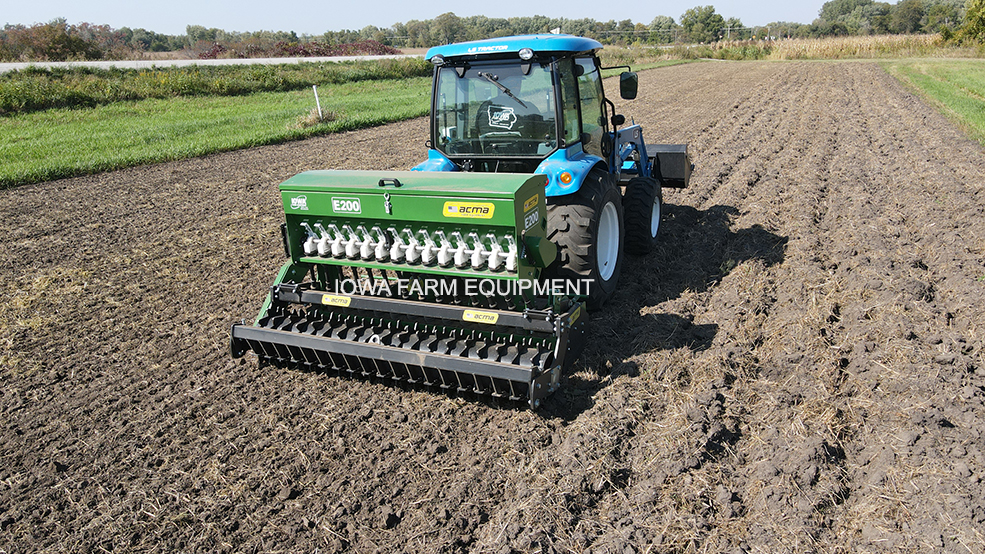

ACMA E200 Power Harrow with Seeder

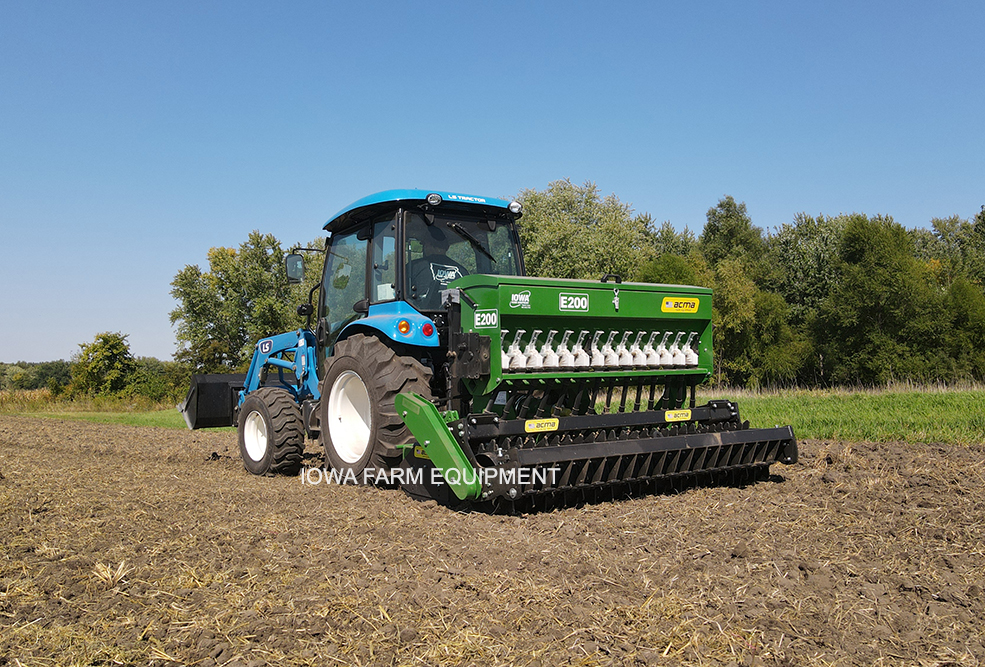

E200 Shown with Seeder & Packer Roller

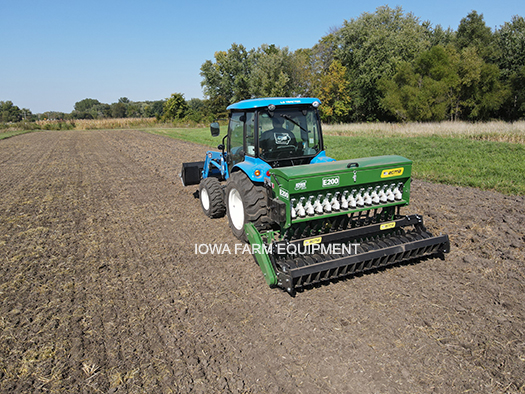

ACMA E200 Power Harrow with Seeder & Packer Roller

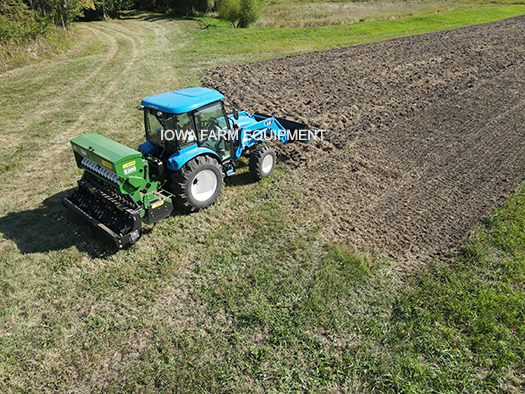

ACMA E200 Shown with Seeder & Packer Roller

E200 Shown with Seeder, Packer Roller & Standard Hydraulic Adjust Kit

Sample Video of ACMA 'R' Series Power Harrow

'R' SERIES POWER HARROW SPECIFICATIONS
MODEL	R250	R300
Tractor Horsepower (PTO)	80 - 130HP	80 - 130HP
PTO Speed	540 RPM (1000RPM Option Available)
Hitch	CAT 2, QH Compatible
Working Width	8'-2"	10'
Overall Width	9'-1"	10'-8"
Working Depth	11"
H.D. Gearbox Output Shaft	1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed	323RPM
Gearbox Speeds @ 540RPM	169, 182, 196, 210, 323, 348, 374, 403
Gearbox Speeds @ Optional 1000RPM	312, 336, 362, 389
Number of Blades	20 Blades	24 Blades
Weight with Roller & Seeder	3,505 lbs.	4,210 lbs.
Weights are Less Pallets, Crates & PTO Shaft.

'R' SERIES POWER HARROW SPECIFICATIONS
MODEL	R250	R300
Tractor Horsepower (PTO)	80 - 130HP	80 - 130HP
PTO Speed	540 RPM (1000RPM Option Available)
Hitch	CAT 2, QH Compatible
Working Width	8'-2"	10'
Overall Width	9'-1"	10'-8"
Working Depth	11"
H.D. Gearbox Output Shaft	1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed	323RPM
Gearbox Speeds @ 540RPM	169, 182, 196, 210, 323, 348, 374, 403
Gearbox Speeds @ Optional 1000RPM	312, 336, 362, 389
Number of Blades	20 Blades	24 Blades
Weight with Roller & Seeder	3,505 lbs.	4,210 lbs.
Weights are Less Pallets, Crates & PTO Shaft.

Specifications & Designs Are Subject to Change Without Notice
