ACMA 'R' Series 3-Point Premium Power Harrows

ACMA PTO Powered Vertical Tillage Equipment:
Incomparably Superior Single Pass Results
80-130HP TRACTORS
EQUIPMENT THAT WORKS FOR YOU!
ACMA R300 Power Harrow

FOR 80-130HP TRACTORS

Heavy Duty Professional Premium Series, 8'-2" to 10' Working Width ACMA 'R' Series, Cat 2, 3-Point, PTO Powered Power Harrow With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!

You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!

STANDARD FEATURES:

  • ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
  • CAT 2 Quick Hitch Compatible!

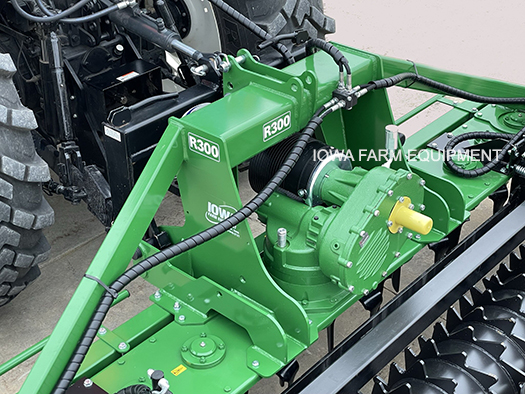

  • Multi-Speed Heavy Duty Gearbox Provides The Best Combination of Maximum Tractor Efficiency with The Best Single Pass Results!
  • Heavy Duty Side Plates:
    • Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
    • Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
  • 'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
    • XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
    • Packer Roller Also Provides Soil Conditioning.
  • Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
  • Easy Top Access Rotor Hubs.
  • 2 Blades Per (Round) Blade Carrier.
  • Heavy Duty Clevis Style Pull Arm Hitches.
  • Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!
  • Upgrade To 1000RPM Gearbox Available.
Sample Video of ACMA 'R' Series Power Harrow

FOR MORE OF OUR VIDEOS CLICK HERE

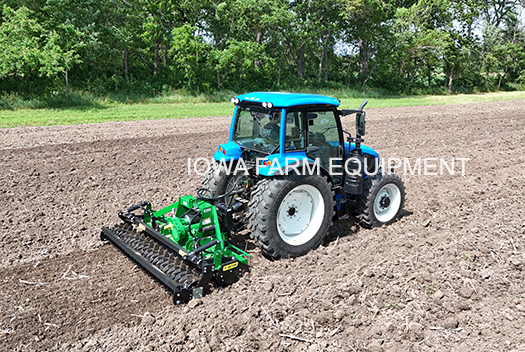

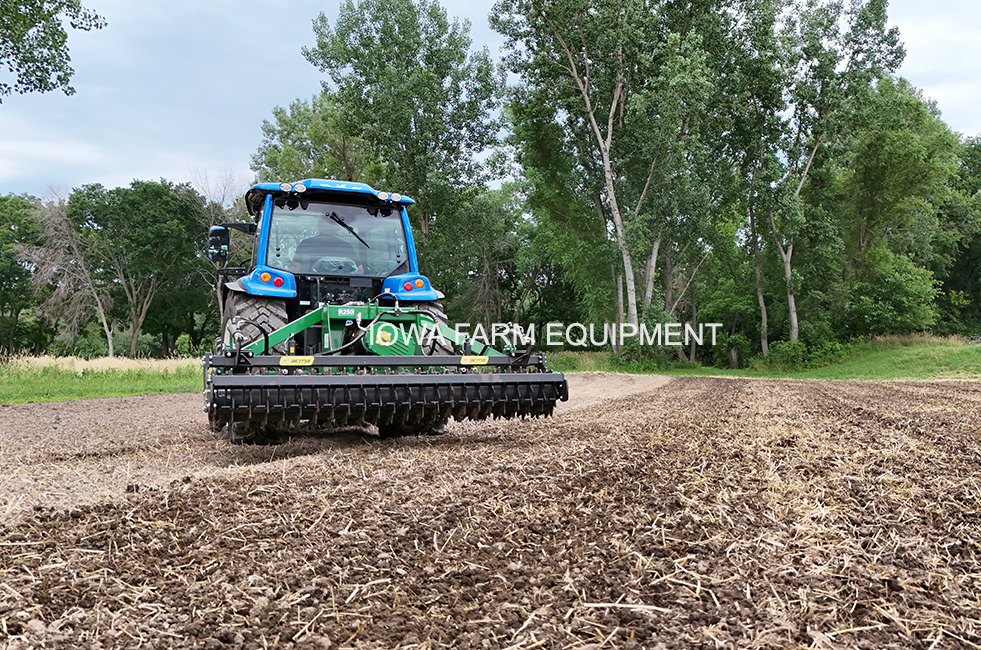

ACMA R250 Power Harrow

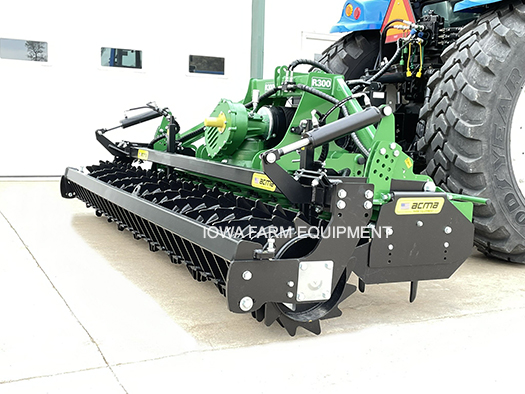

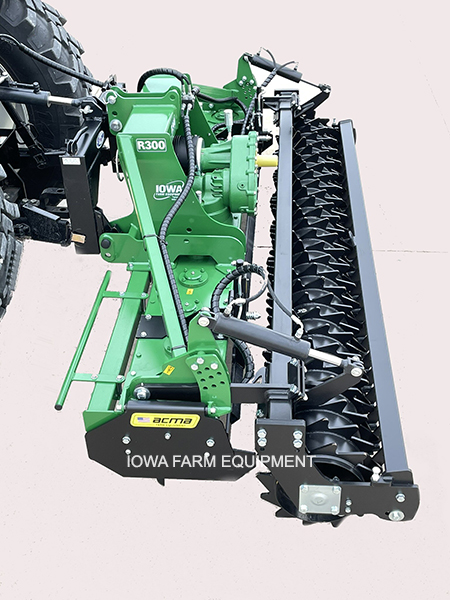

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit

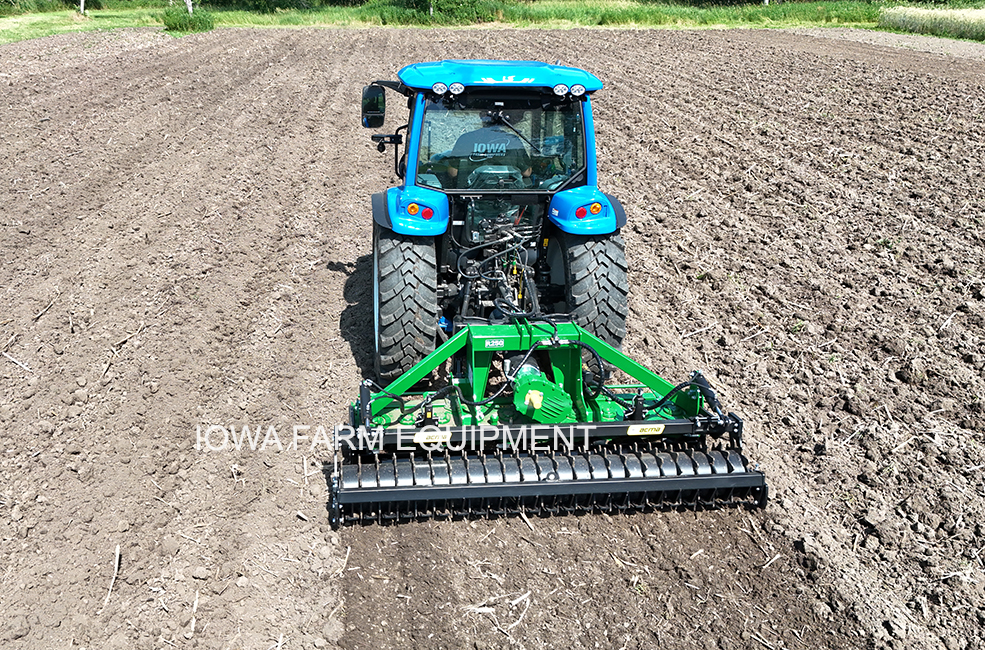

ACMA R250 Power Harrow

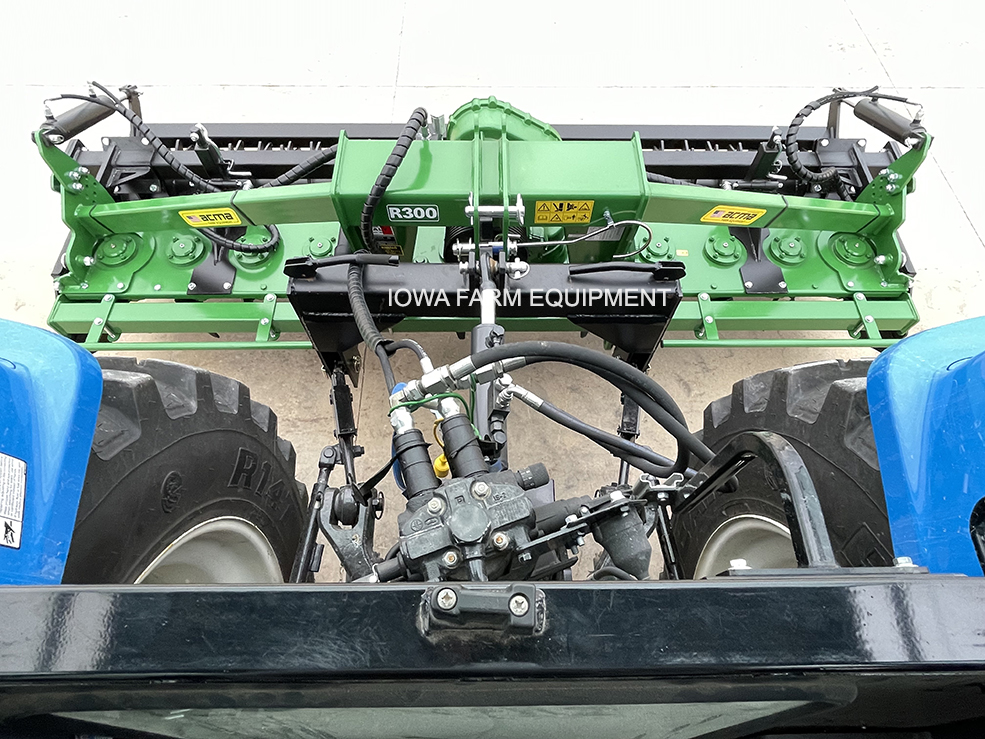

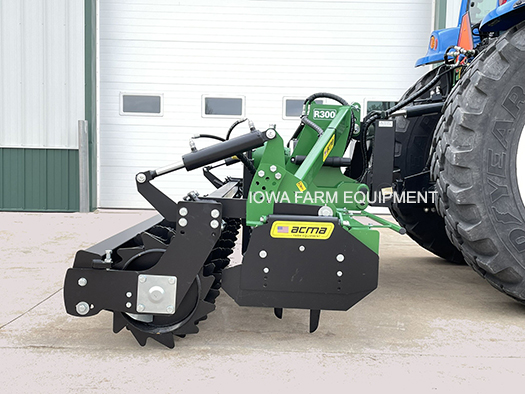

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA R250 Power Harrow
ACMA R300 Power Harrow

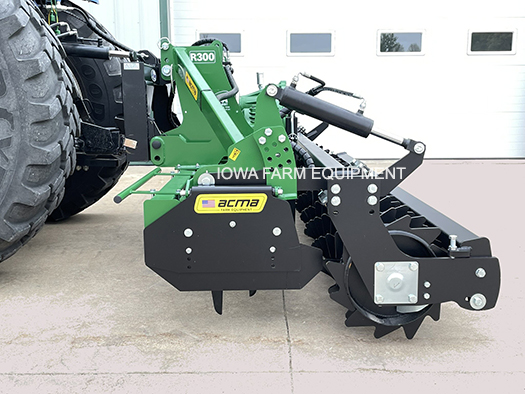

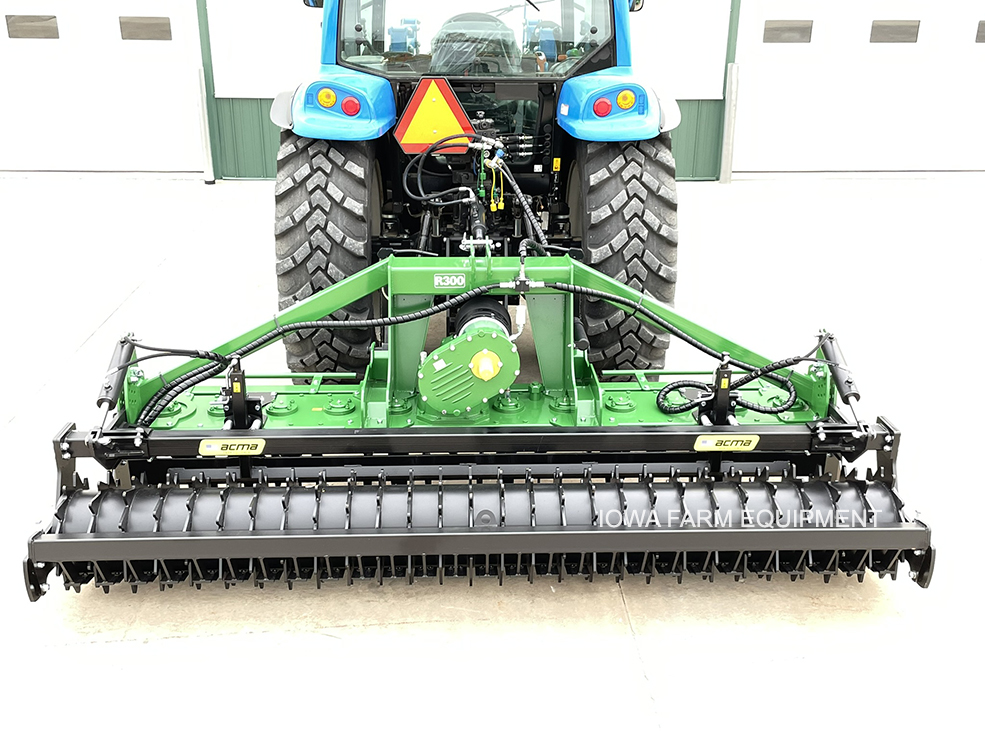

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit

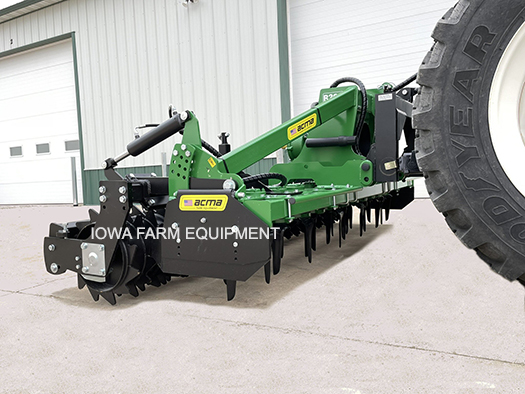

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA R250 Power Harrow

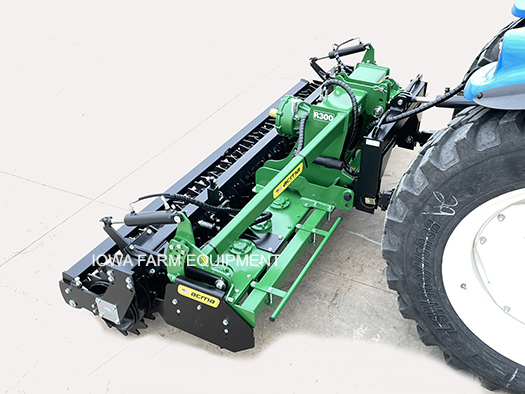

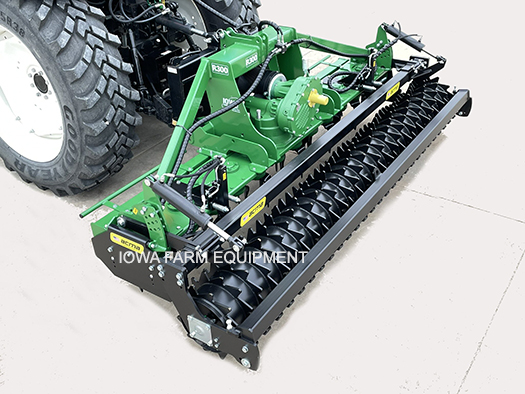

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA R250 Power Harrow

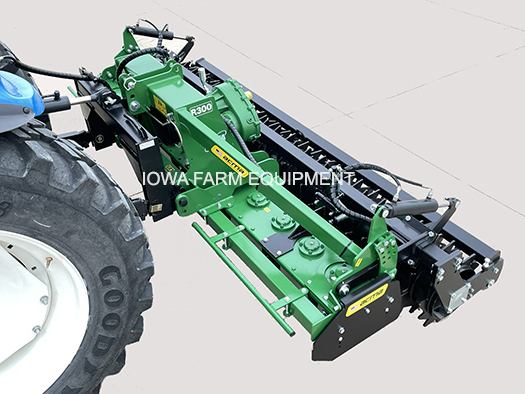

R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit
R300 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA R300 Power Harrow

Sample Video of ACMA 'E' Series Power Harrow with Seeder
'R' SERIES POWER HARROW SPECIFICATIONS
MODEL R250 R300
Tractor Horsepower (PTO) 80 - 130HP 80 - 130HP
PTO Speed 540 RPM (1000RPM Option Available)
Hitch CAT 2, QH Compatible
Working Width 8'-2" 10'
Overall Width 9'-1" 10'-8"
Working Depth 11"
H.D. Gearbox Output Shaft 1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed 323RPM
Gearbox Speeds @ 540RPM 169, 182, 196, 210, 323, 348, 374, 403
Gearbox Speeds @ Optional 1000RPM 312, 336, 362, 389
Number of Blades 20 Blades 24 Blades
Weight with Roller 2,707 lbs. 3,033 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'R' SERIES POWER HARROW SPECIFICATIONS
MODEL R250 R300
Tractor Horsepower (PTO) 80 - 130HP 80 - 130HP
PTO Speed 540 RPM (1000RPM Option Available)
Hitch CAT 2, QH Compatible
Working Width 8'-2" 10'
Overall Width 9'-1" 10'-8"
Working Depth 11"
H.D. Gearbox Output Shaft 1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed 323RPM
Gearbox Speeds @ 540RPM 169, 182, 196, 210, 323, 348, 374, 403
Gearbox Speeds @ Optional 1000RPM 312, 336, 362, 389
Number of Blades 20 Blades 24 Blades
Weight with Roller 2,707 lbs. 3,033 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
