ACMA 'M' Series 3-Point Premium Rotary Tillers

All GEAR Side Drive in Oil Bath - No Belts, NO Chains
& Double Skinned Body, All For Long, Trouble Free Life!

ACMA 'M' Series Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller for ‘On-The-Fly’ Working Depth Control!

FOR 45-75HP TRACTORS

Heavy Duty Professional Premium Series, 81" to 87" Working Width ACMA 'M' Series, Cat 2, 3-Point, PTO Powered Rotary Tiller With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!

You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!

STANDARD FEATURES:

Quick Hitch Compatible, Cat 1 & 2, 3-Point Hitch!
ACMA Uses Heavy Duty Italian Made Gearboxes With Large Sumps For Cooler Operation & Longer Life!
Multi-Speed Gearbox Works Together With Tractors Ground Speed: Accommodating Older Tractors With Limited Low Speed Capabilities, Accommodating Newer Tractors With Lower Speed Controls, Both Accommodating Various Ground Conditions, Enabling 'Single Pass Efficiency' By Combining The Ideal Ground Speed With Ideal Desired 'Single Pass Results'!
4) Following Gearbox 'Rotor Speed' Settings Are Available:
- Standard Configuration @540RPM with 4-Speeds:
  - 138-155-218-245RPM's (Factory Set At Speed 3).
- Gearbox Gears Can Be Positioned For Various Speeds Without Emptying The Gearbox Oil By Tipping Tiller/Gearbox Back 90°.
Side Gear Drive System Is In An Oil Bath Gear Box.
Double Skin Layer Deck Top, Each At 3/16" Thick!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (superior to skid shoes) & Also Provides Soil Conditioning! Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Rotor 'Counter Flange Kit' Is Another Standard Feature, Minimizing Blade & Bolt Breakage In The Toughest & Rockiest Ground Conditions!
- Rotor's 'End Flanges' Have One Straight Blade Each To Ensure Maximum Working Width & Minimizing Vegetation Wrapping On The Rotor Ends!
Multi-Position, Adjustable Rear Gates With Adjustable Built-In Shock Absorption:
- Super Duty Rear Gates Are Durable Enough To Use For Finish Grading & Are Mechanically Linked To The 'Hydraulically Controlled Rear Roller' To Follow The 'On-The-Fly' Working Depth Positioning!
Wing Plates On Outside Corners Of Rear Gates Work To Level Any Ridges At The Outside Edges Of The Working Width!
Parking Stand & Rear Ridge Leveling Plates Are Standard.
Tiller Includes a 1-3/8", 6 Spline 540RPM, Shear Bolt Protected PTO Shaft!
Tiller Ships Fully Assembled & Ready To Use!

ACMA 250P Tiller & Packer Roller at Work Producing A Perfect & Beautiful Seed Bed
In An Efficient Single Pass Even In Heavy Corn Stalk Residue!

FOR MORE OF OUR VIDEOS CLICK HERE

ACMA 250P Tiller, Packer Roller & Seeder at Work in Producing A Perfect & Beautiful Seed Bed and Planting Directly Behind
The Tiller In A Super-Efficient Single Pass Even In A Thick Green Stand of Fall Cover Crop!

FOR MORE OF OUR VIDEOS CLICK HERE

ACMA 230P Tiller & Packer Roller at Work Producing A Perfect & Beautiful Seed Bed
In An Efficient Single Pass In Average Spring Field Conditions!

FOR MORE OF OUR VIDEOS CLICK HERE

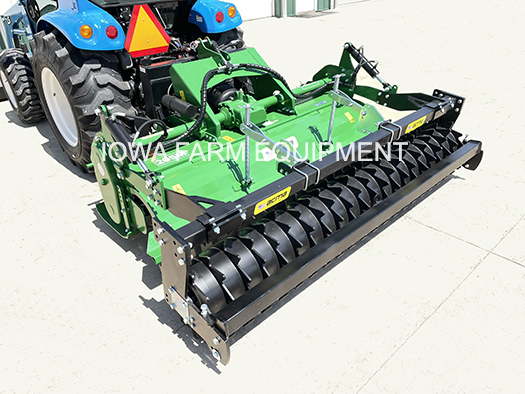

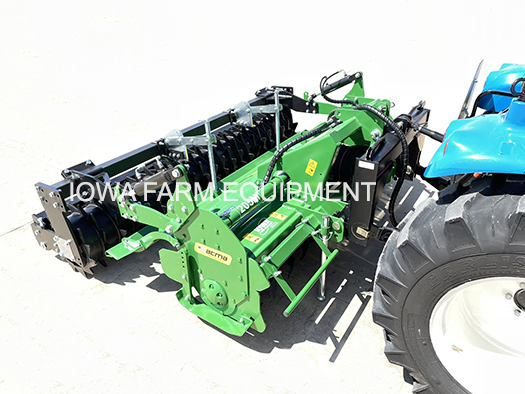

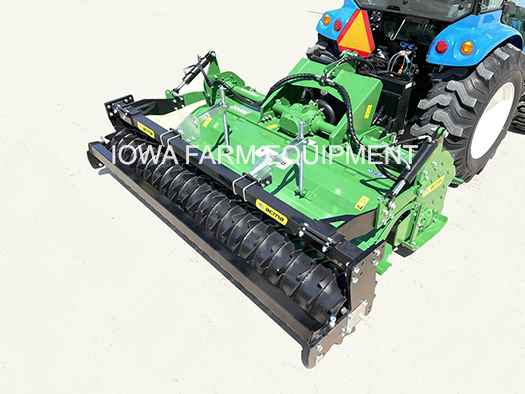

ACMA 205M Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller for ‘On-The-Fly’ Working Depth Control!

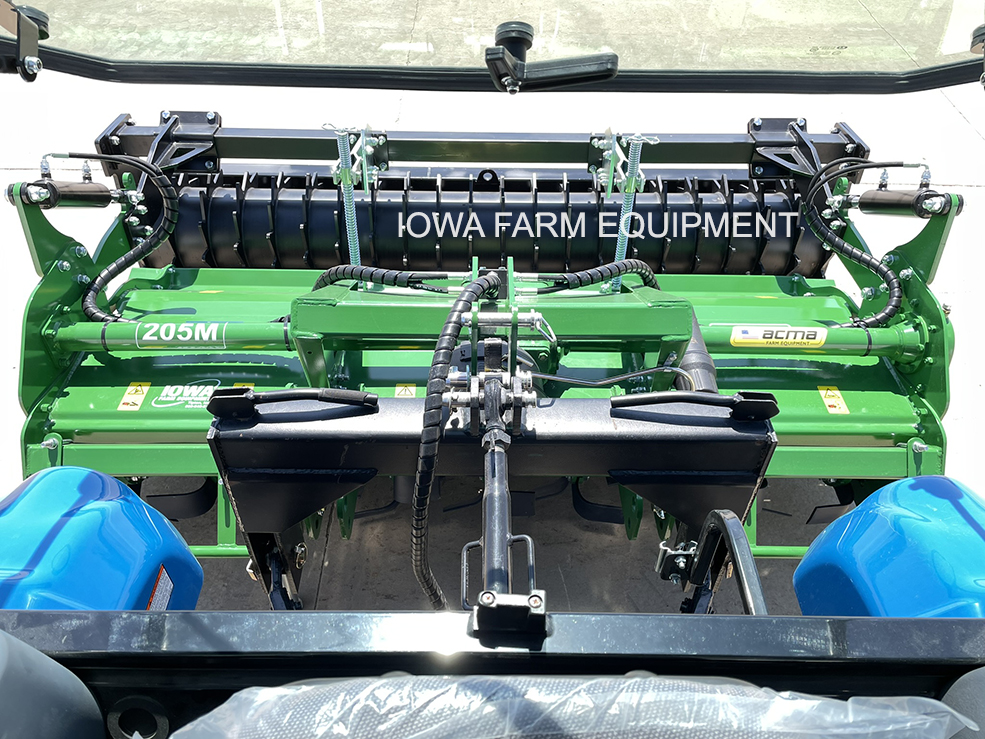

Top View of ACMA 205M Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller

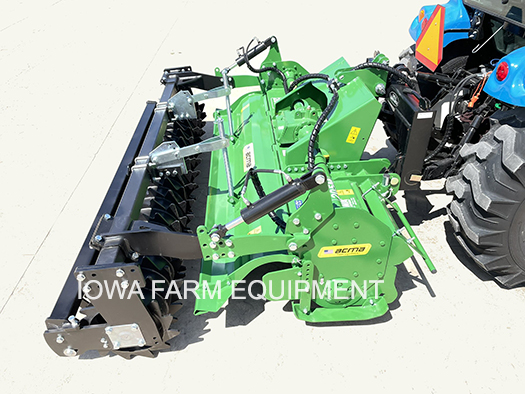

ACMA 205M Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller for ‘On-The-Fly’ Working Depth Control!

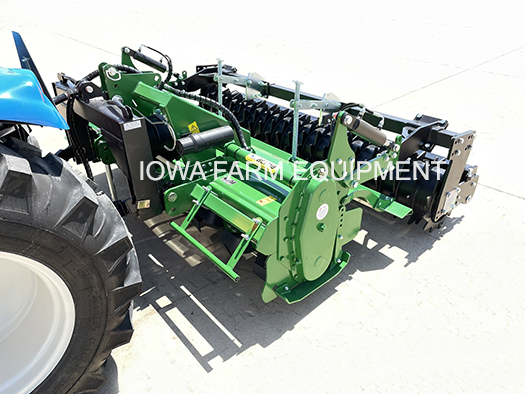

ACMA 205M Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller

HEAVY DUTY ROTOR COUNTER FLANGE KIT
Reduces Blade Breakage in Hard & Rocky Ground

'M' SERIES ROTARY TILLER SPECIFICATIONS
MODEL	205M	220M
Tractor Horsepower (PTO)	45 - 75HP	50 - 75HP
PTO Speed	540 RPM
Hitch/Hitch Category	Clevis Style, CAT 1 & 2, QH Compatible
Working Width	81"	87"
Overall Width	8'-4"	9'-2"
Rotor	8 Flanges & Total of 48+2 Straight End Blades	9 Flanges & Total of 54+2 Straight End Blades
	6 Blades Per Flange on 7 Center Flanges
	3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Blade Tip to Blade Tip Diameter, Rotor	19.25"
Max. Working Depth	8"
Rear Packer Roller Diameter	18"
Weight	2,220 lbs.	2,360 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.

'M' SERIES ROTARY TILLER SPECIFICATIONS
MODEL	205M	220M
Tractor Horsepower (PTO)	45 - 75HP	50 - 75HP
PTO Speed	540 RPM
Hitch/Hitch Category	Clevis Style, CAT 1 & 2, QH Compatible
Working Width	81"	87"
Overall Width	8'-4"	9'-2"
Rotor	8 Flanges & Total of 48+2 Straight End Blades	9 Flanges & Total of 54+2 Straight End Blades
	6 Blades Per Flange on 7 Center Flanges
	3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Blade Tip to Blade Tip Diameter, Rotor	19.25"
Max. Working Depth	8"
Rear Packer Roller Diameter	18"
Weight	2,220 lbs.	2,360 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.

Specifications & Designs Are Subject to Change Without Notice
