ACMA PTO Powered Vertical Tillage Equipment: Incomparably Superior Single Pass Results 110-250HP TRACTORS
EQUIPMENT THAT WORKS FOR YOU!
ACMA K400 Power Harrow
FOR 110-250HP TRACTORS
Heavy Duty Professional Premium Series, 10' to 13' Working Width ACMA 'K' Series, Cat 2, 3-Point, PTO Powered Power Harrow With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!
You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!
STANDARD FEATURES:
ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
CAT 2, 3N & 3 Quick Hitch Compatible!
Heavy Duty Side Plates:
Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
Packer Roller Also Provides Soil Conditioning.
Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
Easy Top Access Rotor Hubs.

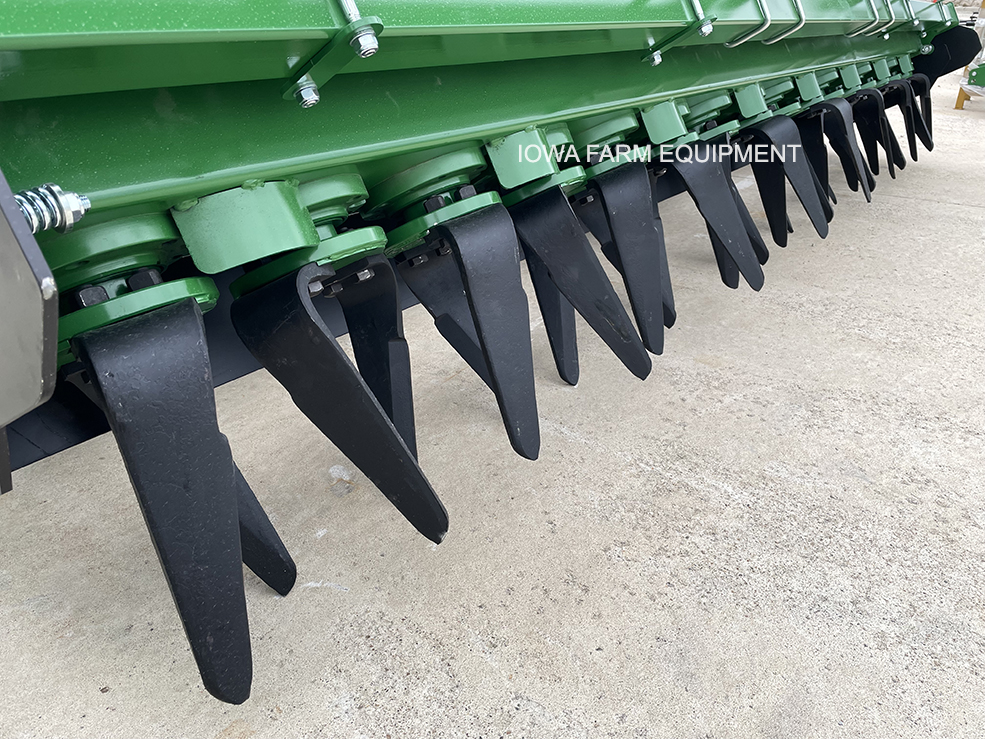

2 Blades Per (Round) Blade Carrier.
Heavy Duty Clevis Style Pull Arm Hitches.
Power Harrow Ships Complete Including a 1000RPM, Shear Bolt Protected PTO Shaft!

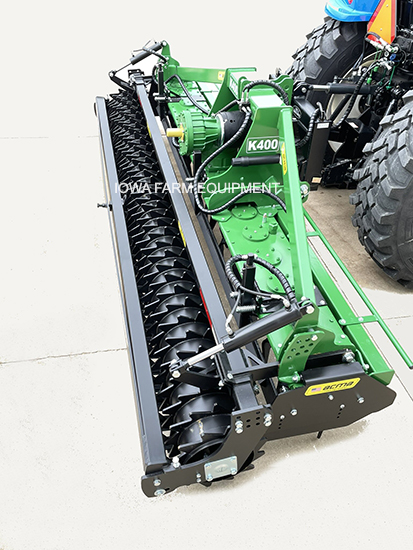

K400 Shown with Packer Roller & Standard Hydraulic Adjust Kit

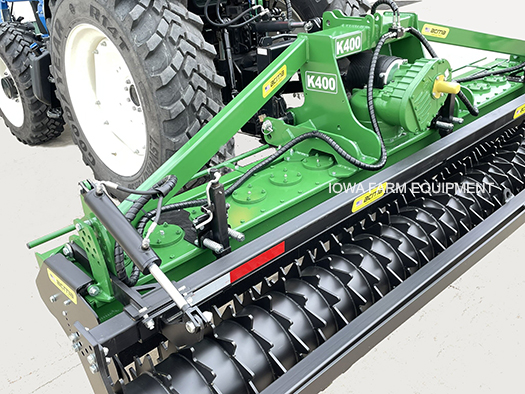

K400 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA K400 Power Harrow

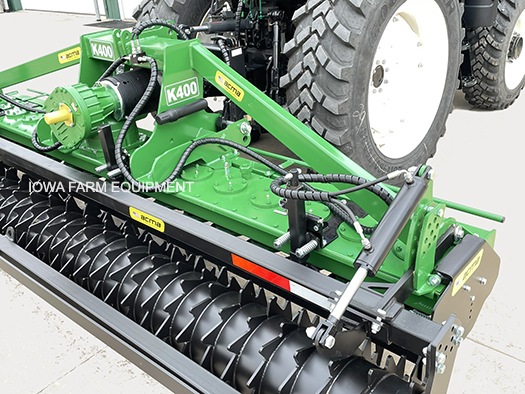

K400 Shown with Packer Roller & Standard Hydraulic Adjust Kit

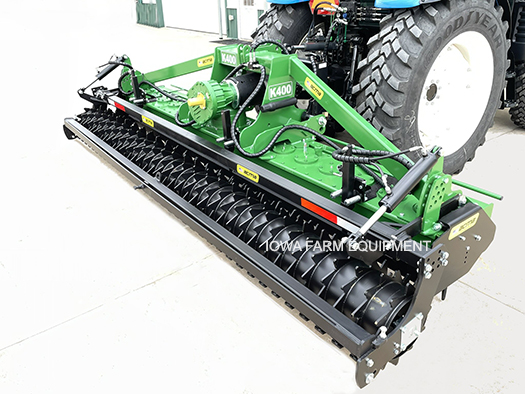

K400 Shown with Packer Roller & Standard Hydraulic Adjust Kit

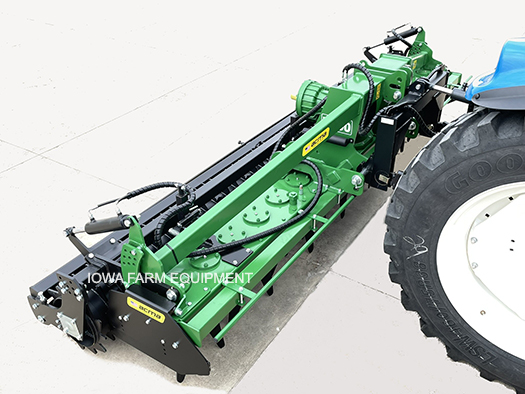

K400 Shown with Packer Roller & Standard Hydraulic Adjust Kit
ACMA K400 Power Harrow
Sample Video of ACMA 'E' Series Power Harrow with Seeder
'K' SERIES POWER HARROW SPECIFICATIONS
MODEL
K300
K350
K400
Tractor Horsepower (PTO)
110 - 250HP
130 - 250HP
150 - 250HP
PTO Speed
1000 RPM
Hitch
CAT 2, 3N & 3 QH Compatible
Working Width
10'-2"
12'-0"
13'-2"
Overall Width
11'-2"
13'-0"
14'-2"
Working Depth
11"
H.D. Gearbox Output Shaft
1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed
389RPM
Gearbox Speeds @ 1000RPM
312, 336, 362, 389
Number of Blades
28 Blades
30 Blades
32 Blades
Weight with Roller
4,360 lbs.
4,420 lbs.
4,500 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'K' SERIES POWER HARROW SPECIFICATIONS
MODEL
K300
K350
K400
Tractor Horsepower (PTO)
110 - 250HP
130 - 250HP
150 - 250HP
PTO Speed
1000 RPM
Hitch
CAT 2, 3N & 3 QH Compatible
Working Width
10'-2"
12'-0"
13'-2"
Overall Width
11'-2"
13'-0"
14'-2"
Working Depth
11"
H.D. Gearbox Output Shaft
1-3/4" x 6 Spline
Blade Holder 'Rotor' Speed
389RPM
Gearbox Speeds @ 1000RPM
312, 336, 362, 389
Number of Blades
28 Blades
30 Blades
32 Blades
Weight with Roller
4,360 lbs.
4,420 lbs.
4,500 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
