ACMA HD250 3-Point Flail Mower with Side Trim Head
97" Cut, Hydraulic Offset, For 50-130HP
ACMA Hydraulically Offsetable, Multi-Purpose Commercial Flail Mowers For 50-130HP, 540RPM Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
ACMA Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!
This ACMA Flail Mower Has 28 Forged & Hardened Steel Hammer Blades - ACMA Flail Mowers Always Have the Highest Population of Blades To Provide The Best Possible Cut & Reduce The Burden on Your Tractor!
ACMA Mower Gearboxes Include An Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment Of The Mowers PTO Shaft To The Tractors PTO Shaft:
The O.R. Clutch Enables You To Freely Spin The PTO Shaft & Gearbox For Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows The Mower Gearbox To Free Wheel To A Stop, Eliminating Abrupt Shutdowns & Wear Of The PTO Brake!
Under Deck, Serrated Mulching Counter Blade Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Multiple Advantages Of This Offsetable Flail Mower with Side Trim Head, Over Static, Center Mounted 3-Point Mowers:
If You're Mowing Along a Fenceline, Treeline, Building, Etc., Instead Of Getting Your Entire Tractor Along Side Of The Fence Or Building (and Risk Scraping Your Tractor Tires or Snagging & Damaging Trees, Posts, Fencing, Buildings, Etc.), You Can Simply Keep The Offset Part Of The Mower Close To The Edges You Want To Mow And Prevent Any Damage To The Tractor Or the Trees, Fencing, Walls, Etc. Snagging Posts, Trees Or Other Secured Objects Can Also Damage The 3-Point Linkage On The Mower Or Even The Pull Arms & Top Link Of Your Tractor.
Much Better Visibility: If The Edge Of Any Mower Is Flush With The Sidewall Of Your Tractors Tire, Forget About Visibility! You Will Be Cutting With Your Tractor Tire As A 'Guide', Which is OK In Open Areas, But Again, When You're Mowing Up Against Obstacles, You Want Visibility, And The Offset Feature Will Provide That. It Will Also Eliminate The Need To Look Back Over Your Shoulder To See The Mower Deck. A Simple Glance To Your Right Gives You Visibility Of The Outer Mowing Edge.
The Multi-Purpose Characteristic of ACMA Flail Mowers Provides a 'Rough Cut' That's Superior to Any 'Rotary Rough Cut Mower', and a 'Finish/Manicure Cut' That's Superior to Any 'Rotary Finish Mower'! Plus with the 'Forged & Hardened' Hammer Blades, You Can Cut 3"-4" Diameter Material & Still Get a Superior Finish Cut Too!
ACMA Flail Mowers Are The Safest & Most Efficient Mowers Available:
With ACMA Flail Mowers, The Possibility Of Discharging Dangerous Projectiles Is Dramatically Reduced Compared To Conventional Rotary Mowers, And With The Reduced Deck Depth & Weight, They're The Easiest For You & Your Tractor To Handle! Plus, The Superior 'Single-Pass' Cut Of ACMA Flail Mowers Provides New Efficiencies By Eliminating Multiple Passes For Excellent Results!
Powder Coated Paint!
Mower & Side Trim Assembly Ships Fully Assembled & Ready To Use. This Means No Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knucklebusters & No Waiting Until It's Assembled Before First Use!
ACMA Products Are Made In Italy & Assembled In The USA!

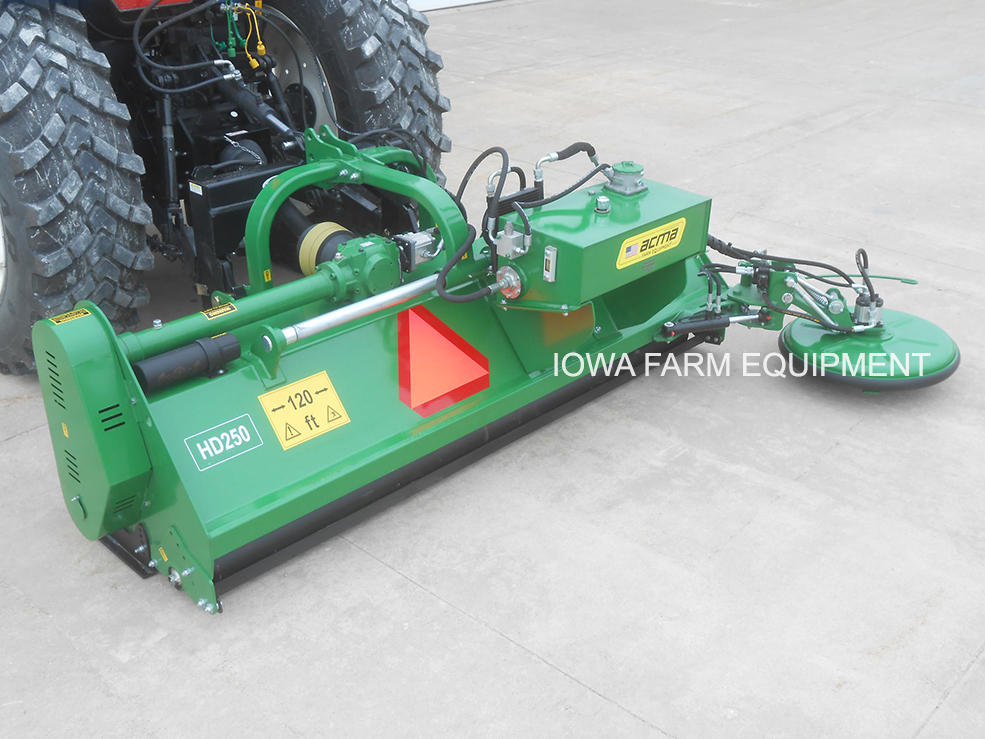

ACMA HD250 Hyd Offsetable Flail Mower with Side Trimmer in Green Color Option
Side Trim Mower Head is Powered by an Efficient & Convenient, Pre-Plumbed & Self-Contained Hydraulic System, Accommodating Tractors w/o Outlets & Eliminating Loose Hoses to Plug In, and Issues with Varying Hyd. Flow Rates & Hose Tips.

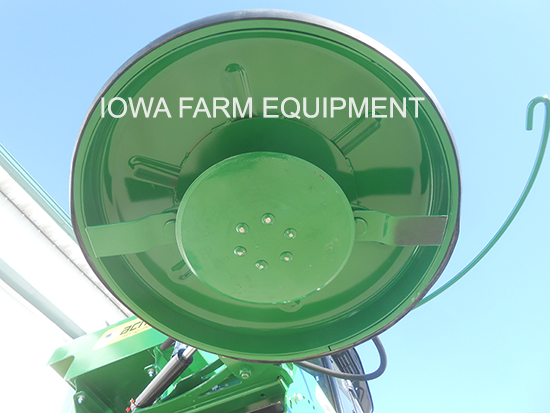

The ACMA Side Trim Mower Has 2 Solid Steel Swinging Blades (attached to a pan carrier) To Provide The Best Possible Cut!
Trimmer Rotary Head Has A Protective Bumper Around The Circumference To Protect Trees, Posts, etc.
For Additional Protection, The Head Will Also Rotate (upon contact) To Prevent Damage To The Head & Fixed Objects It Contacts.
Rotary Head Can Be Pitched About 50° Left Or Right (On Horizontal Axis) To Accommodate Varied Terrain.
Horizontal Mower Head Swing Return Managed By An Adjustable Spring System:
Swing Responsiveness is Adjustable with the Antenna Trip Wire Setting Which can be Set From Sensitive to Rigid for Varied Applications. The Distance of the Antenna From the Trimming Head in Relation to the Object is Also Adjustable for Varied Reaction Times.
Swing Tension Can be Mild For Fragile Stems, Trunks & Posts, or Rigid For Faster Ground Speed, and Also For Steep, Uphill Travel!
Side Trim Mower Ships With Attaching Brackets, Hydraulic Hoses & Couplers.

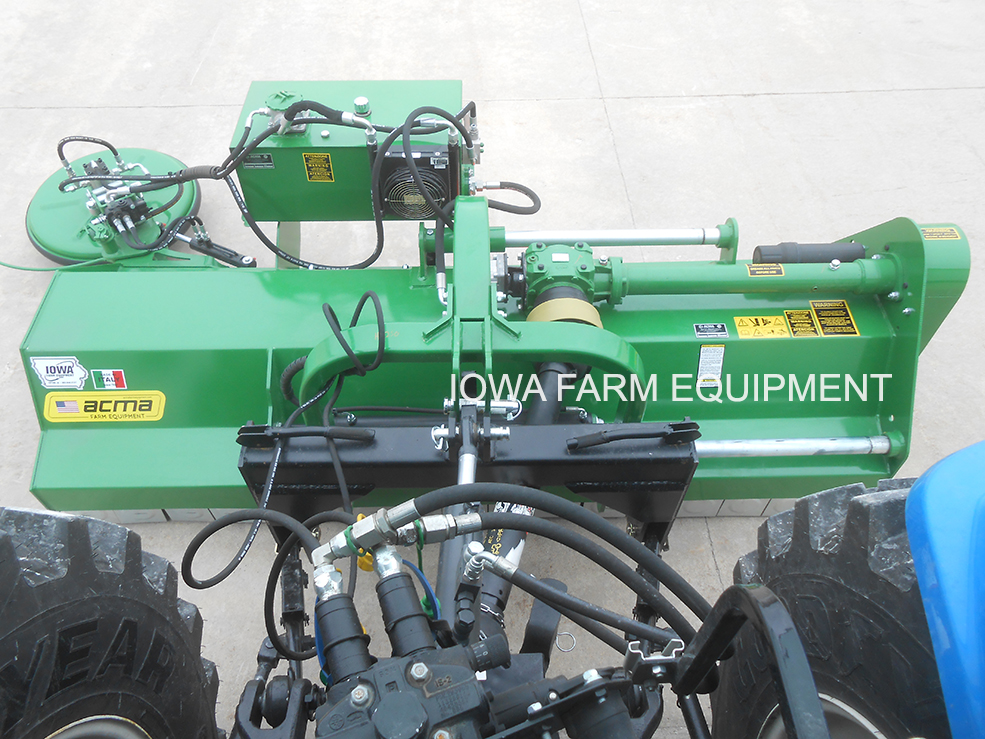

ACMA HD250 Hyd Offsetable Flail Mower with Side Trimmer in Green Color Option
ACMA HD160 Hydraulic Offsetable Flail Mower with Side Trimmer in Green Color Option

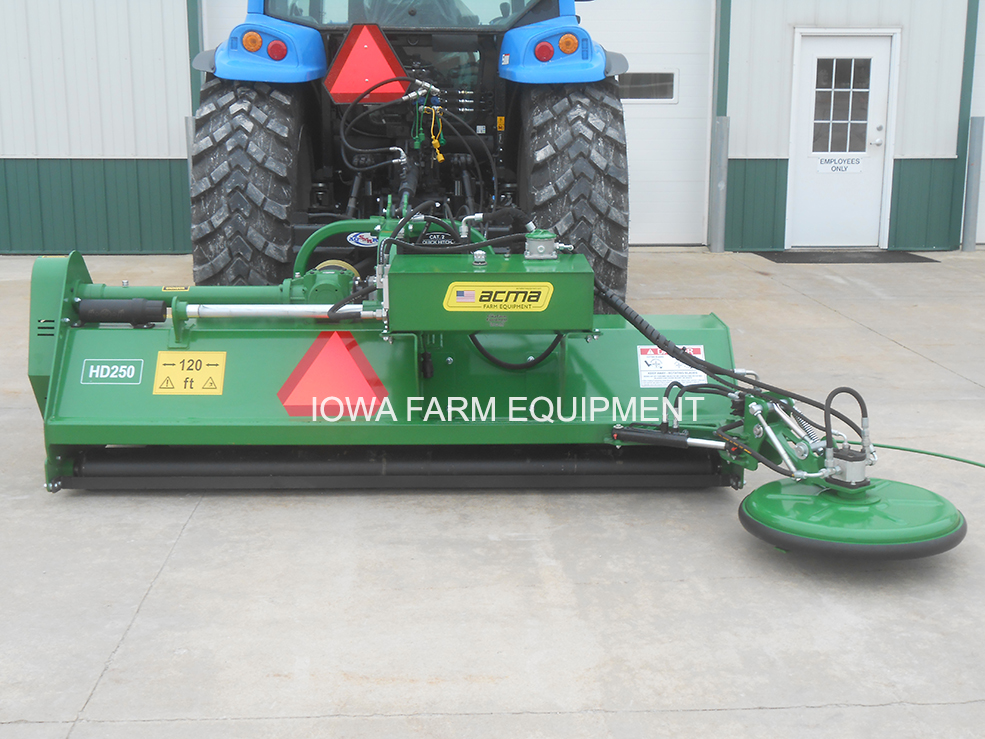

ACMA HD250 Hydraulic Offsetable Flail Mower with Side Trimmer in Green Color Option
ACMA HD160 Ceter Mounted Flail Mower with Side Trim Mower Head in Green Color Option
ACMA HD160 Hydraulic Offsetable Flail Mower with Side Trimmer in Green Color Option
ACMA HD160 Hydraulic Offsetable Flail Mower with Side Trimmer in Green Color Option
ACMA HD160 Hydraulic Offsetable Flail Mower with Side Trimmer in Green Color Option
Overall Width: Deck & Side Trim Head Hyd. Retracted
98"
Overall Width: Deck & Side Trim Head Hyd. Extended
130"
Overall Depth
Deck 48" + 25" For Side Trim Head
Deck Thickness
1/4" Thick, Double Skinned From Front Bottom to the Rear of Top
Number of Hammer Blades
28, Forged & Hardened Steel
Hammer Blades Weight
3lb's each
Rotor
Electronically Balanced, Quad Belt Driven
Rotor Speed
2200RPM's
Blade Tip Speed
96MPH
Blade Swing Diameter
17"
Cutting Capacity
4" Diameter Material
Rear Roller Diameter
6"
Weight
1,950lb's
Weights are Less Reservoir Hyd Fluid, PTO Shaft, Pallet/Crating, etc.
SIDE TRIMMER SPECIFICATIONS
Mowing Width
26"
Overall Diameter
28" Including a 1" Rubber Bumper Around the Outer Circumference
Max Reach of Trimmer Head From Edge of Flail Mower Deck
About 24"
Blades
5/16" Thick x 2-3/8" Wide x 7-1/8" Long, Sharpenable
Mower Head Speed
2400RPM's
Cutting Capacity
Rotor & Blades Rated To Cut 2" Diameter Material
Weight
225lb's (With Hoses & Couplers)
Weights are Less Pallet/Crating, etc.
Specifications & Designs Are Subject to Change Without Notice
