ACMA PTO Powered Vertical Tillage Equipment: Incomparably Superior Single Pass Results 25-100HP TRACTORS
EQUIPMENT THAT WORKS FOR YOU!
ACMA E200 Power Harrow
FOR 25-100HP TRACTORS
Heavy Duty Professional Premium Series, 39" to 98" Working Width ACMA 'E' Series, Cat 2, 3-Point, PTO Powered Power Harrow With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!
You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!
STANDARD FEATURES:
ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
CAT 1 & 2 Quick Hitch Compatible!
Heavy Duty Side Plates:
Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
Packer Roller Also Provides Soil Conditioning.
Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
Easy Top Access Rotor Hubs.
2 Blades Per (Round) Blade Carrier.
Heavy Duty Clevis Style Pull Arm Hitches.
Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!

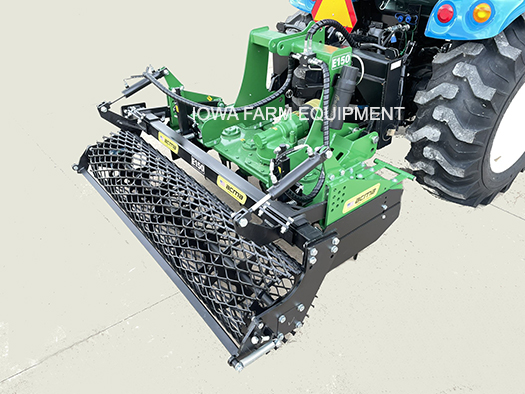

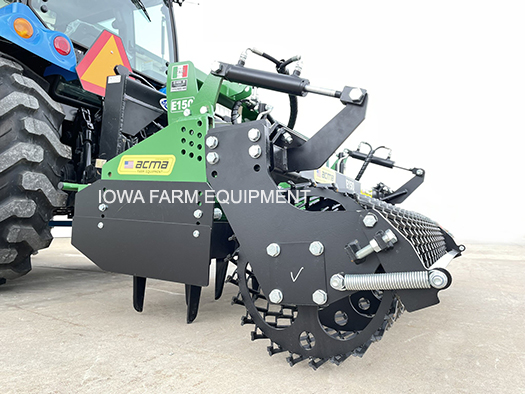

E150 Shown with Mesh Roller & Standard Hydraulic Adjust Kit

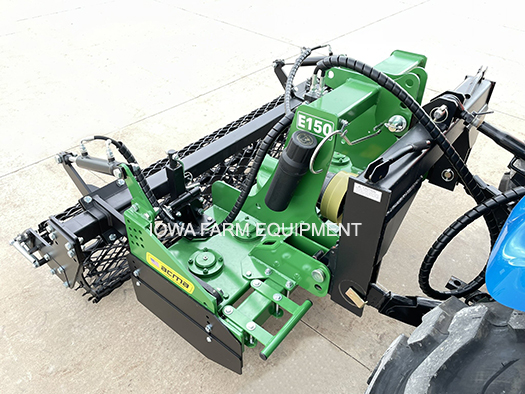

E150 Shown with Mesh Roller & Standard Hydraulic Adjust Kit
ACMA E225 Power Harrow

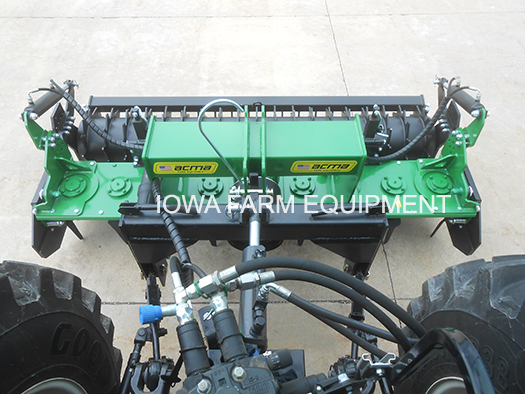

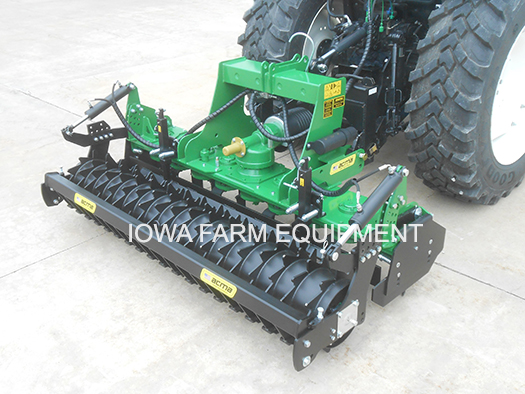

E225 Shown with Packer Roller & Standard Hydraulic Adjust Kit

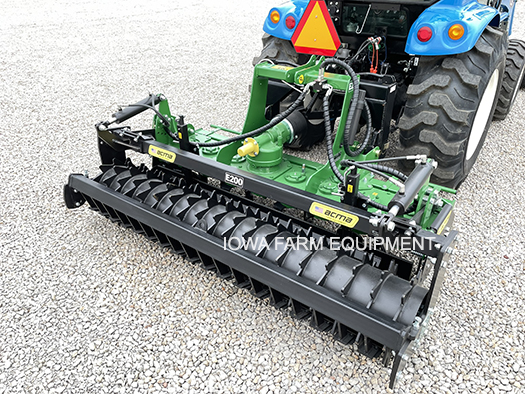

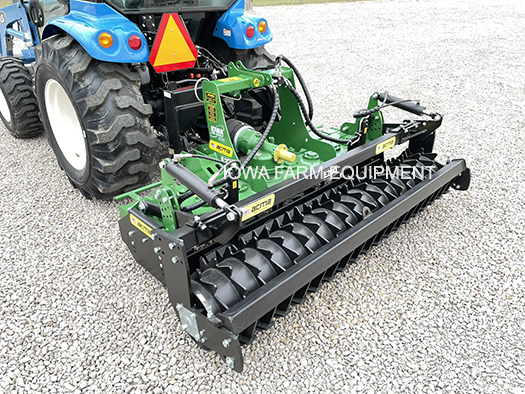

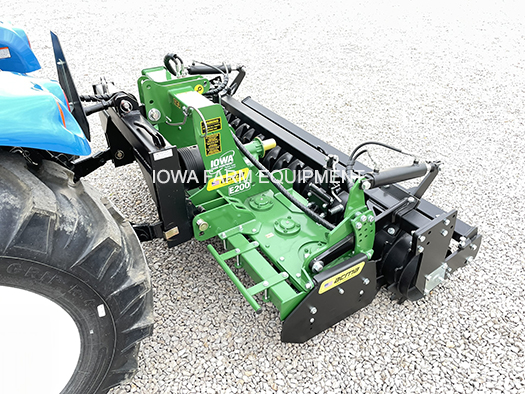

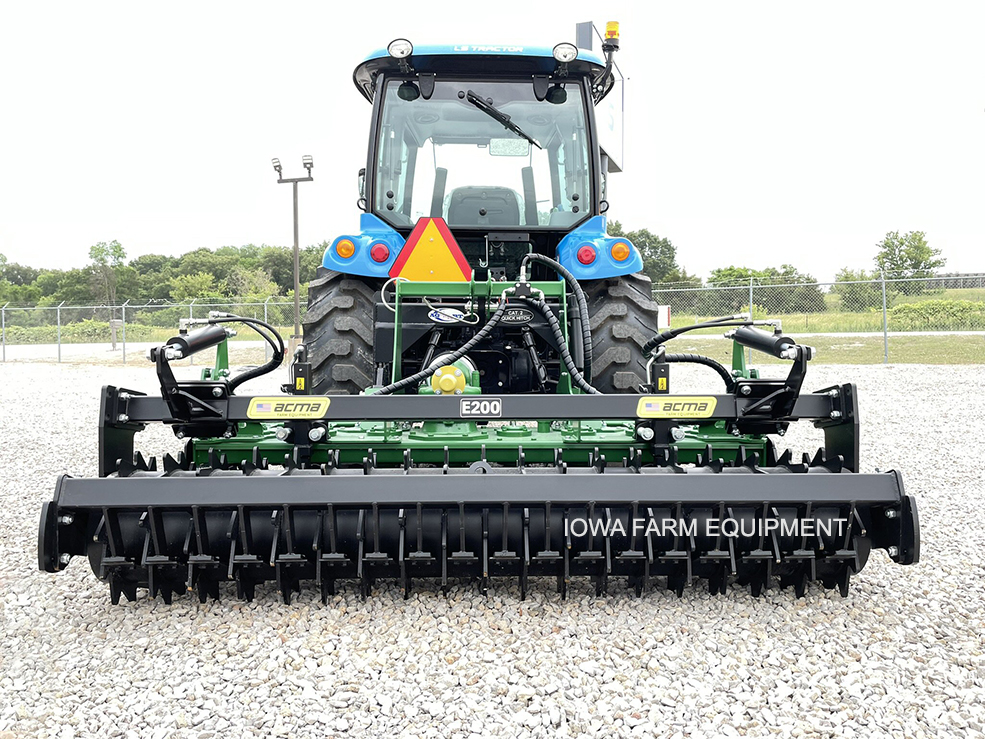

E200 Shown with Packer Roller & Standard Hydraulic Adjust Kit

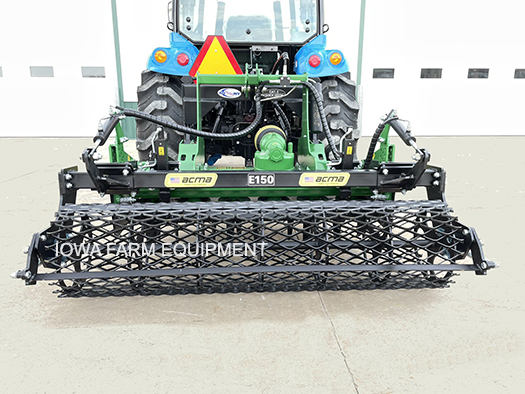

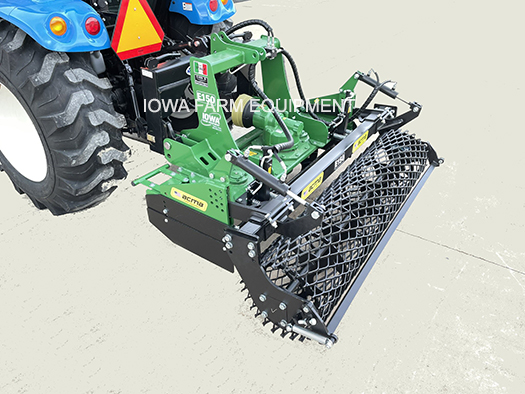

E150 Shown with Mesh Roller & Standard Hydraulic Adjust Kit

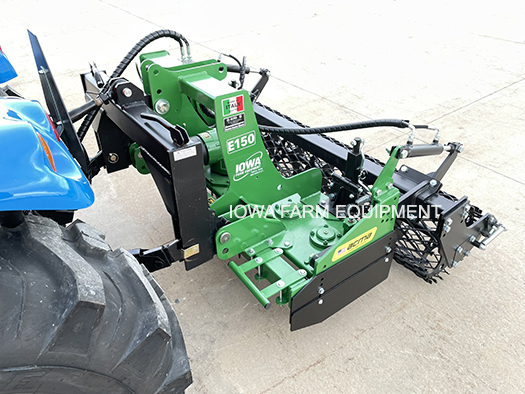

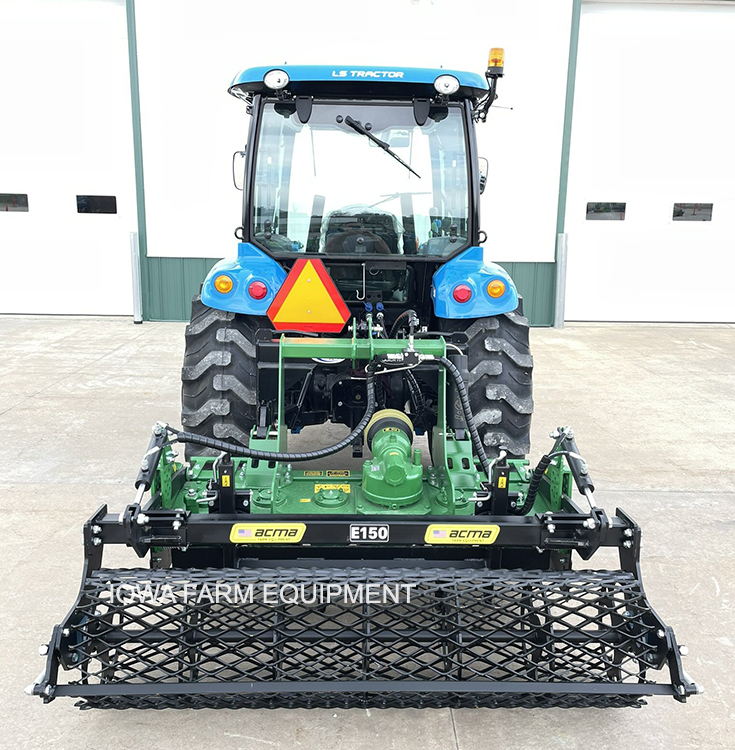

E150 Shown with Mesh Roller & Standard Hydraulic Adjust Kit
E200 Shown with Packer Roller & Standard Hydraulic Adjust Kit

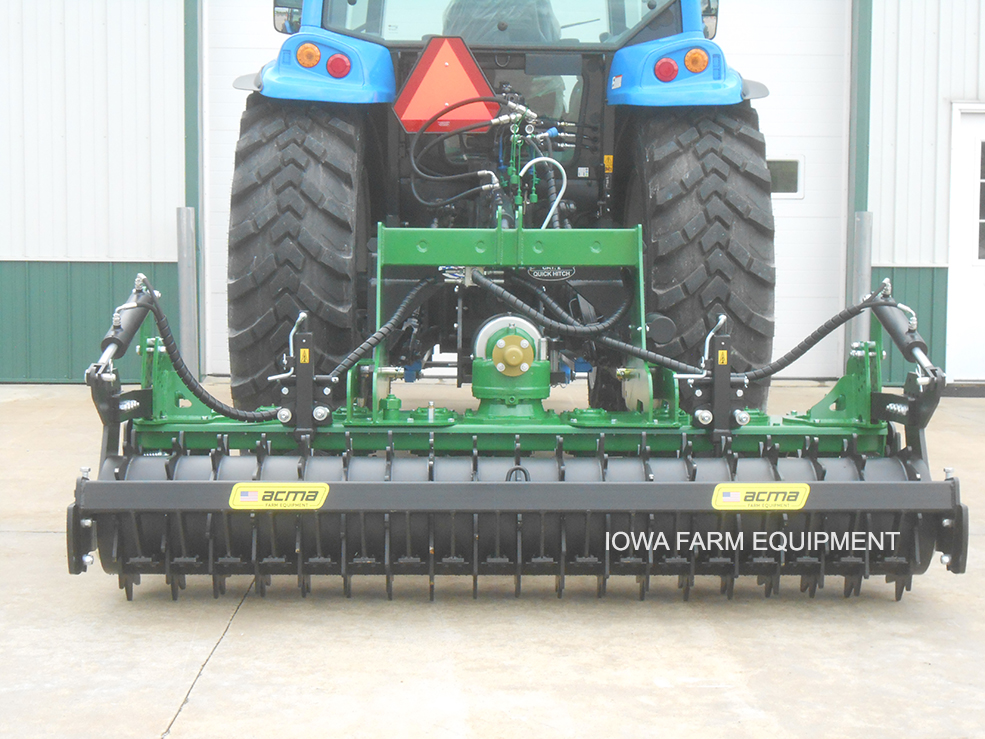

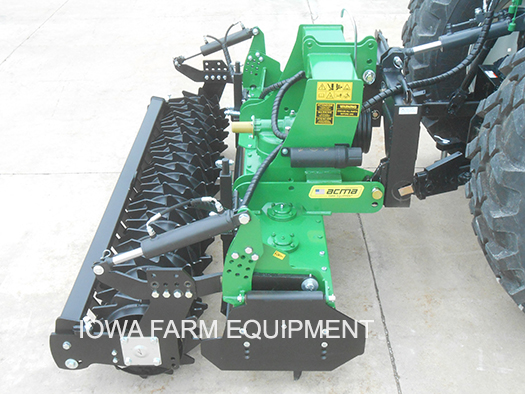

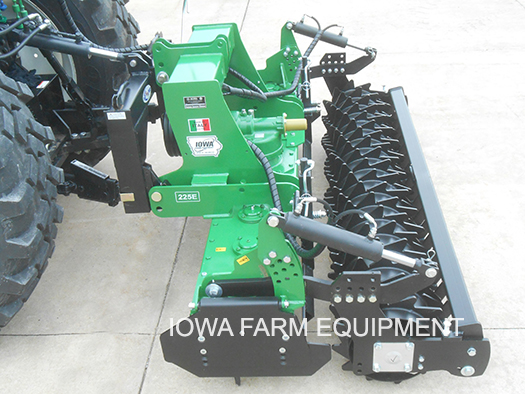

E225 Shown with Packer Roller & Standard Hydraulic Adjust Kit
Sample Video of ACMA 'E' Series Power Harrow with Seeder
'E' SERIES POWER HARROW SPECIFICATIONS
MODEL
E100
E125
E150
E180
E200
E225
Tractor Horsepower (PTO)
25 - 50HP
35 - 50HP
35 - 100HP
40 - 100HP
50 - 100HP
70 - 100HP
PTO Speed
540 RPM
Hitch Category
Clevis Style CAT 1 & 2 QH Compatible
Working Width
39"
49"
60"
72"
78"
90"
Overall Width
42"
52"
63"
75"
81"
93"
Overall Width of Extra Wide Roller
51"
61"
72"
84"
90"
101"
Working Depth
9"
10"
Number of Blades
8 Blades
10 Blades
12 Blades
14 Blades
16 Blades
18 Blades
Rotor Speed
310RPM
Weight with Roller
1,092 lbs.
1,260 lbs.
1,272 lbs.
1,531 lbs.
1,743 lbs.
2,310 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'E' SERIES POWER HARROW SPECIFICATIONS
MODEL
E100
E125
E150
E180
E200
E225
Tractor Horsepower (PTO)
25 - 50HP
35 - 50HP
35 - 100HP
40 - 100HP
50 - 100HP
70 - 100HP
PTO Speed
540 RPM
Hitch Category
Clevis Style CAT 1 & 2 QH Compatible
Working Width
39"
49"
60"
72"
78"
90"
Overall Width
42"
52"
63"
75"
81"
93"
Overall Width of Extra Wide Roller
51"
61"
72"
84"
90"
101"
Working Depth
9"
10"
Number of Blades
8 Blades
10 Blades
12 Blades
14 Blades
16 Blades
18 Blades
Rotor Speed
310RPM
Weight with Roller
1,092 lbs.
1,260 lbs.
1,272 lbs.
1,531 lbs.
1,743 lbs.
2,310 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
