All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!
ACMA 'DT' (Double Transmission) Series Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller for ‘On-The-Fly’ Working Depth Control!
FOR 100-300HP TRACTORS
Heavy Duty Professional Premium Series, 10'-2" to 17' Working Width ACMA 'DT' (Double Transmission) Series, Cat 2, 3N & 3 Tractor 3-Point, PTO Powered Rotary Tiller With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control. Quick Hitch Compatible!
You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!
STANDARD FEATURES:
ACMA 'DT' (Double Transmission) Series Uses Italian Made 1000RPM Severe Duty Large Sump Gearboxes For Cooler Operation & Longer Life!
Cat 2, 3N & 3 Quick Hitch Compatible.
Both Side Transmission Gear Drive Systems Are In An Oil Bath Gear Box.
Double Layer Top Deck, Each At 3/16" Thick!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (superior to skid shoes) & Also Provides Soil Conditioning! Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Rotor 'Counter Flange Kit' Is Another Standard Feature, Minimizing Blade & Bolt Breakage In The Toughest & Rockiest Ground Conditions!
Rotor's 'End Flanges' Have One Straight Blade Each To Ensure Maximum Working Width & Minimizing Vegetation Wrapping On The Rotor Ends!
Multi-Position, Adjustable Rear Gates With Adjustable Built-In Shock Absorption:
Super Duty Rear Gates Are Durable Enough To Use For Finish Grading & Are Mechanically Linked To The 'Hydraulically Controlled Rear Roller' To Follow The 'On-The-Fly' Working Depth Positioning!
Wing Plates On Outside Corners Of Rear Gates Work To Level Any Ridges At The Outside Edges Of The Working Width!
Parking Stand & Rear Ridge Leveling Plates Are Standard.
Tiller Includes a 1-3/8", 21 Spline (or 1-3/4" 20 Spline) 1000RPM CAM Clutch Protected PTO Shaft:
It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
NO Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!

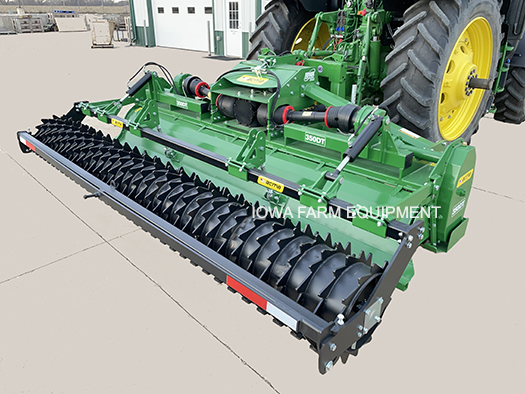

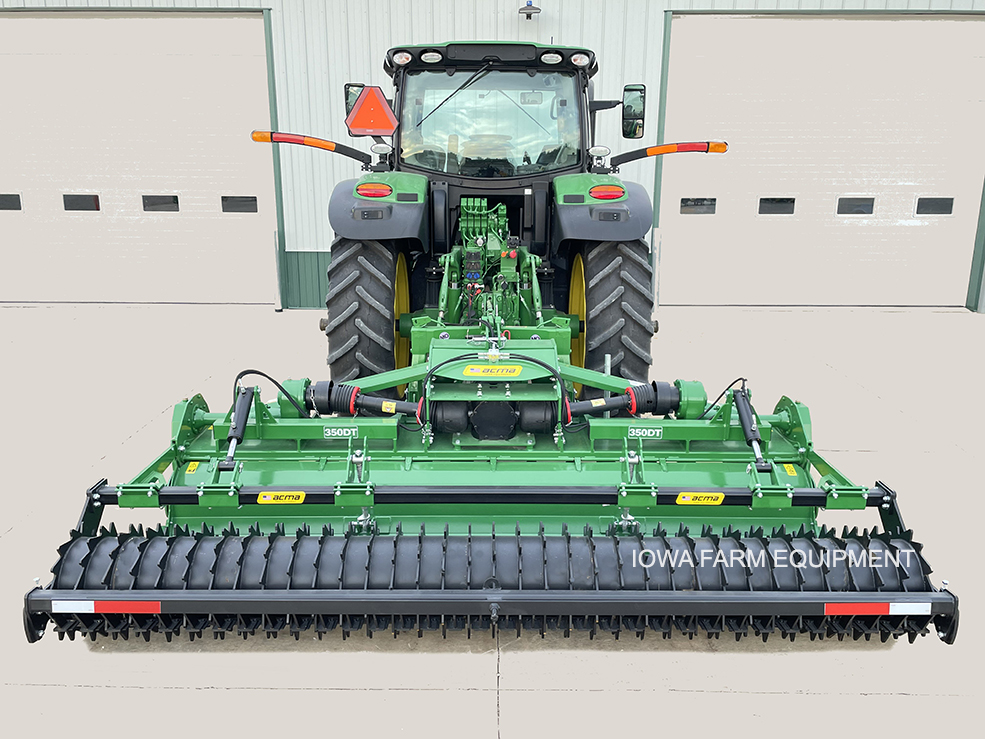

ACMA 350DT Tiller on 6195 Deere
ACMA 250P Tiller & Packer Roller at Work Producing A Perfect & Beautiful Seed Bed In An Efficient Single Pass Even In Heavy Corn Stalk Residue!
ACMA 250P Rotary Tiller with Dual Box Seeder at Work Developing a Perfect Seedbed, Seeding & Culti-Packing All in One Efficient Pass!

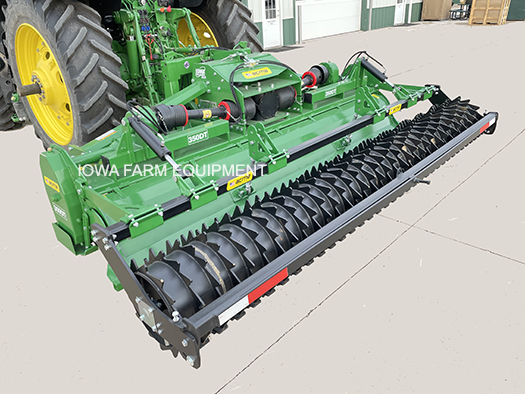

ACMA 350DT Tiller on 6195 Deere
ACMA 350DT Tiller View From Cab of 6195 Deere

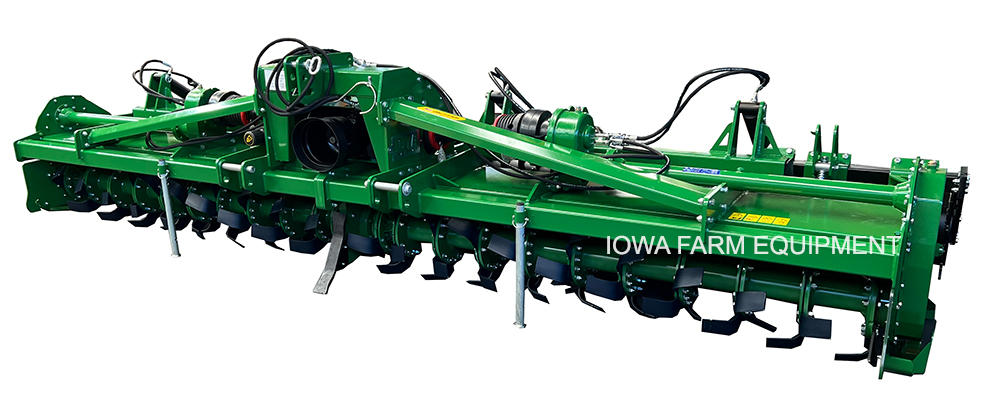

ACMA 'DT' Series Rotary Tiller with Hydraulically Controlled XW (Extra Wide) Packer Roller
HEAVY DUTY ROTOR COUNTER FLANGE KIT Reduces Blade Breakage in Hard & Rocky Ground
'DT' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
300DT
350DT
400DT
450DT
500DT
Tractor Horsepower (PTO)
100 - 250HP
120 - 250HP
150 - 300HP
160 - 300HP
175 - 300HP
PTO Speed
1000 RPM
Hitch/Hitch Category
Category 2, 3N & 3, 3-Point is Quick Hitch Compatible
Working Width
10'-2"
11'-10"
13'-6"
15'-0"
17'-0"
Overall Width
10'-10"
12'-6"
14'-2"
15'-7"
17'-6"
Overall Width of Packer Roller
11'-6"
13'-3"
14'-10"
16'-3"
18'-2"
Rotor
13 Flanges & Total of 72+2 Straight End Blades
15 Flanges & Total of 84+2 Straight End Blades
17 Flanges & Total of 96+2 Straight End Blades
19 Flanges & Total of 108+2 Straight End Blades
22 Flanges & Total of 120+2 Straight End Blades
6 Blades Per Flange on 11 Center Flanges
6 Blades Per Flange on 13 Center Flanges
6 Blades Per Flange on 15 Center Flanges
6 Blades Per Flange on 17 Center Flanges
6 Blades Per Flange on 18 Center Flanges
3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Rotor Speed
257 RPM
Blade Tip Speed
322 RPM
Blade Tip to Blade Tip Diameter, Rotor
22.25"
21.25"
20"
Max. Working Depth
10"
Rear XW Packer Roller Diameter
22"
Weight
4,550 lbs.
5,100 lbs.
5,500 lbs.
6,500 lbs.
6,900 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
'DT' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
300DT
350DT
400DT
450DT
500DT
Tractor Horsepower (PTO)
100 - 250HP
120 - 250HP
150 - 300HP
160 - 300HP
175 - 300HP
PTO Speed
1000 RPM
Hitch/Hitch Category
Category 2, 3N & 3, 3-Point is Quick Hitch Compatible
Working Width
10'-2"
11'-10"
13'-6"
15'-0"
17'-0"
Overall Width
10'-10"
12'-6"
14'-2"
15'-7"
17'-6"
Overall Width of Packer Roller
11'-6"
13'-3"
14'-10"
16'-3"
18'-2"
Rotor
13 Flanges & Total of 72+2 Straight End Blades
15 Flanges & Total of 84+2 Straight End Blades
17 Flanges & Total of 96+2 Straight End Blades
19 Flanges & Total of 108+2 Straight End Blades
22 Flanges & Total of 120+2 Straight End Blades
6 Blades Per Flange on 11 Center Flanges
6 Blades Per Flange on 13 Center Flanges
6 Blades Per Flange on 15 Center Flanges
6 Blades Per Flange on 17 Center Flanges
6 Blades Per Flange on 18 Center Flanges
3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Rotor Speed
257 RPM
Blade Tip Speed
322 RPM
Blade Tip to Blade Tip Diameter, Rotor
22.25"
21.25"
20"
Max. Working Depth
10"
Rear XW Packer Roller Diameter
22"
Weight
4,550 lbs.
5,100 lbs.
5,500 lbs.
6,500 lbs.
6,900 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
Specifications & Designs Are Subject to Change Without Notice
