ACMA Hydraulically Articulated, Multi-Purpose Commercial Ditch Bank Flail Mowers For 50-75HP, 540RPM Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
ACMA Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!
This ACMA Flail Mower Has 28 Very Large Solid Cast Steel Hammer Blades- ACMA Flail Mowers Always Have the Highest Population of Blades To Provide The Best Possible Cut & Reduce The Burden on Your Tractor!
ACMA Mower Gearboxes Include An Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment Of The Mowers PTO Shaft To The Tractors PTO Shaft:
The O.R. Clutch Enables You To Freely Spin The PTO Shaft & Gearbox For Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows The Mower Gearbox To Free Wheel To A Stop, Eliminating Abrupt Shutdowns & Premature Wear Of The PTO Brake!
'Under Deck Mulching Grating' Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Under Deck Grating Is Integrated With The Protective (Internal) Double Skin.
Offset & Head Positioning Functions Operate Hydraulically.
With The External Gearbox & Unique Hitch Configuration of ACMA Mowers, Expect to Get the Most Right Side Reach Possible!
Multiple Advantages Of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If You're Mowing Along Fencelines, Treelines, Building, Etc., Instead Of Getting Your Entire Tractor Along Side Of The Fence Or Building (and risk scraping your Tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep The Offset Part Of The Mower Close To The Edges You Want To Mow And Prevent Damage To The Tractor Or Trees, Fencing, Walls, Etc. Snagging Posts, Trees Or Other Secured Objects Can Also Damage The 3-Point Linkage On The Mower Or Even The Pull Arms & Top Link Of Your Tractor.
Much, Much Better Visibility: If The Edge Of Any Mower Is Flush With The Sidewall Of Your Tractors Tire, Forget About Visibility! You Will Be Cutting With Your Tractor Tire As A 'Guide', Which is OK In Open Areas, But Again, When You Are Mowing Up Against Obstacles, You Want Visibility, And The Offset Feature Will Provide That. It Will Also Eliminate The Need To Look Back Over Your Shoulder To See The Mower Deck. A Simple Glance To Your Right Gives You Visibility Of The Outer Mowing Edge.
ACMA Flail Mowers Provide A Much Better Cut Than Standard Rotary Mowers, Plus With The 'Solid Cast Hammer' Blades On This Flail Mower, You Can Cut 3" Diameter Material & Get A Very Good Finish Cut Too!
ACMA Flail Mowers Are The Safest & Most Efficient Mowers Available:
With ACMA Flail Mowers, The Possibility Of Discharging Dangerous Projectiles Is Dramatically Reduced Compared To Conventional Rotary Mowers, And With The Reduced Deck Depth & Weight, They're The Easiest For You & Your Tractor To Handle! Plus, The Superior 'Single-Pass' Cut Of ACMA Flail Mowers Provides New Efficiencies By Eliminating Multiple Passes For Excellent Results!
Mower Ships Fully Assembled & Ready To Use! This Means No Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knucklebusters & No Waiting Until It's Assembled Before First Use!
Made In Italy & Assembled In USA:
(No Chinese Gearbox, NO Chinese Components)
Mower Ships Assembled & Ready To Use!
Mower Ships with 540RPM PTO Shaft!
ACMA DB160E Ditch Bank Flail Mower in Red & Silver Color Option
ACMA DB180E Ditch Bank Flail Mower in Orange Color Option
ACMA DB160E Ditch Bank Flail Mower in Red Color Option
ACMA DB180E Ditch Bank Flail Mower in Orange Color Option

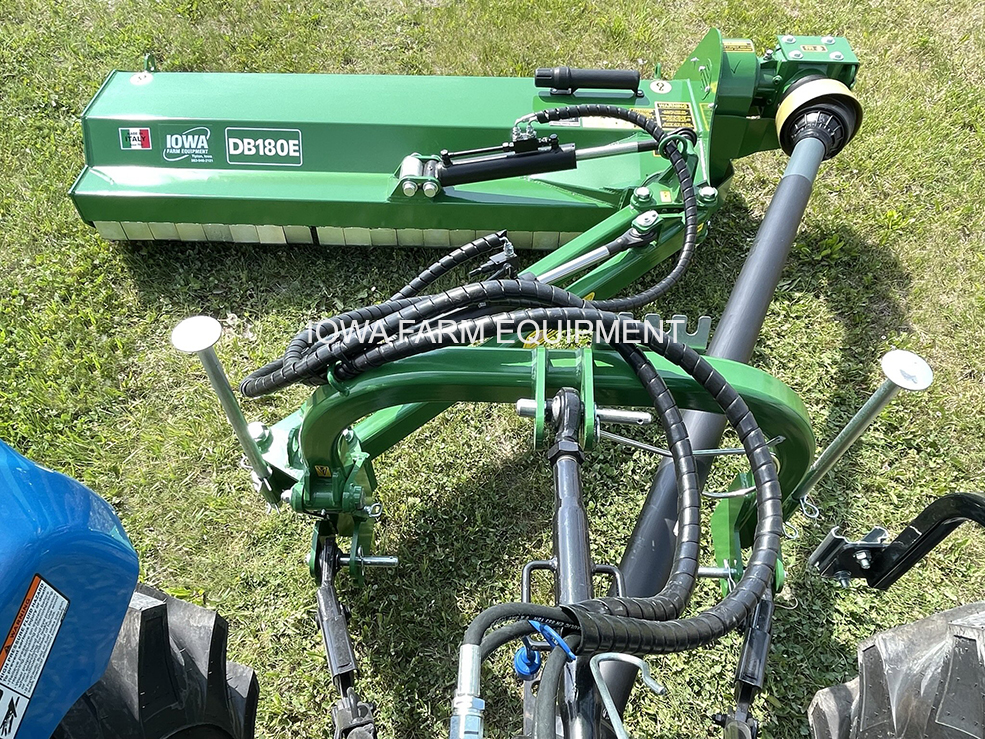

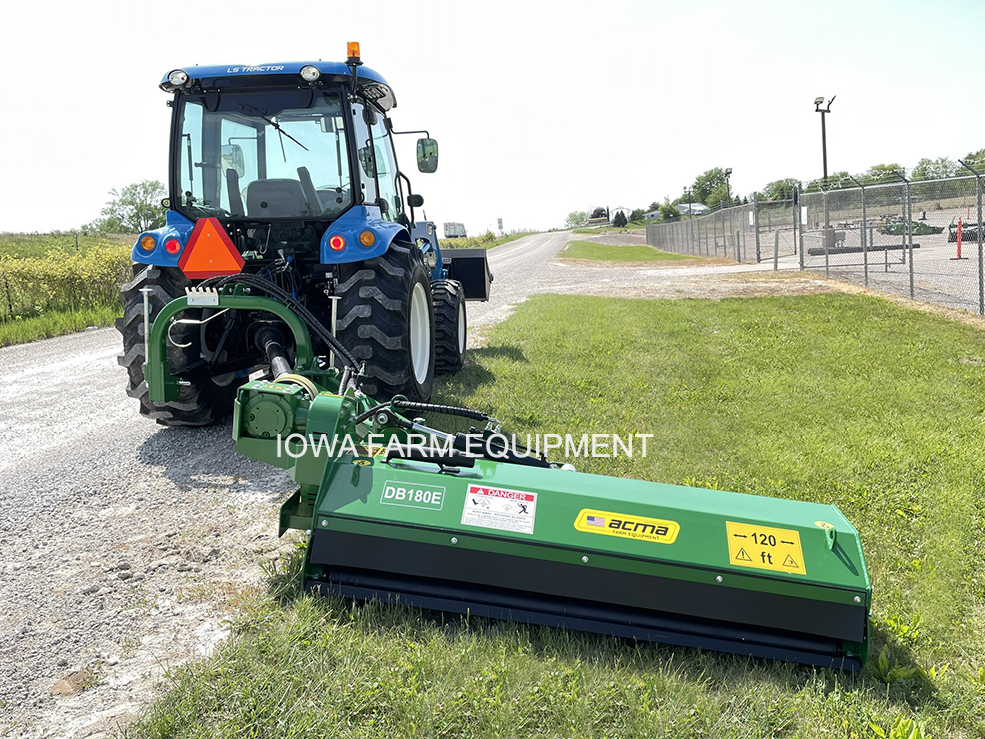

ACMA DB180E Ditch Bank Flail Mower in Green Color Option
ACMA DB180E Ditch Bank Flail Mower in Orange Color Option
ACMA DB180E Ditch Bank Flail Mower in Green Color Option
ACMA DB160E Ditch Bank Flail Mower in Blue & Silver Color Option

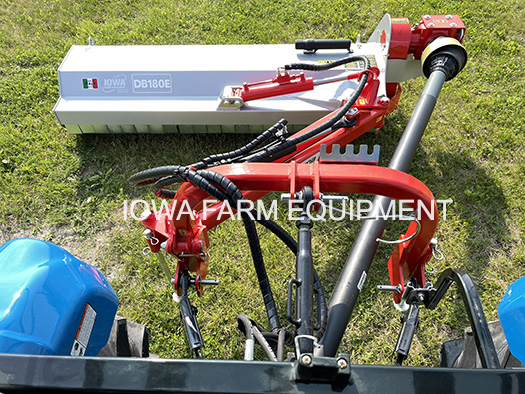

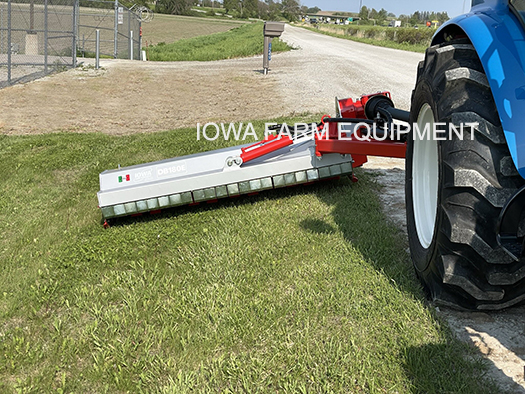

ACMA DB180E Ditch Bank Flail Mower in Red & Silver Color Option
ACMA DB180E Ditch Bank Flail Mower in Red & Silver Color Option
ACMA DB180E Ditch Bank Flail Mower in Red & Silver Color Option
ACMA DB201E Ditch Bank Flail Mower in Blue & Silver Color Option
ACMA DB201E Ditch Bank Flail Mower in Blue & Silver Color Option
DB180E DITCH BANK SERIES SPECIFICATIONS
HP Range (Engine)
50 - 75HP
Hitch
CAT 2
Max. Horizontal Reach To Outside Cutting Edge
9'-2"
Working Width
71"
Overall Width
79"
Max. Upward Angle
90°
Max. Downward Angle
60°
Number of Hammer Blades
28 (1.75lb/each)
Cutting Capacity
3" Dia.
Hydraulic Outlets
Requires Two Sets
Weight
1,050lb's
Weights are Less Pallets, Crates & PTO Shaft.
DB180E DITCH BANK SERIES SPECIFICATIONS
HP Range (Engine)
50 - 75HP
Hitch
CAT 2
Max. Horizontal Reach To Outside Cutting Edge
9'-2"
Working Width
71"
Overall Width
79"
Max. Upward Angle
90°
Max. Downward Angle
60°
Number of Hammer Blades
28 (1.75lb/each)
Cutting Capacity
3" Dia.
Hydraulic Outlets
Requires Two Sets
Weight
1,050lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
