Valentini Tiger Series 3-Point Power Harrows

Valentini Tiger Series Tractor 3 Point Power Harrow
'TIGER' SERIES POWER HARROWS FOR 30-100HP(PTO) TRACTORS

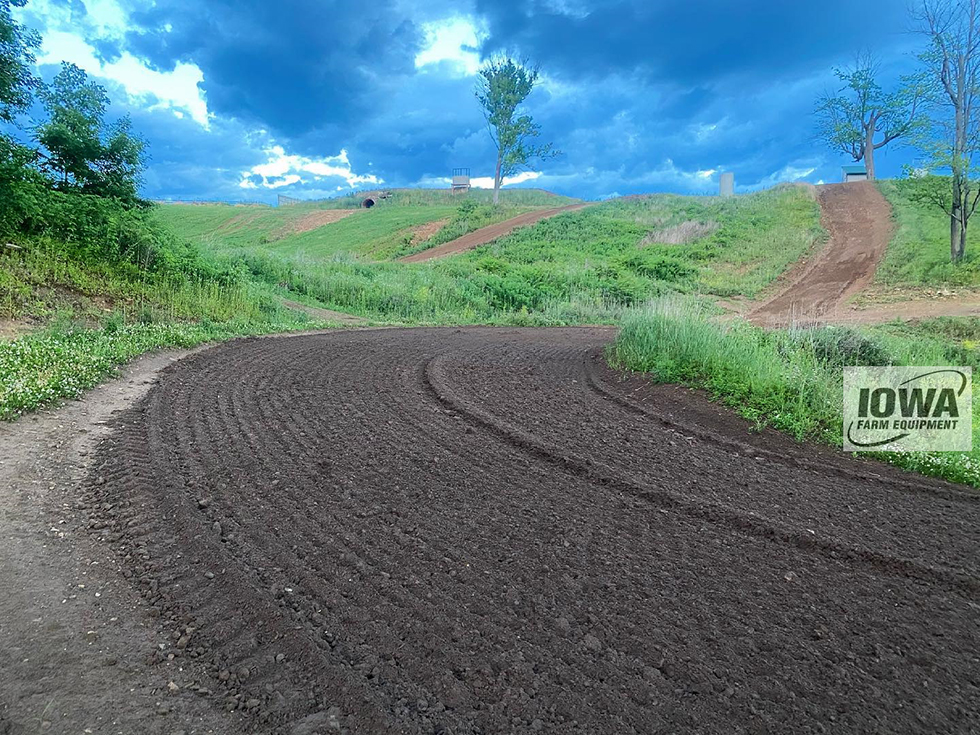

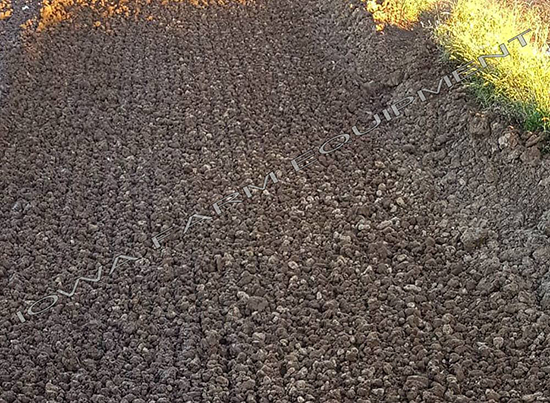

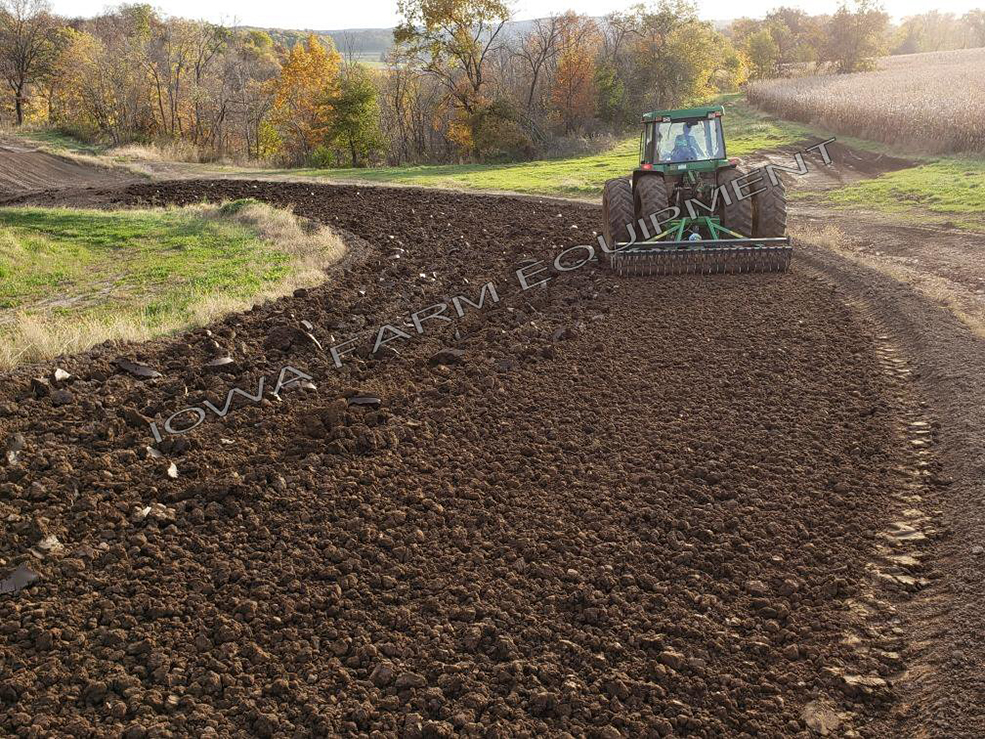

As with ALL Valentini Power Harrows, the Tiger Series Is Quick-Hitch Compatible, and has been providing Excellent Soil Conditioning & Seed Bed Preparation in all types of soils - without inverting the soil, leaving nutrients on the top layer, leaving weed seeds deep & dormant, and not inverting moist substructure soils, preventing unwanted loss of moisture! The results have been proven in applications varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the most unconventional settings, Valentini has proven to have Bullet Proof Reliability, while producing Excellent Results in one pass! Whether your ground conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, expect to get the results you want with Valentini Power Harrows.

STANDARD FEATURES

  • Quick Hitch Compatible, Cat 1&2, 3-Point Hitch.
  • 540RPM Large Sump Gearbox.

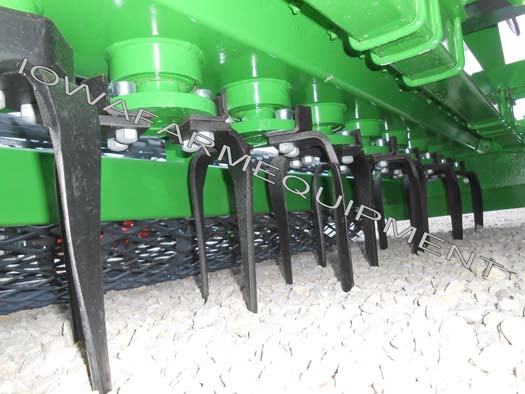

  • Two Blades Per Rotor.
  • 9" Spacing Between Rotors Provides Highest Population of Blades.
  • Heat Treated, Ultra-Hardened Central & Side Gears, and Blade Holders.
  • Oil Bath Transmission (Top Drive Enclosure) & Gear Box.
  • Side Skirts for Containment are adjustable.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Manually Adjusted Rear Rollers (working depth) via Rear Corner Pin-Adjustments.
    • Optional Adjustment Methods.
      • Manual Hand Crank or Hydraulic Adjusting Kit for Infinite Travel Adjustment.
  • Safety Guards.

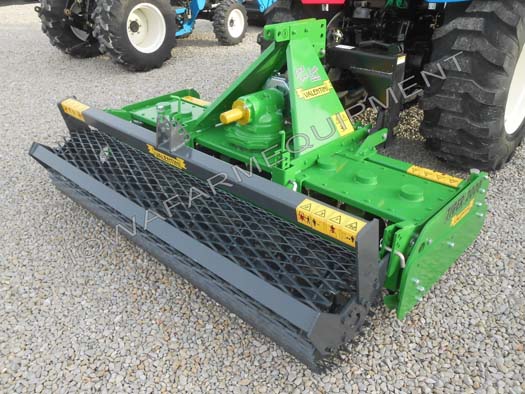

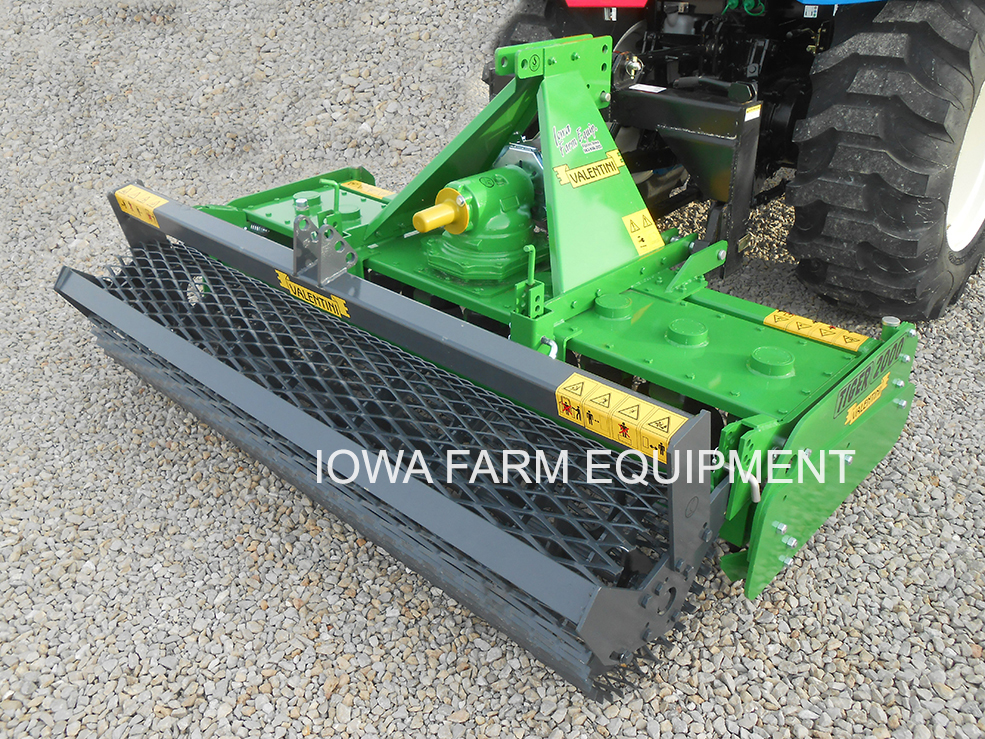

Valentini Tiger 2000 3 Point Power Harrow

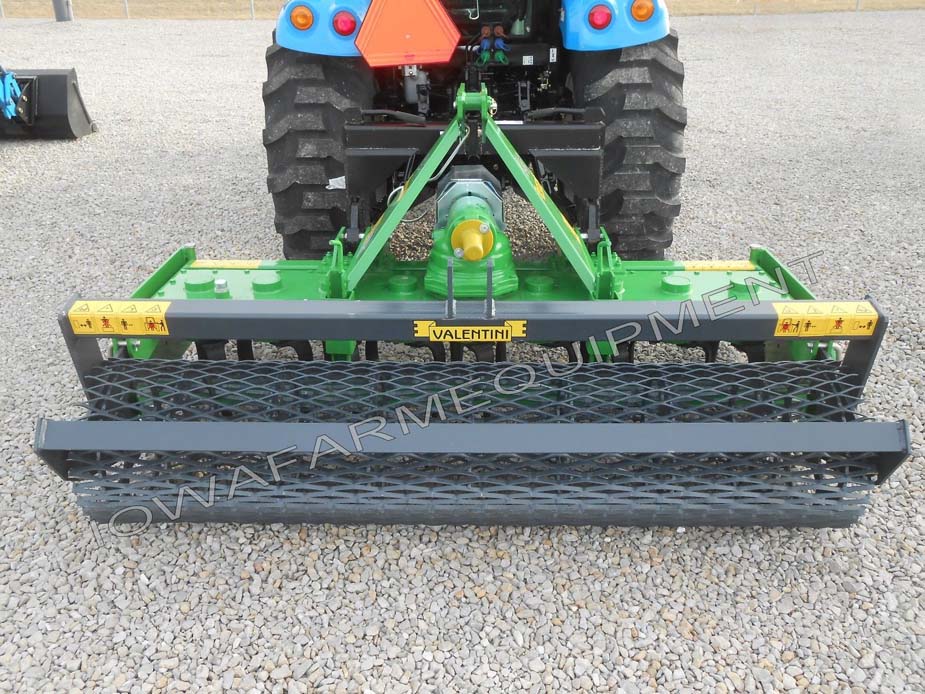

Tiger 2000 Power Harrow Shown with Manually Adjusted Cage Roller

Accessories

Valentini King Power Harrow Plowshares
FRONT CORNER PLOW SHARES
Enables deeper penetration of Side Plates.
(Plate style is effective with high crop residue)

Valentini King Power Harrow Side Rigging Discs
FRONT CORNER DISCS
Enables deeper penetration of Side Plates.

Valentini King Power Harrow Track Eradicator
TIRE TRACK ERADICATOR

OPTIONAL REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.

Valentini Hermes Roto Tiller Cage Roller
CAGE ROLLER
Shown on Z-Series Tiller w/Hyd. Depth Adjustment
Also Shown in Second Video Above

Valentini Hermes Roto Spiral Roller
SPIRAL ROLLER
Shown on Maxi-D Power Harrow with Hydraulic Depth Adjustment

Valentini Hermes PTO Powered Tiller Packer Roller
PACKER ROLLER
Shown on A-Series Tiller w/Manual Depth Adjustment
Also Shown in First Video Above

Valentini Rotary Tiller Basket Roller
BASKET ROLLER
Shown on U-Series Tiller w/Manual Depth Adjustment

Valentini Roto Tiller Flat Roller
SMOOTH ROLLER

Additional Rollers Available (photos not available):
  • Smooth Roller
  • Blade Roller
  • Spike Roller
  • Toothed Roller

TIGER SERIES POWER HARROW SPECIFICATIONS
MODEL 1400 1600 1800 2000 2300 2500
Tractor Horsepower Required 30 - 100 HP 40 - 100 HP 50 - 100 HP 60 - 100 HP 70 - 100 HP 80 - 100 HP
Rotor 310 RPM
Working Width 55" 64" 73" 81" 90" 99"
Overall Width 58" 67" 76" 84" 93" 102"
Number of Blades 12 14 16 18 20 22
Working Depth 11"
Weight with Packer Roller 999 lbs. 1,155 lbs. 1,311 lbs. 1,468 lbs. 1,626 lbs. 1,782 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
